APPLICATION

- Kinugawa universal turbocharger td04l-13t
- SAAB 9000 B234R

- HDAuto Toyota Hilux 2L 3L Turbocharger V1
- Horsepower Range: 180~250HP

Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.

WHEEL SPEC
- Compressor Wheel: 40 / 56 mm
(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine Wheel: 41.3 / 47 mm (Inconel 713)
(2 types available: STD, STS. Click here to learn more about STS technology.↗)
Kinugawa STS Turbin Wheel

BEARING TYPE
- Journal Bearing

COOLING TYPE
- Oil and Water-Cooled

KIT INCLUDES
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-010)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#414-01101-018*2 + #416-01003-007*4)
- 1 x Balance report with anti-counterfeit tag↗

PRODUCT SITUATION
- Brand New

- Full balance from Schenk MBRS110 Germany

PROVIDER
- Kinugawa Turbo Systems

Warranty
- No

CHRA for SAAB VOLVO TD04

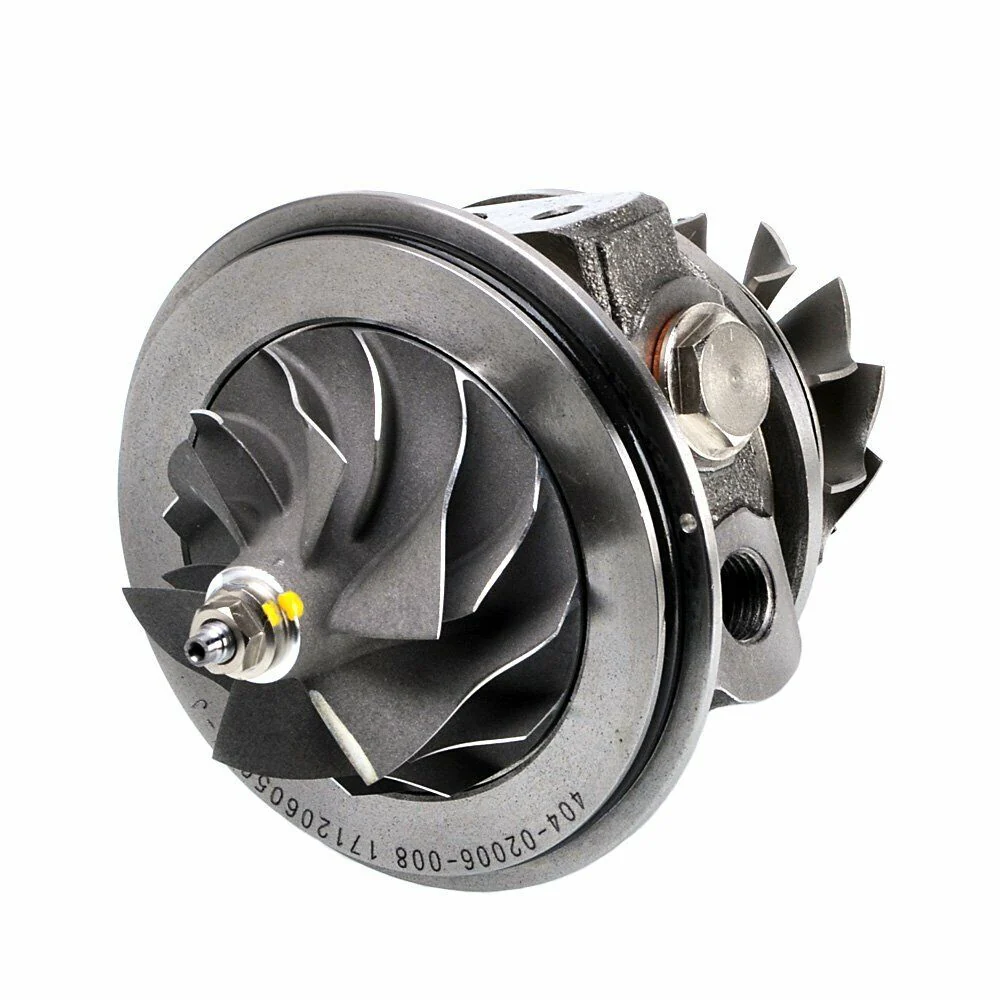

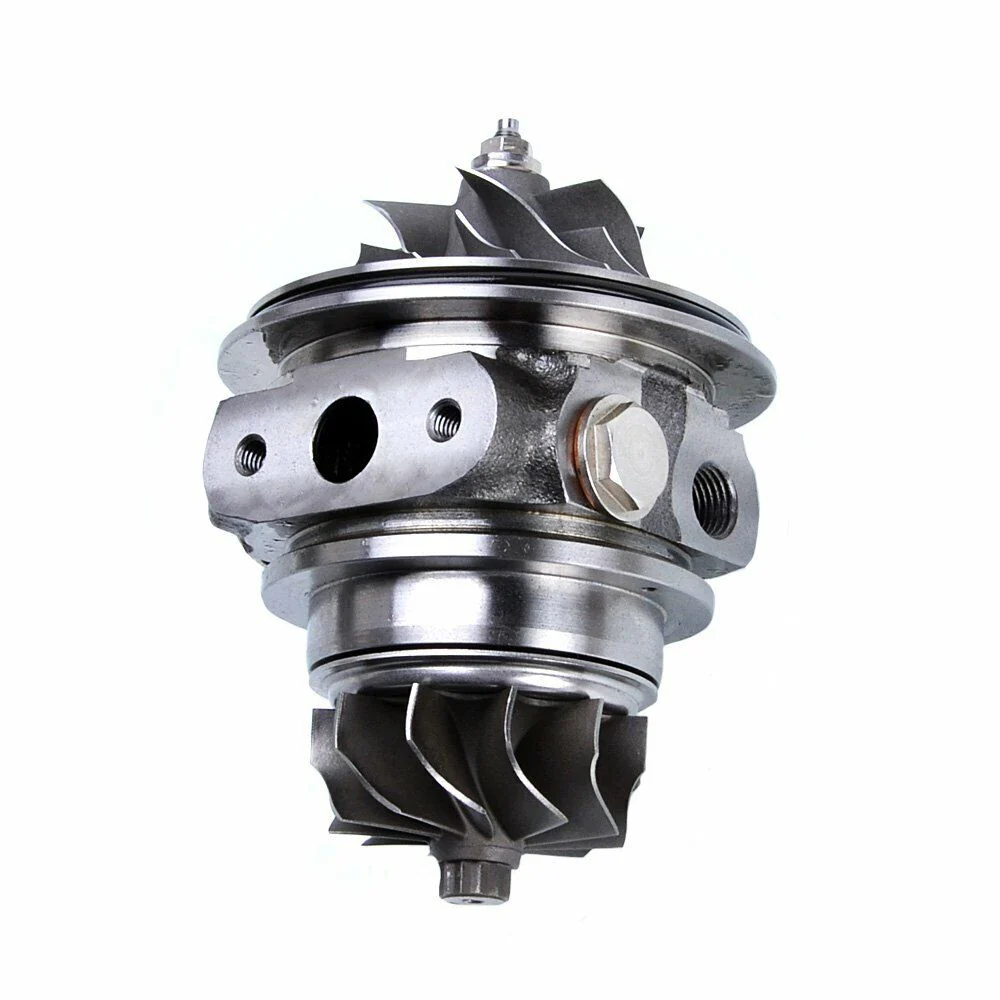

Kinugawa Turbo SAAB 9000 Upgrade CHRA Cartridge TD04L-13T for T25 5cm 6cm 7cm Interanl Wastegate
