Application

- Fits Kinugawa / Greddy / Mitsubishi / Garrett Journal Bearing or Ball Bearing Turbochargers
- Please confirm your turbo's thread pitch before placing the order.

Measurement

- M8 x 1.25mm (Total length: 24.3mm, thread length: 12.2mm, restrictor 3.4mm)
- M10 x 1.00mm (Total length: 29.0mm, thread length: 11.7mm, restrictor 1.5mm)
- M10 x 1.25mm (Total length: 29.0mm, thread length: 11.7mm, restrictor 1.5mm)

- M10 x 1.50mm (Total length: 29.0mm, thread length: 11.0mm, restrictor 1.0mm)

- M10 x 1.50mm (Total length: 29.0mm, thread length: 11.0mm, restrictor 1.8mm)

- M12 x 1.25mm (Total length: 30.8mm, thread length: 12.5mm, restrictor 1.0mm)
- M12 x 1.25mm (Total length: 30.8mm, thread length: 12.5mm, restrictor 1.5mm)

- M12 x 1.50mm (Total length: 30.8mm, thread length: 12.5mm, restrictor 1.5mm)

- 7/16"-24 (Total length: 29.0mm, thread length: 11.0mm, restrictor 1

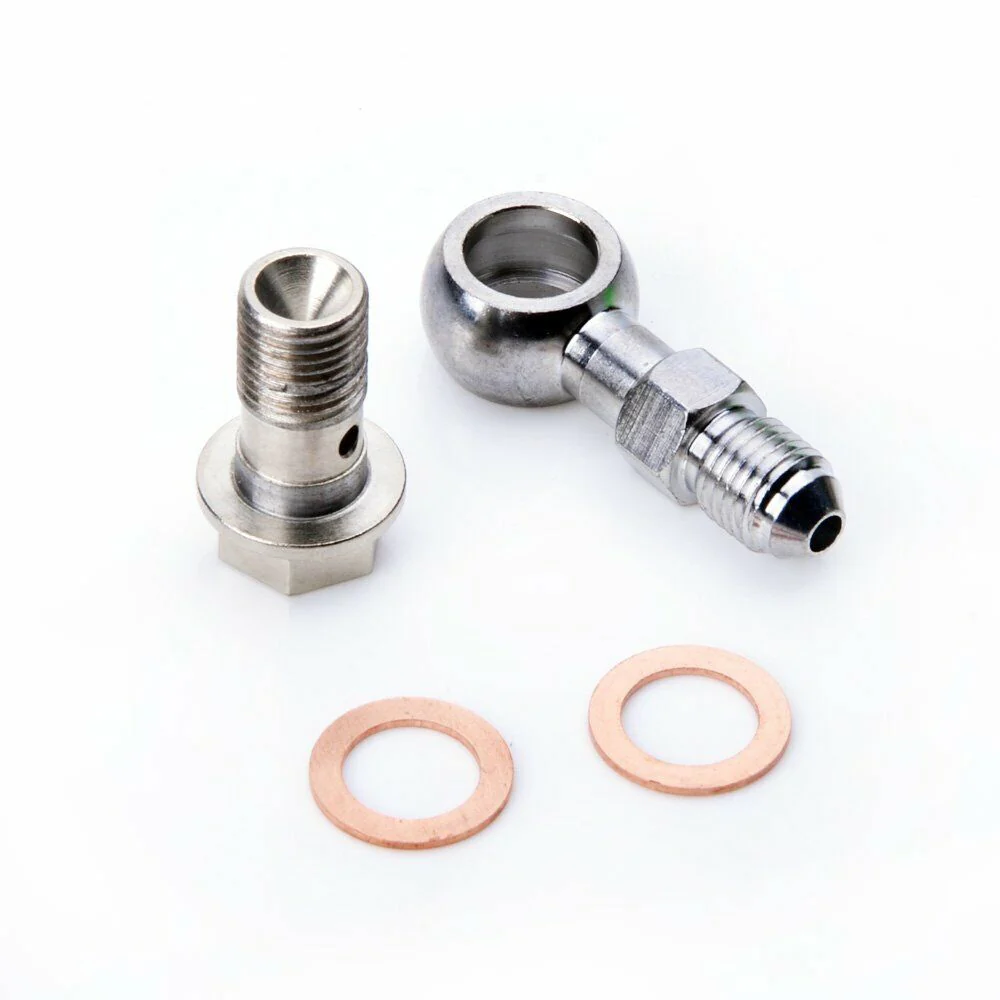

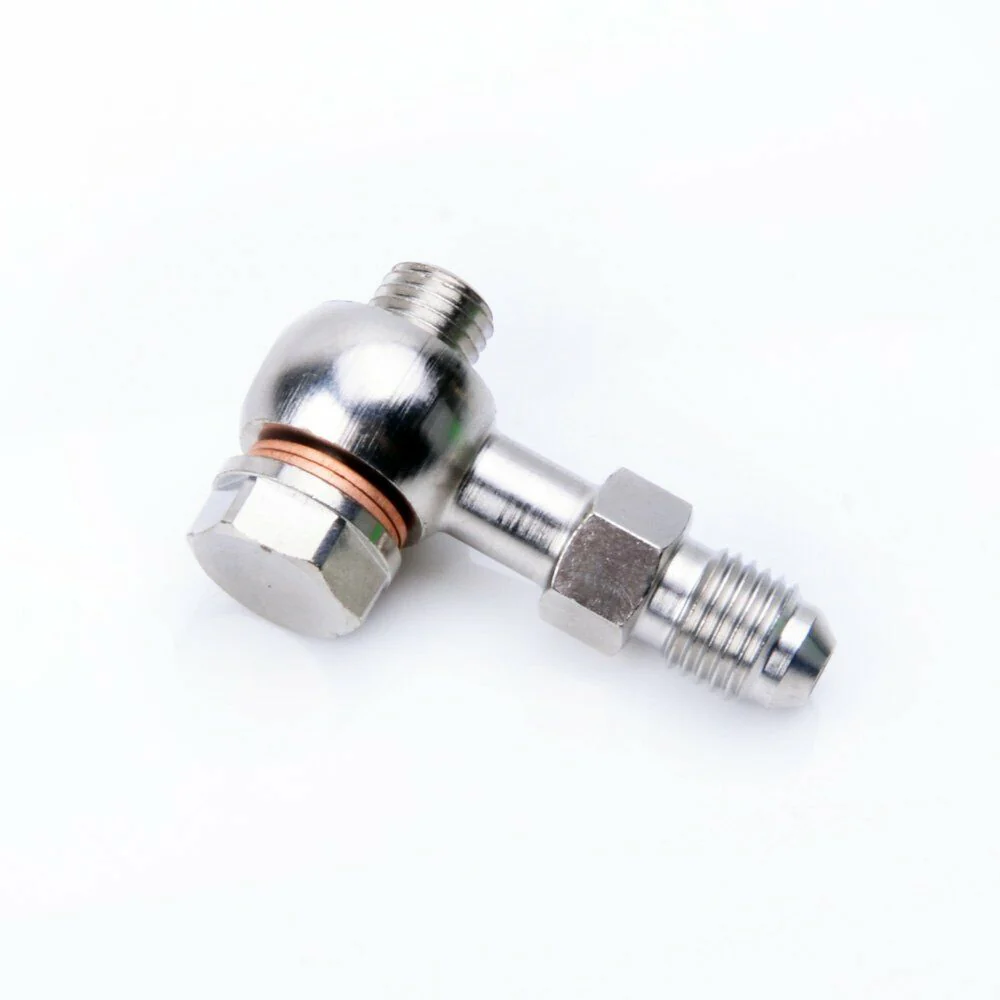

Banjo Bolt Kit

Kinugawa Turbo Banjo Bolt Kit for Turbo Oil Feed Side with Oil Restrcitor
