- 1.5~2L petrol engine
- 2.5~4L diesel engine


Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.

WHEEL SPEC
- Compressor Wheel: 42 / 56 mm
　(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed.)
- Turbine Wheel: 52.0 / 45.6 mm
　(3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING
- Inlet: 2.4" non anti-surge
- Outlet: 2"

TURBINE HOUSING
- Nozzle Area: 5cm AR.33, 6cm AR.41, 7cm AR.49 (3 options)
- Inlet: T25

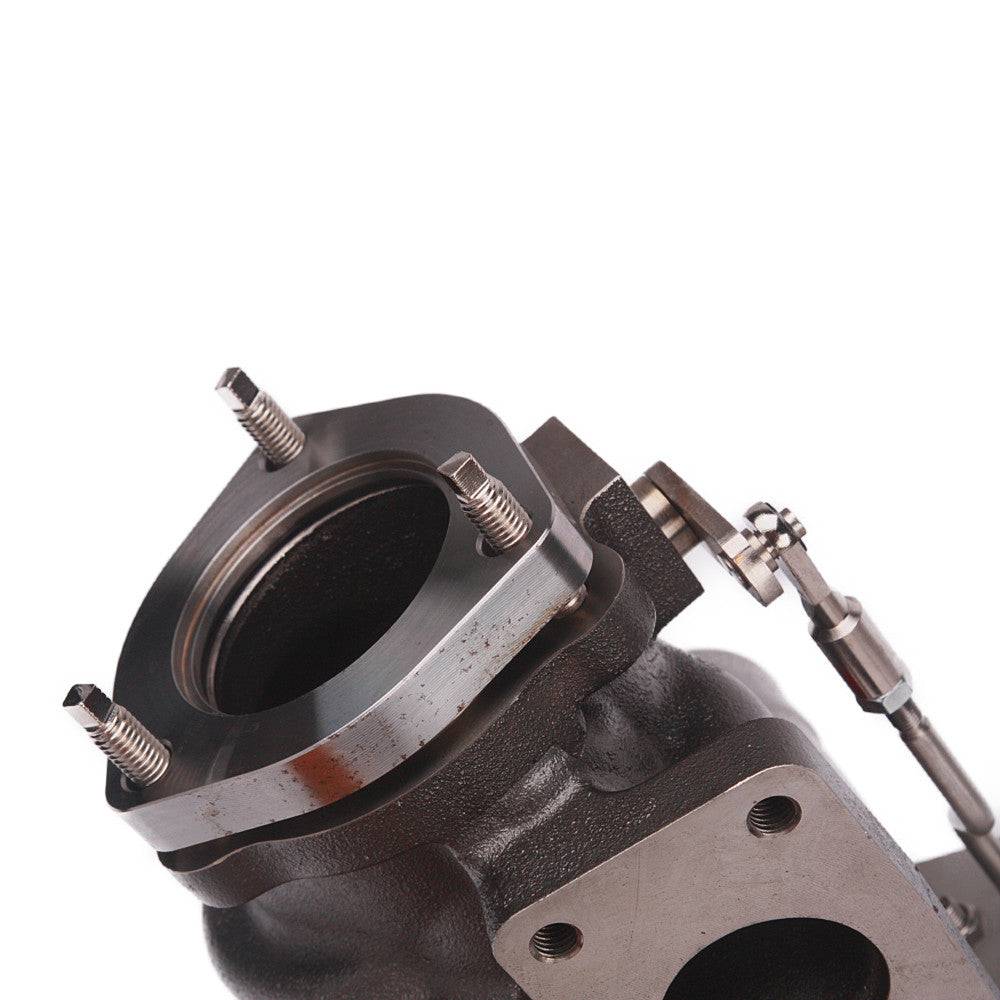

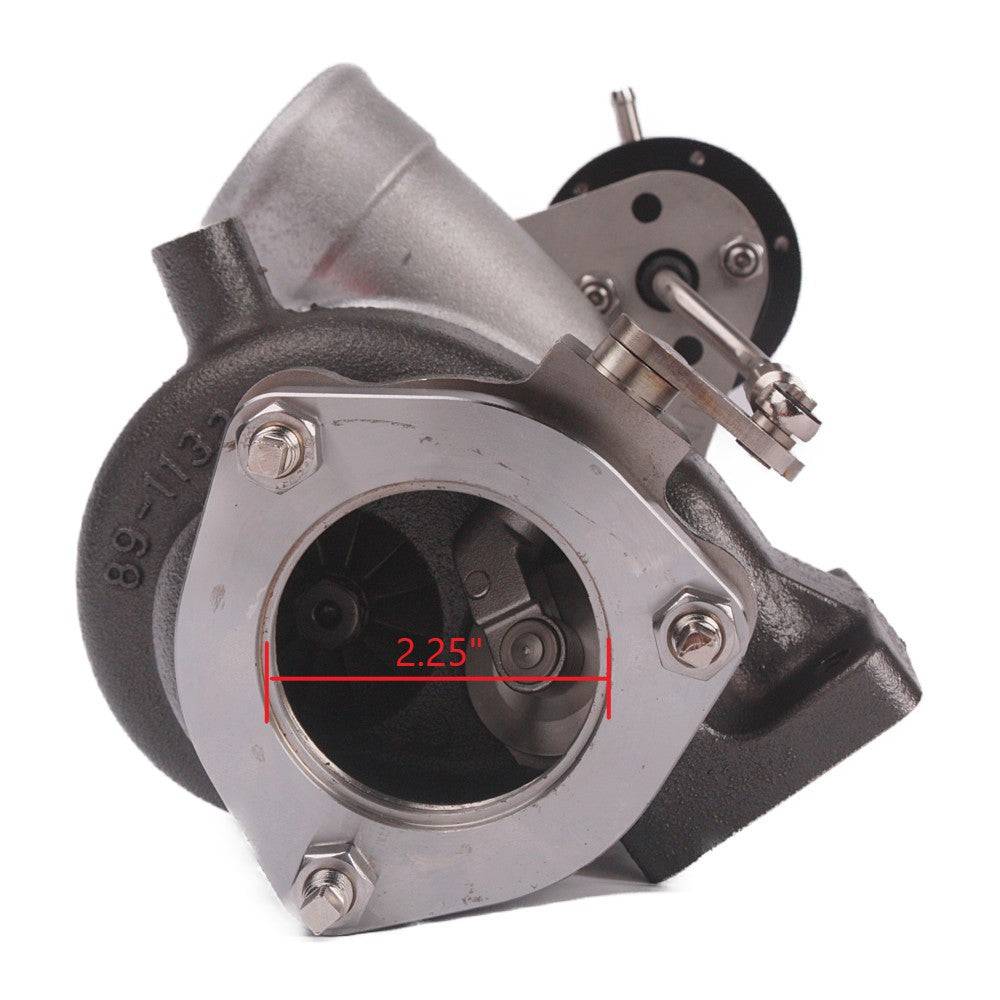

- Outlet: SAAB Conic type with 2.25" flange adapter
- Wastegate: Internal gated

BEARING TYPE
- Journal Bearing

COOLING TYPE
- Oil and Water-Cooled

ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

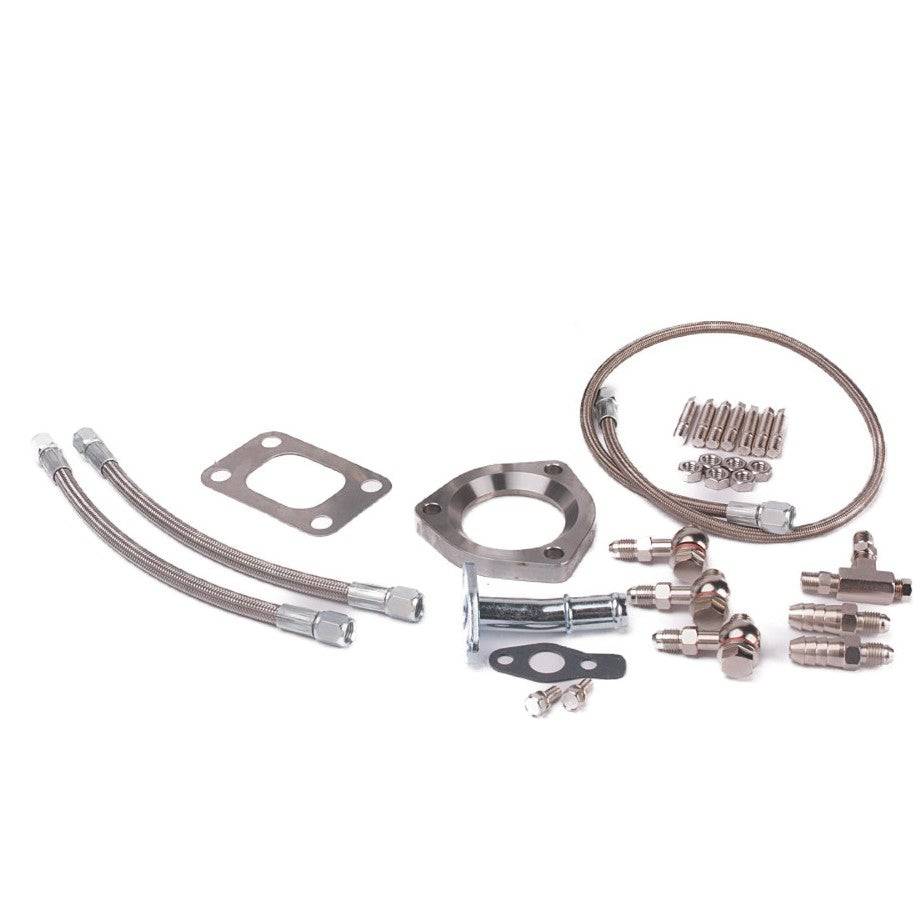

KIT INCLUDES
- 1 x turbocharger
- 1 x oil feed line kit
- 1 x water coolant feed and return line kit
- 1 x turbine inlet and outlet gasket set
- 1 x oil return pipe kit
- 7 x stud and nut set (#414-09101-009*7 + #414-10101-004*7)
- 1 x tee fitting
- 1 x Conic Flange Adapter (#412-02002-024)
- 1 x Balance report with anti-counterfeit tag↗

PRODUCT SITUATION
- Brand New

PROVIDER
- Kinugawa Turbo Systems

WARRANTY

For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
