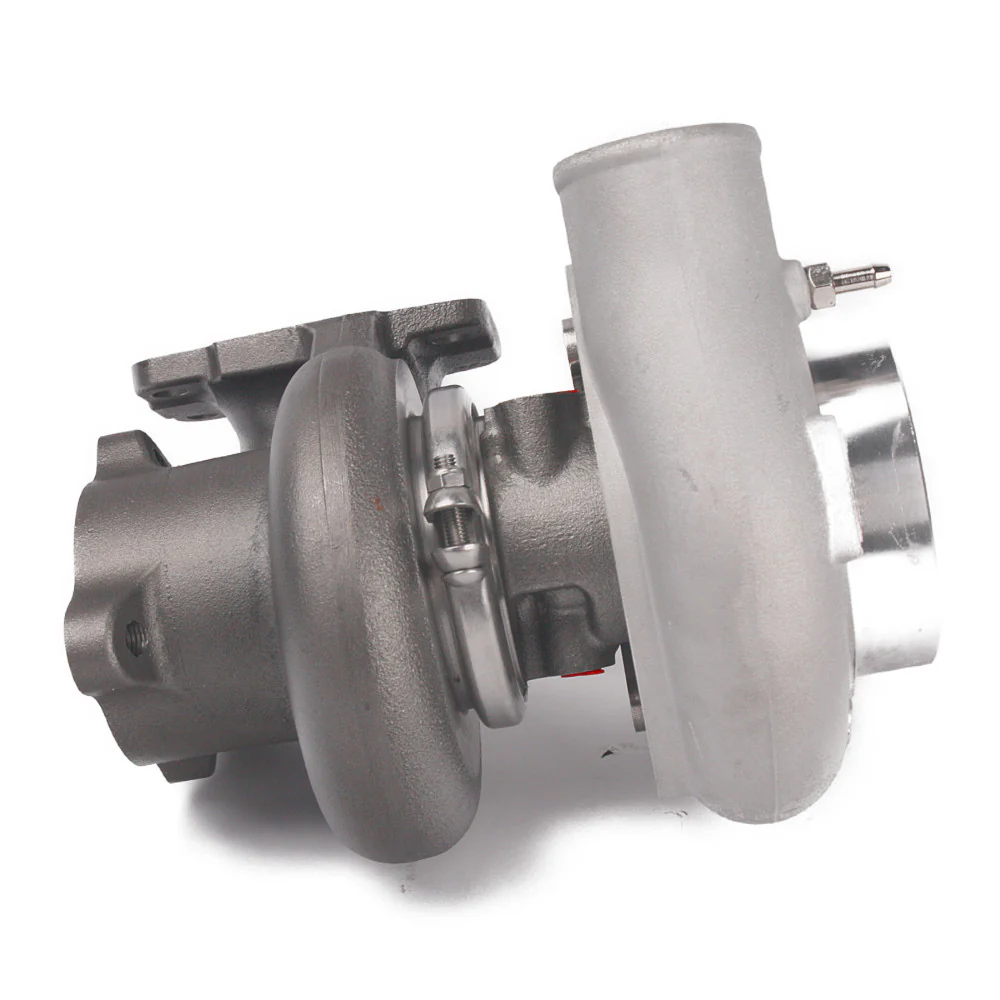

Kinugawa Turbo 4" Anti-Surge TD05H-18K 3-Bolt for Nissan Patrol TD42 High Mount Oil-Cooled
Application
- Fits Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
- Fits Radius Fabrications TD42 High Mount / High Merge Style Turbo T3 Manifold.
- Fits Radius Fabrications TD05 3" High Mount P4x4 / Arashi 3 Bolt Dump Pipe.
Note: Designed to bolt up to a 3" exhaust system with 3-Bolt outlet flange plus 3" V-Band adapter. Kinugawa has developed the perfect combination of performance and ease of fitment. The advantage of this bolt-on kit is that it suits most aftermarket intercooler kits currently on the market with minimal modifications.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-18K
Wheels Spec
- Compressor wheel: 55.1 / 75 mm (7+7 Point Milling / Third-Order Surface)
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins. each |
| Characters |
1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 4" anti-surge
- Outlet: 2"
- Inlet: 4" anti-surge
- Outlet: 2"
Turbines Housing
- Nozzle area: 6cm (A/R .41) or 8cm (A/R .57)
- Inlet: T3

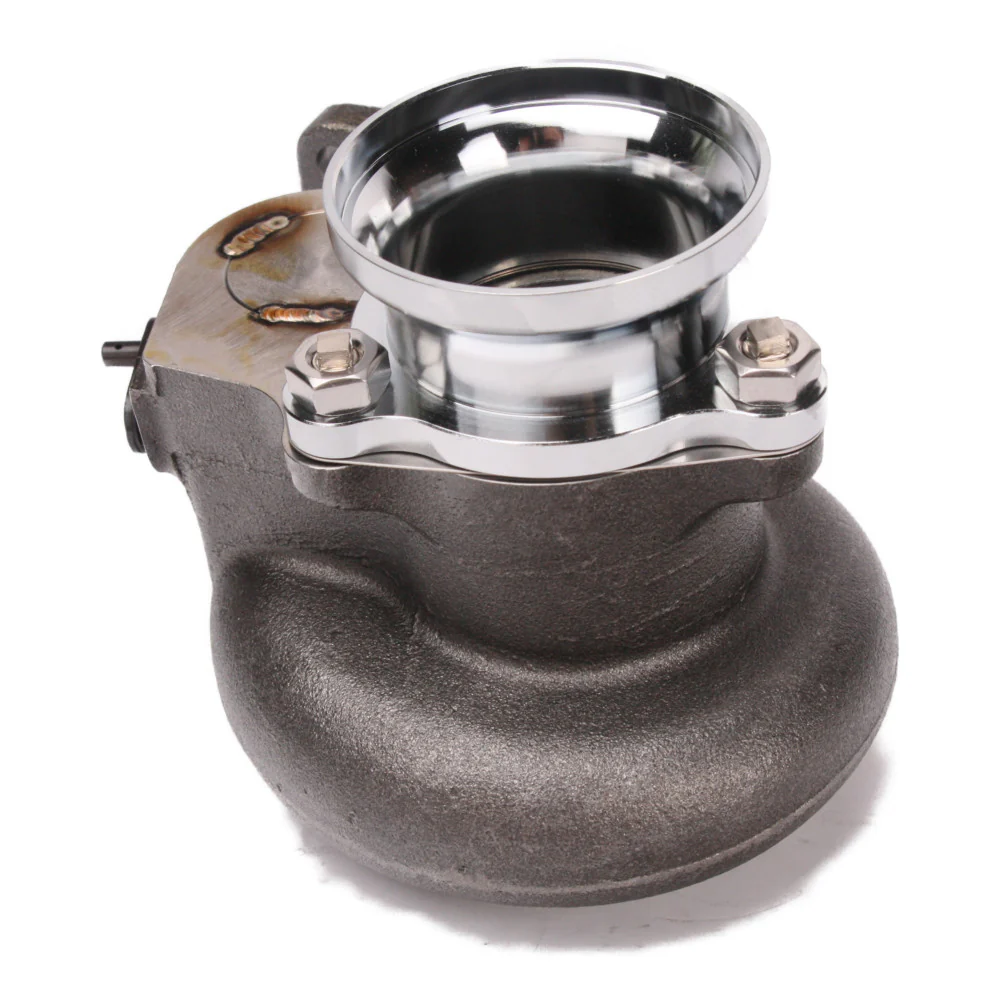

- Outlet: 3-Bolt type with 3" V-band adapter
- Wastegate: internal gated
- Inlet: T3
- Outlet: 3-Bolt type with 3" V-band adapter
- Wastegate: internal gated
Bearing Type
- Journal bearing system with 360-degree thrust bearing kit
Cooling Type
- Oil cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Oil supply set

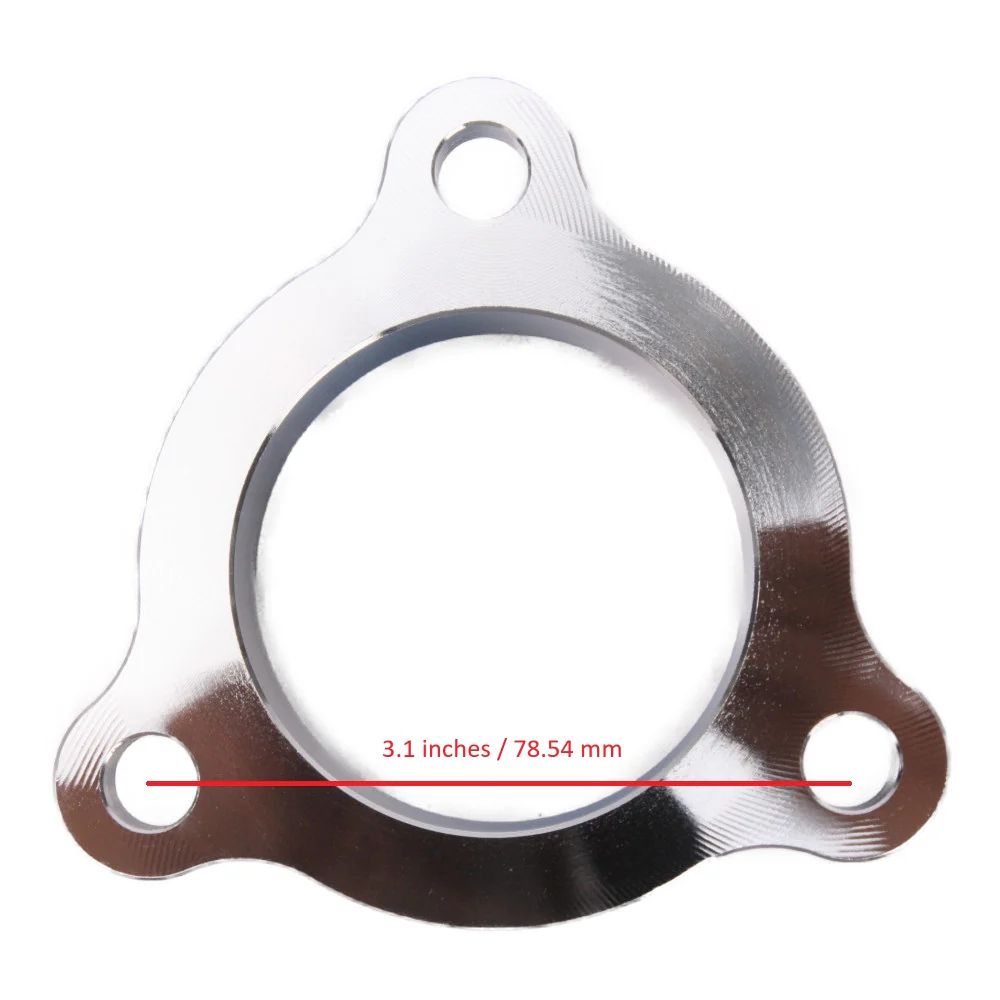

- 1 x T3 gasket

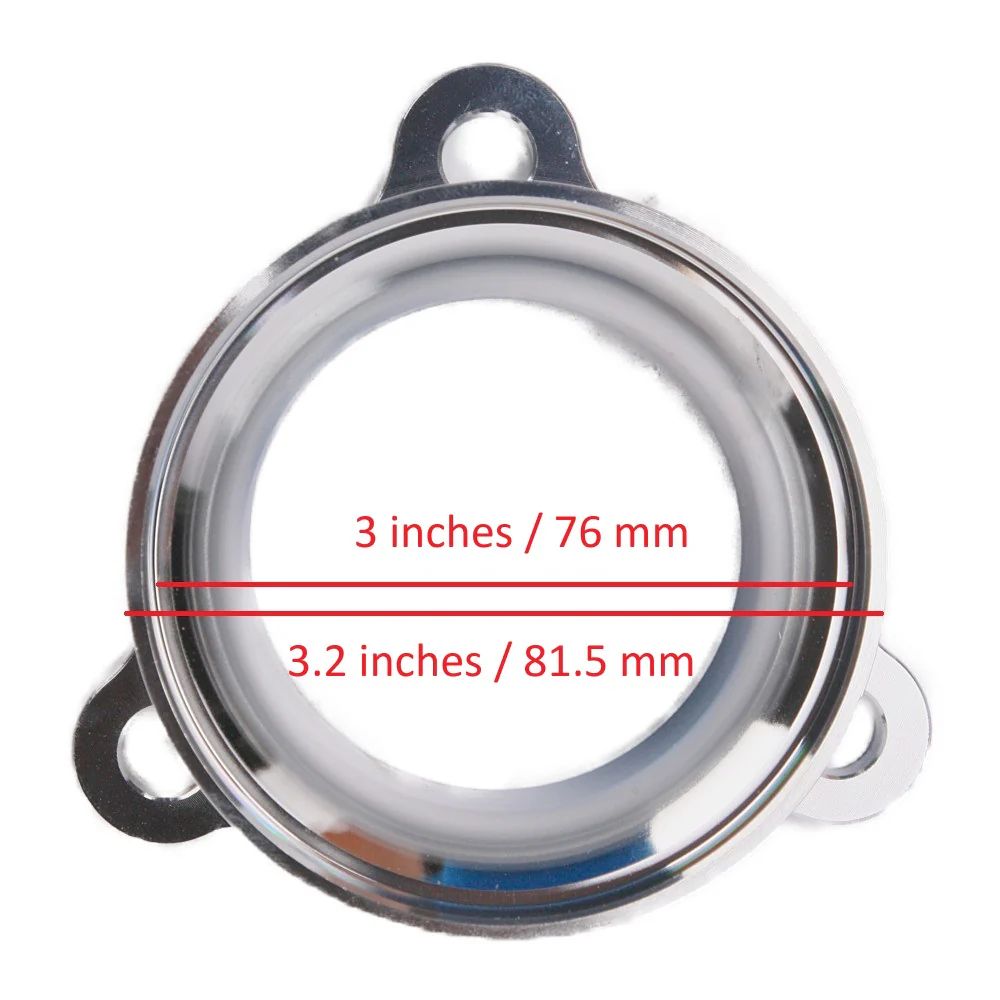

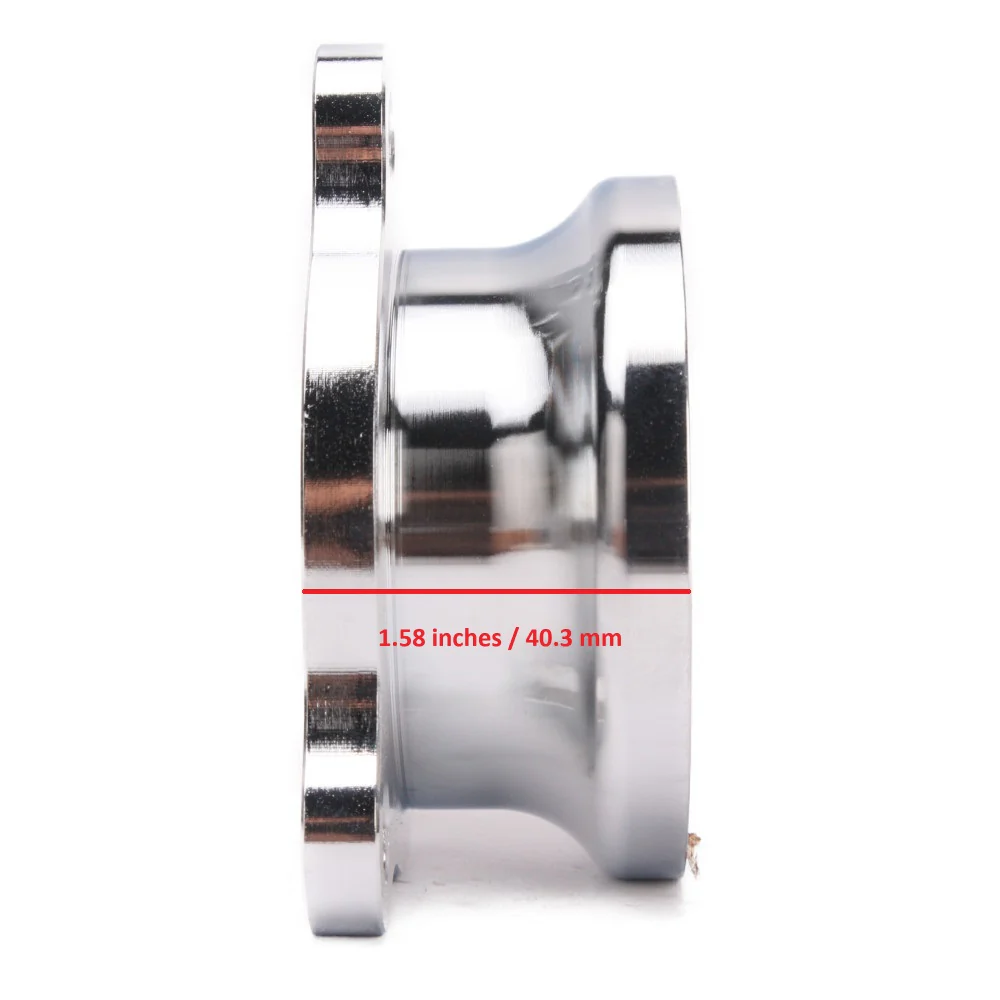

- 1 x V-Clamp and 3" V-Band Socket Adapter Kit
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
GR GQ Y60 Install Kit Instruction
GU Y61 Install Kit Instruction
Situation
GU Y61 Install Kit Instruction
Situation- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo System
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
