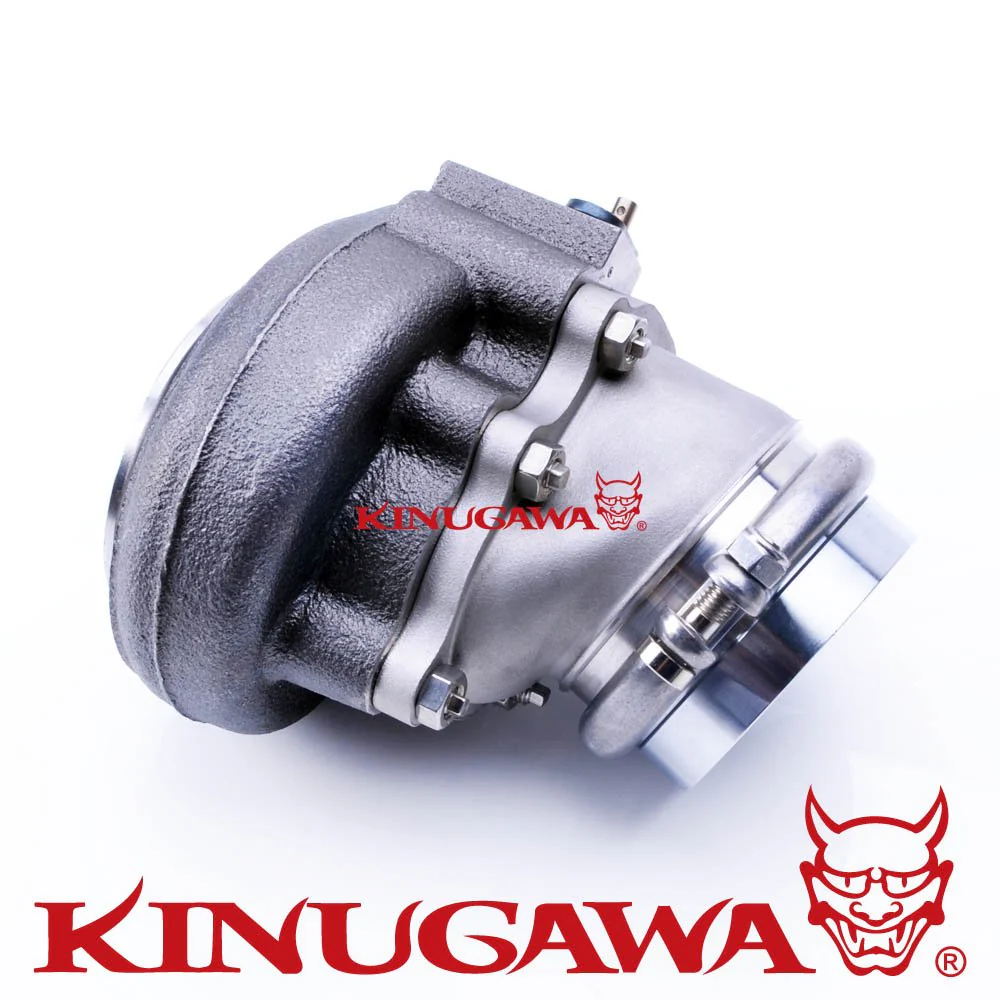

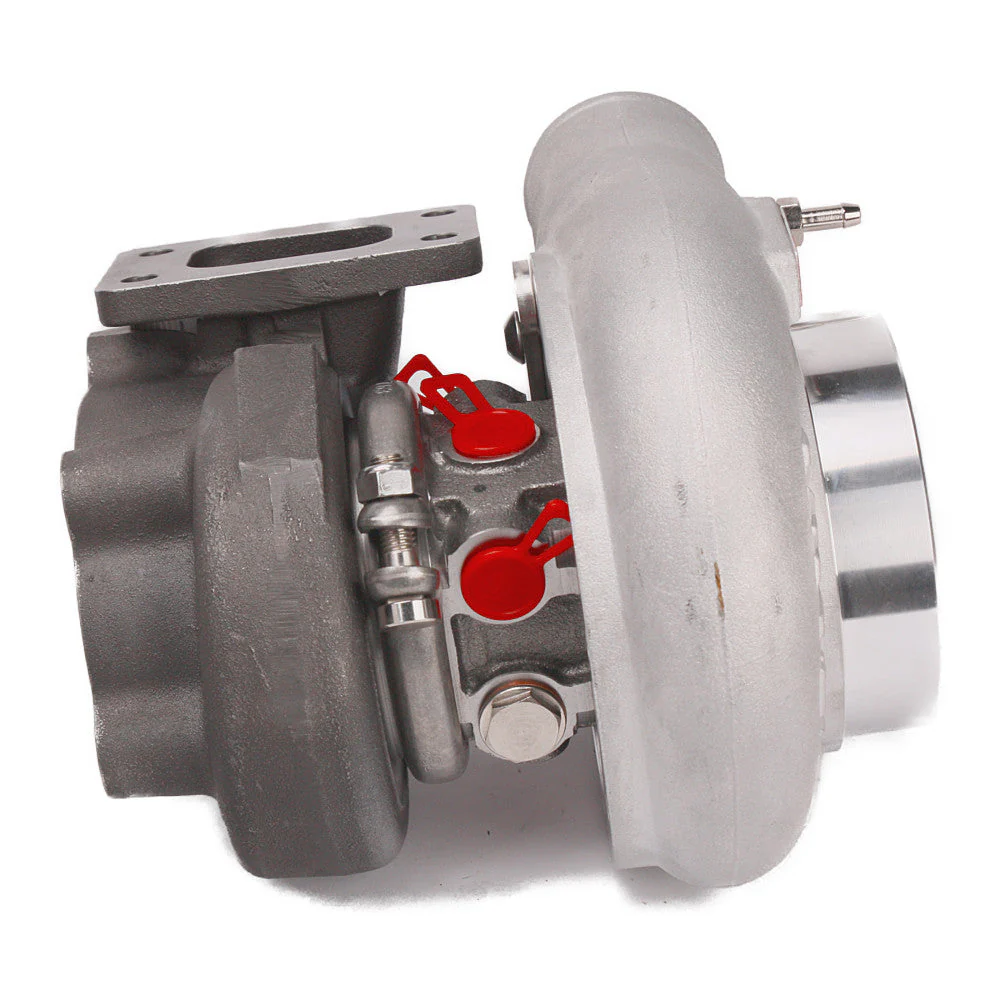

Kinugawa Turbo 4" TD05H-16G 8cm T25 5-Bolt 3" V-Band Internal Wastegate
Applications:
- Fits Engine Size: 1.4~2.4 Petrol / 2.8~4.5L Diesel
- Horsepower Range: 300~350HP
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA SIZE
- TD05H-16G
Compressor Housing
- Inlet: 4"
- Outlet: 2"

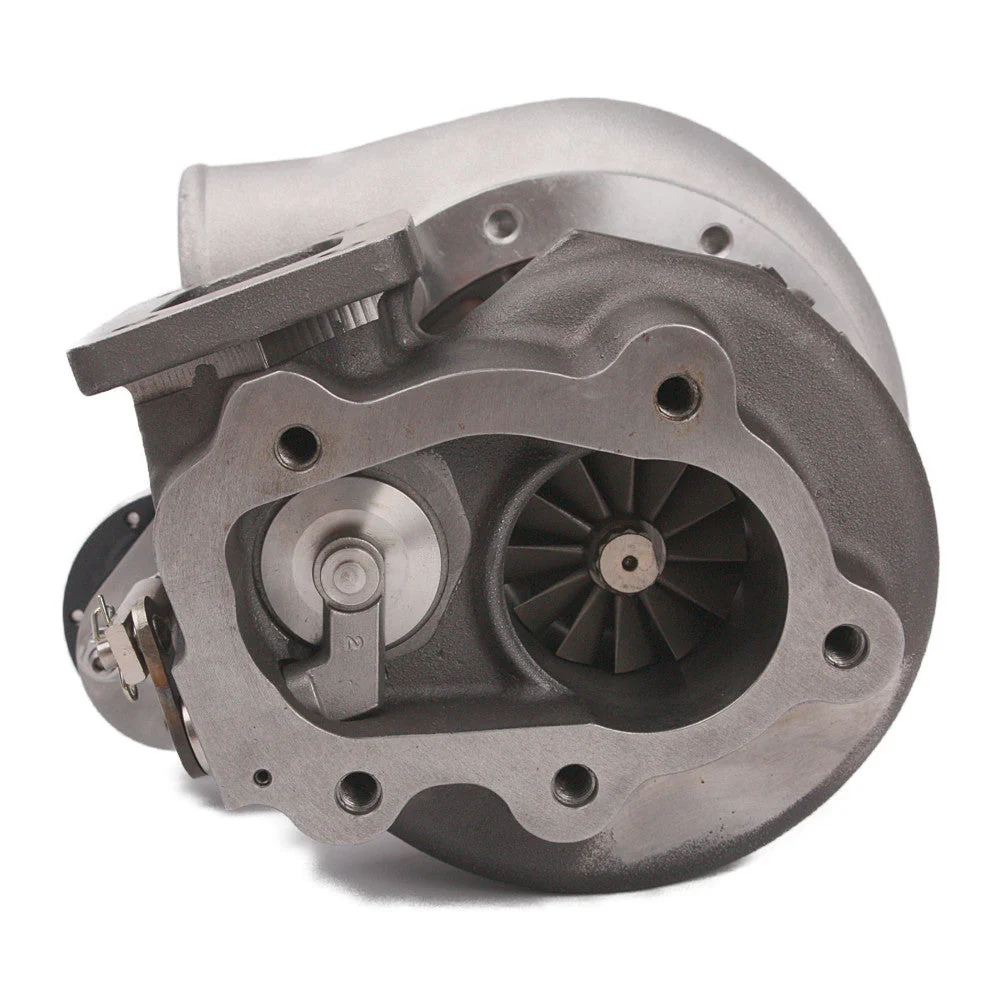

TURBINE HOUSING
- Nozzle Area: 8cm^2 / AR.57
- Inlet: T25
- Outlet: 5-bolt Nissan CA18DET/SR20DET style to 3" V-band
- Wastegate: Internal gated
Bearing Type
- Journal Bearing 360-degree with Performance Thrust Bearing Kits with large thrust rings and Flingers
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
The set includes
- 1 x turbocharger
- 1 x oil and water kit
- 9 x studs
- 1 x gasket set turbine housing in/out
- 1 x 3" V-band adapter
- 1 x Balance report with anti-counterfeit tag
Manufacturer
- Kinugawa Turbo Systems
- Fits Engine Size: 1.4~2.4 Petrol / 2.8~4.5L Diesel
- Horsepower Range: 300~350HP
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA SIZE
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (6+6 blades for low-end torque and 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Inlet: 4"
- Outlet: 2"
TURBINE HOUSING
- Nozzle Area: 8cm^2 / AR.57
- Inlet: T25
- Outlet: 5-bolt Nissan CA18DET/SR20DET style to 3" V-band
- Wastegate: Internal gated
Bearing Type
- Journal Bearing 360-degree with Performance Thrust Bearing Kits with large thrust rings and Flingers
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
The set includes
- 1 x turbocharger
- 1 x oil and water kit
- 9 x studs
- 1 x gasket set turbine housing in/out
- 1 x 3" V-band adapter
- 1 x Balance report with anti-counterfeit tag
Manufacturer
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger(s) fail or have an issue, you can return them to us for a free overhaul and reconditioning, or replacement, depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
