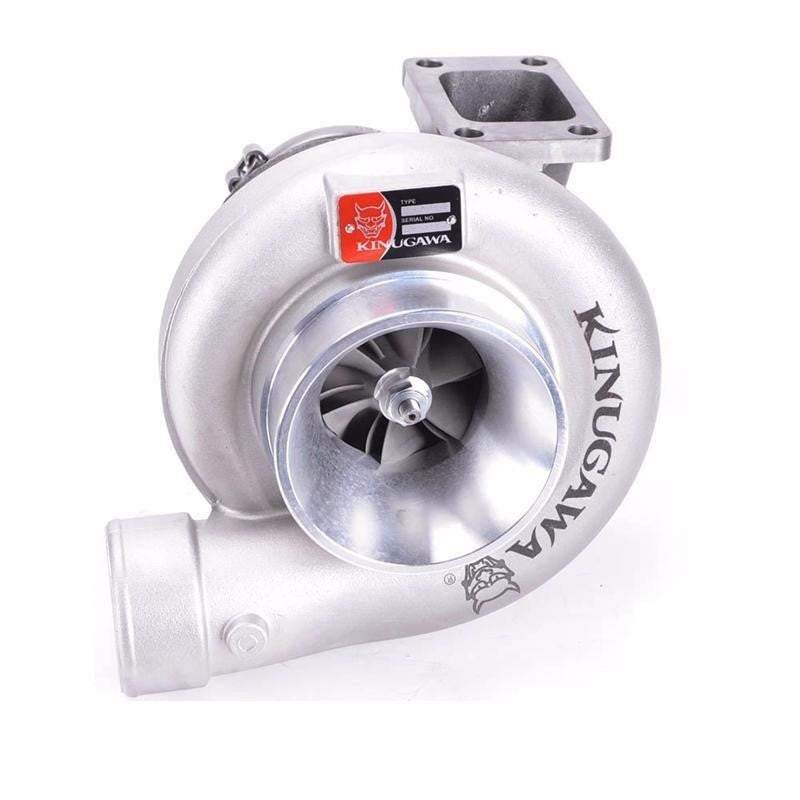

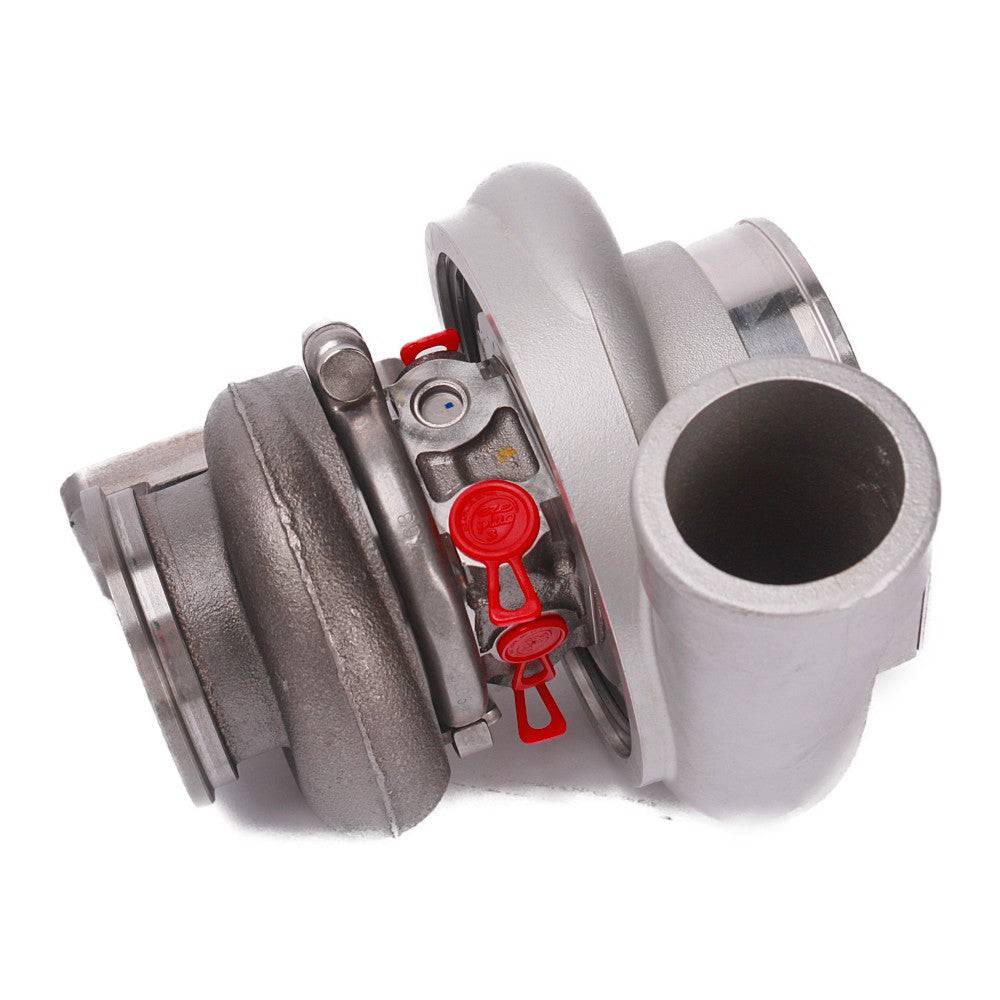

Kinugawa Turbo 4" TD06SL2-25G Billet Wheel T3 V-Band External Wastegated
APPLICATION

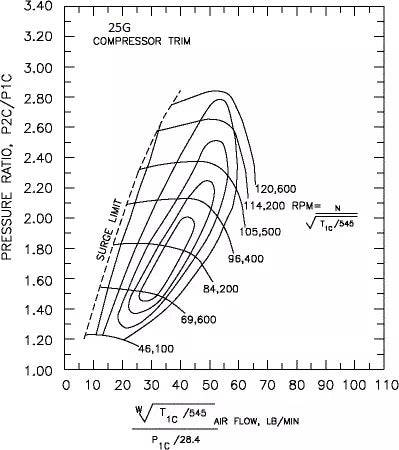

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA SIZE
- TD06SL2-25G
WHEEL SPEC
- Compressor Wheel: 60.5 / 78 mm (Billet 6+6 blades)
- Turbine Wheel: 61 / 54.1 mm
(3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING
- Inlet: 4"
- Outlet: 2.5"
TURBINE HOUSING
- Nozzle Area: 8cm^2 / AR.57; 10cm^2 / AR.73 (Optional)
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: External gated
(Click here to learn how to choose a suitable turbine housing.↗)
BEARING TYPE
- Journal bearing with 360-degree performance thrust bearing
COOLING TYPE
- Oil and water cooling system

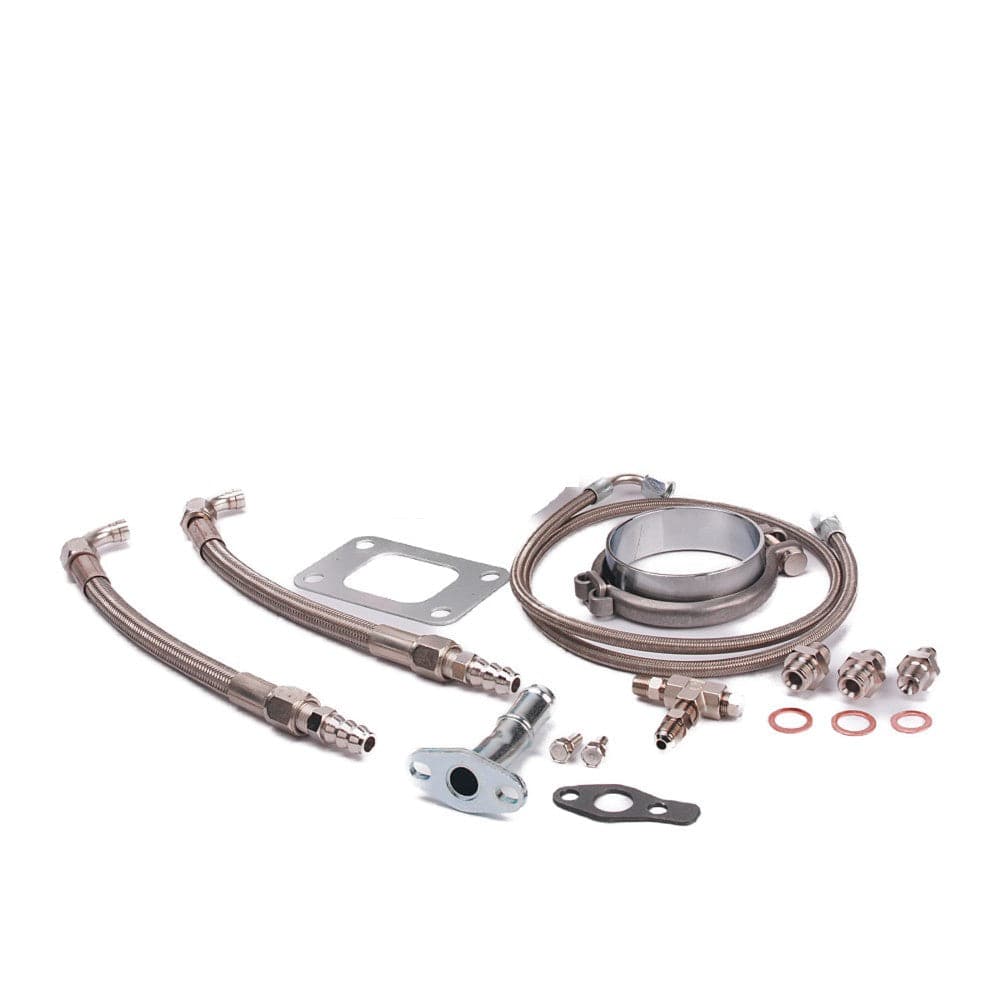

KIT INCLUDES
- 1 x Turbocharger
- 1 x Water feed and return line kit
- 1 x Oil feed line kit
- 1 x Oil return pipe kit
- 1 x Turbine inlet gasket
- 1 x Turbine outlet v-band and v-clamp set
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- One Year
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
- Universal type
- 2000~3500cc gasoline
- 4000~6000cc diesel
- 2000~3500cc gasoline
- 4000~6000cc diesel
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA SIZE
- TD06SL2-25G
WHEEL SPEC
- Compressor Wheel: 60.5 / 78 mm (Billet 6+6 blades)
- Turbine Wheel: 61 / 54.1 mm
(3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING
- Inlet: 4"
- Outlet: 2.5"
(Click here to learn how to choose a suitable compressor housing.↗)
TURBINE HOUSING
- Nozzle Area: 8cm^2 / AR.57; 10cm^2 / AR.73 (Optional)
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: External gated
(Click here to learn how to choose a suitable turbine housing.↗)
BEARING TYPE
- Journal bearing with 360-degree performance thrust bearing
COOLING TYPE
- Oil and water cooling system
KIT INCLUDES
- 1 x Turbocharger
- 1 x Water feed and return line kit
- 1 x Oil feed line kit
- 1 x Oil return pipe kit
- 1 x Turbine inlet gasket
- 1 x Turbine outlet v-band and v-clamp set
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- One Year
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Select Compressor Housing
Select Turbine Wheel
Select Turbine Housing
From $342.65
Original: $979.00
-65%Kinugawa Turbo 4" TD06SL2-25G Billet Wheel T3 V-Band External Wastegated—
$979.00
$342.65Product Information
