APPLICATION
- Universal type
- 2000~3500cc gasoline
- 4000~6000cc diesel

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.

CHRA SIZE
- TD07S-T04R

WHEEL SPEC
- Compressor Wheel: 66.5 / 84 mm (Cast or Billet 6+6 blades, Billet type for higher boost level above 1.5bar)
- Turbine Wheel: 74 / 62.9 mm (12 blades STD)

COMPRESSOR HOUSING
- Nozzle Area: AR.70
- Inlet: 4"
- Outlet: 2.5"
(Click here to learn how to choose a suitable compressor housing.↗)

TURBINE HOUSING
- Nozzle Area: 10cm^2 / AR.73; 12cm^2 / AR.89; 14cm^2 / AR1.05 (Optional)
(Click here to learn how to choose a suitable turbine housing.↗)
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: External gated

BEARING TYPE
- Journal bearing with 360-degree performance thrust bearing

COOLING TYPE
- Oil cooling system

KIT INCLUDES

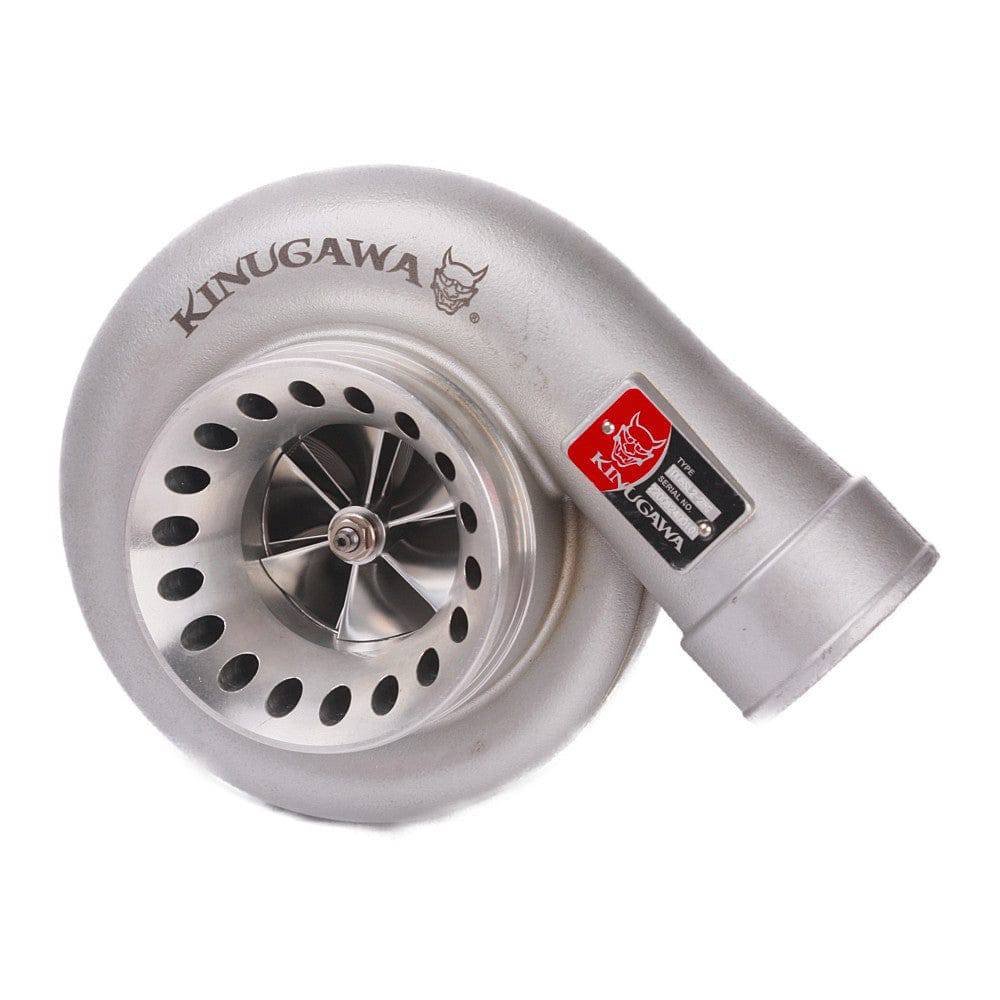

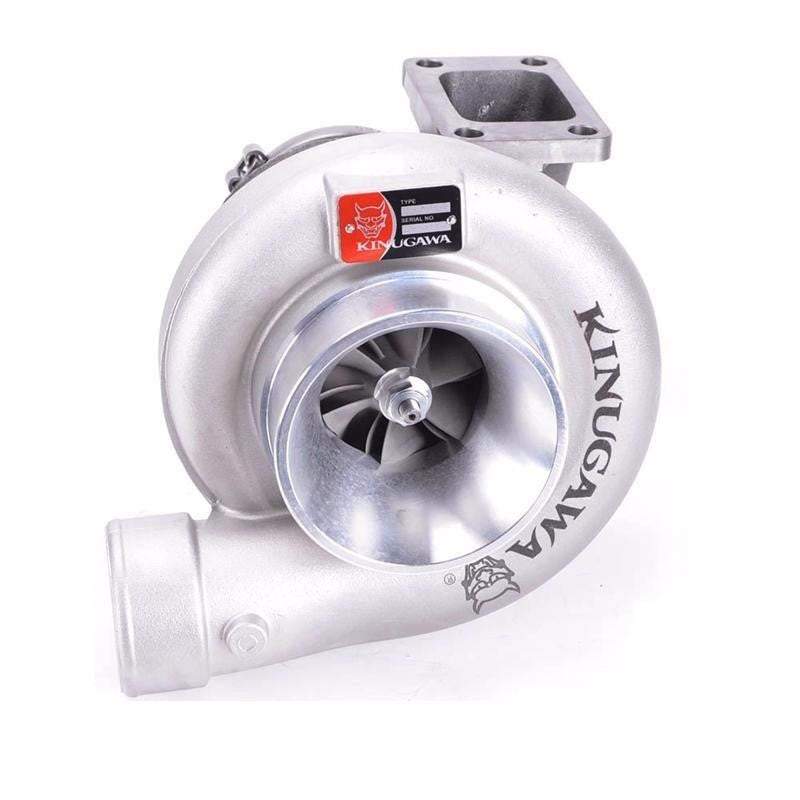

- 1 x Turbocharger

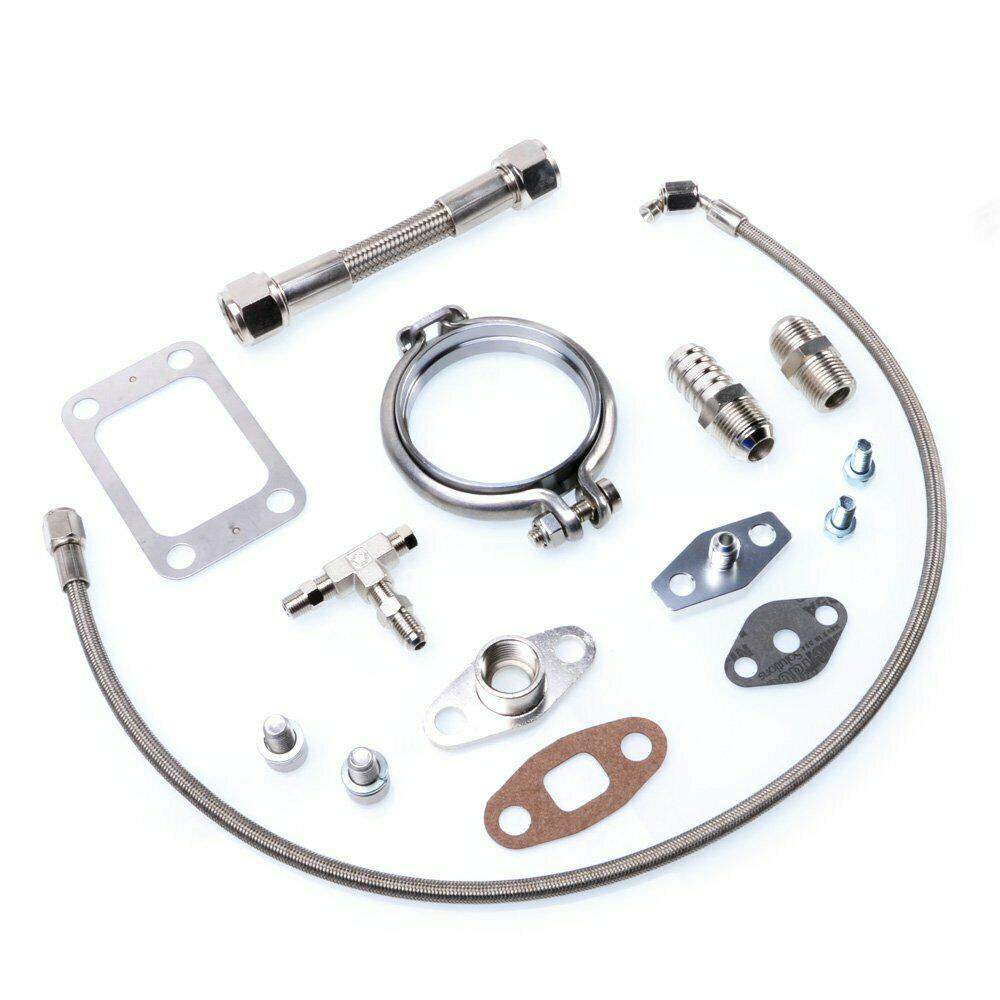

- 1 x Oil feed line kit
- 1 x Oil return line kit
- 1 x Turbine inlet gasket
- 1 x Turbine outlet v-band and v-clamp set
- 1 x Balance report with anti-counterfeit tag↗

PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany

PROVIDER
- Kinugawa Turbo Systems

WARRANTY

- One Year
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
