Kinugawa Turbo Adjustable Internal Wastegate Actuator for TOYOTA 1JZ-GTE JZX 100 CT15B
Application
- For TOYOTA 1JZ-GTE VVTI CHASER/CRESTA/MARK II TOURER V (JZX100)
- For TOYOTA 1JZ-GTE VVTI Soarer Coupe 2.5T (JZZ300)

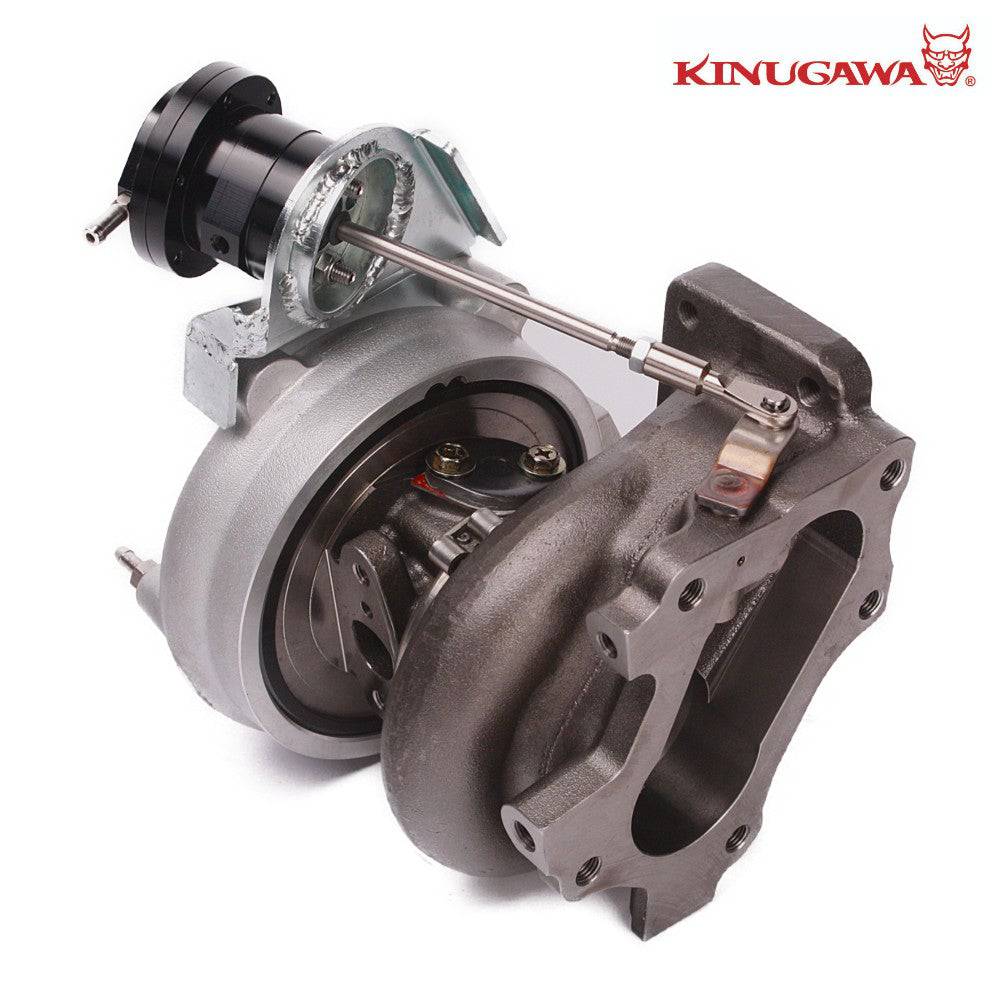

- For TOYOTA 1JZ-GTE w/ single CT15B 17201-46040 turbo
Kit Included

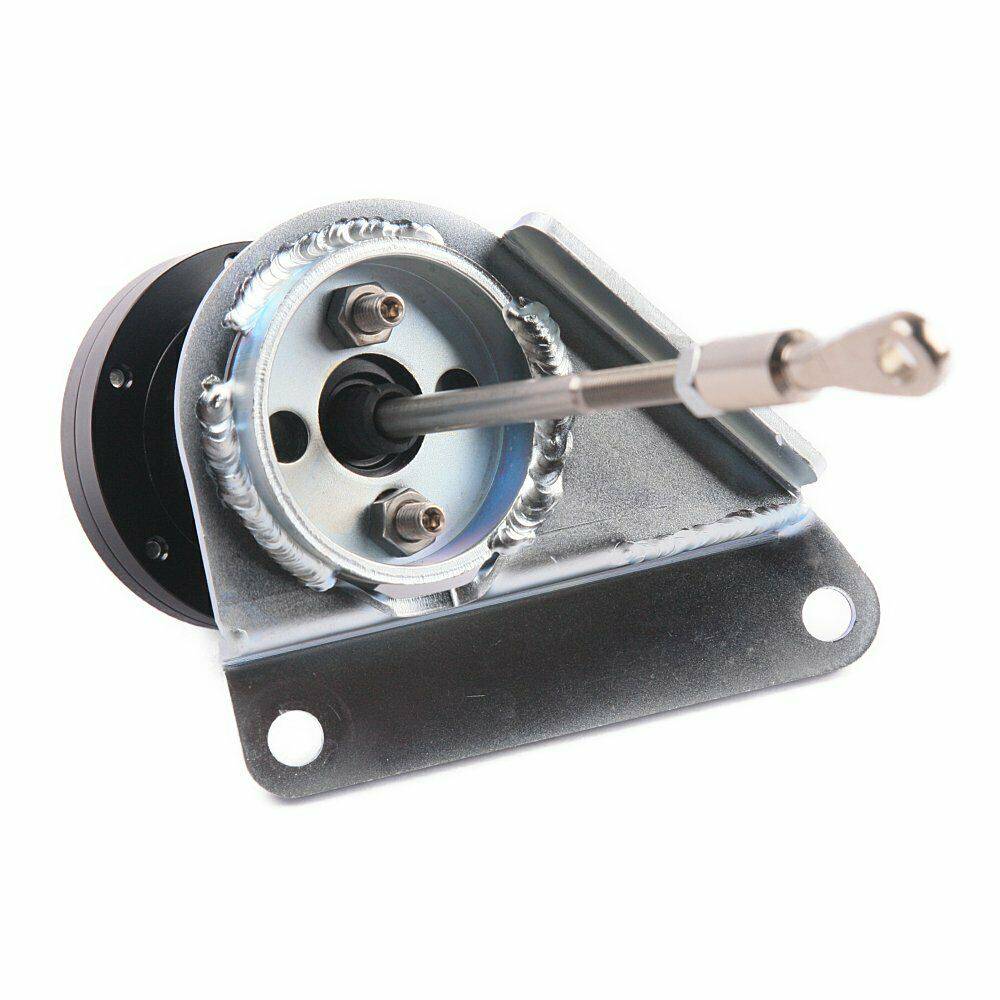

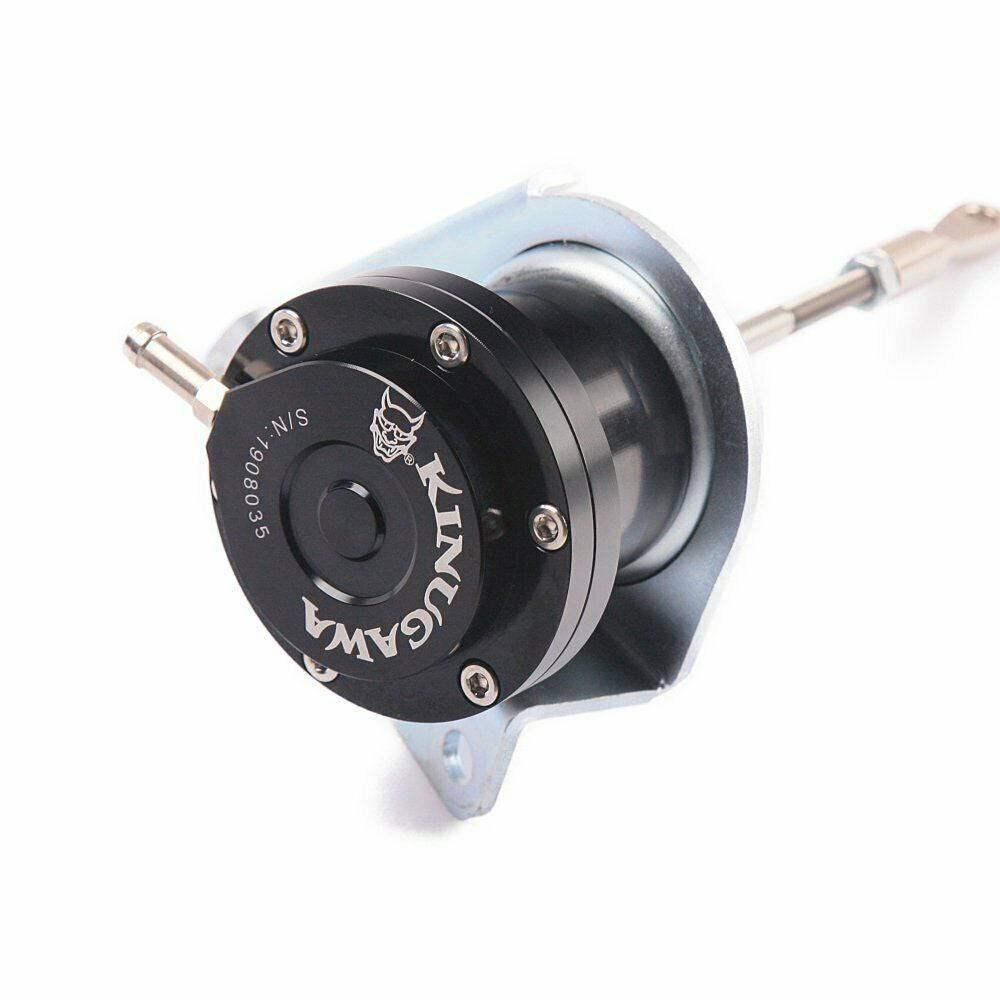

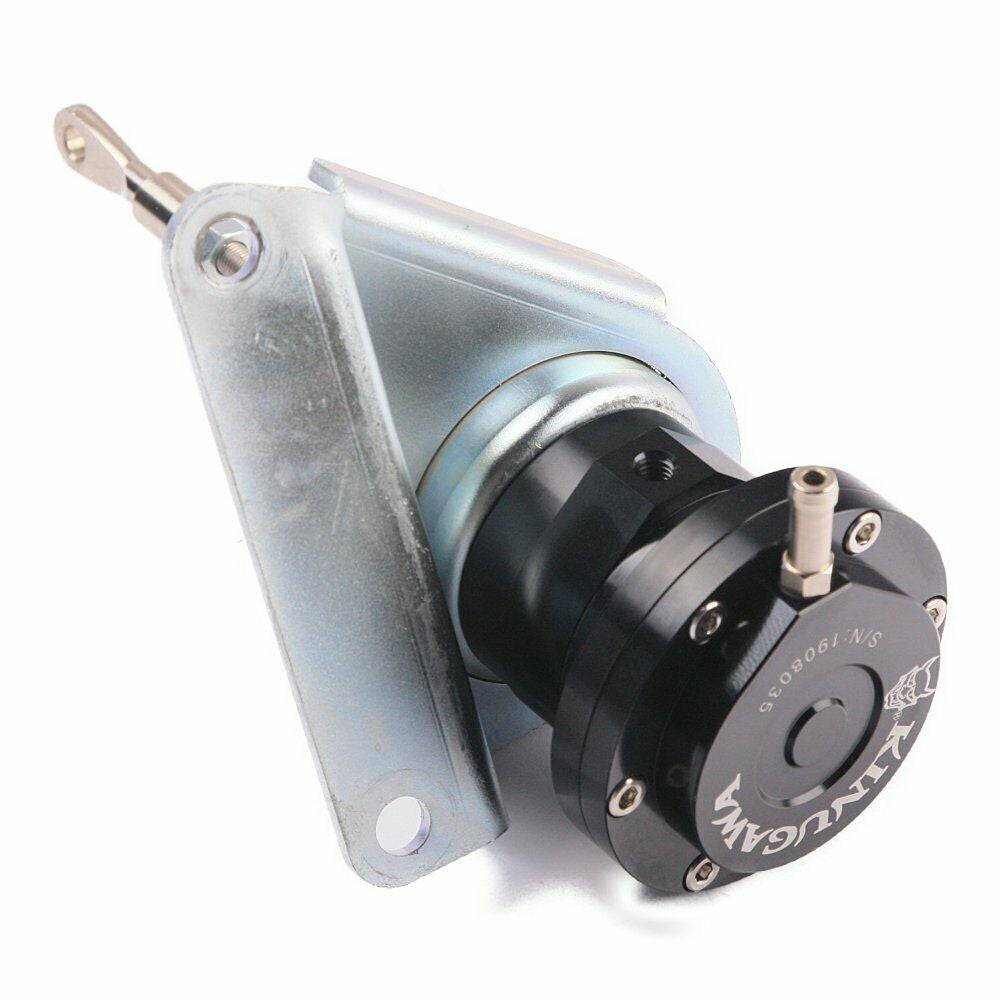

- 1 x actuator with bracket and rod
- 1 x spring or set (8 springs) will go with this actuator.
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Note
- Please have a reference of our actuator spring pressure table. Our spring full-stroke displacement is 14.5 mm, the default preload will be setup to 2 nut turns (1.5 mm stroke displacement). You can adjust the preload stroke as the following table and the video.
Please check the following video to learn how to replace the spring of the adjustable actuator.
- For TOYOTA 1JZ-GTE VVTI CHASER/CRESTA/MARK II TOURER V (JZX100)
- For TOYOTA 1JZ-GTE VVTI Soarer Coupe 2.5T (JZZ300)
- For TOYOTA 1JZ-GTE w/ single CT15B 17201-46040 turbo
Kit Included
- 1 x actuator with bracket and rod
- 1 x spring or set (8 springs) will go with this actuator.
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Note
- Please have a reference of our actuator spring pressure table. Our spring full-stroke displacement is 14.5 mm, the default preload will be setup to 2 nut turns (1.5 mm stroke displacement). You can adjust the preload stroke as the following table and the video.
Please check the following video to learn how to replace the spring of the adjustable actuator.
Now you could adjust it more tightly with preload the rod end as following steps. Step 1.: Preload You can preload the actuator rod to get a higher boost pressure. please check the following 2 videos
