Kinugawa Turbo Ball Bearing 3" TD05H-16K 7cm for Toyota Land Cruiser 1HD-T 1HD-FT Ultimate Spool

Product image 1
1 / 8

Kinugawa Turbo Ball Bearing 3" TD05H-16K 7cm for Toyota Land Cruiser 1HD-T 1HD-FT Ultimate Spool

Description
Kinugawa Toyota 1HD diesel turbocharger featuring a 3-inch anti-surge cover and a 7cm bolt-on turbine housing (compared to the stock CT26 housing, which is 8cm). This turbocharger utilizes the same base turbine housing (inlet and outlet type) as the factory turbocharged 1HD Land Cruiser engine, which means less labor is required for installation. The larger compressor wheel offers more horsepower and improved top-end speed.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's performance results depend highly on your vehicle’s modifications and tuning/calibration.

Application
  • 1991~1997 TOYOTA 1HD-T / 1HD-FT 4.2L Land Cruiser (HDJ80/81/82)
  • Replace & Upgrade 17201-17010, 17201-17030
  • Bolt Up to fit factory exhaust manifold and dump pipe.
  • The compressor cover inlet pipe / Air filter needs to modify to fit this 3” inlet. If your demand is for 17201-17040 of 1HD-FTE HDJ78 HDJ79 HDJ100 HDJ105 inquiring about different compressor housing or stays 3"

    Case Study
    - How to adjust boost pressure to reach the target, [click here...]

    CHRA Size
    - TD05H-16K

    Wheels Spec
    - Compressor wheel:  49.5 / 68.0 mm Point Milling / Third-order Surface
    This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16K (aka 16kx) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
    Kinugawa Turbo Systems Third-order surface compressor wheel
    Free Surface Ruled Surface
    Process Point Milling Flank Milling
    Machining Time Slow 120 mins.each Quick 15 mins.each
    Characters


    1. Free Surface can be only produced by Point Milling
    2. More air pressure and increased much better flow efficiency.
    3. Mainly for high-efficiency turbochargers.

    		 1. Ruled Surface can be produced by Flank Milling
    2. Low efficiency
    3. Only suitable to the very easy design of compressor wheel
    4. Mainly for fundamental mechanical engineering such as Centrifugal compressor

    - Turbine wheel: 49 / 56 mm (Click here to learn more about STS technology.↗)

    Compressor Housing
    - Nozzle area: AR.60
    - Inlet: 3"

    Turbines Housing
    - Nozzle area: 7cm / AR.49 (the stock is 8cm AR .57)
    - Inlet: Toyota CT26 4-bolt
    - Outlet: Toyota CT26 4-bolt
    - Wastegate: internal gated

    Bearing Type
    - STS Advanced (Dual Ceramic Ball Bearing)
    Kinugawa Turbo STS Advanced Ball Bearing Technology
    Cooling Type
    - Oil and Water Cooling System

    Actuator Pressure
    - 1.0 bar / 14.7 Psi is the default.
    - Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

    The Set Includes

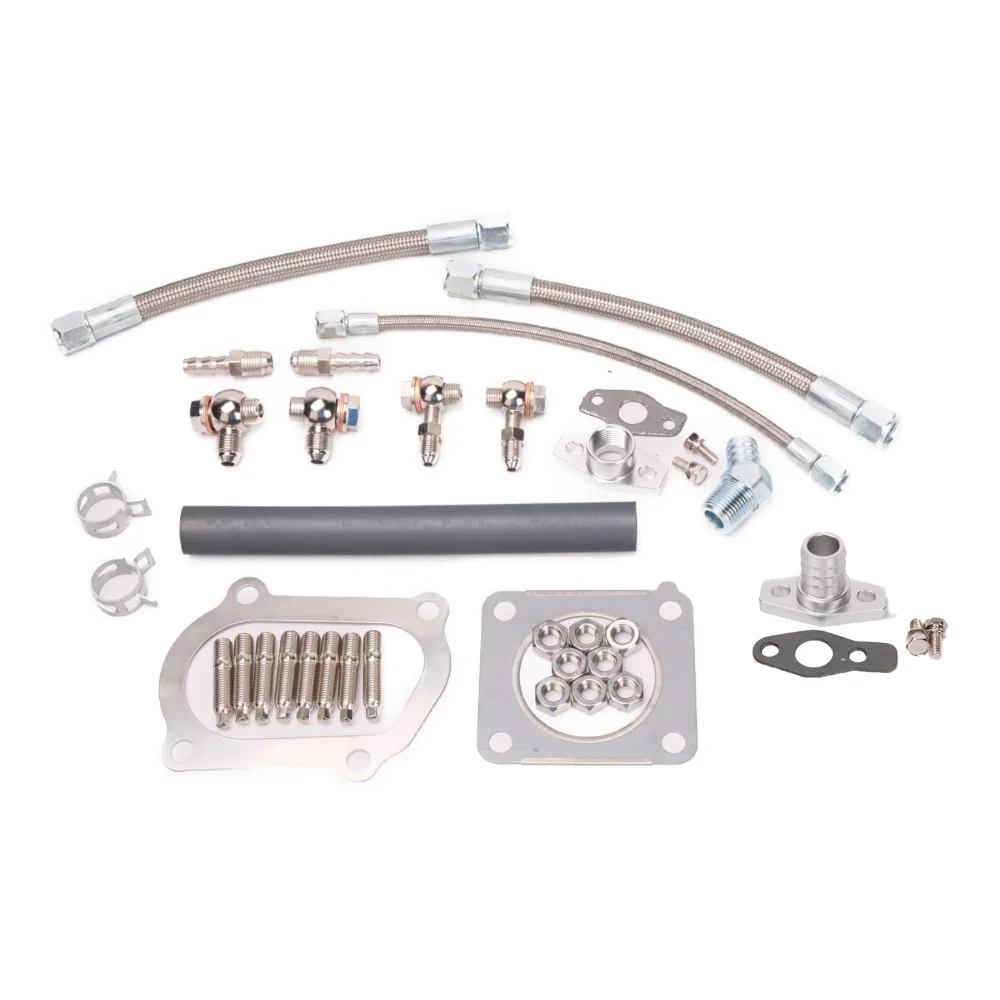

    - 1 x Oil supply set
    - 1 x Water coolant and return set
    - 1 x Gasket set
    - 1 x Turbocharger
    - 1 x Kinugawa Balance Report with an Anti-counterfeit Tag↗

    Install Kit Instruciton

    Situation
    - Brand New
    - Full balance from Schenk MBRS 950 110 Germany

    Provider
    - Kinugawa Turbo Systems

    Warranty
    Kinugawa 1-Year Warranty
    - For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
