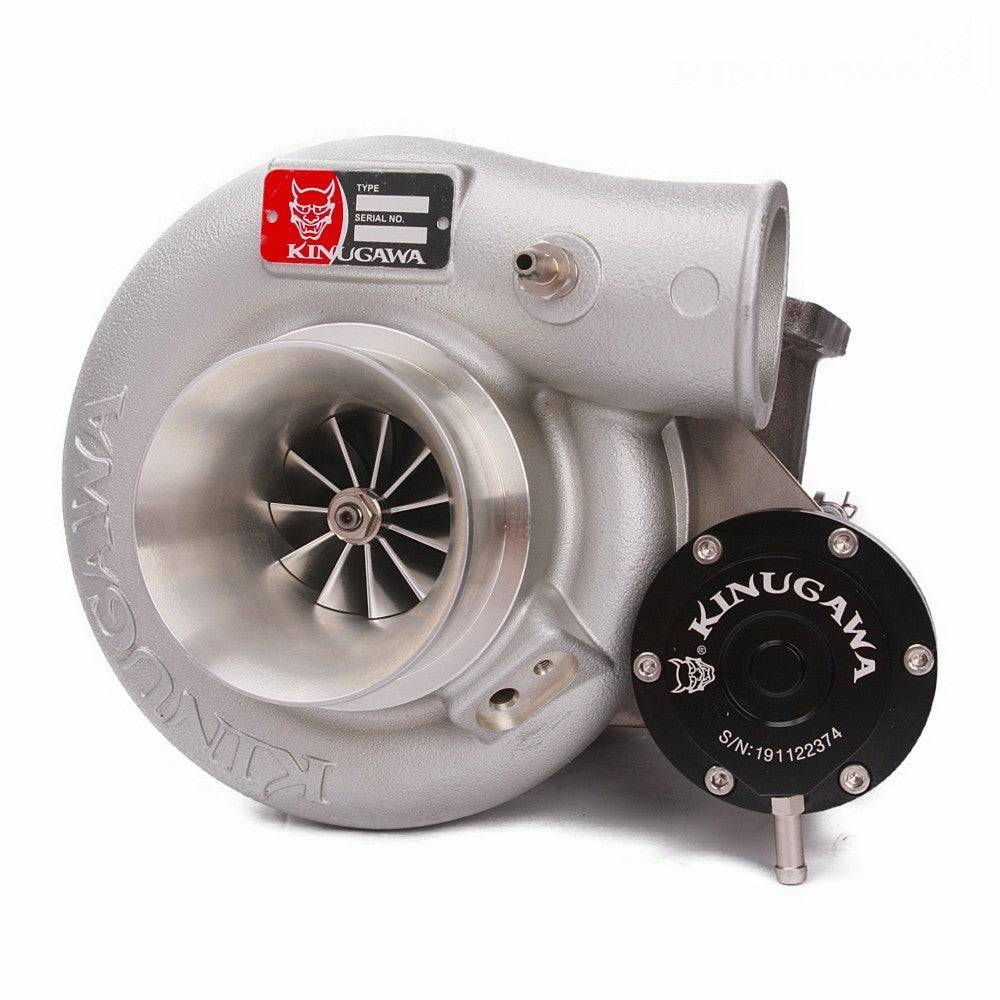

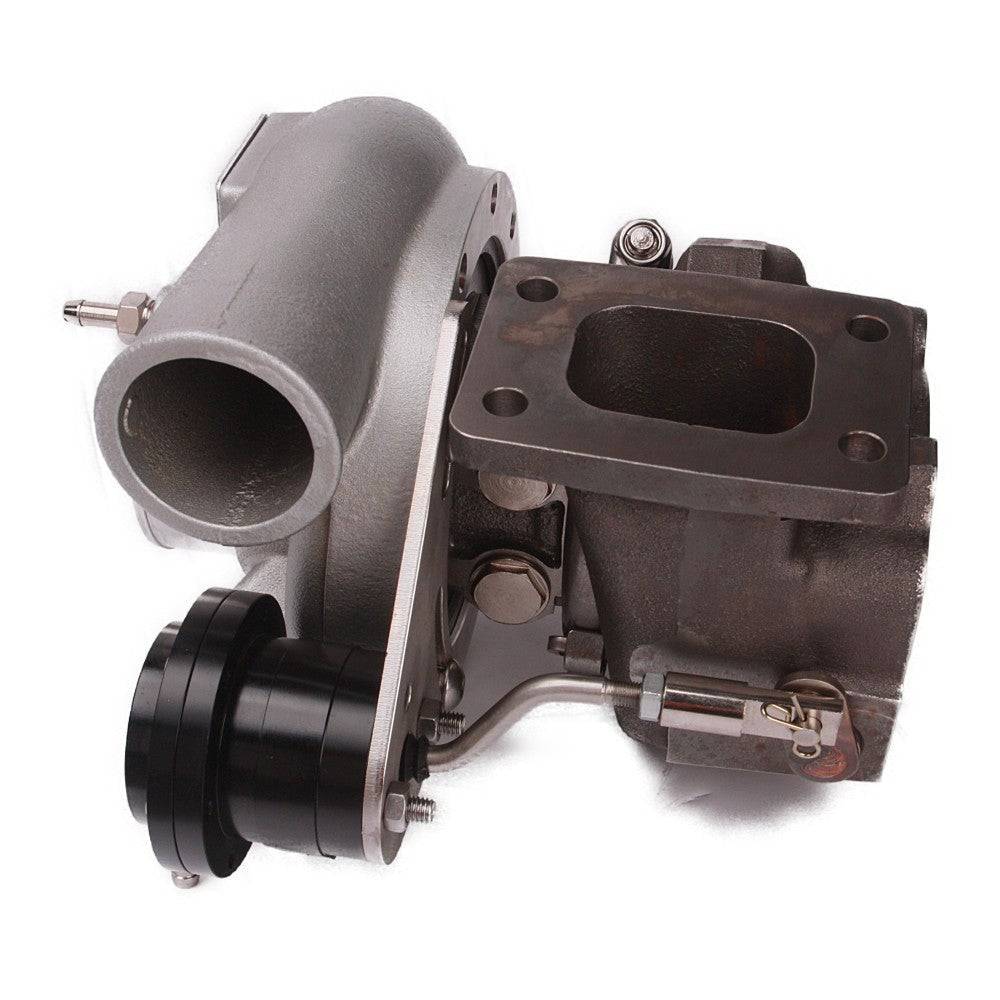

Kinugawa Turbo Ball Bearing 3" TD05H-16K 8cm T25 5-Bolt 3" V-Band Internal Wastegate
APPLICATION
- Fits Engine Size: 1.4~2.4 Petrol / 2.8~4.5L Diesel

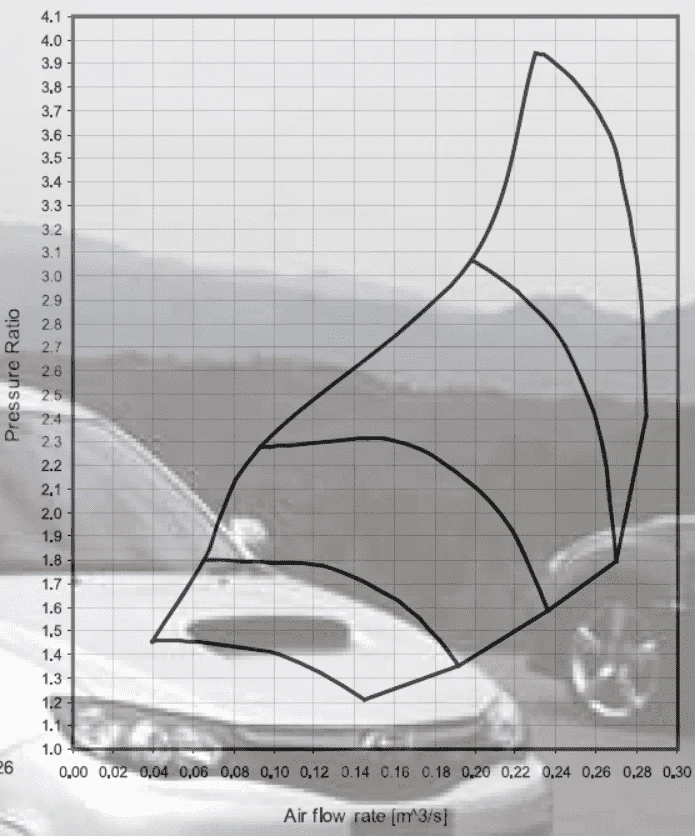

Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. This product's performance results are highly dependent upon your vehicle’s modifications and tuning/calibration.
WHEEL SPEC
- Compressor Wheel: 49.5 / 68.0 mm (Point Milling / Third-order Surface / 7+7 blade)
(This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16K (aka 16KX) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.)
- Fits Engine Size: 1.4~2.4 Petrol / 2.8~4.5L Diesel
- Replace:
Nissan CA18DET S13 with TB25 Turbo.
Nissan SR20DET S13, S14, S15 with TB25, GT25R, GT28R & GT30R Turbo.
Universal Garrett GT2554R, GT2560R, GTX2863R, GTX2867R, GT2871R, GTX2871R, GT3067R, GT3071R, GTX3071R...with CA18 or SR20 types of 5-Bolt turbine housing.
HKS GT28R, GT28R, and GT30R ball bearing turbo.
Greddy T517Z, T518Z …SR20DET
Nissan SR20DET S13, S14, S15 with TB25, GT25R, GT28R & GT30R Turbo.
Universal Garrett GT2554R, GT2560R, GTX2863R, GTX2867R, GT2871R, GTX2871R, GT3067R, GT3071R, GTX3071R...with CA18 or SR20 types of 5-Bolt turbine housing.
HKS GT28R, GT28R, and GT30R ball bearing turbo.
Greddy T517Z, T518Z …SR20DET
Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. This product's performance results are highly dependent upon your vehicle’s modifications and tuning/calibration.
WHEEL SPEC
- Compressor Wheel: 49.5 / 68.0 mm (Point Milling / Third-order Surface / 7+7 blade)
(This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16K (aka 16KX) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.)
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow (120 mins.each) | Quick (15 mins.each) |
| Characters | 1. Free Surface can be only produced by Point Milling 2. More air pressure and increased much better flow efficiency. 3. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |
- Turbine Wheel: 56 / 49.2 mm (9 blade STS) (Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING
- Inlet: 3"
- Outlet: 2"

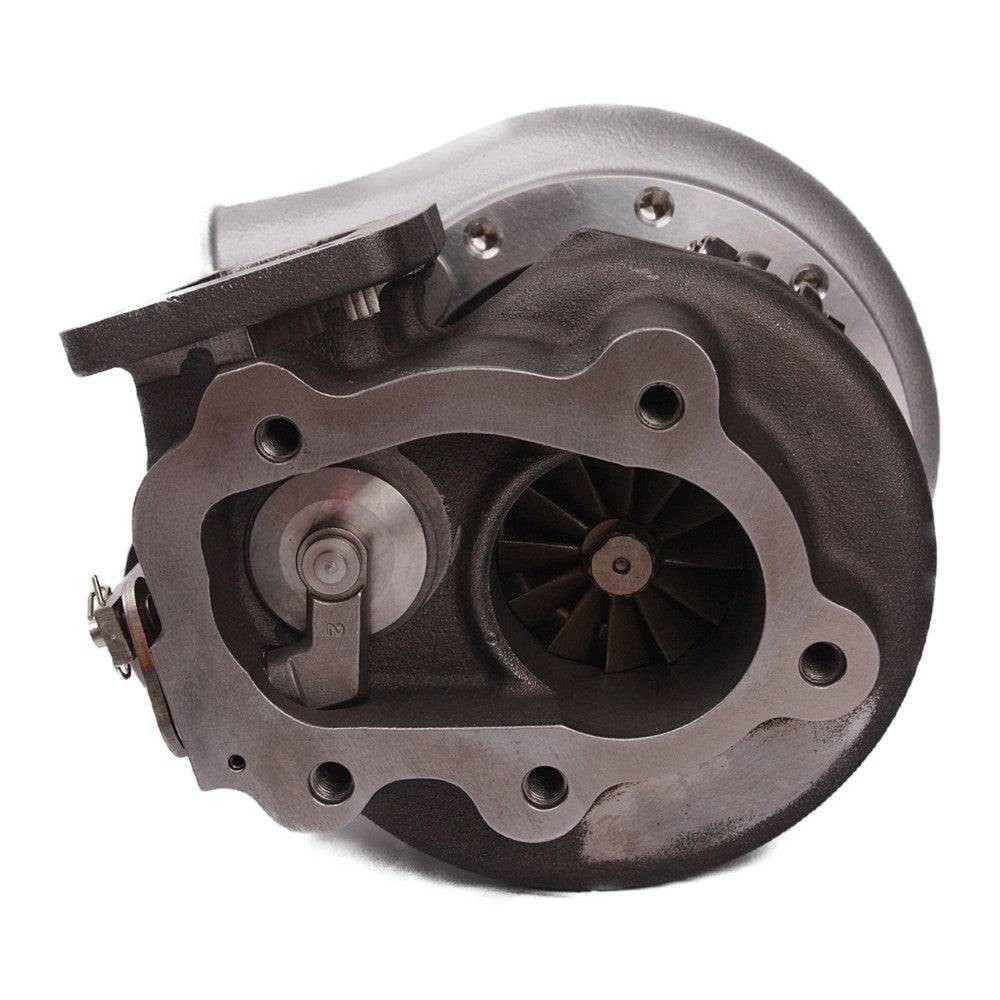

TURBINE HOUSING
- Nozzle Area: 8cm^2 (AR .57)
- Inlet: T25

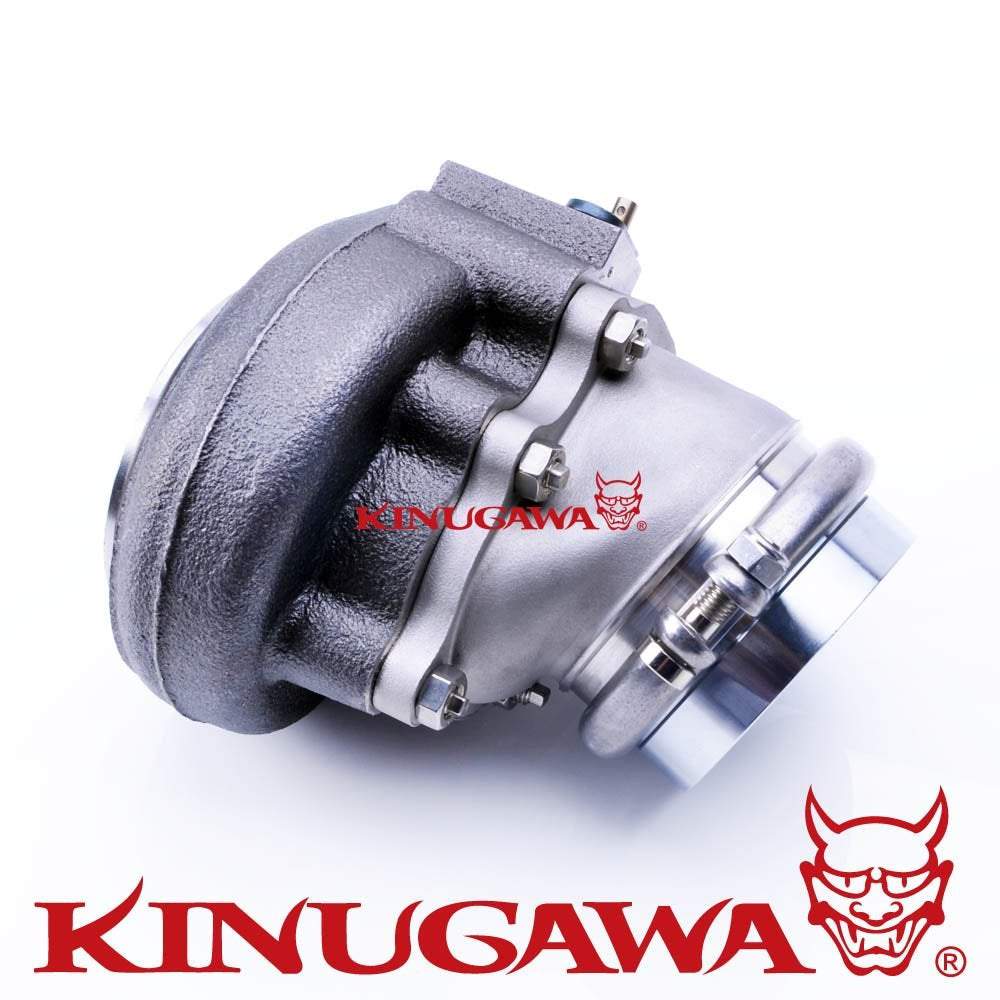

- Outlet: 5 bolt CA18DET/SR20DET style with a 3" V-band adapter
- Wastegate: Internal gated
BEARING TYPE
- Dual Ceramic Ball Bearing
COOLING TYPE
- Oil and Water-Cooled
ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

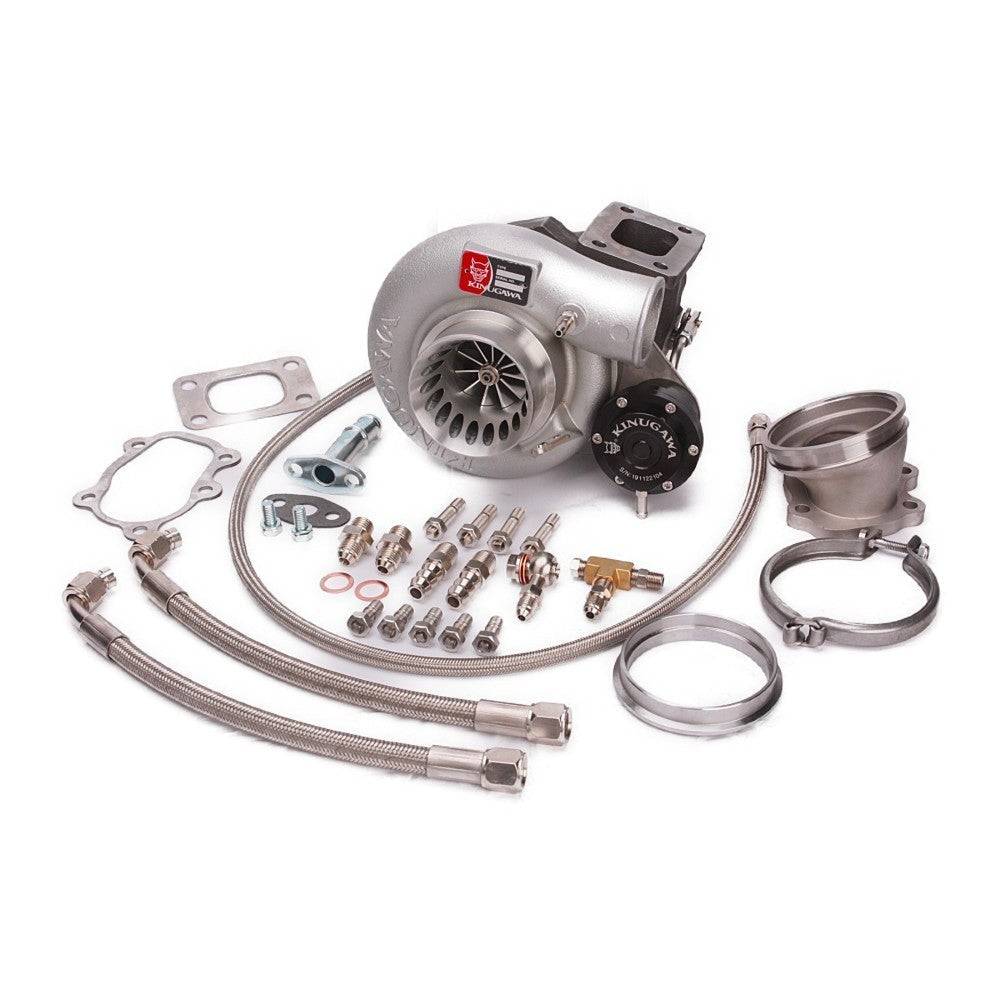

KIT INCLUDES
- 1 x turbocharger
- 1 x oil and water kit
- 9 x studs
- 1 x gasket set turbine housing in/out
- 1 x 3" V-band adapter (#317-01006-001)
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
MANUFACTURER
- Kinugawa Turbo Systems
WARRANTY
For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
[Install Kit Instruction]
COMPRESSOR HOUSING
- Inlet: 3"
- Outlet: 2"
TURBINE HOUSING
- Nozzle Area: 8cm^2 (AR .57)
- Inlet: T25
- Outlet: 5 bolt CA18DET/SR20DET style with a 3" V-band adapter
- Wastegate: Internal gated
BEARING TYPE
- Dual Ceramic Ball Bearing
COOLING TYPE
- Oil and Water-Cooled
ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
KIT INCLUDES
- 1 x turbocharger
- 1 x oil and water kit
- 9 x studs
- 1 x gasket set turbine housing in/out
- 1 x 3" V-band adapter (#317-01006-001)
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
MANUFACTURER
- Kinugawa Turbo Systems
WARRANTY
For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
[Install Kit Instruction]
