Kinugawa Turbo Ball Bearing CHRA Cartridge TD05H-16K for Mitsubishi 4G63T Lancer EVO 1~3 Galant VR-4 DSM Eagle
1 / 6
Kinugawa Turbo Ball Bearing CHRA Cartridge TD05H-16K for Mitsubishi 4G63T Lancer EVO 1~3 Galant VR-4 DSM Eagle
Application
- For 4G63T Mitsubishi Lancer EVO 1~3, Galant VR-4, DSM 1G / 2G, Eagle Talon, Plymouth Laser turbo upgrade
- Horsepower Range: 380~450HP
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.

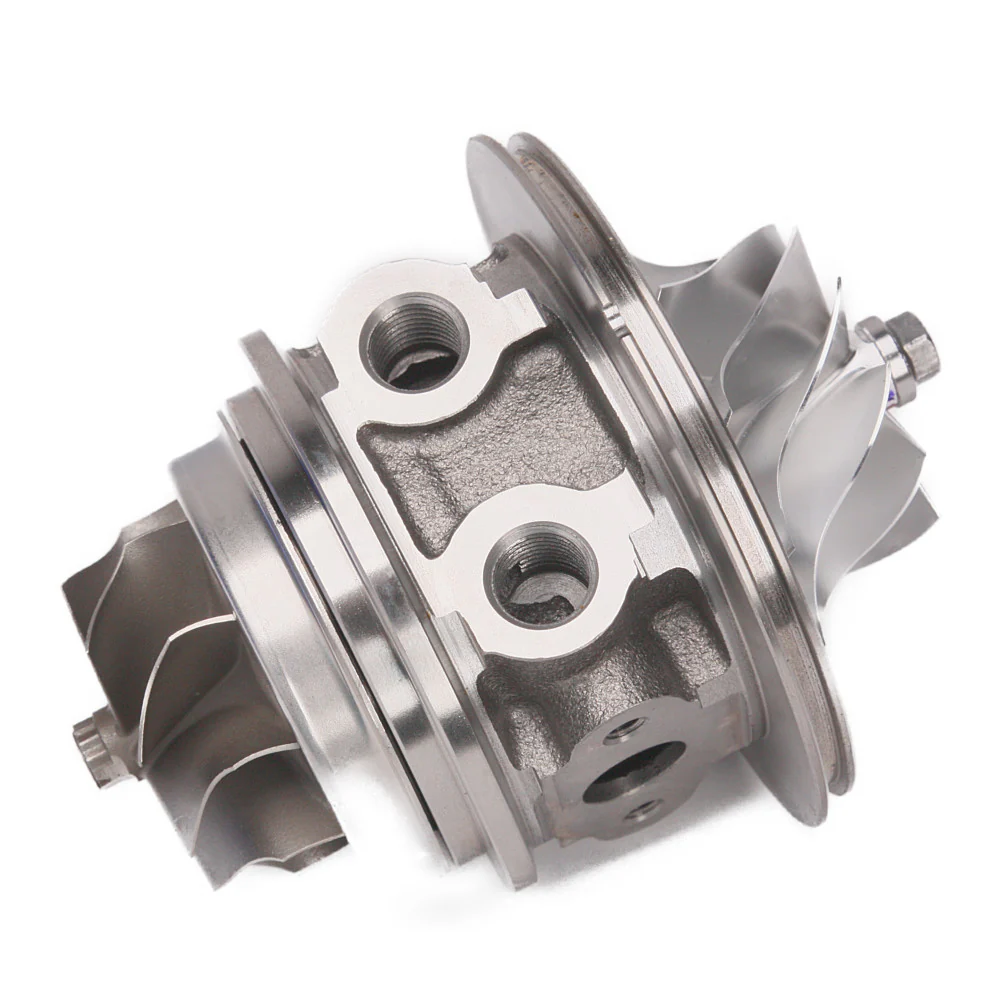

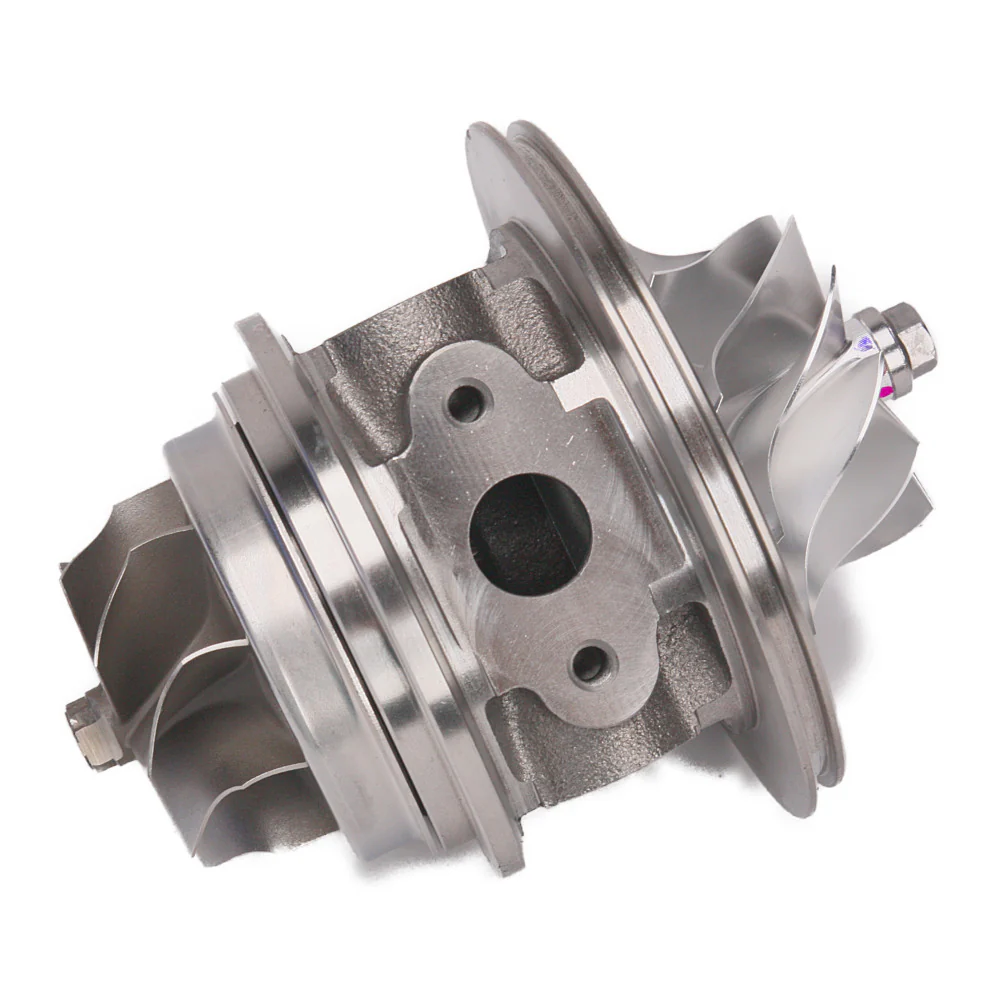

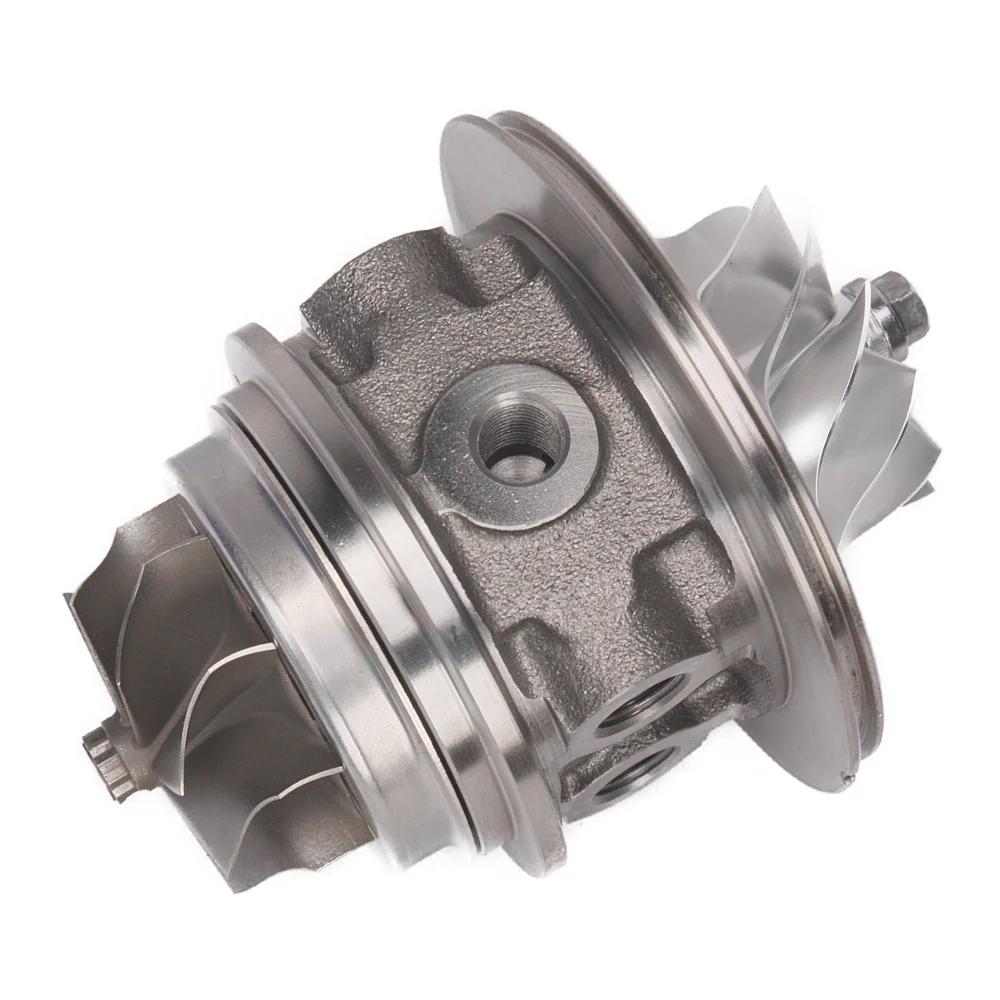

CHRA Size
- TD05H-16K
WHEEL SPEC
- Compressor Wheel: 49.5 / 68.0 mm (Point Milling / Third-order Surface)
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA

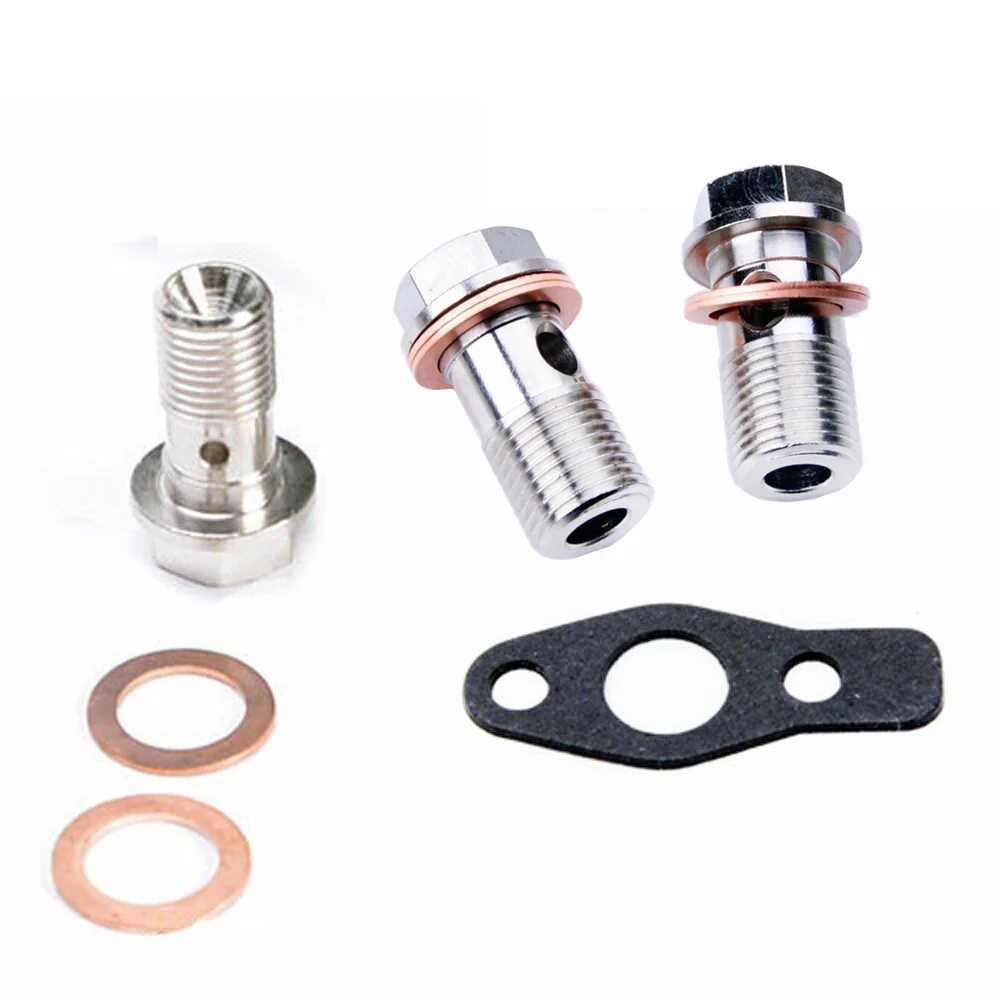

- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
- For 4G63T Mitsubishi Lancer EVO 1~3, Galant VR-4, DSM 1G / 2G, Eagle Talon, Plymouth Laser turbo upgrade
- Horsepower Range: 380~450HP
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16K
WHEEL SPEC
- Compressor Wheel: 49.5 / 68.0 mm (Point Milling / Third-order Surface)
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins.each |
| Characters | 1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling |
- Turbine Wheel: 49.2 / 56.0 mm (9 blades STS. Click here to learn more about STS technology.)
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
$321.65
Original: $919.00
-65%Kinugawa Turbo Ball Bearing CHRA Cartridge TD05H-16K for Mitsubishi 4G63T Lancer EVO 1~3 Galant VR-4 DSM Eagle—
$919.00
$321.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- For 4G63T Mitsubishi Lancer EVO 1~3, Galant VR-4, DSM 1G / 2G, Eagle Talon, Plymouth Laser turbo upgrade
- Horsepower Range: 380~450HP
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16K
WHEEL SPEC
- Compressor Wheel: 49.5 / 68.0 mm (Point Milling / Third-order Surface)
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
- For 4G63T Mitsubishi Lancer EVO 1~3, Galant VR-4, DSM 1G / 2G, Eagle Talon, Plymouth Laser turbo upgrade
- Horsepower Range: 380~450HP
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16K
WHEEL SPEC
- Compressor Wheel: 49.5 / 68.0 mm (Point Milling / Third-order Surface)
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins.each |
| Characters | 1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling |
- Turbine Wheel: 49.2 / 56.0 mm (9 blades STS. Click here to learn more about STS technology.)
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
