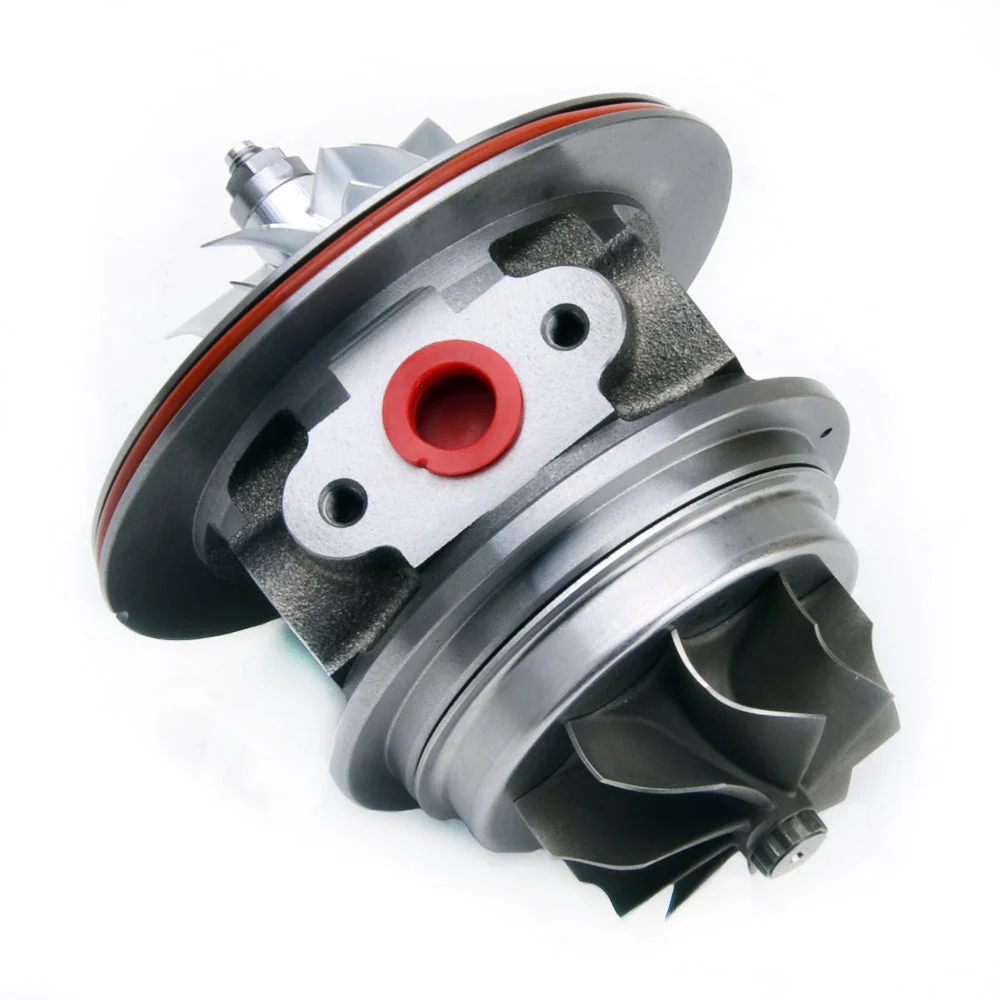

Kinugawa Turbo Ball Bearing CHRA Cartridge TD05H-16K for Nissan TD42 Patrol Y60 Y61 GQ GU Water-Cooled
1 / 6
Kinugawa Turbo Ball Bearing CHRA Cartridge TD05H-16K for Nissan TD42 Patrol Y60 Y61 GQ GU Water-Cooled
Application
- Fits Kinugawa Turbo for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
CHRA Size
- TD05H-16K
Wheels Spec
- Compressor wheel: 49.96 / 68.0 mm (7+7 Point-Milled)
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins. each |
| Characters |
1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |

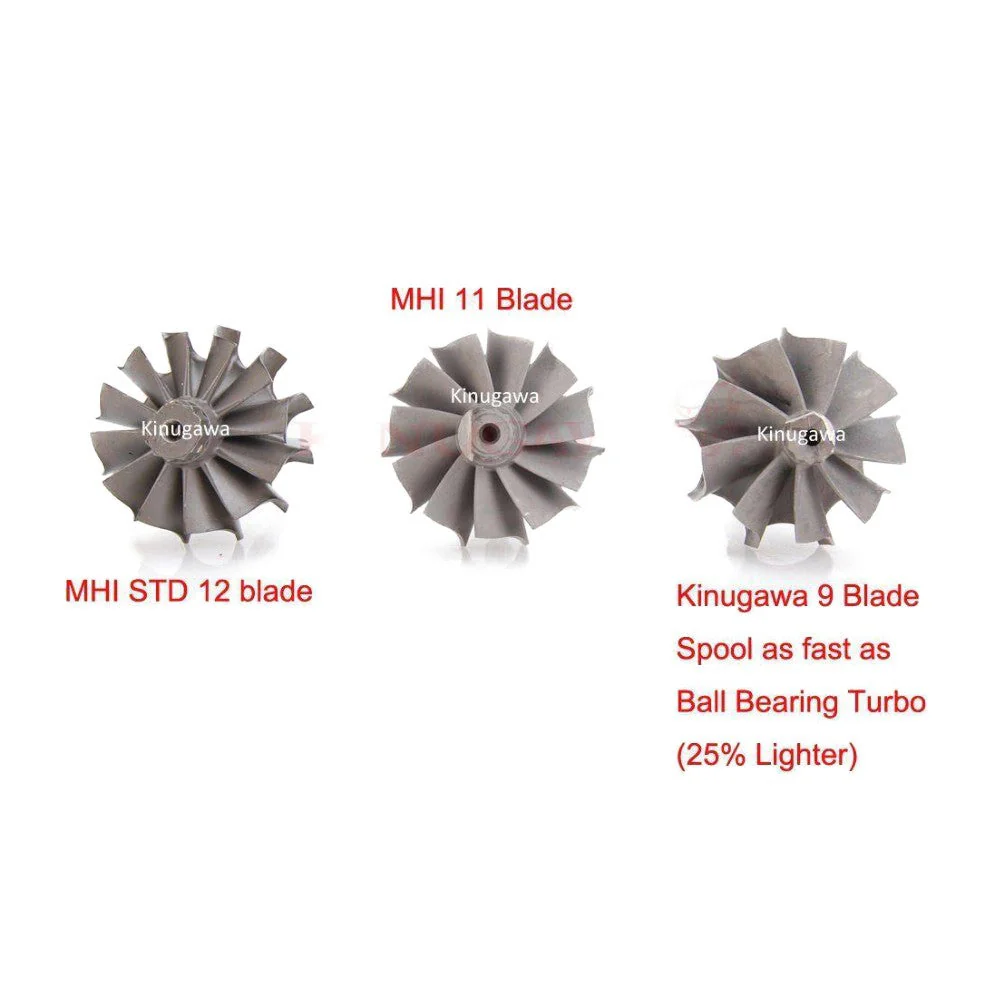

- Turbine wheel: 56.0 / 49.2 mm (9 blades STS Click here to learn more about STS technology.)
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling

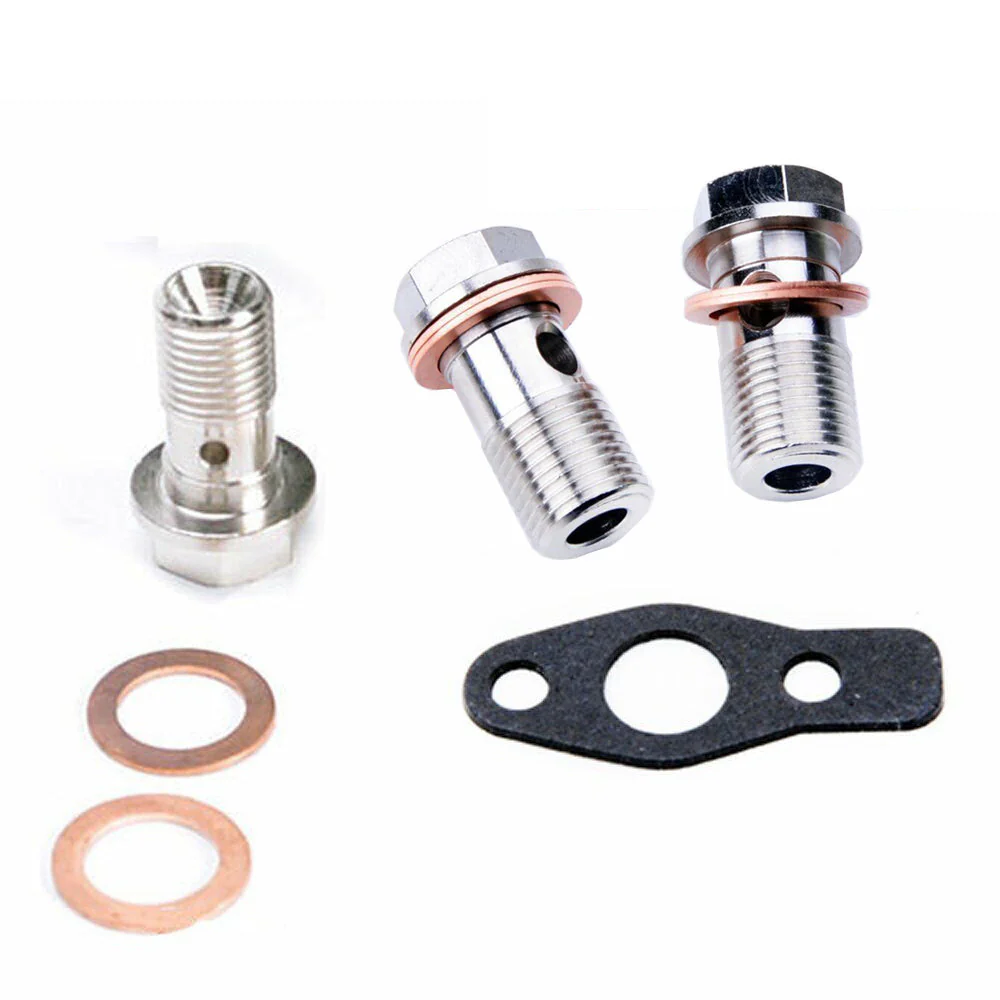

The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
Warranty
- No
$321.65
Original: $919.00
-65%Kinugawa Turbo Ball Bearing CHRA Cartridge TD05H-16K for Nissan TD42 Patrol Y60 Y61 GQ GU Water-Cooled—
$919.00
$321.65Product Information
