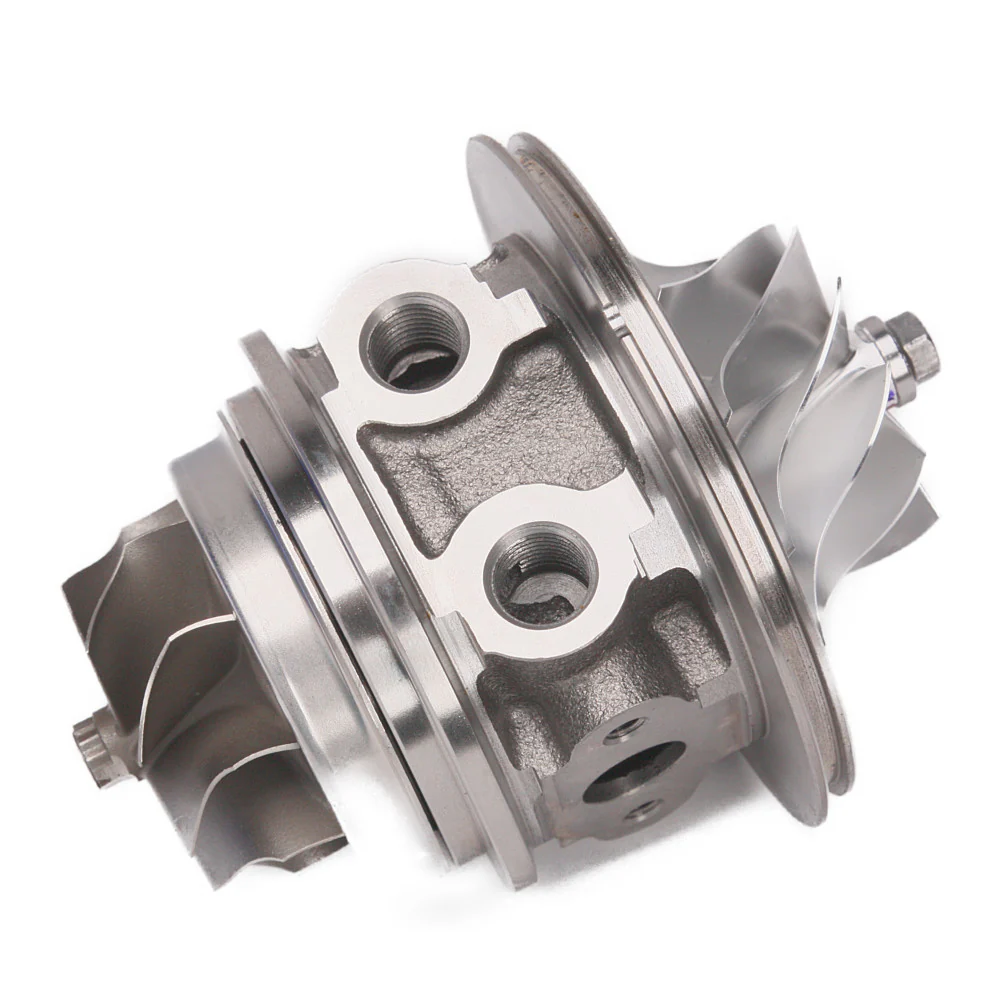

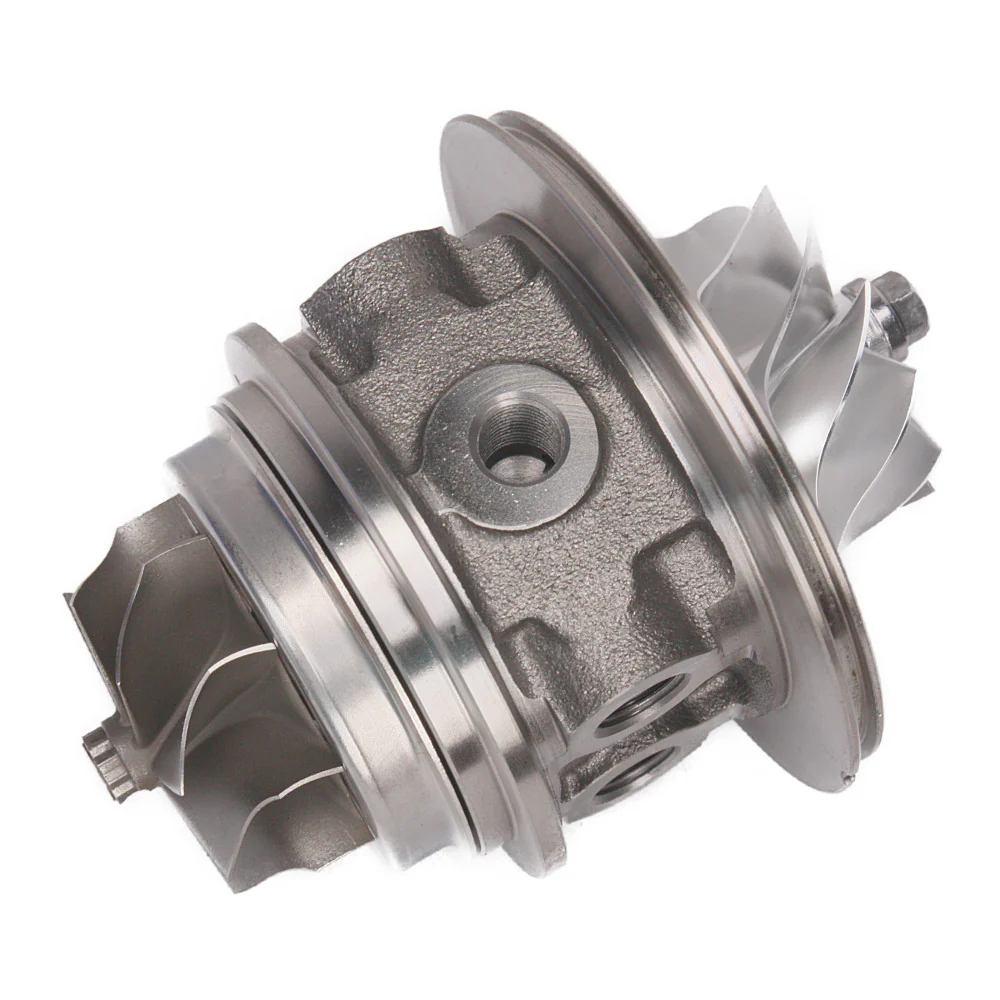

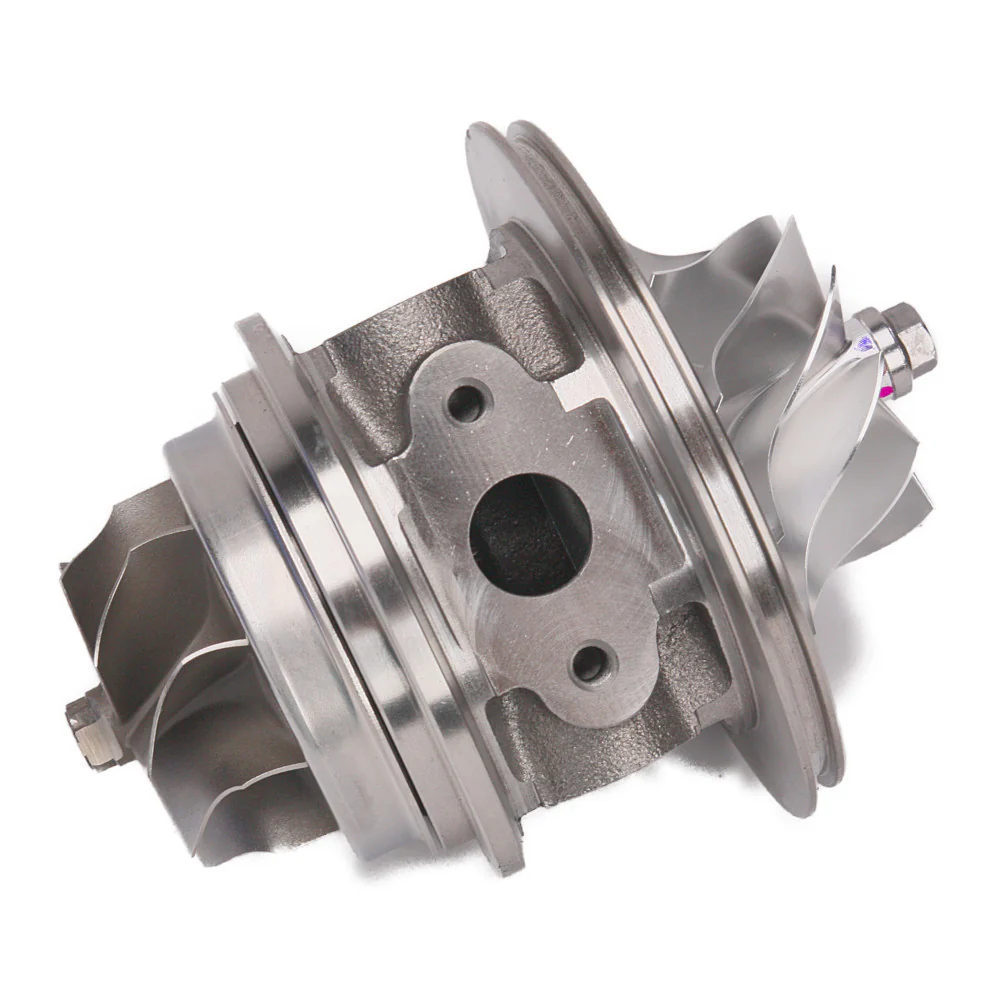

Kinugawa Turbo CHRA Cartridge TD05H-16K for MAZDA Mazdaspeed 3 6 MPS MZR CX7 CX9
Application
- Fits Kinugawa Turbo TD05H-16K for MAZDA Mazdaspeed 3 6 MPS MZR DISI 2.3L CX7 CX9
CHRA Size
- TD05H-16K
Wheels Spec
- Compressor wheel: 49.5 / 68.0 mm Point Milling / Third-order Surface
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16k) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins. each |
| Characters |
1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |

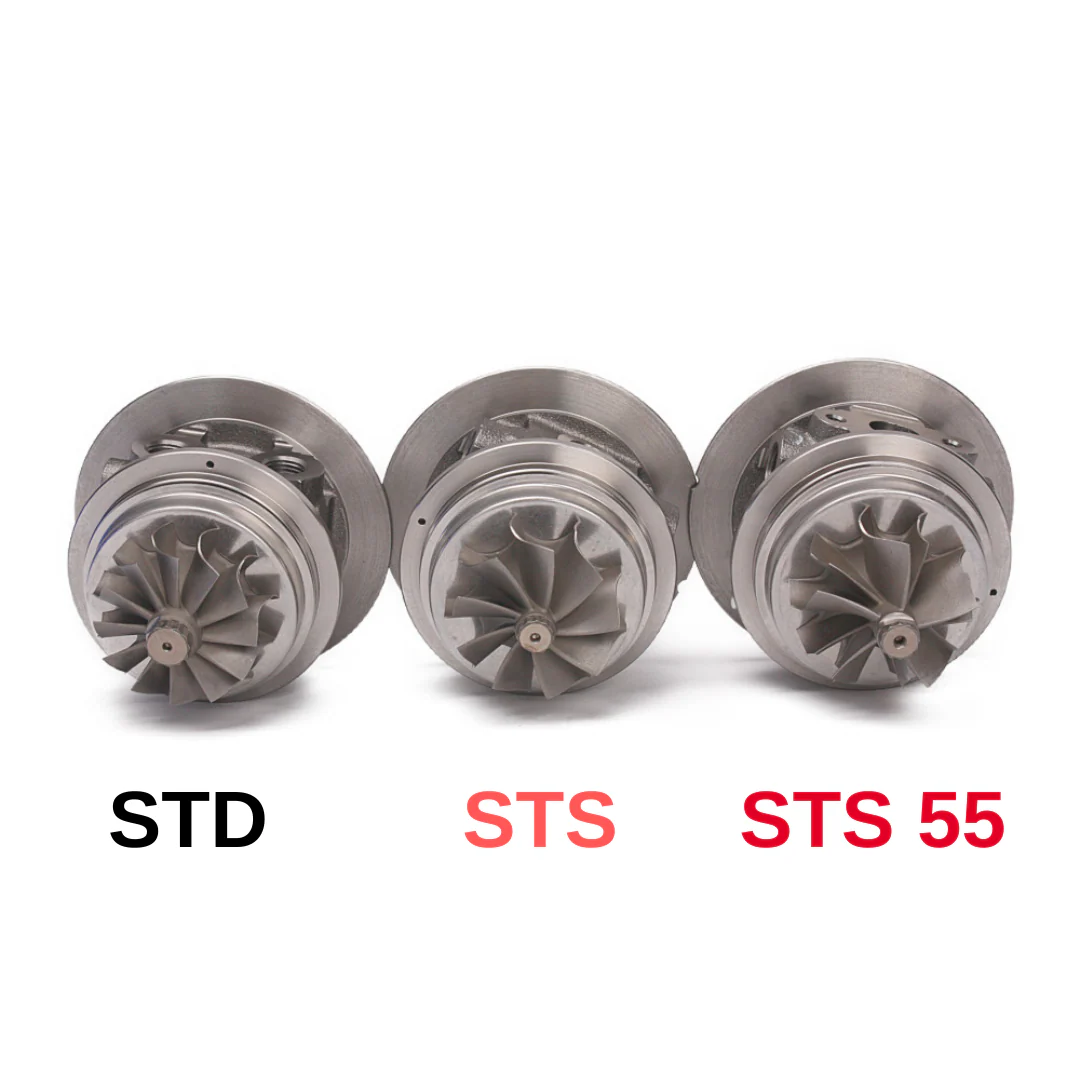

- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Bearing Type
- Journal Bearing with 360-degree thrust bearing kit
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA
- 1 x Balance report with an anti-counterfeit tag
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- No
Select Compressor Wheel
Select Turbine Wheel
From $199.15
Original: $569.00
-65%Kinugawa Turbo CHRA Cartridge TD05H-16K for MAZDA Mazdaspeed 3 6 MPS MZR CX7 CX9—
$569.00
$199.15Product Information
