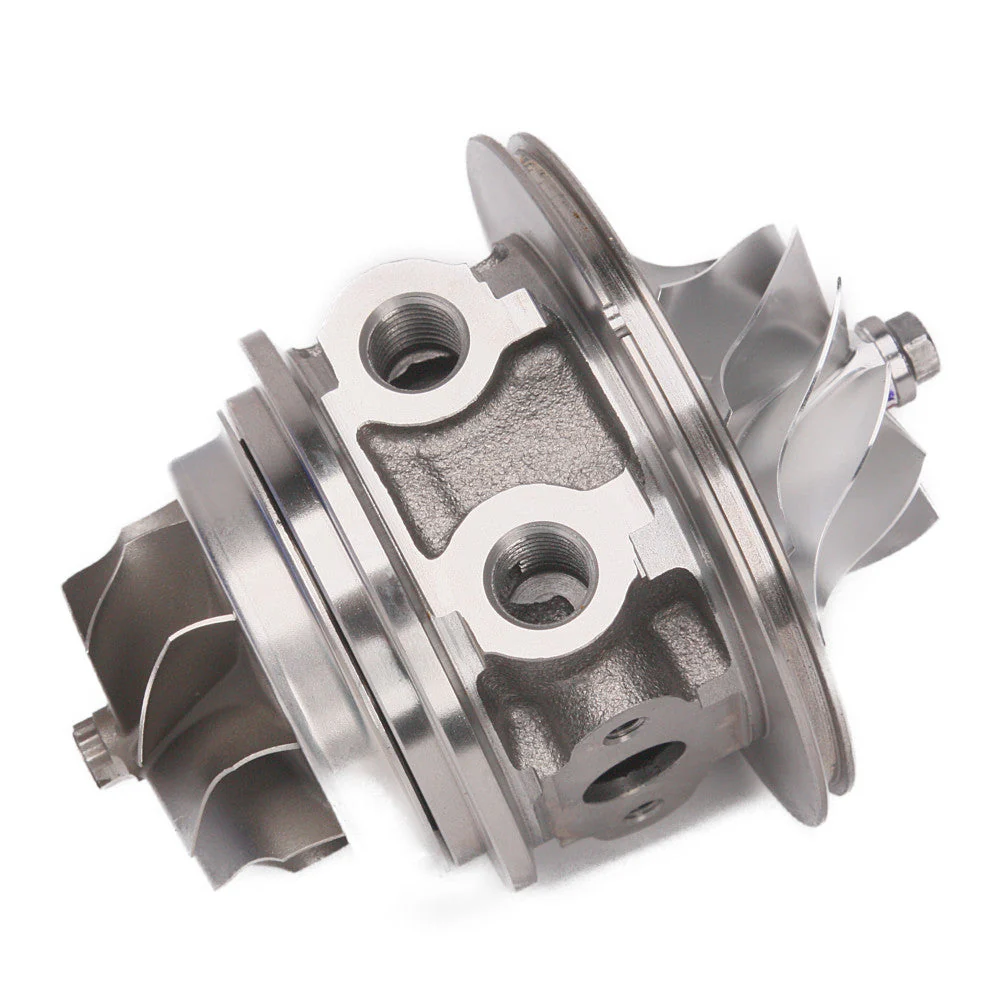

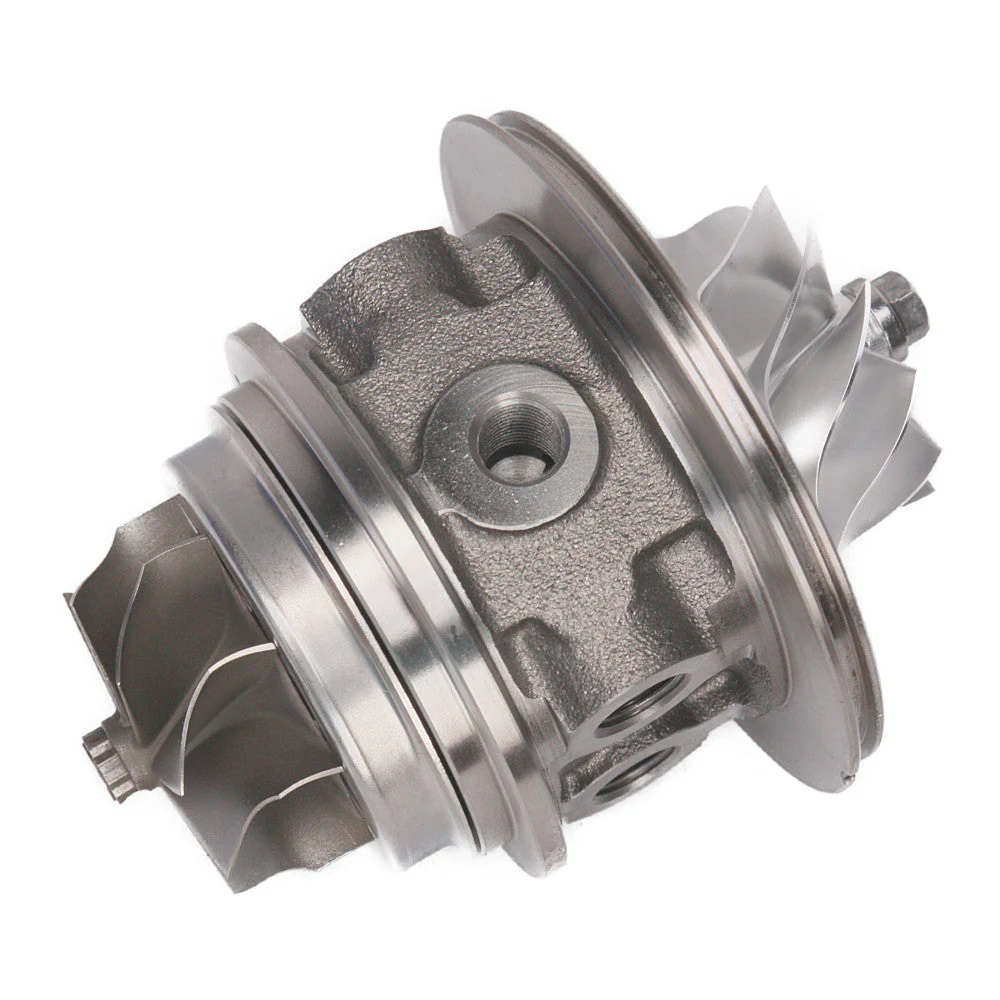

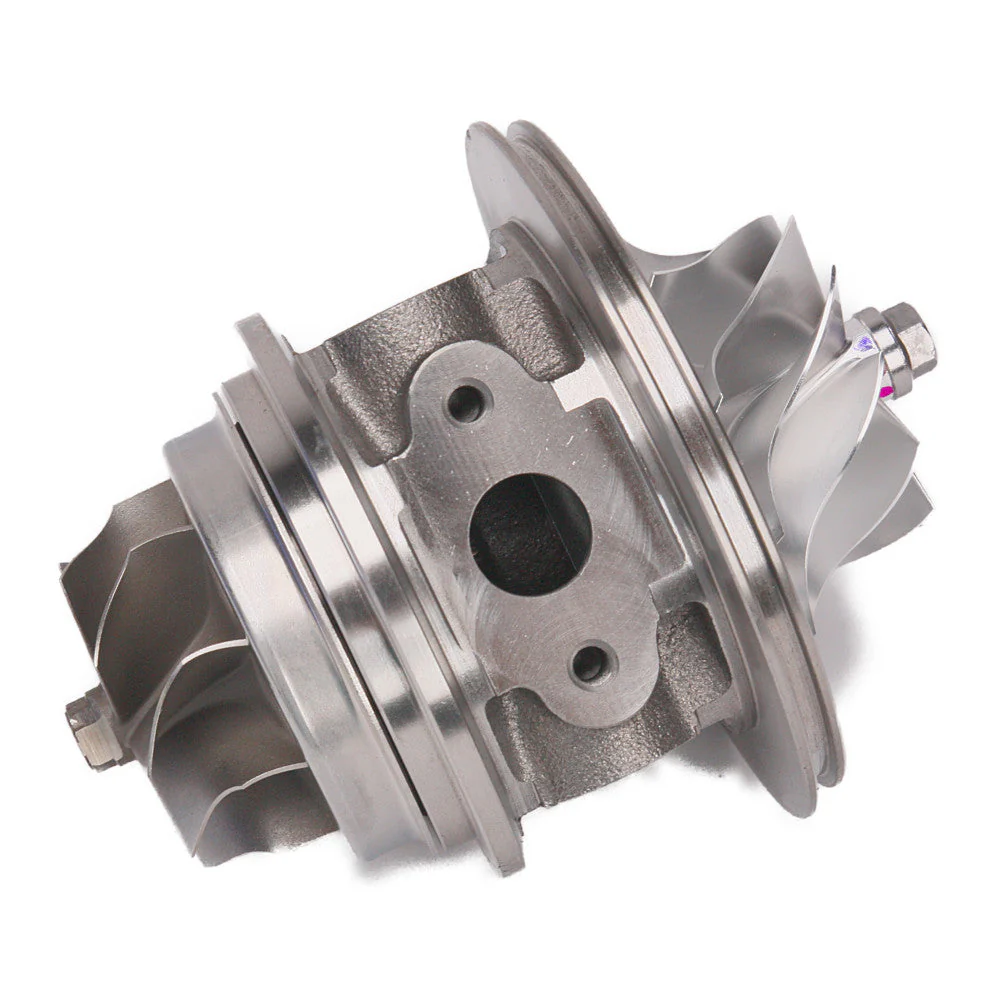

Kinugawa Turbo CHRA Cartridge TD05H-16KX for Toyota Land Cruiser 1HDT 1HZ
Application
- Fits Kinugawa Turbo 3" or 4" TD05H-16K 7cm for Toyota Land Cruiser 1HD-T 1HD-FT 1HD-FTE
- Fits Kinugawa Turbo 3" TD05H-16K 6cm T3 2.5" V-band for Toyota Land Cruiser 1HD
- Fits Kinugawa Turbo 3" TD05H-16K-6 T3 2.5" V-Band for Toyota Landcruiser 1HZ 75 79 80 100 105
- Kinugawa Turbo 3" TD05H-16K-7 for Toyota Land Cruiser 1HZ 75 79 80 100 105
CHRA Size
- TD05H-16K
Wheels Spec
- Compressor wheel: 49.96 / 68.0 mm (7+7 Point-Milled)
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins. each |
| Characters |
1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |

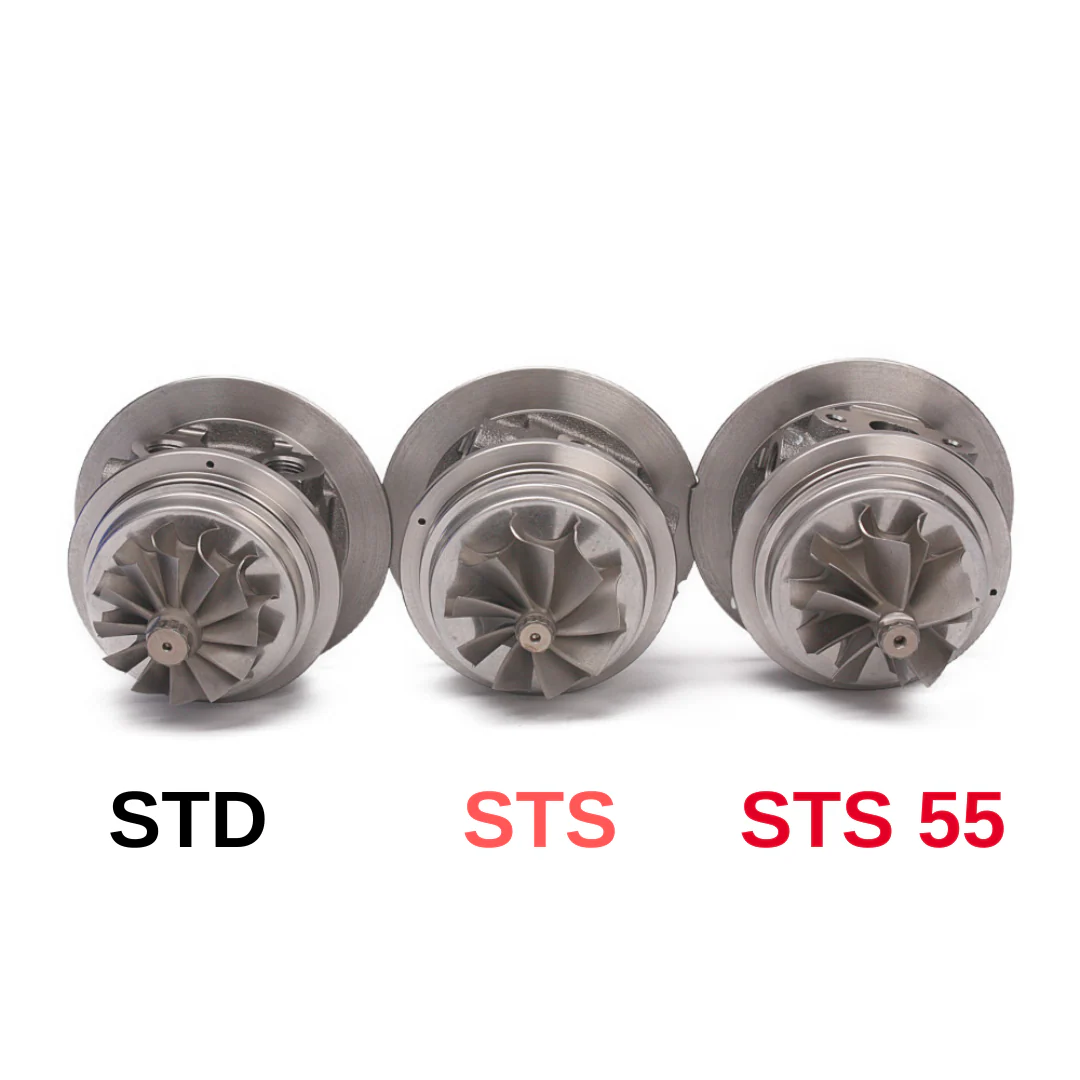

- Turbine wheel: 49 / 57 mm (3 types offered: STD, STS, STS 55. Click here to learn more about STS technology.)
Bearing Type
- Journal Bearing system with 360-degree performance thrust bearing
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x CHRA
- 1 x CHRA
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
WARRANTY
- No.
- No.
