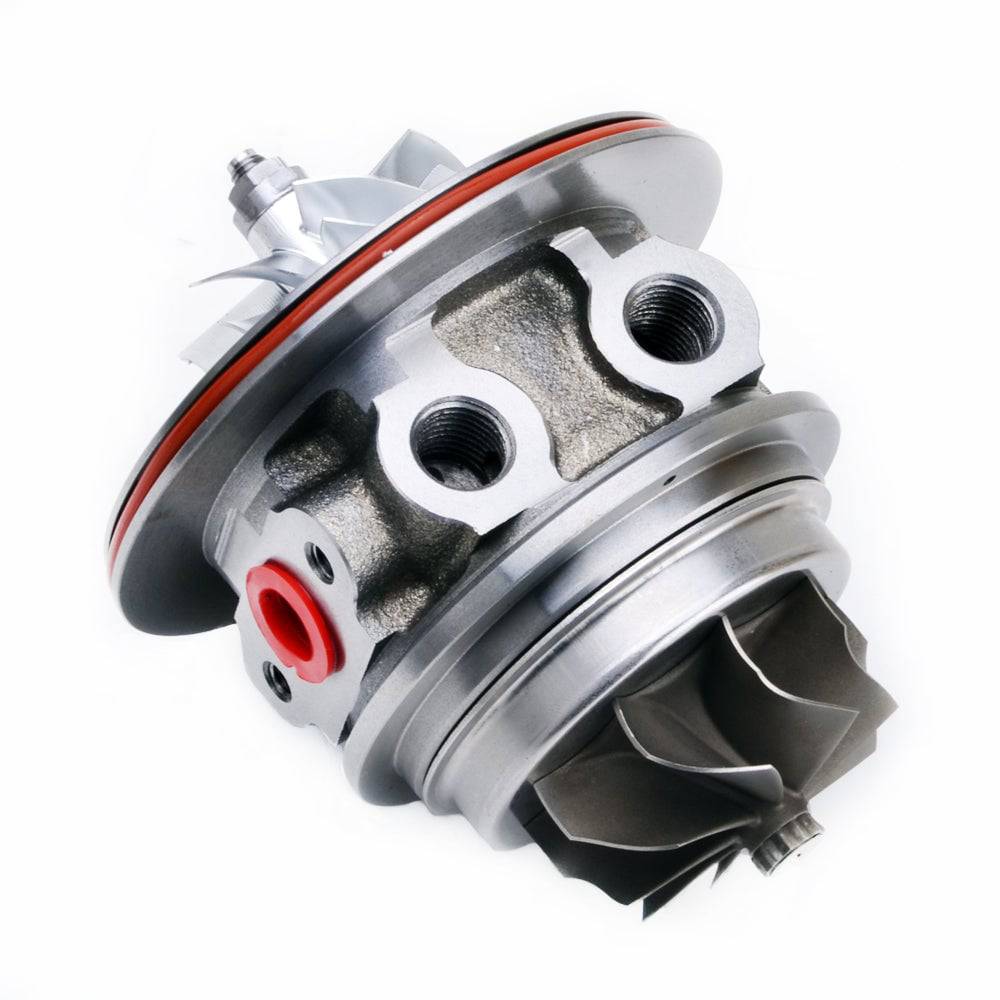

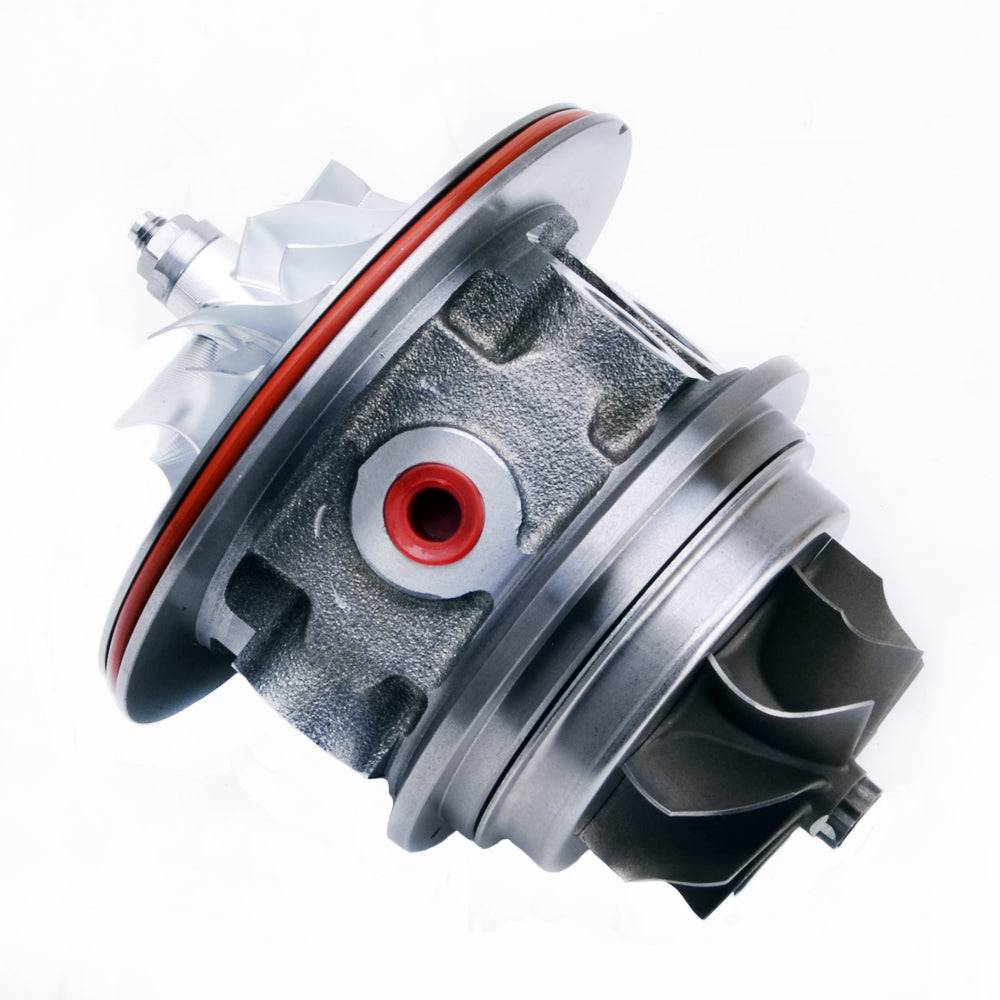

Kinugawa Turbo CHRA Cartridge TD05H-18G for Nissan TD42 Patrol Y60 Y61 GQ GU Water-Cooled

Product image 1
1 / 7

Kinugawa Turbo CHRA Cartridge TD05H-18G for Nissan TD42 Patrol Y60 Y61 GQ GU Water-Cooled

Application
- Kinugawa Turbo for Nissan TD42 Patrol Safari GR GQ  Y60, GU Y61 TD42T engine

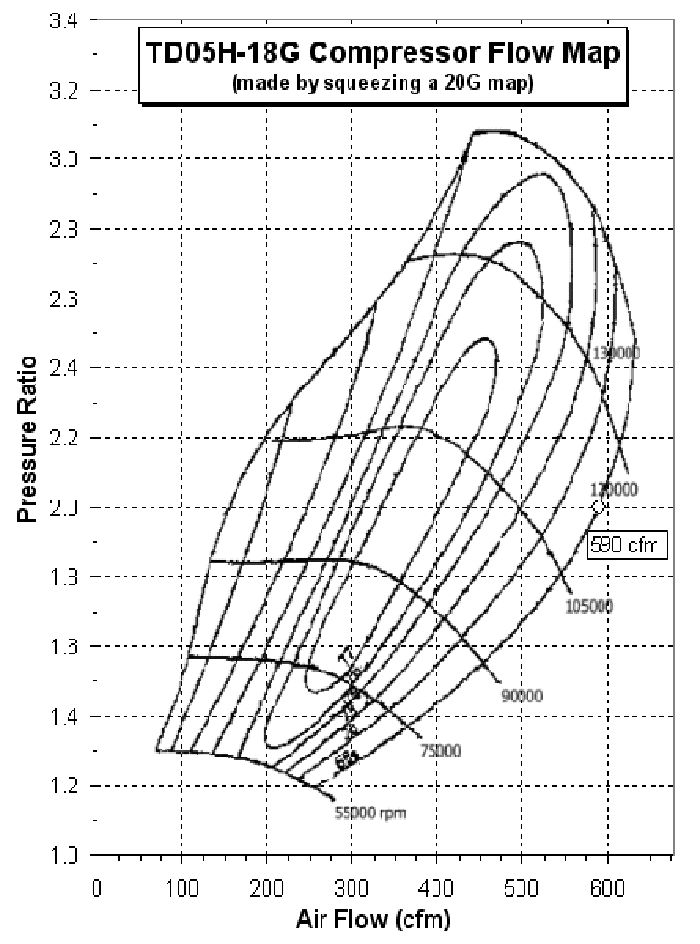

The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.

CHRA Size
- TD05H-18G

Wheels Spec

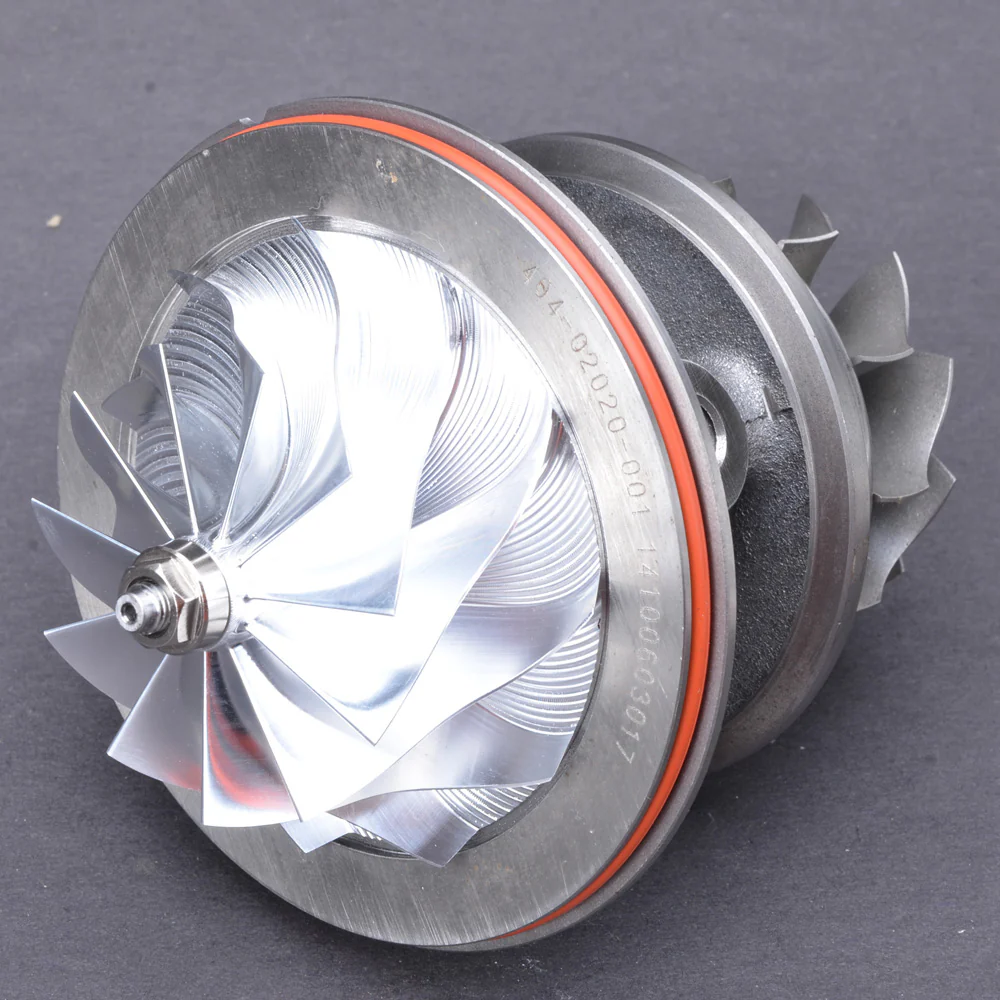

- Compressor wheel: 50.3 / 68.0 mm  (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)

kinugawa sts turbine wheel wide range exhaust power drive
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit

Cooling Type
- Oil and water cooling

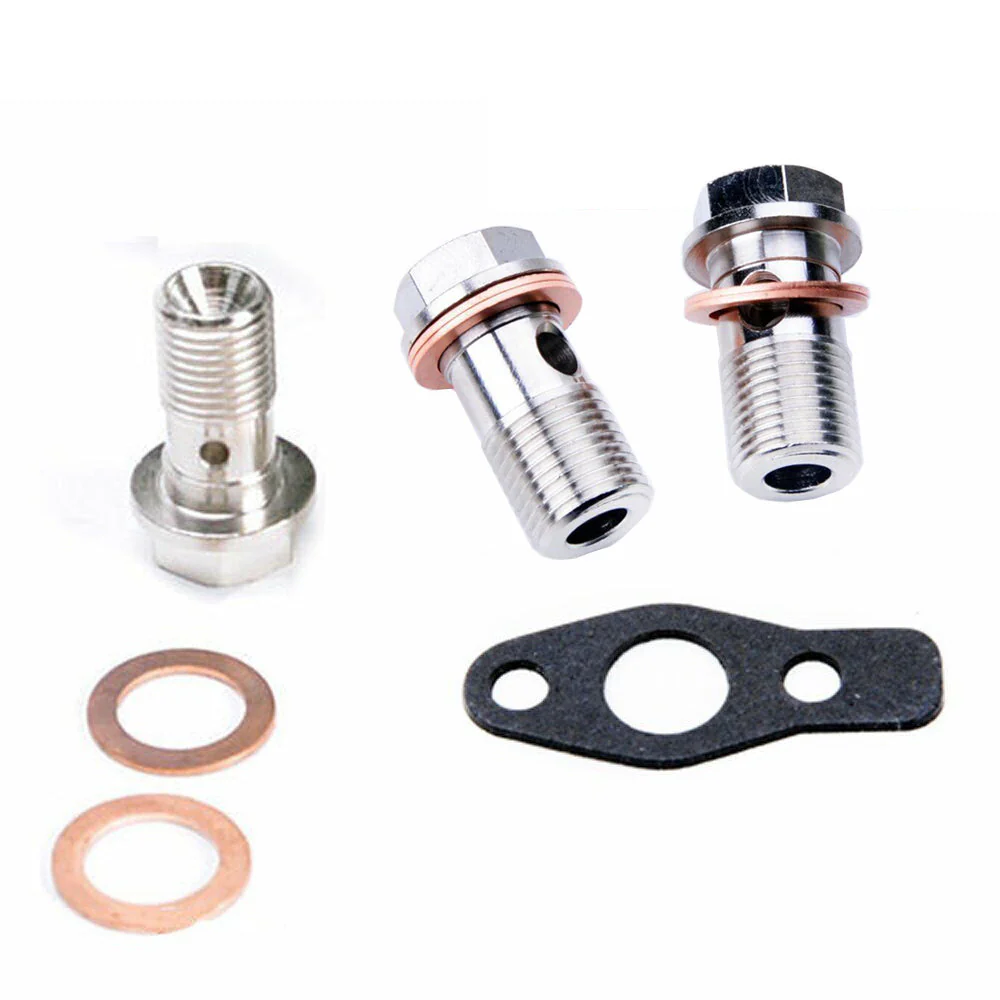

The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Balance Report with Anti-Counterfeit Tag

Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany

Provider
- Kinugawa Turbo Systems

Warranty
- No

Select Compressor Wheel
Select Turbine Wheel
From $160.65

Original: $459.00

-65%
Kinugawa Turbo CHRA Cartridge TD05H-18G for Nissan TD42 Patrol Y60 Y61 GQ GU Water-Cooled—

$459.00

$160.65

Product Information

Shipping & Returns

Description

Application
- Kinugawa Turbo for Nissan TD42 Patrol Safari GR GQ  Y60, GU Y61 TD42T engine
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.

CHRA Size
- TD05H-18G

Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm  (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)

kinugawa sts turbine wheel wide range exhaust power drive
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit

Cooling Type
- Oil and water cooling

The Set Includes
- 1 x CHRA
- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)
- 1 x Balance Report with Anti-Counterfeit Tag

Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany

Provider
- Kinugawa Turbo Systems

Warranty
- No
