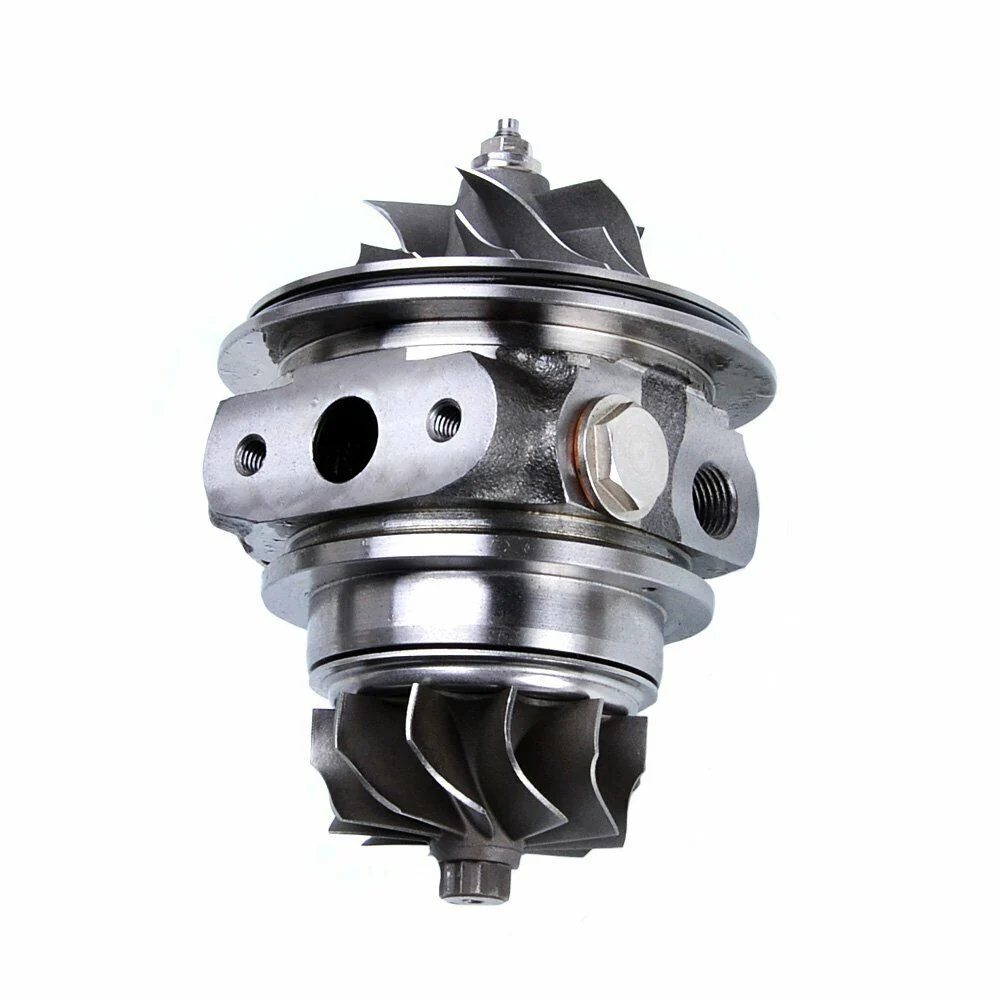

Kinugawa Turbo CHRA Cartridge TF035HM-12T for Mitsubishi 4M40T Pajero Triton Shogun Challenger Water-Cooled 96-00
1 / 4
Kinugawa Turbo CHRA Cartridge TF035HM-12T for Mitsubishi 4M40T Pajero Triton Shogun Challenger Water-Cooled 96-00
Application
- For Mitsubishi Pajero / Triton / Delica / Shogun / challenger / Mantero / 4m40t 2.8l or 3.2L
- For Mitsubishi 1996 Challenger Engine 4M40 ('98eu)
- For Mitsubishi 1998-Pajero II Engine 4M40 ('98eu)
- For Mitsubishi 1998-00 Shogun Engine 4M40 ('98eu)
- Replace the turbo 49135-03010, 49135-03110, 49135-03112, 49135-03120, and 49135-03130.
- This turbo comes with oil and water-cooling bearing housing that would fit the original oil-cooled. The turbo will still work well without water to cool-bearing housing.
CHRA Size
- TF035HM-12T
- For Mitsubishi Pajero / Triton / Delica / Shogun / challenger / Mantero / 4m40t 2.8l or 3.2L
- For Mitsubishi 1996 Challenger Engine 4M40 ('98eu)
- For Mitsubishi 1998-Pajero II Engine 4M40 ('98eu)
- For Mitsubishi 1998-00 Shogun Engine 4M40 ('98eu)
- Replace the turbo 49135-03010, 49135-03110, 49135-03112, 49135-03120, and 49135-03130.
- This turbo comes with oil and water-cooling bearing housing that would fit the original oil-cooled. The turbo will still work well without water to cool-bearing housing.
CHRA Size
- TF035HM-12T
Wheels Spec
- Compressor wheel: 37.8 / 49 mm (6+6 blades for low-end torque and 11+0 blades for top-end speed)
- Turbine wheel: 42.5 / 35 mm
Bearing Type
- Journal Bearing
Cooling systems
- Oil and water cooling
Situation
- Brand New
The Set Includes
The Set Includes

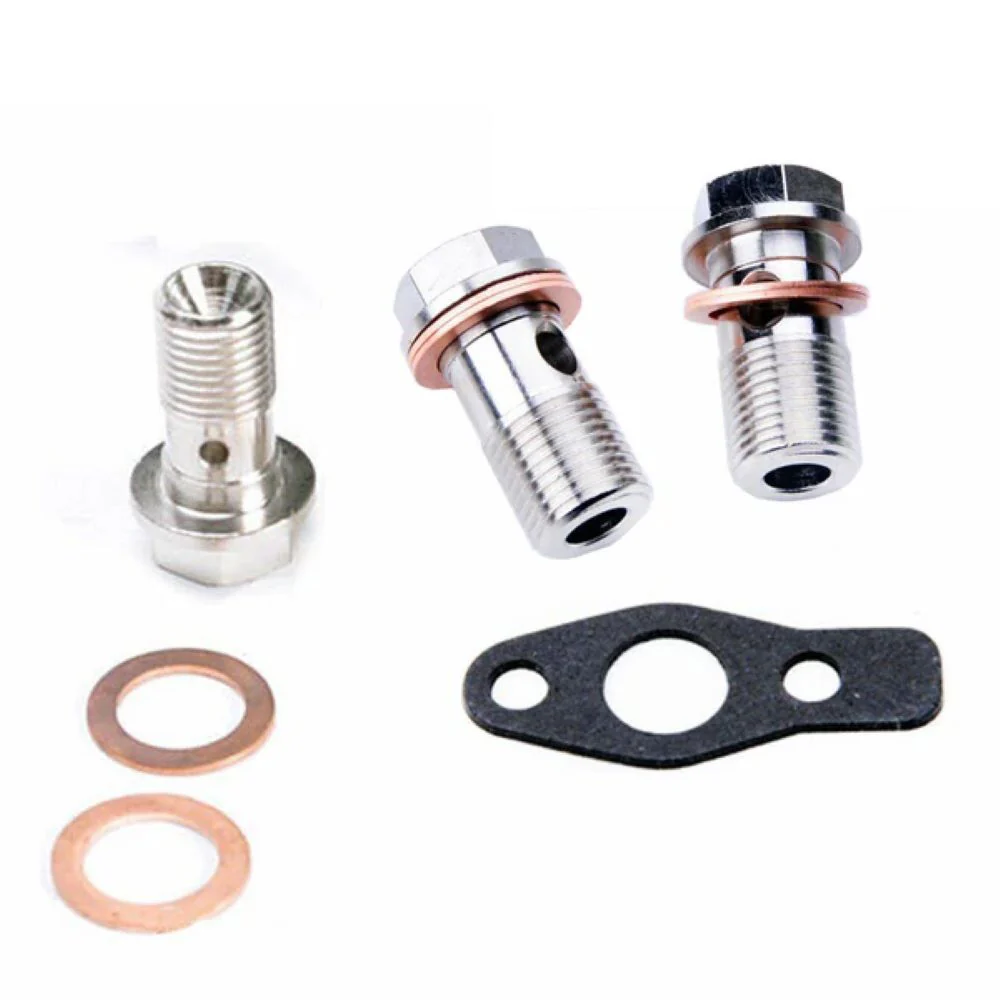

- 1 x CHRA
- 1 x banjo bolt w/ washer for turbo oil feed side
(#414-01101-004 + #416-01003-004*2)
- 1 x oil return gasket
(#413-02006-001)
- 2 x banjo bolts w/ washer for turbo water coolant side
(#414-01101-017*2 + #416-01003-007*4)
(#414-01101-004 + #416-01003-004*2)
- 1 x oil return gasket
(#413-02006-001)
- 2 x banjo bolts w/ washer for turbo water coolant side
(#414-01101-017*2 + #416-01003-007*4)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- N/A
Select Compressor Wheel
Select Turbine Wheel
From $104.65
Original: $299.00
-65%Kinugawa Turbo CHRA Cartridge TF035HM-12T for Mitsubishi 4M40T Pajero Triton Shogun Challenger Water-Cooled 96-00—
$299.00
$104.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- For Mitsubishi Pajero / Triton / Delica / Shogun / challenger / Mantero / 4m40t 2.8l or 3.2L
- For Mitsubishi 1996 Challenger Engine 4M40 ('98eu)
- For Mitsubishi 1998-Pajero II Engine 4M40 ('98eu)
- For Mitsubishi 1998-00 Shogun Engine 4M40 ('98eu)
- Replace the turbo 49135-03010, 49135-03110, 49135-03112, 49135-03120, and 49135-03130.
- This turbo comes with oil and water-cooling bearing housing that would fit the original oil-cooled. The turbo will still work well without water to cool-bearing housing.
CHRA Size
- TF035HM-12T
- For Mitsubishi Pajero / Triton / Delica / Shogun / challenger / Mantero / 4m40t 2.8l or 3.2L
- For Mitsubishi 1996 Challenger Engine 4M40 ('98eu)
- For Mitsubishi 1998-Pajero II Engine 4M40 ('98eu)
- For Mitsubishi 1998-00 Shogun Engine 4M40 ('98eu)
- Replace the turbo 49135-03010, 49135-03110, 49135-03112, 49135-03120, and 49135-03130.
- This turbo comes with oil and water-cooling bearing housing that would fit the original oil-cooled. The turbo will still work well without water to cool-bearing housing.
CHRA Size
- TF035HM-12T
Wheels Spec
- Compressor wheel: 37.8 / 49 mm (6+6 blades for low-end torque and 11+0 blades for top-end speed)
- Turbine wheel: 42.5 / 35 mm
Bearing Type
- Journal Bearing
Cooling systems
- Oil and water cooling
Situation
- Brand New
The Set Includes
The Set Includes
- 1 x CHRA
- 1 x banjo bolt w/ washer for turbo oil feed side
(#414-01101-004 + #416-01003-004*2)
- 1 x oil return gasket
(#413-02006-001)
- 2 x banjo bolts w/ washer for turbo water coolant side
(#414-01101-017*2 + #416-01003-007*4)
(#414-01101-004 + #416-01003-004*2)
- 1 x oil return gasket
(#413-02006-001)
- 2 x banjo bolts w/ washer for turbo water coolant side
(#414-01101-017*2 + #416-01003-007*4)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- N/A
