Kinugawa Turbo CT26 GT3071R for Toyota Supra 7MGTE 7M-GTE MK3 MA70 Bolt-on
Application
- 1986 – 1992: Toyota Supra MK3 MA70 (7M-GTE)
- 1986 – 1991: Toyota Soarer (7M-GTE)
- 1986 – 1991: Toyota Soarer (7M-GTE)
- Replace and upgrade stock 17201-42020 turbo.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's performance results depend highly on your vehicle’s modifications and tuning/calibration.
Wheel Size
- Compressor wheel: 53/71 mm (Billet GT3071R Wheel) (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)

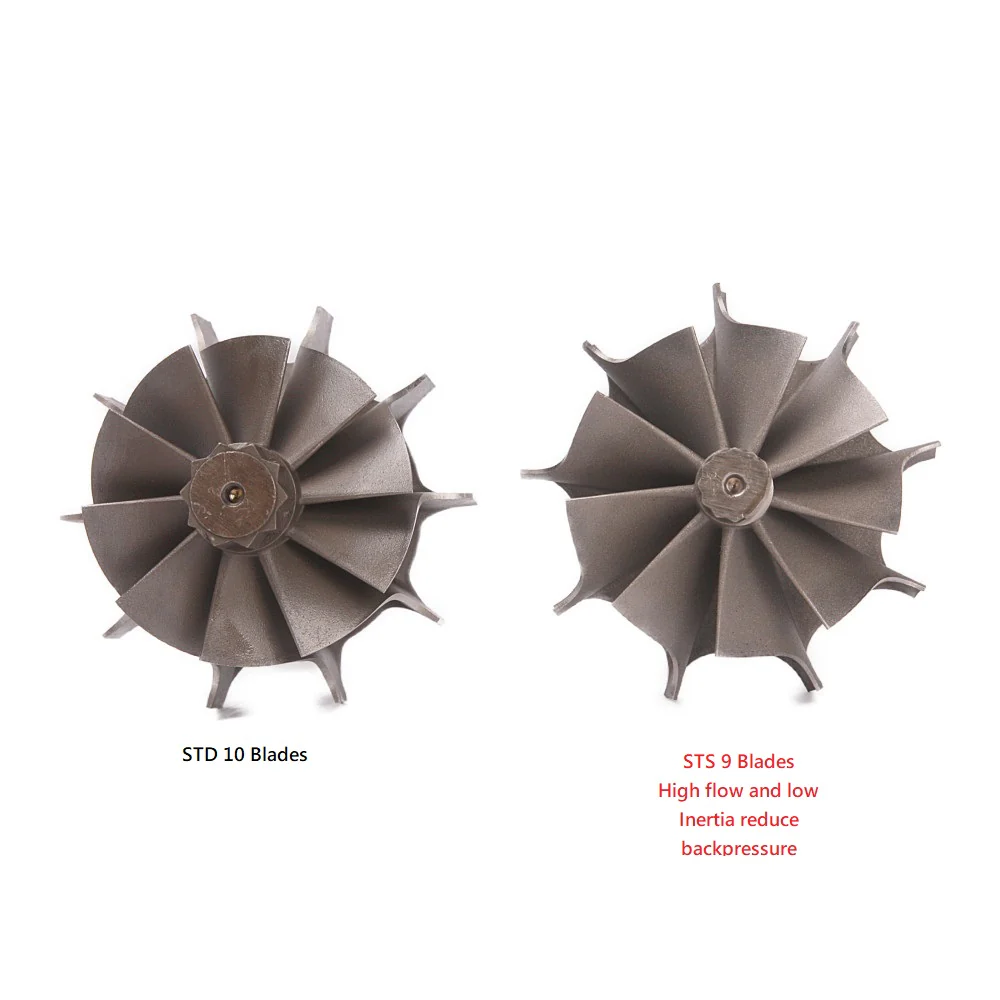

- Turbine Wheel: 51.9 / 67.9 mm (Stock Turbine Wheel) (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- CT26 bolt-on stock type
Turbine Housing
- CT26 bolt-on stock type
Turbine Housing
- Nozzle area: 8cm / AR.57
- Wastegate: internal gated
- Bolt-on stock type
- Wastegate: internal gated
- Bolt-on stock type
Bearing Type
- Journal Bearing with performance 360-degree thrust bearing kit.
Cooling Type
- Oil and Water Cooling System
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

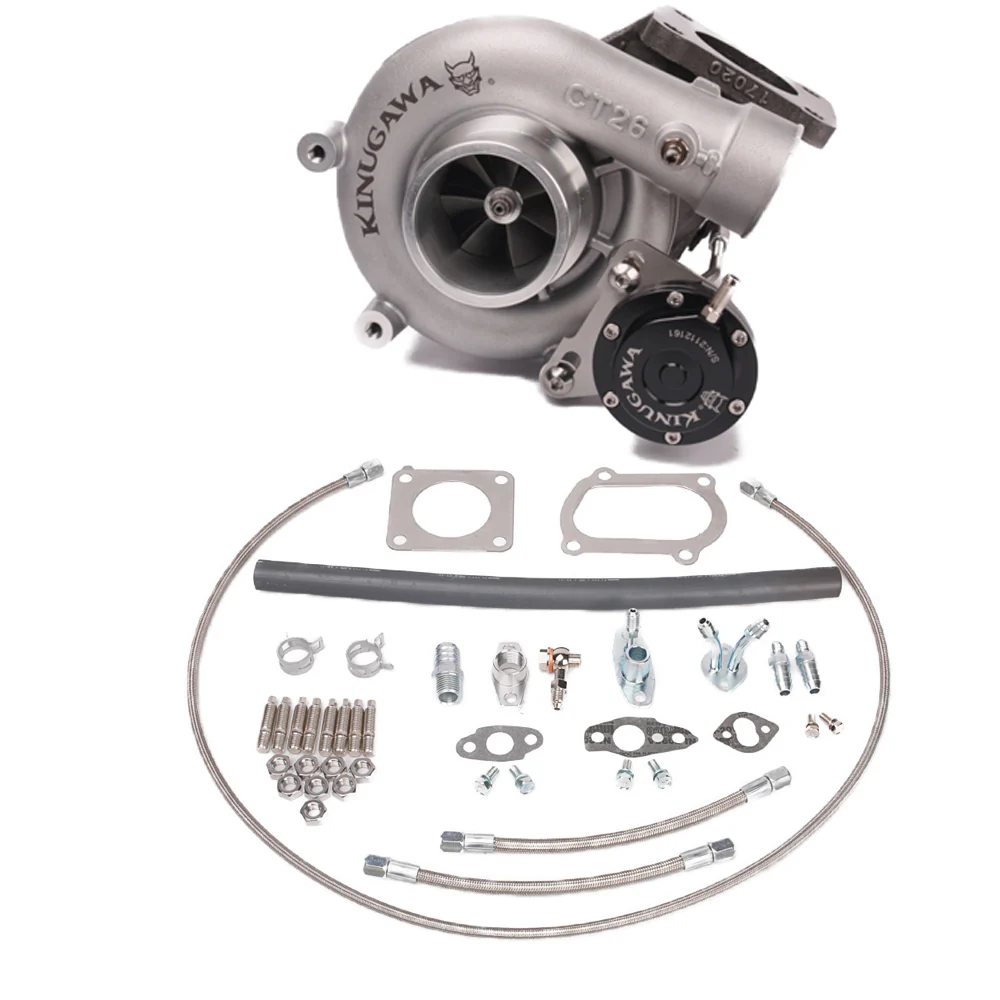

The Set Includes
- 1 x Turbocharger
- 1 x Turbocharger
-1 x Oil supply set
-1 x Water supply and return pipe set
-1 x Return Oil Pipeline
-1 x turbine inlet/outlet gasket
-1 x Balance Report with Anti-Counterfeit Tag ↗
Install Kit Instruction
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.Select Compressor Wheel
Select Turbine Wheel
From $377.65
Original: $1,079.00
-65%Kinugawa Turbo CT26 GT3071R for Toyota Supra 7MGTE 7M-GTE MK3 MA70 Bolt-on—
$1,079.00
$377.65Product Information
