Kinugawa Turbo Power Driven Subaru EWG Up Pipe & Dump Tube 38mm
Description
Power Driven Subaru EWG Up-Pipe with Dump Tube delivers measurable performance gains through external wastegate technology. The dual-size design accommodates 38mm or 40mm EWG fitment, eliminating exhaust turbulence for faster spool and superior boost control compared to internal wastegate systems. Direct bolt-on installation to OEM header or turbo requires zero modifications. High-flow construction unlocks 10–40 hp depending on your specific setup and tuning. Purpose-built for Subaru platforms where responsive throttle response and refined boost management matter. A straightforward upgrade path for serious builders seeking reliable power delivery without fabrication work.
Application
- 2002-2014 WRX
- 2004-2020 STI
- 2004-2006 Baja Turbo
- 2004-2013 Forester XT
- 2005-2009 Legacy GT
- 1991-1994 Legacy Turbo
- 2005-2009 Outback XT
- Does not work for RHD (Right Hand Drive)
- Only fit headers with 3-bolt flange
Features
- Includes gaskets & all necessary hardware
- 38mm or 40mm EWG V band with dump tube
- Made of 304 Stainless steel

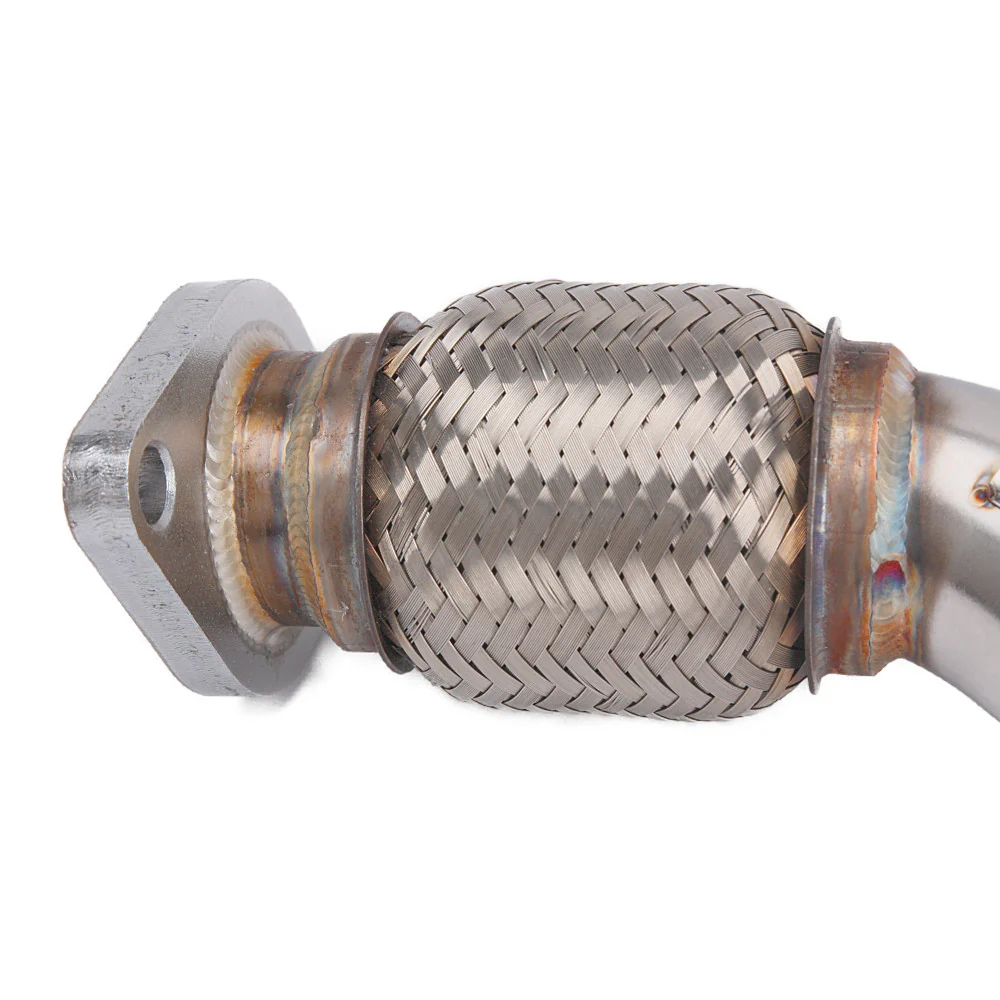

- High quality Flex Joint
- Flange is 0.5" thick
- Hand TIG welded
- Minimal internal steps for maximum flow
- Precision CNC mandrel bend
- 10-40+whp gain
- Reduce turbo lag
- Flex joint that is not located at the bend which adds life expectancy to the flex section
- Note: Block off plate is no longer offered as it is not needed with wastegate
Specifications
- 2.0mm piping thickness (vs. 1.5mm other brands)
- 14 gauge , 304 stainless stee
- 1.95" Inlet and 1.95 outlet
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Original: $399.00
-65%$399.00
$139.65Product Information
