Kinugawa TD04HL Turbo Upgrade for Volvo 740 & 940 (B230FT / B230FK) — 270 to 370HP

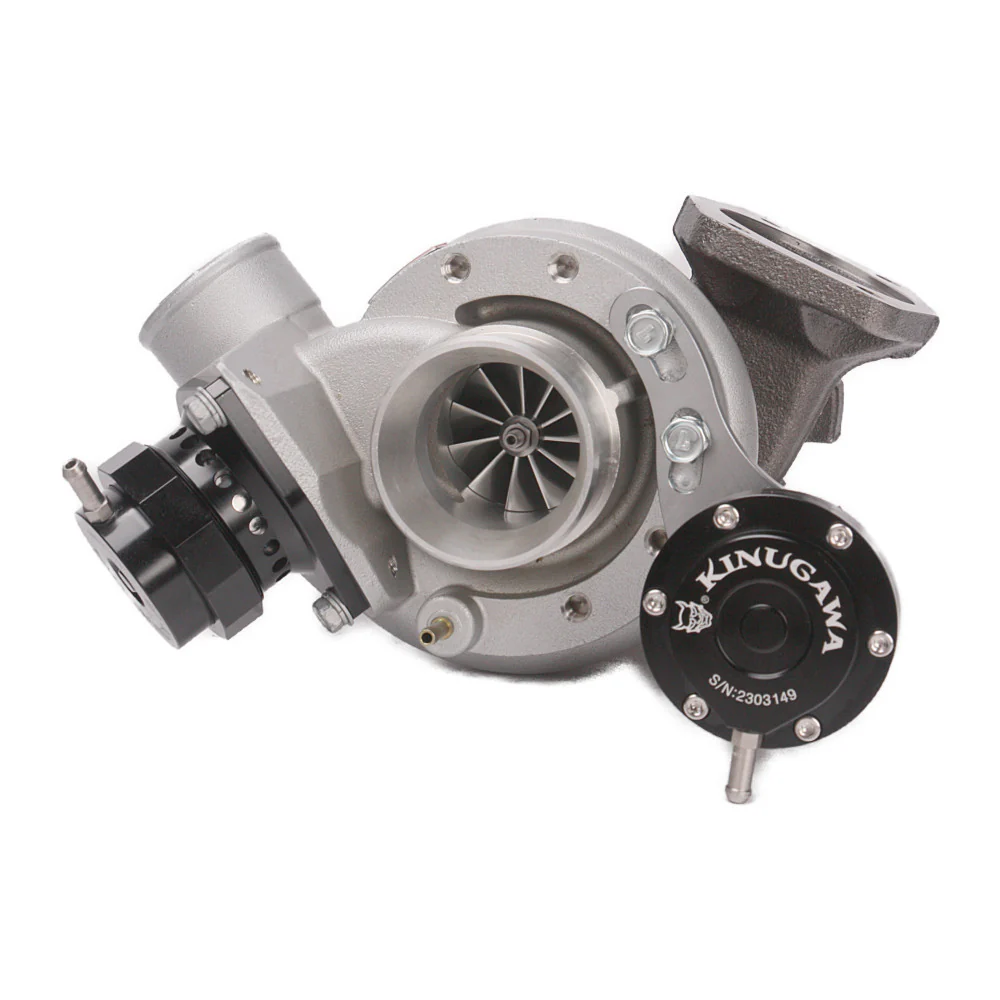

The Kinugawa TD04HL is a direct-fit performance turbocharger upgrade for the Volvo 740 and 940 equipped with the B230FT or B230FK engine. It replaces the factory TD04H-13C-6cm unit with a larger TD04HL-16T, 19T, or 20T core in a 7cm conic turbine housing, delivering significantly more airflow and power potential without major fabrication.
Vehicle Fitment
- Volvo 740 / 745 (1990–) — 2.3L 121kW B230FT
- Volvo 940 / 945 (1990–1996) — 2.3L 121kW B230FT
- Volvo 740, 760, 940, 960 (1989–1998) — B230FT engine
- Volvo 940, 960 (1990–) — B200FT engine
- Volvo 940 (1991–1998) — B230FK engine
Replaces OEM turbo part numbers: 49189-01000, 49189-01200, 49189-01210, 49189-01260, 49189-01270
CHRA & Core Specification
- Core: TD04HL-16T / 19T / 20T
- Bearing type: Journal bearing
- Condition: Brand new
- Country of origin: Taiwan
Compressor Wheel Options (Billet)
Three power levels available — choose the compressor wheel that matches your build target:
- 19T — 46 / 56mm, Trim 63 → 300–350HP (gasoline)
- 20T — 47 / 56mm, Trim 66 → 320–370HP (gasoline)
Blade note: 6+6 blades improve low-end torque; 11+0 blades favour top-end power.
Turbine Wheel
45.6 / 52mm — three turbine options available:
- STD — standard specification
- STS — Superior Turbine Strike for faster spool
- STS 55 — high-flow advanced variant
Learn more about STS technology →
Compressor Housing
- Universal rotated plate type

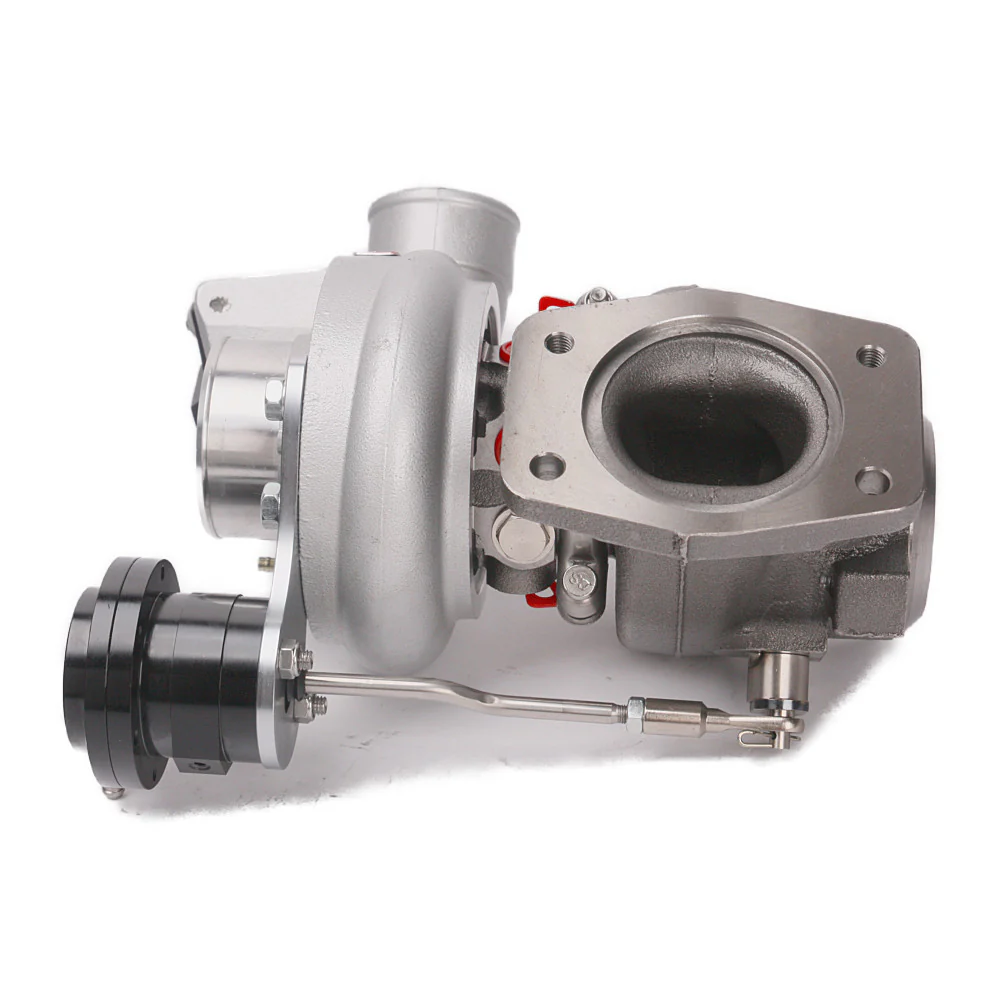

Turbine Housing
- Nozzle area: 7cm / AR.49
- Inlet: STD Volvo T3
- Outlet: Conic type
- Wastegate: Internal gated
Valve Type — BOV or BCV (Your Choice)
The rotated plate cover includes an adjustable blow-off valve (BOV) or recirculating bypass valve (BCV). Learn the difference between BOV and BCV →
Three springs included to match your actuator pressure range:
- Green spring: 5–15 Psi (default installation)
- Yellow spring: 15–23 Psi (included)
- Blue spring: 23–30 Psi (included)
Actuator Pressure
- Default: 1.0 bar / 14.7 Psi
- Custom options available: 0.3, 0.5, 0.8, 1.2, 1.5, 1.7, or 2.0 bar — add a note at checkout or contact us
What's Included
- 1 × Turbocharger (TD04HL, your selected spec)
- 1 × Adjustable BOV or BCV with 3 springs (Green / Yellow / Blue)

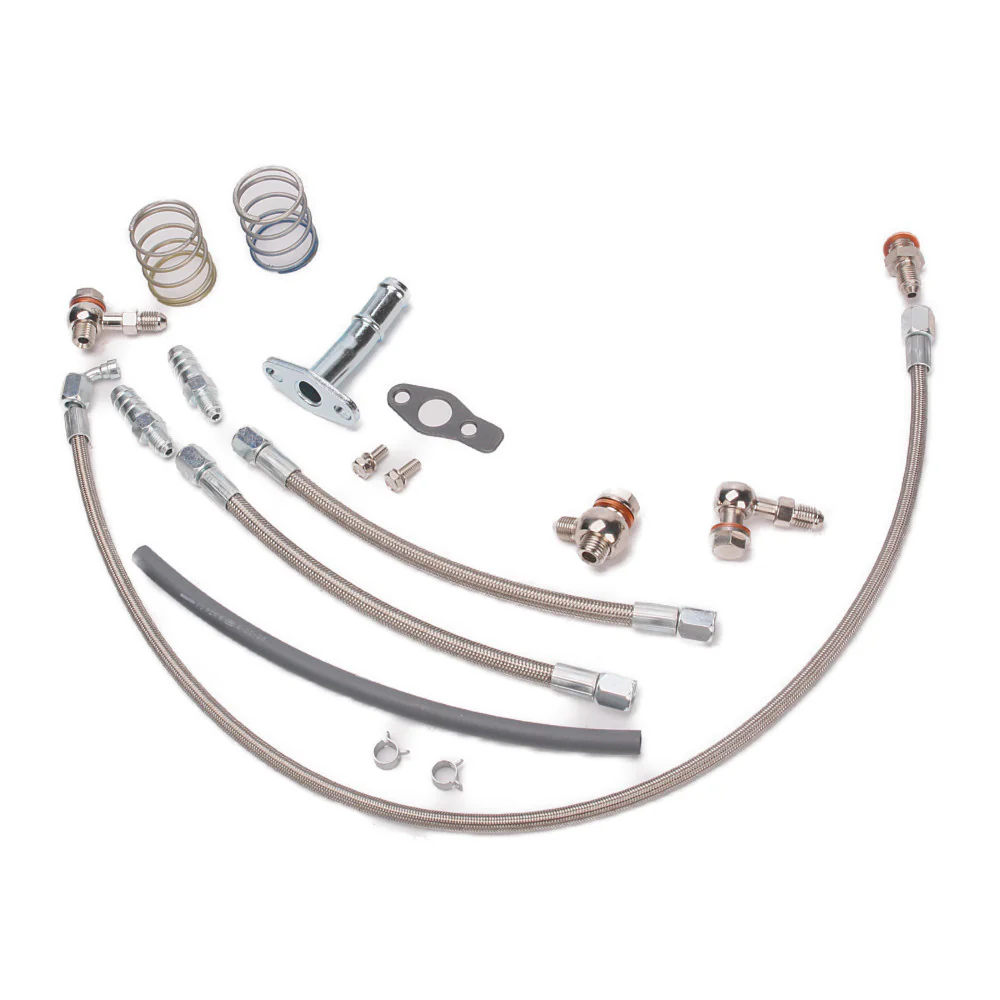

- 1 × Oil and water line kit (#320-14054-003)
- 1 × Balance report with anti-counterfeit authentication tags
Performance Disclaimer
Maximum power figures are calculated from the compressor map choke flow (total turbo capability) and represent potential flywheel power. Actual results depend on your vehicle's modifications, tuning, and calibration.
Warranty
Kinugawa Turbo Systems offers a 1-Year Trouble-Free Warranty from the purchase date to the original purchaser. If your turbocharger fails or develops an issue for any reason, return it for a free overhaul, recondition, or replacement depending on availability. Kinugawa has you covered.
