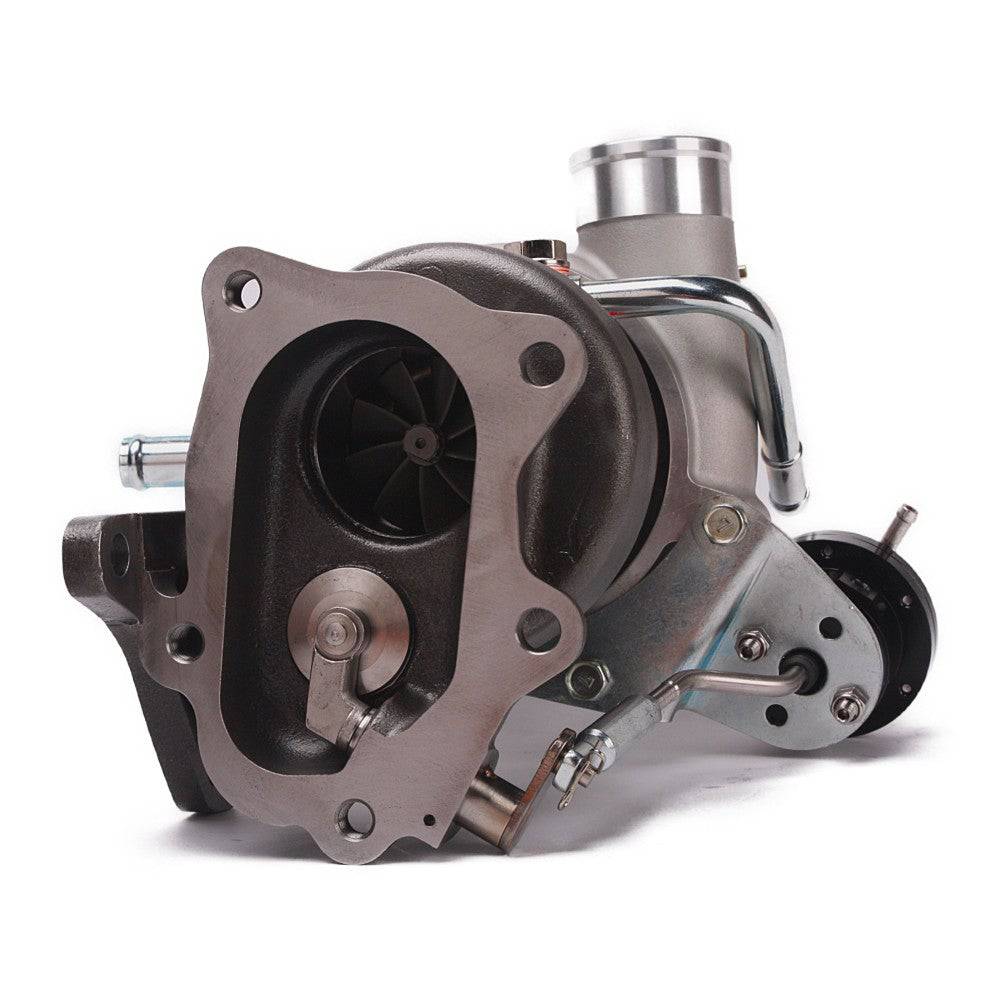

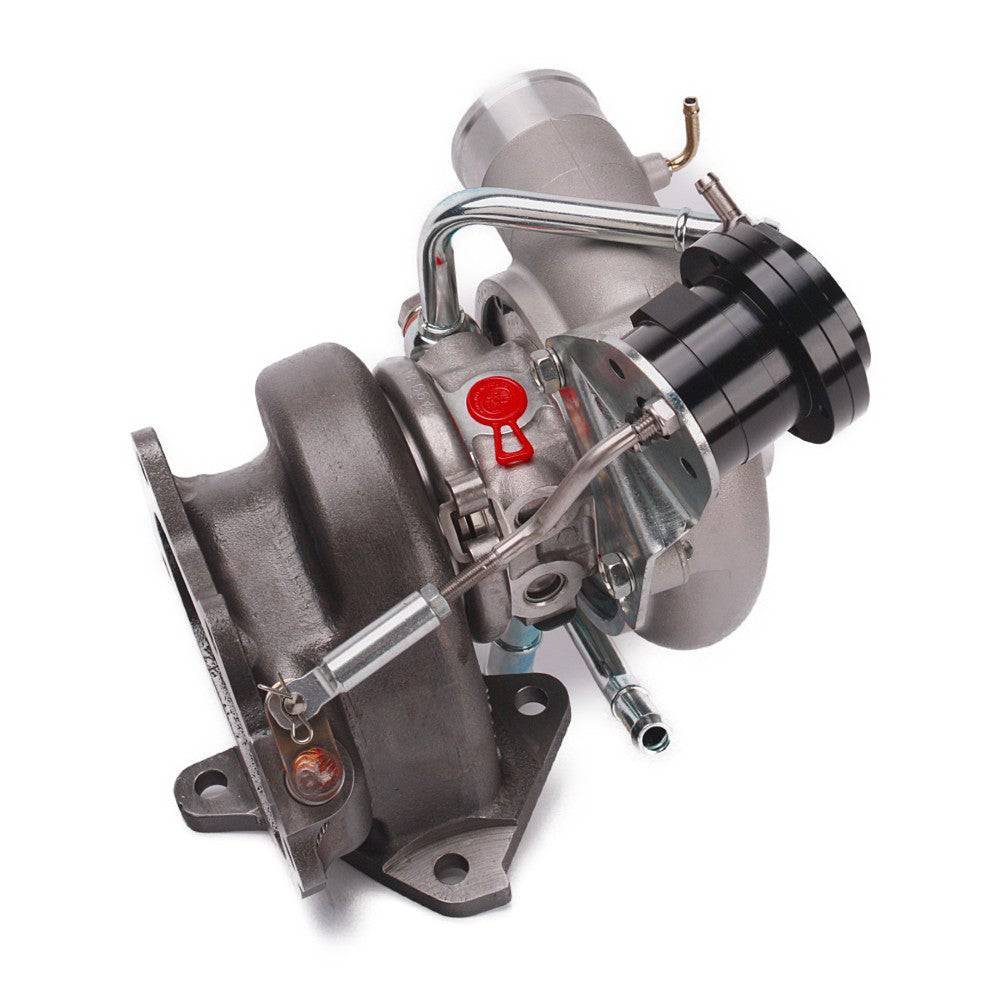

Kinugawa Turbo TD05 TD06 GTX2863R GTX2867R GTX3071R for SUBARU WRX STI 2004-2020
Application
- For Subaru EJ20 EJ25 IMPREZA GC8 / GDA / GDB / GRB / GRF single-scroll turbo.
(inc. 2002-2007 WRX / 2004+ STI)
- Replacement of items in the warehouse.
- For the Subaru EJ20 & EJ25 engine.
- Bolt for replacement of all WRX / STI td04l, IHI RHF55 RHF5HB VF22, VF23, VF24, VF28, VF29, VF30, VF34, VF35…, and MHI TD05/TD06 turbocharger with Stock 2.4" Intake turbo.
- 2004-2020 Subaru WRX STI vehicles
- 2004-2007 Subaru Forester
Here's an airflow comparison between the Garrett GTX2863R, GTX2867R, and GTX3071R turbochargers based on the provided search results:
GTX Turbocharger Airflow Comparison:
| GTX2863R | GTX2867R | GTX3071R | |
|---|---|---|---|
| Compressor Wheel Size | 63.4mm exducer | 67.4mm exducer | 71.4mm exducer |
| Max Flow Rate | ~43.0 lb/min | 49 lb/min | 60 lb/min |
| HP Potential | 420-425 HP | 475 HP | 480 HP |
Compressor Wheel (3 Options)
GTX 2863: 47/63.4 mm 11+0 Blades
GTX 2867: 49.7/67.4 mm 11+0 Blades
GTX 3071: 54/71.4 mm 11+0 Blades
GTX 2867: 49.7/67.4 mm 11+0 Blades
GTX 3071: 54/71.4 mm 11+0 Blades
Turbine Wheel (3 Options)
TD05H: 56 / 49 mm 12 Bales STD or 9 Blades STS
TD06SL2: 61 / 54 mm 11 Bales STD or 9 Blades STS
TD06H: 67.2 / 58.8 mm 11 Bales STD or 9 Blades STS
TD06SL2: 61 / 54 mm 11 Bales STD or 9 Blades STS
TD06H: 67.2 / 58.8 mm 11 Bales STD or 9 Blades STS
Compressor Housing (AR57)
- Compressor inlet/outlet: 2.4"/2.0"
Turbine Housing Hi-Ni Thermal Resistant
- 3 options 7cm ar.49 / 8cm ar.57 / 10cm ar.73
Bearing Type
- Journal Bearing Systems with performance 360-degree thrust bearing kit.
Cooling Type
- Water and Oil Cooling System
Actuator Pressure
- 1.0 bar default setting.
-We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar springs, Please add a comment to your order if you need to change it.

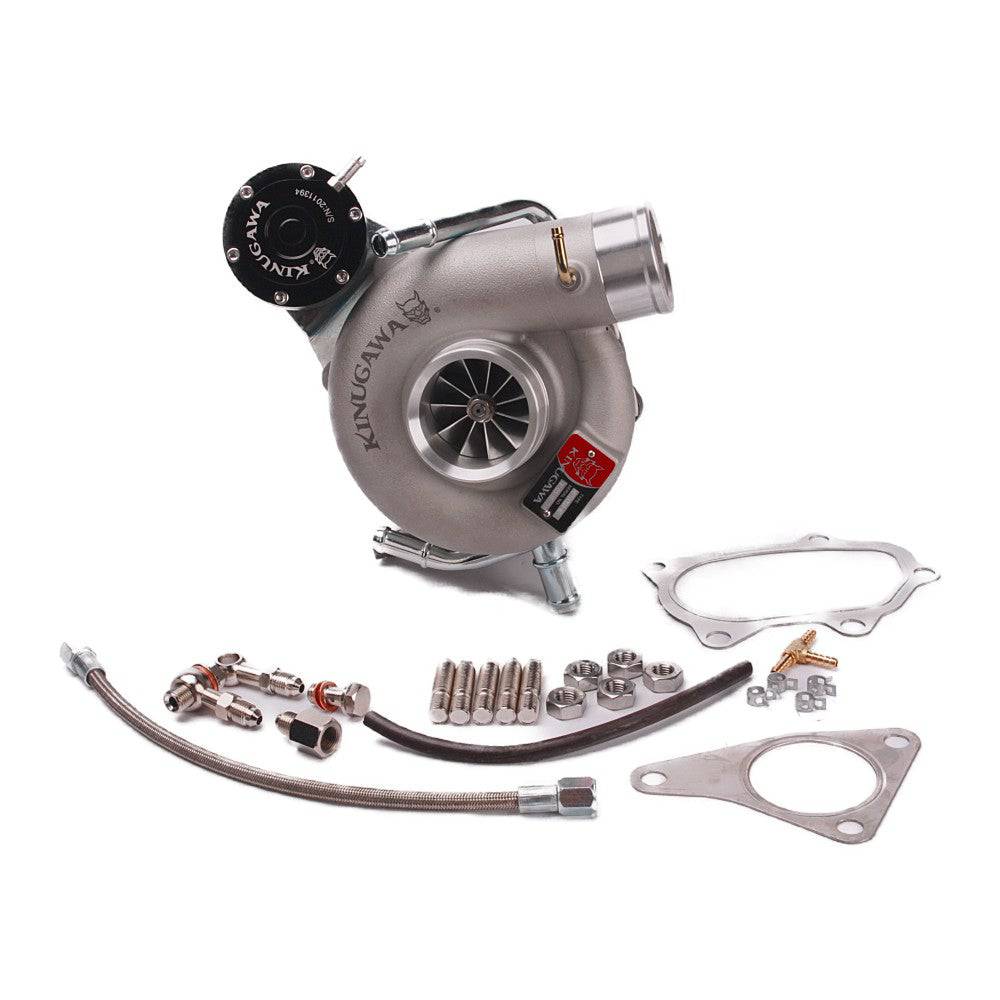

The set includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 5 x Stud And Nut Set
- 1 x Turbocharger
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
Select Compressor Wheel
Select Turbine Wheel
Select Turbine Housing
