Kinugawa Turbo TD05H TD06SL2 TD06H T3 3" V-band Turbine Housing A/R 8cm 10cm External Gated
1 / 5

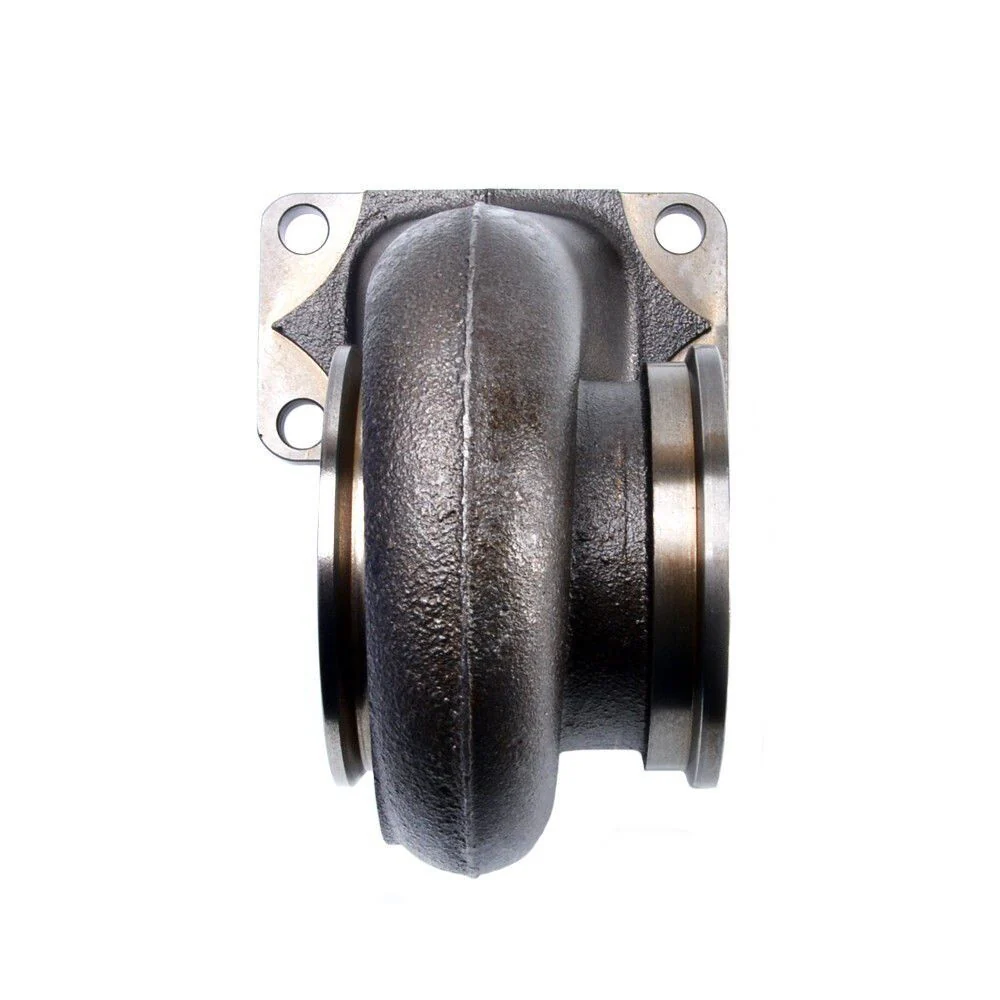

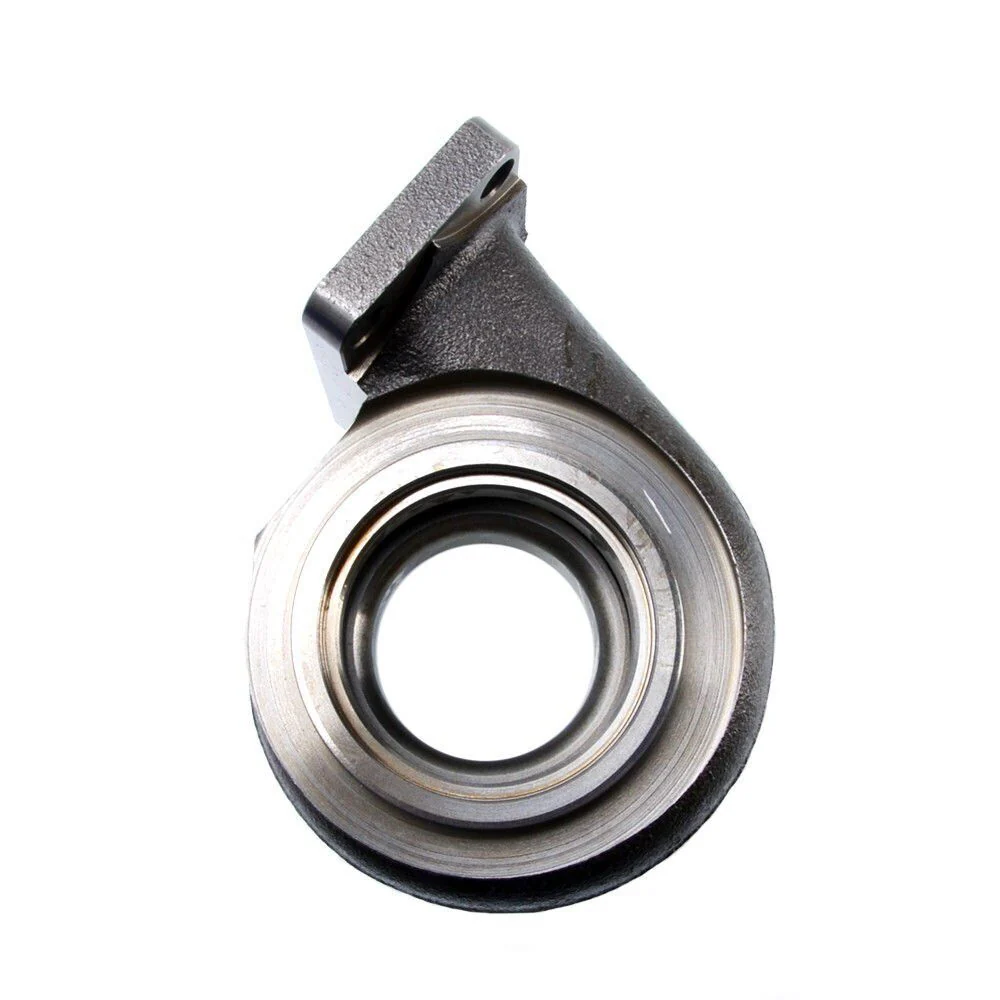

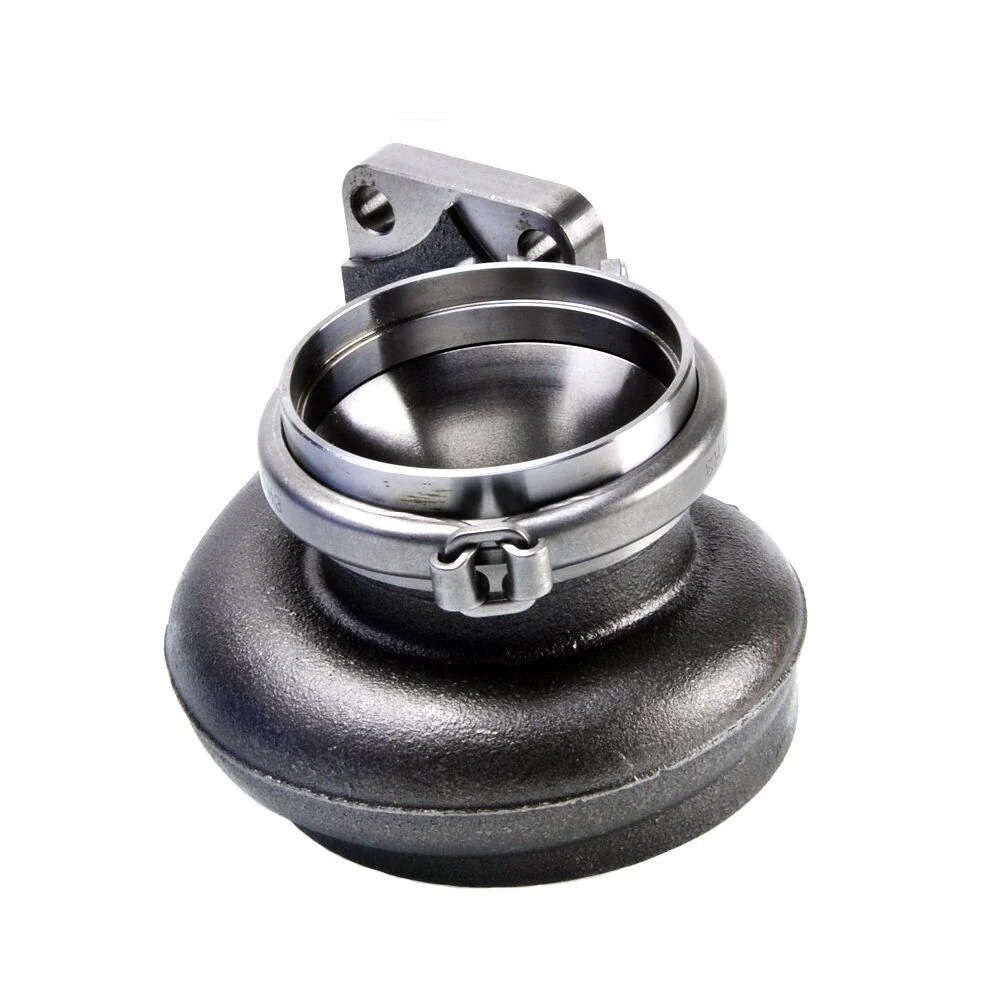

Kinugawa Turbo TD05H TD06SL2 TD06H T3 3" V-band Turbine Housing A/R 8cm 10cm External Gated
Application
- Fits Kinugawa / Mitsubishi / Greddy T517 T518Z TD05H TD06SL2 TD06H series turbo
- Make your turbo from an internal gated to an external gated type.
- Make your turbo from an internal gated to an external gated type.
Fit Wheel Sizes
- Turbine wheel: 49.2/56 mm (TD05H), 54.1 / 61.0mm (TD06SL2), 58.8 / 67.0mm (TD06H)
Inlet / Outlet Flange
- Nozzle area: 8cm AR.57；10cm AR.73
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: external gated
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: external gated
Items Included
- 1 x Turbine housing
- 1 x Inlet gasket
- 1 x V-clamp
- 1 x V-clamp
- 1 x 3" V-band Adapter
Provider
- Kinugawa Turbo System
Select Fit wheel size
Select Nozzle Area
From $94.15
Original: $269.00
-65%Kinugawa Turbo TD05H TD06SL2 TD06H T3 3" V-band Turbine Housing A/R 8cm 10cm External Gated—
$269.00
$94.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- Fits Kinugawa / Mitsubishi / Greddy T517 T518Z TD05H TD06SL2 TD06H series turbo
- Make your turbo from an internal gated to an external gated type.
- Make your turbo from an internal gated to an external gated type.
Fit Wheel Sizes
- Turbine wheel: 49.2/56 mm (TD05H), 54.1 / 61.0mm (TD06SL2), 58.8 / 67.0mm (TD06H)
Inlet / Outlet Flange
- Nozzle area: 8cm AR.57；10cm AR.73
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: external gated
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: external gated
Items Included
- 1 x Turbine housing
- 1 x Inlet gasket
- 1 x V-clamp
- 1 x V-clamp
- 1 x 3" V-band Adapter
Provider
- Kinugawa Turbo System
