Application

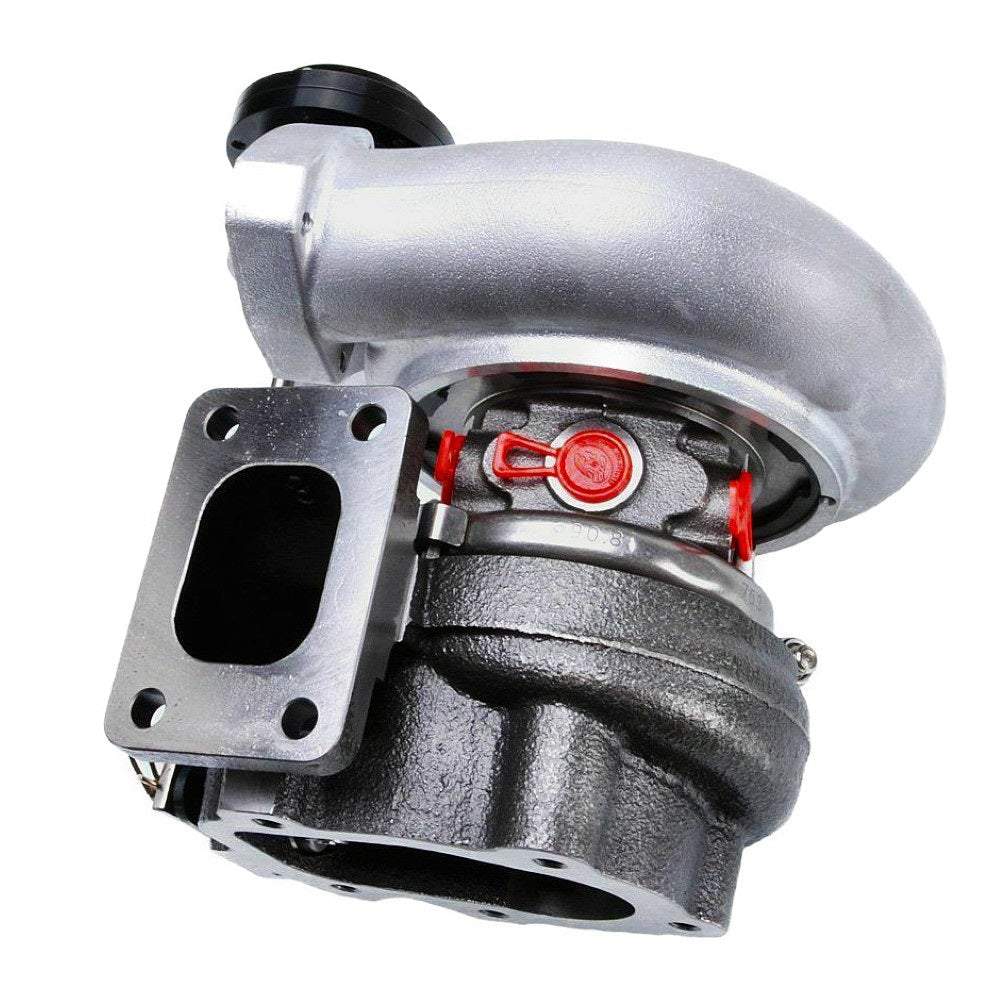

The Kinugawa TD06SL2-20G is a direct bolt-on turbocharger upgrade for the factory Garrett T28 on the following Nissan platforms:

• Nissan CA18DET — Silvia S13, 180SX, 200SX (Europe), 240SX (North America)
• Nissan SR20DET — Silvia S13, S14, S15, 200SX (AUS/NZ), 240SX (North America)

Note: Maximum power figures are calculated based on the choke flow of the compressor map (total turbo capability) and represent potential flywheel power. Actual performance is dependent on vehicle modifications and tuning/calibration.

Stock Turbo Replacement

Direct replacement for the factory Garrett T28 turbocharger — no custom fabrication required.

CHRA & Wheel Specifications

• CHRA: TD06SL2-20G
• Compressor Wheel: 50.3 / 68.0 mm — Billet 6+6 blades for low-end torque | Billet 11+0 blades for top-end power
• Turbine Wheel: 61.0 / 54.1 mm — 3 types available: STD, STS, STS55 (learn more about STS technology ↗)

Compressor Housing

• Nozzle Area: AR.57
• Stock Silvia-type fitment

Turbine Housing

• Nozzle Area: 8 cm² / AR.57
• Inlet: T25
• Outlet: 5-bolt CA18DET / SR20DET style
• Wastegate: Internal gated

Bearing Type

Journal Bearing with 360-degree performance thrust bearing kit — proven reliability for street and track use.

Cooling & Lubrication

• Oil and water-cooled

Actuator Pressure

Default: 1.0 bar / 14.7 psi. Custom settings available: 0.3, 0.5, 0.8, 1.2, 1.5, 1.7, or 2.0 bar — add a note at checkout or contact us.

Kit Contents

• 1 × Turbocharger
• 1 × Turbine inlet/outlet gasket
• 1 × Compressor inlet/outlet gasket
• 1 × Return gasket
• 1 × Oil supply set
• 1 × Return oil pipeline
• 1 × Water supply kit (6AN hose)
• 8 × Clamp and nut set
• 1 × Balance Report with anti-counterfeit tag ↗

Install Kit Instructions

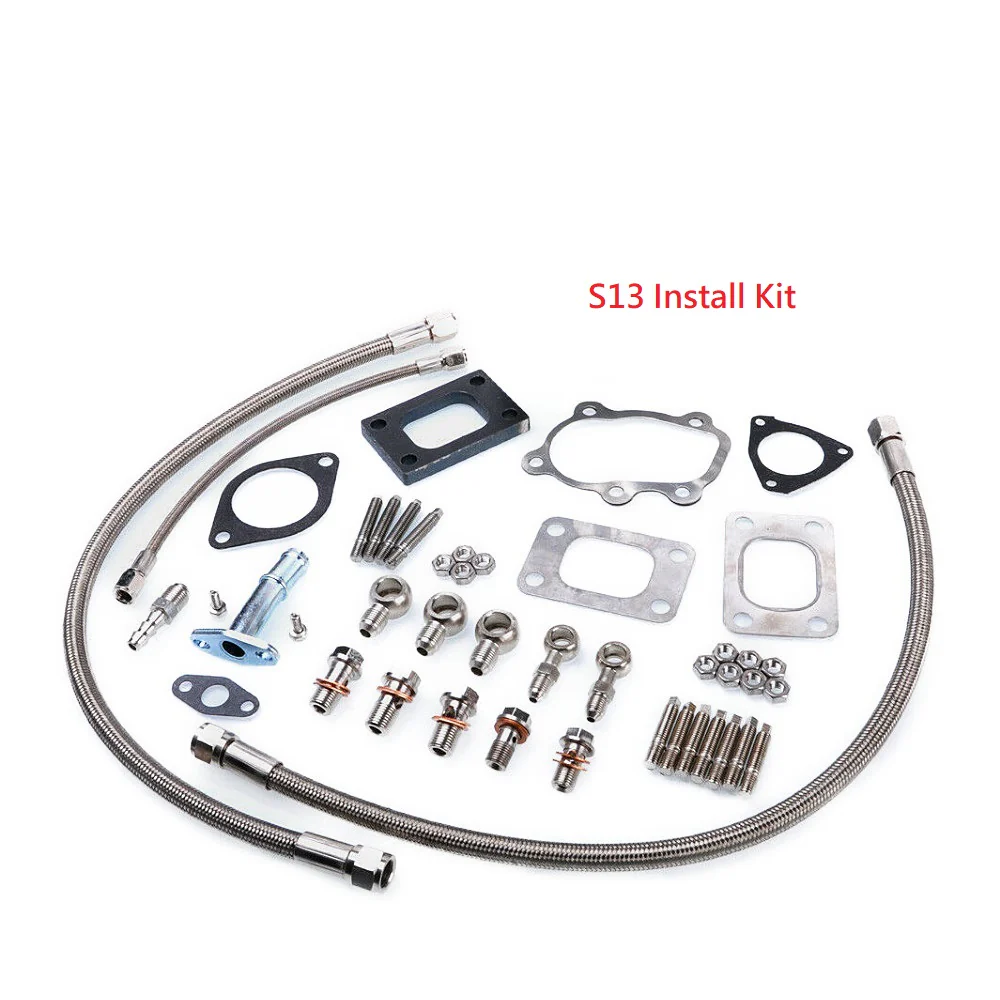

CA18DET Silvia S13 / 180SX / 200SX

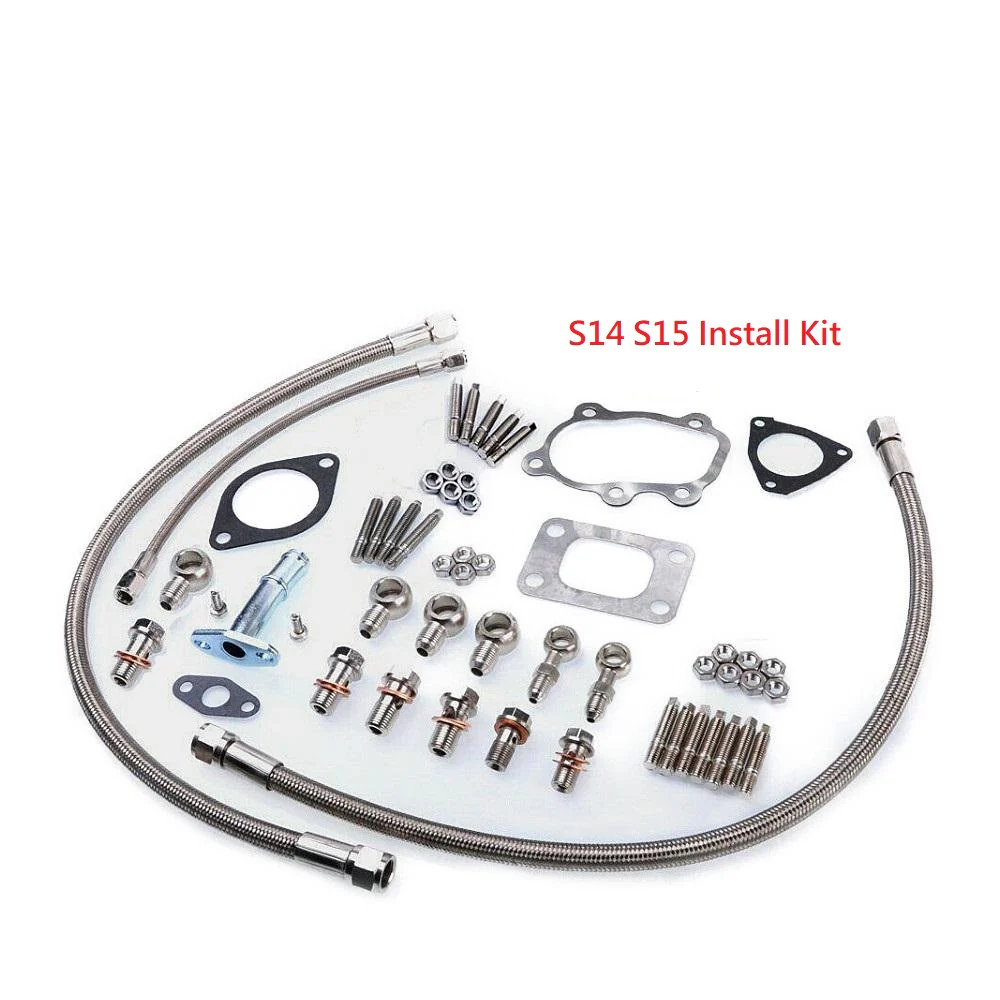

SR20DET Silvia S13 / S14 / S15 / 200SX

Condition & Warranty

Brand new. Backed by the Kinugawa Trouble-Free Warranty — 1 year from purchase date. Covers free overhaul, reconditioning, or replacement if any issue arises.

Provider

Kinugawa Turbo Systems
