CT12B Turbo Upgrade for Toyota 1KZ-TE 3.0L Diesel Engine

Direct bolt-on turbocharger upgrade for Toyota 1KZ-TE engines with +35% airflow improvement over stock CT12B. Billet 11+0 compressor wheel (47mm/58mm) delivers enhanced torque and horsepower while maintaining low-end response. Ideal for towing, loaded vehicles, and 4WD touring applications.

Compatible Vehicles (1993-2000):

• Toyota Land Cruiser Prado KZJ90, KZJ95, KZJ120
• Toyota Hilux KZN165, KNZ130
• Toyota Hilux Surf KZN130, KZN185
• Toyota 4Runner 3.0L diesel (select markets)

Performance Specifications:

• Airflow Gain: +35% over stock CT12B (Billet 11+0 upgrade)
• Compressor Wheel Options: Cast stock 43/58mm OR Billet upgrade 47.04/58mm (GTX 11+0)

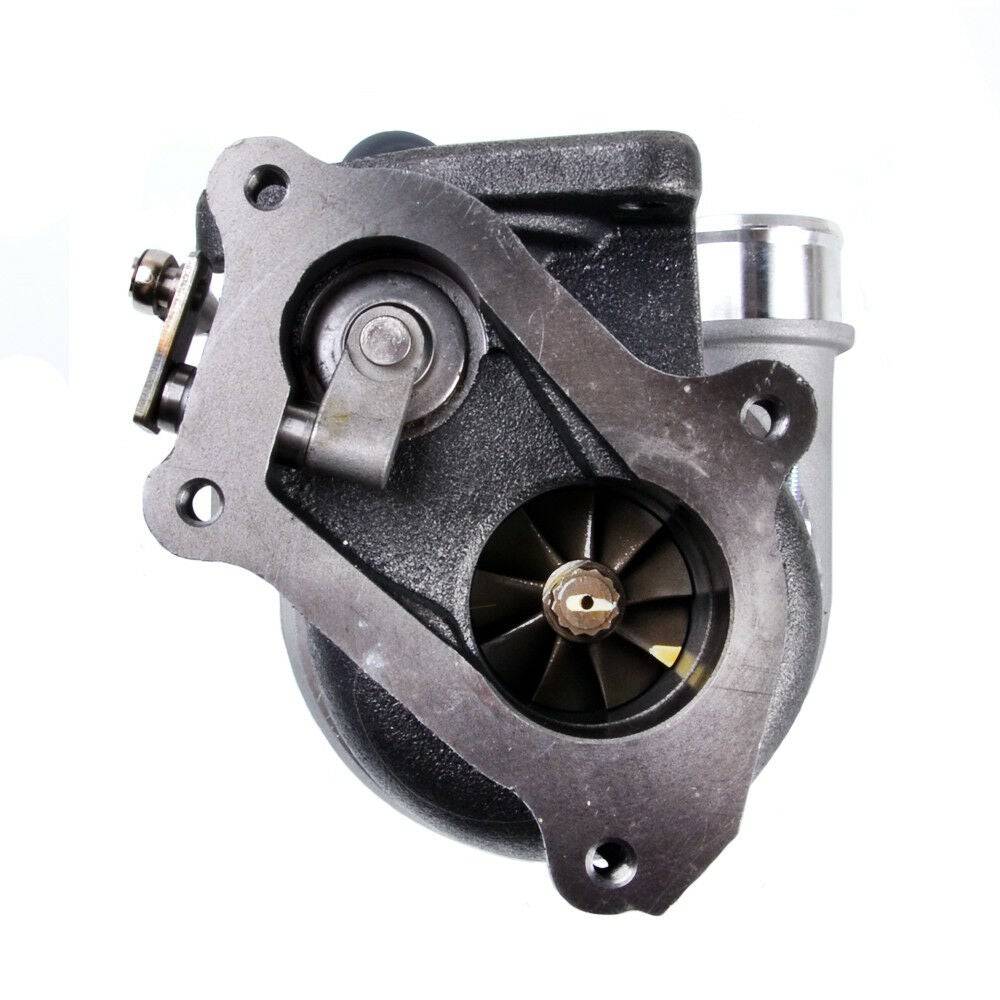

• Turbine Wheel: 44/52mm (stock size for low-end response)
• Bearing Type: Journal bearing with 360° thrust bearing kit
• Cooling: Oil and water cooled
• Actuator Pressure: 1.0 bar / 14.7 PSI (default; Please option / add a note / contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar)

Direct Replacement For:

• OE Part Numbers: 17201-67010, 17201-67020, 17201-67040, 17201-67050
• Factory CT12B turbocharger on all 1KZ-TE engines

What's Included:

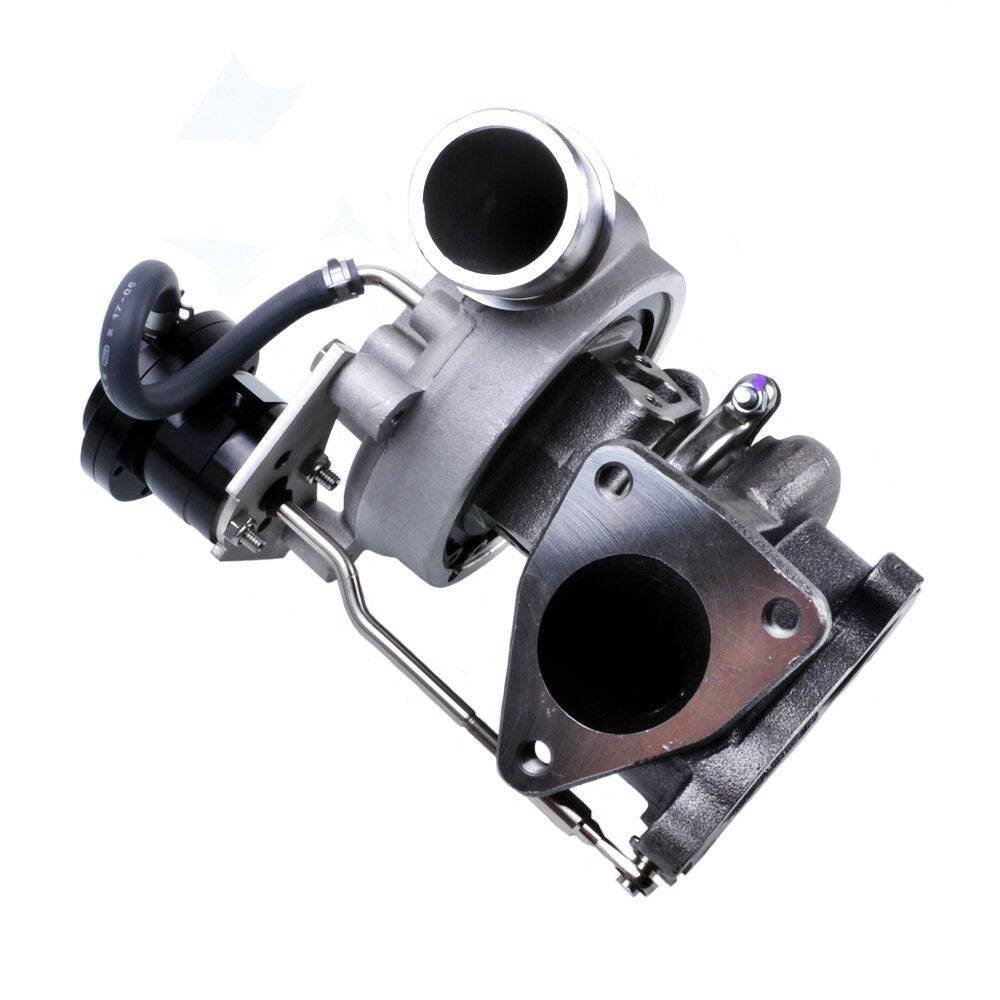

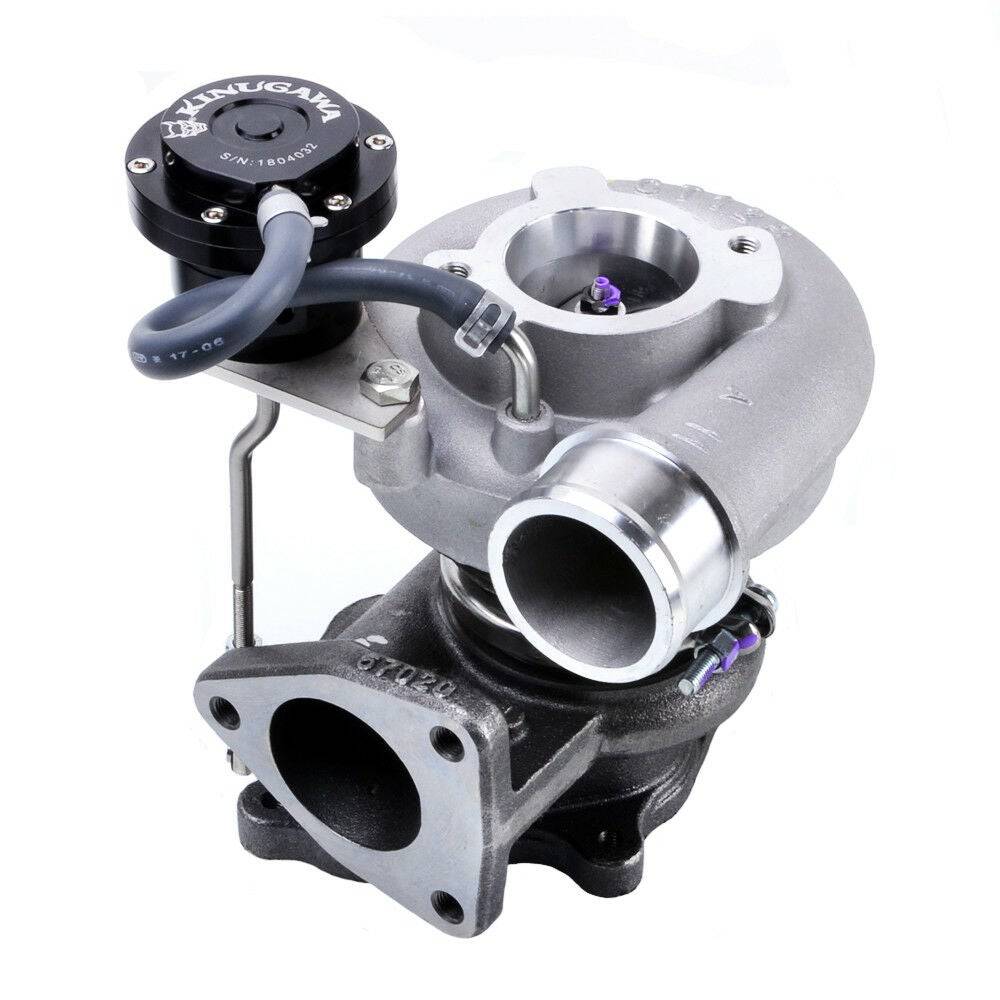

• 1x CT12B turbocharger (balanced on Schenk MRBS 110)

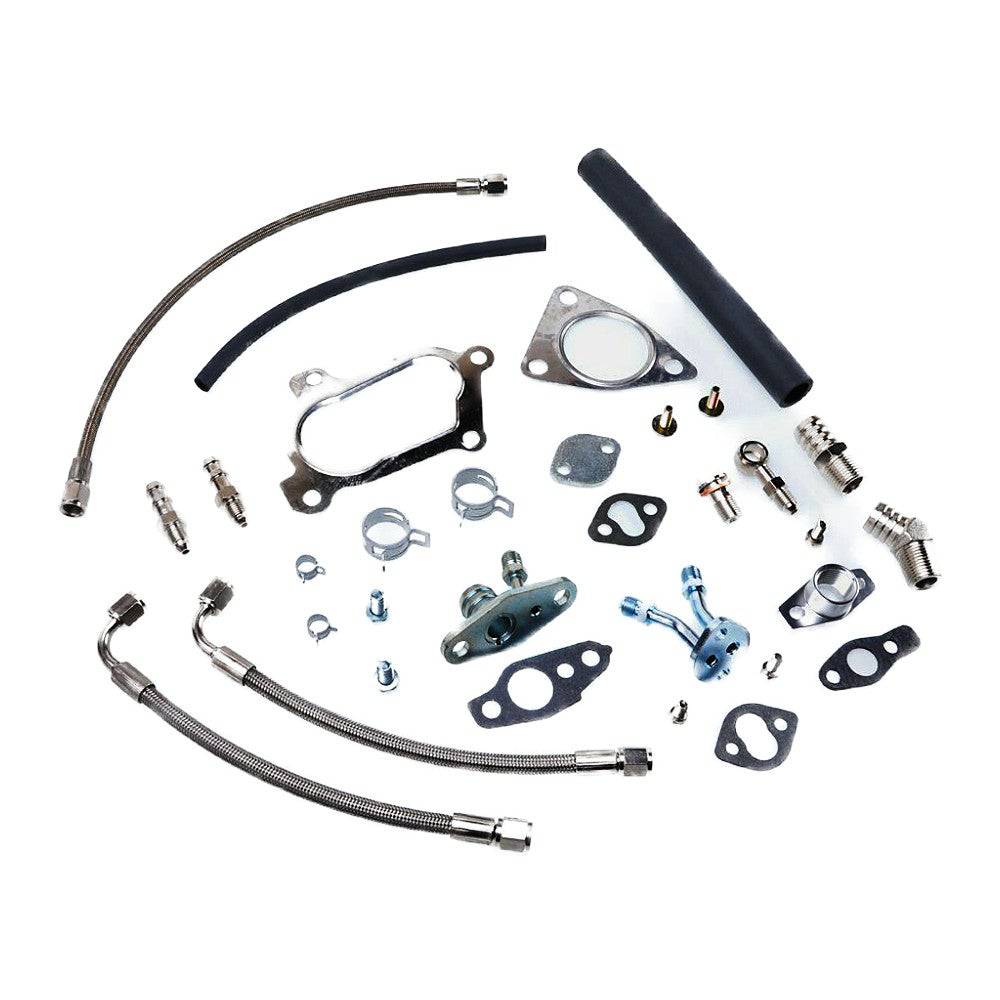

• 1x Oil supply and return line set
• 1x Water inlet cooling supply kit
• 1x Turbine inlet and outlet gaskets
• 1x Balance report with anti-counterfeit tag

Installation & Fitment:

• Bolt-on replacement for factory CT12B - no custom fabrication required
• Maintains stock turbine size for excellent low-end torque and towing response
• Upgraded compressor wheel provides top-end power gains
• Typical installation time: 4-6 hours

Use Cases:

• Towing caravans, trailers, and boats
• Loaded vehicle performance (cargo, passengers, equipment)
• 4WD touring and off-road applications
• Commercial fleet vehicles (Hilux work trucks)
• Highway cruising and hill climbing

Warranty & Quality:

Kinugawa Trouble-Free Warranty: 1 year from purchase date. Covers free overhaul, reconditioning, or replacement for any turbocharger failure or issue. Brand new unit, precision-balanced on Schenk MRBS 110 equipment.

Manufacturer: Kinugawa Turbo Systems | Origin: Taiwan | Condition: Brand New
