Kinugawa Turbo Upgrade CT26 60-1 7cm for TOYOTA 12HT Land Cruiser 4L
Description
- The Garrett 60-1 wheel will offer an extra 50% airflow than the stock CT26 compressor wheel. This upgrade turbo will get extra 50% torque and hp than the stock CT26 turbocharger.
Application
- The Garrett 60-1 wheel will offer an extra 50% airflow than the stock CT26 compressor wheel. This upgrade turbo will get extra 50% torque and hp than the stock CT26 turbocharger.
Application
- For TOYOTA 19885 ~ 1990 12HT / 12H-T 4.0L HJ61 diesel turbocharger
- Replacement reserve 17201-68010 DYNA turbocharger.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
Wheels Spec
Wheels Spec
- Compressor wheel: 60/76 mm (Garrett 60-1 wheel)

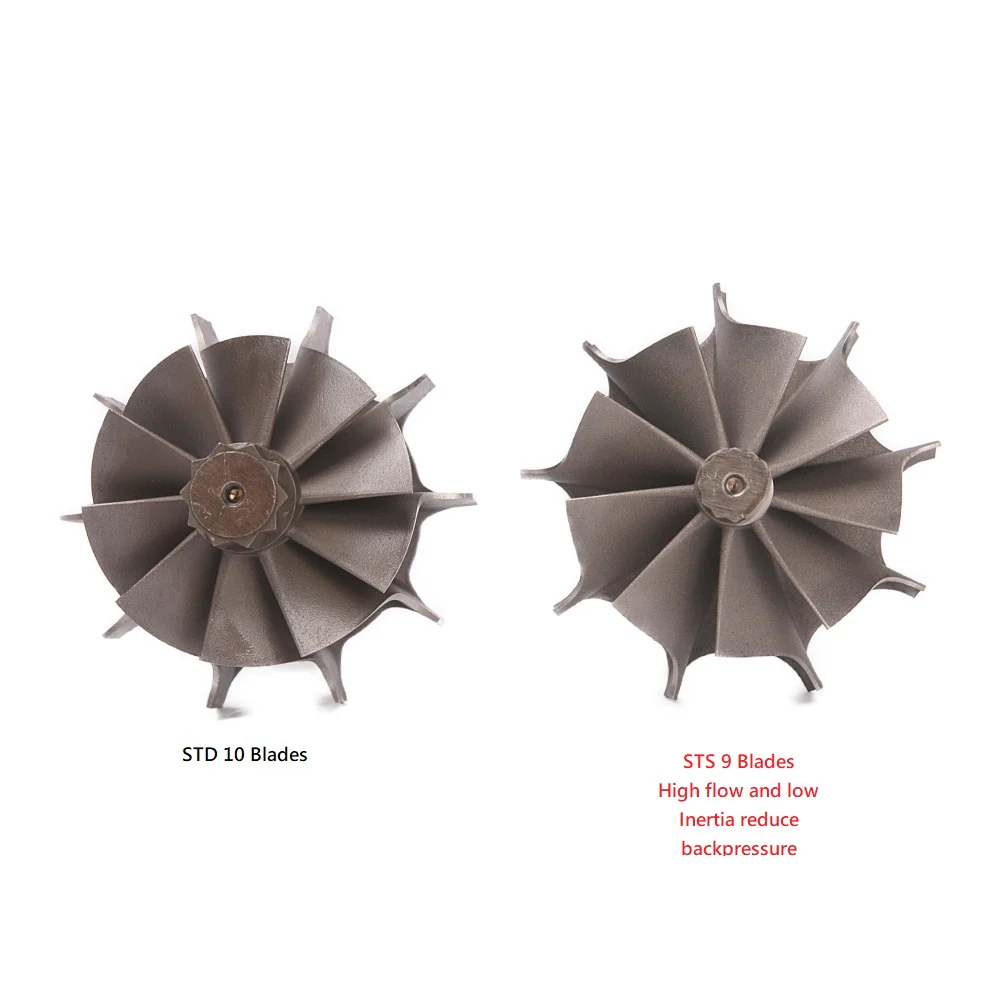

- Turbine wheel: 51.9 / 67.9 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Bolt-on stock type
Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool response than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on stock type
Bearing Type
- Bolt-on stock type
Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool response than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on stock type
Bearing Type
- Journal Bearing with 360-degree thrust bearing kit
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The Set Includes
- 1 x Turbocharger

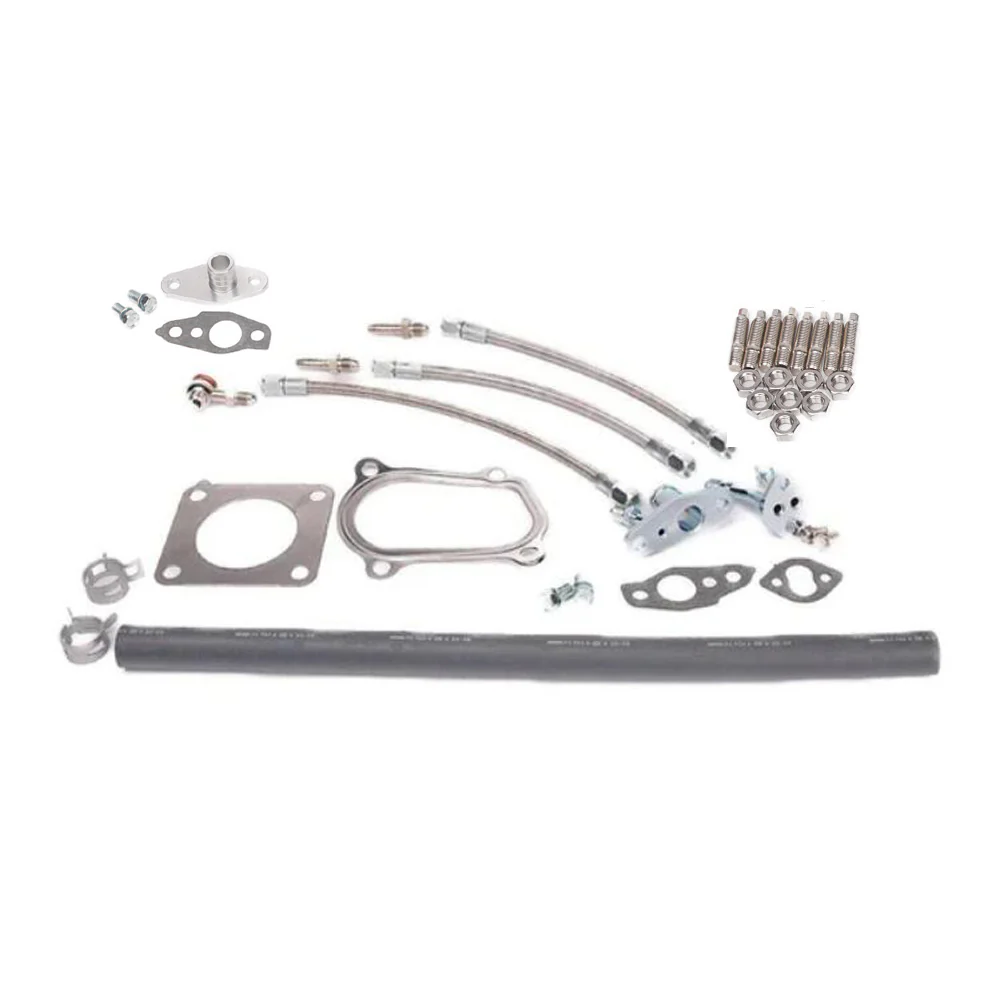

- 1 x Turbo install kit.
- 1 x Balance Report with an anti-counterfeit tag
[Installation kit instruction]
Situation code
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offer a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from purchasing date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
