Kinugawa Turbo 3" TD05H-18G 10cm T3 V-Band External Wastegate
APPLICATION
- Universal type
- 1800~2500cc gasoline
- 3000~4500 diesel
- 1800~2500cc gasoline
- 3000~4500 diesel

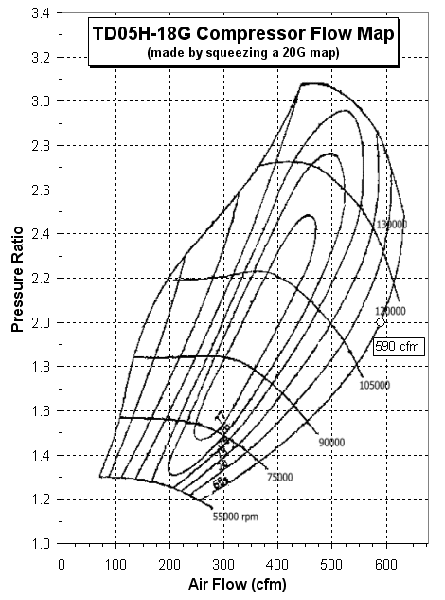

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (The 6+6 blade type is better for low-end torque, and the 11+0 is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
COMPRESSOR HOUSING
- AR .60
- Inlet: 3.0"
- Outlet: 2.0"

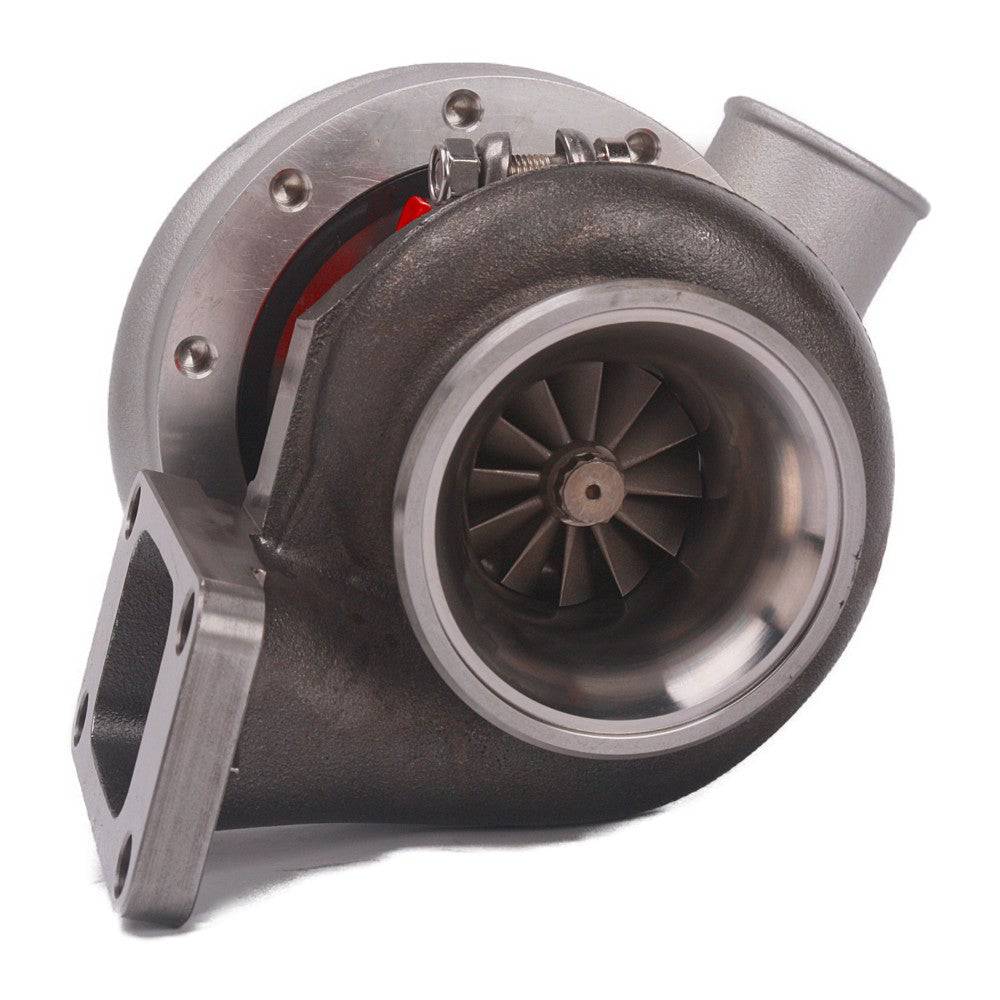

TURBINE HOUSING
- Nozzle Area: 10 cm^2 / AR .73
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: External gated
- Nozzle Area: 10 cm^2 / AR .73
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: External gated
BEARING TYPE
- Journal bearing with a 360 performance thrust bearing kit.
- Journal bearing with a 360 performance thrust bearing kit.
COOLING TYPE
- Oil and Water-Cooled

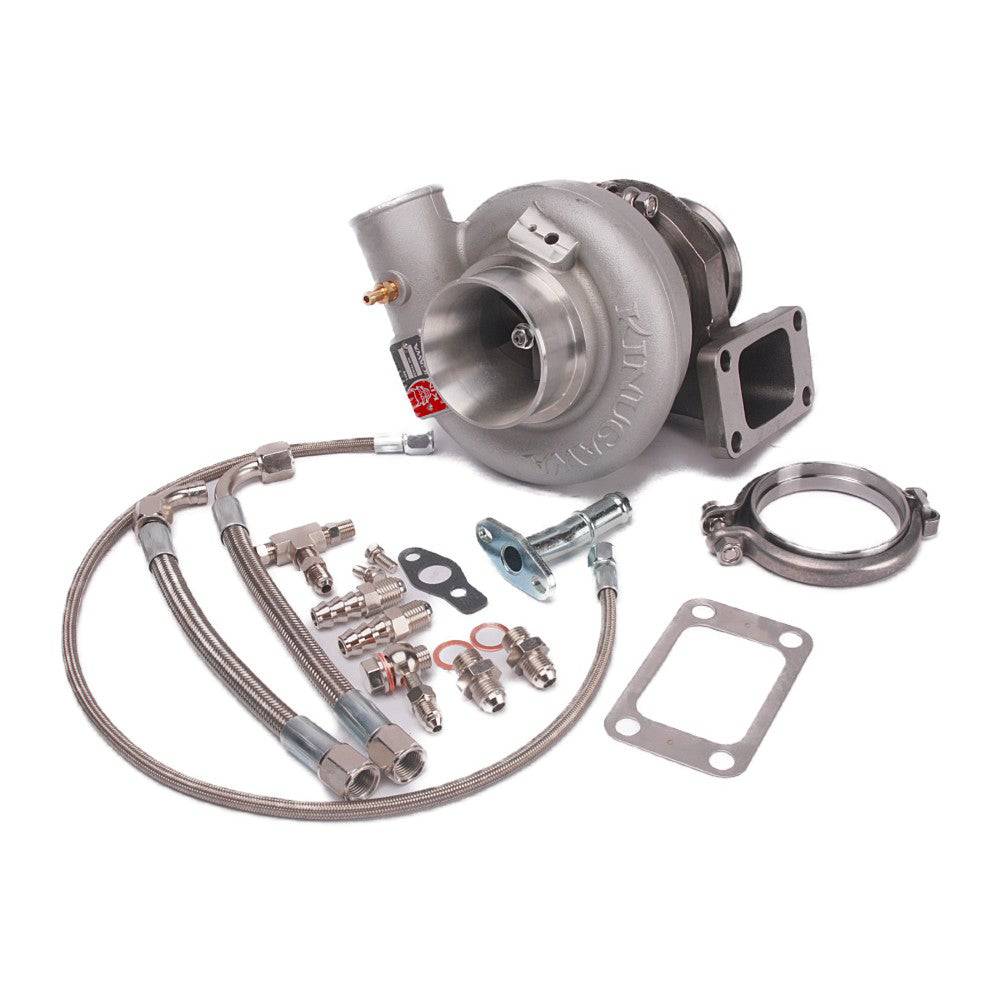

KIT INCLUDES
- 1 x turbocharger
- 1 x oil feed line kit
- 1 x water coolant feed and return line kit
- 1 x turbine inlet gasket
- 1 x turbine outlet v-band adapter
- 1 x oil return pipe kit
- 1 x turbine v-clamp
- 1 x Balance report with anti-counterfeit tag↗
SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
- Oil and Water-Cooled
KIT INCLUDES
- 1 x turbocharger
- 1 x oil feed line kit
- 1 x water coolant feed and return line kit
- 1 x turbine inlet gasket
- 1 x turbine outlet v-band adapter
- 1 x oil return pipe kit
- 1 x turbine v-clamp
- 1 x Balance report with anti-counterfeit tag↗
SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
[Install Kit Instruction]
[Install Kit Instruction]
Select Compressor Housing
Select Compressor Wheel
Select Turbine Wheel
From $346.15
Original: $989.00
-65%Kinugawa Turbo 3" TD05H-18G 10cm T3 V-Band External Wastegate—
$989.00
$346.15Product Information
