Application

- Fits Kinugawa Turbo for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine

CHRA Size

- TD05H-16K

Wheels Spec

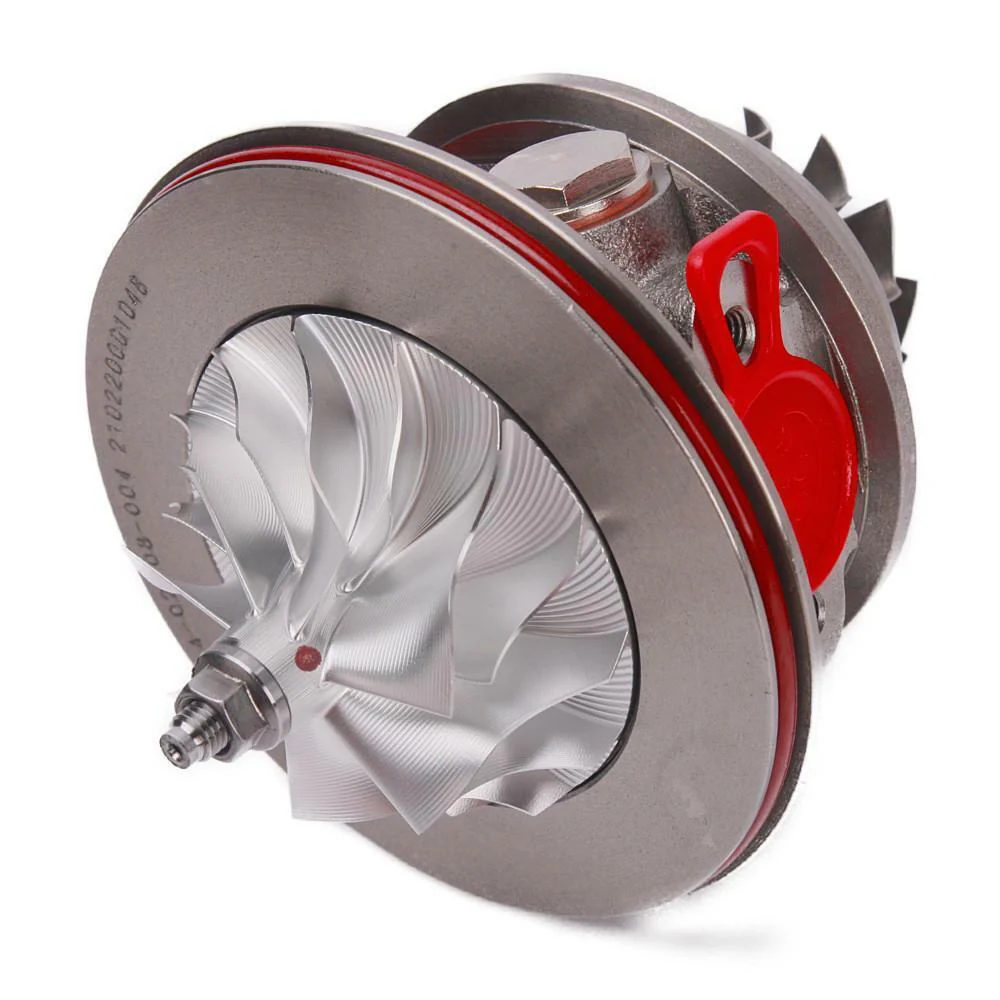

- Compressor wheel: 49.96 / 68.0 mm (7+7 Point-Milled)

This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.

Kinugawa Turbo Systems Third-order surface compressor wheel

	Free Surface	Ruled Surface
Process	Point Milling	Flank Milling
Machining Time	Slow 120 mins.each	Quick 15 mins. each
Characters	1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers.	1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor

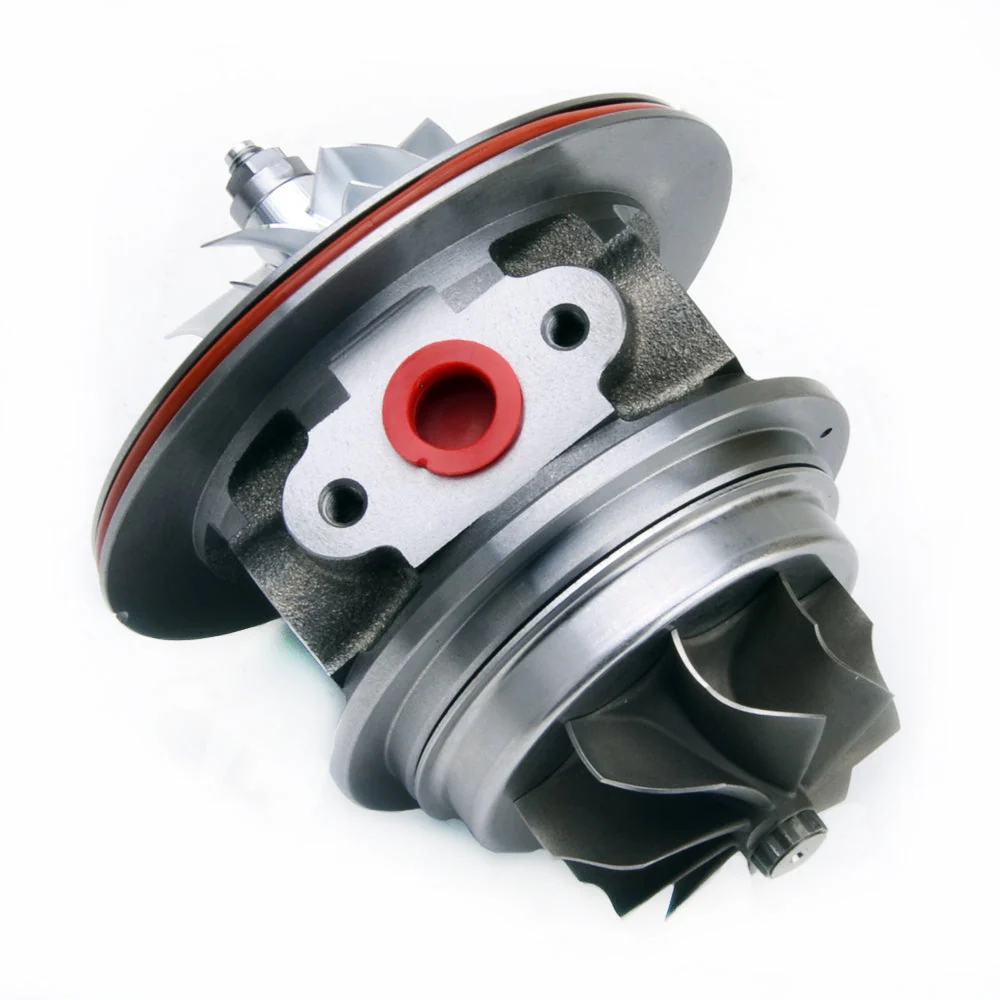

- Turbine wheel: 56.0 / 49.2 mm (9 blades STS Click here to learn more about STS technology.)

Bearing Type

- STS Advanced (Dual Ceramic Ball Bearing)

Kinugawa Turbo STS Advanced Ball Bearing Technology

Cooling Type

- Oil and water cooling

The Set Includes

- 1 x CHRA

- 1 x Banjo bolt w/ washer for turbo oil feed side (#315-01101-018)
- 1 x Oil return gasket (#413-02006-001)
- 2 x Banjo bolts w/ washer for turbo water coolant side (#315-01101-002)

- 1 x Balance Report with Anti-Counterfeit Tag

Situation

- Brand New

- Full balance from Schenk MBRS110 Germany

Provider

- Kinugawa Turbo Systems

Warranty
- No
