Application

Fits Kinugawa Turbo 3" or 4" TD05H-16K 7cm for Toyota Land Cruiser 1HD-T 1HD-FT 1HD-FTE
Fits Kinugawa Turbo 3" TD05H-16K 6cm T3 2.5" V-band for Toyota Land Cruiser 1HD
Fits Kinugawa Turbo 3" TD05H-16K-6 T3 2.5" V-Band for Toyota Landcruiser 1HZ 75 79 80 100 105
Kinugawa Turbo 3" TD05H-16K-7 for Toyota Land Cruiser 1HZ 75 79 80 100 105

CHRA Size

- TD05H-16K

Wheels Spec

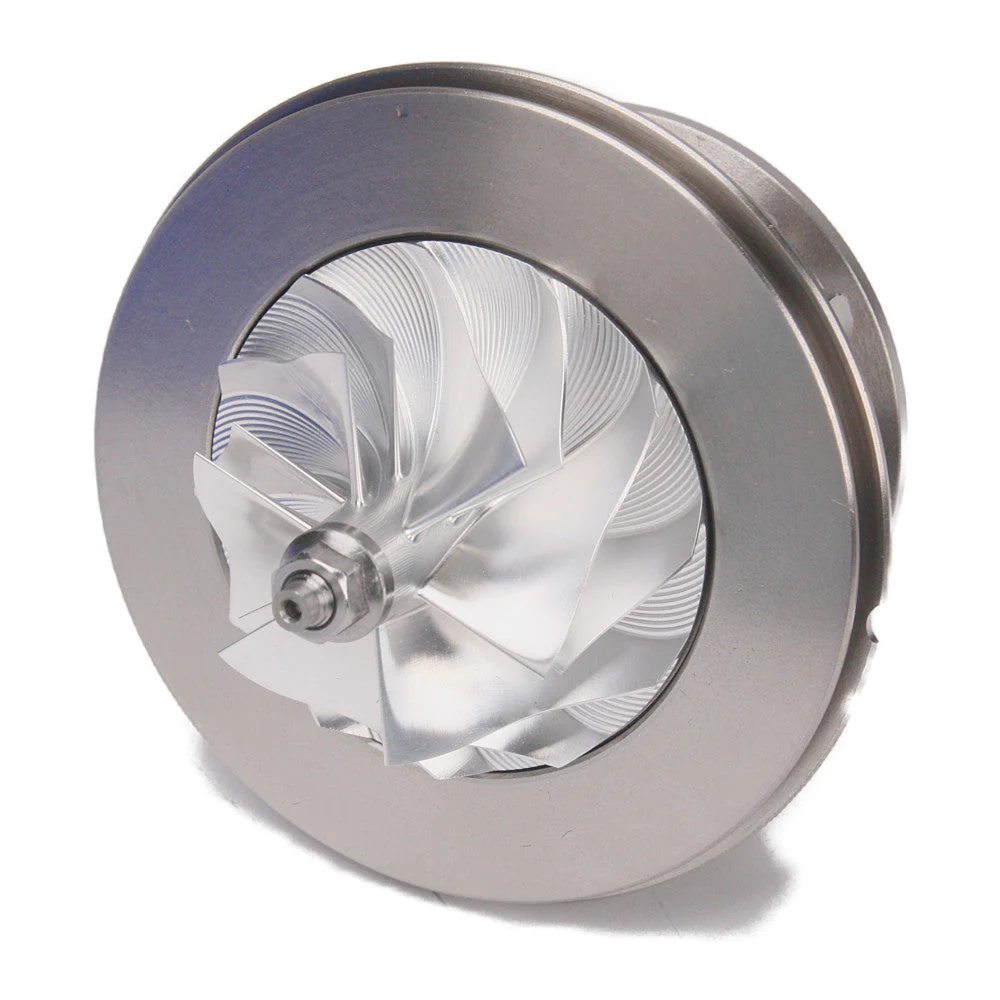

- Compressor wheel: 49.96 / 68.0 mm (7+7 Point-Milled)

This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.

Kinugawa Turbo Systems Third-order surface compressor wheel

	Free Surface	Ruled Surface
Process	Point Milling	Flank Milling
Machining Time	Slow 120 mins.each	Quick 15 mins. each
Characters	1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers.	1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor

- Turbine wheel: 49 / 57 mm (3 types offered: STD, STS, STS 55. Click here to learn more about STS technology.)

Kinugawa STS Superior Turbine Strike Technology Evolution

Bearing Type

- Journal Bearing system with 360-degree performance thrust bearing

Cooling Type

- Oil and water cooling

The Set Includes
- 1 x CHRA

- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag

Situation

- Brand New

- Full balance from Schenk MBRS110 Germany

Provider

- Kinugawa Turbo Systems

WARRANTY
- No.
