Application

- For Nissan CA18DET Silvia S13 180SX/ 200SX (Europe)/ 240SX (North America)

- For Nissan SR20DET Silvia S13 S14 S15/ 200SX (AUS/NZ)/ 240SX (North America)

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

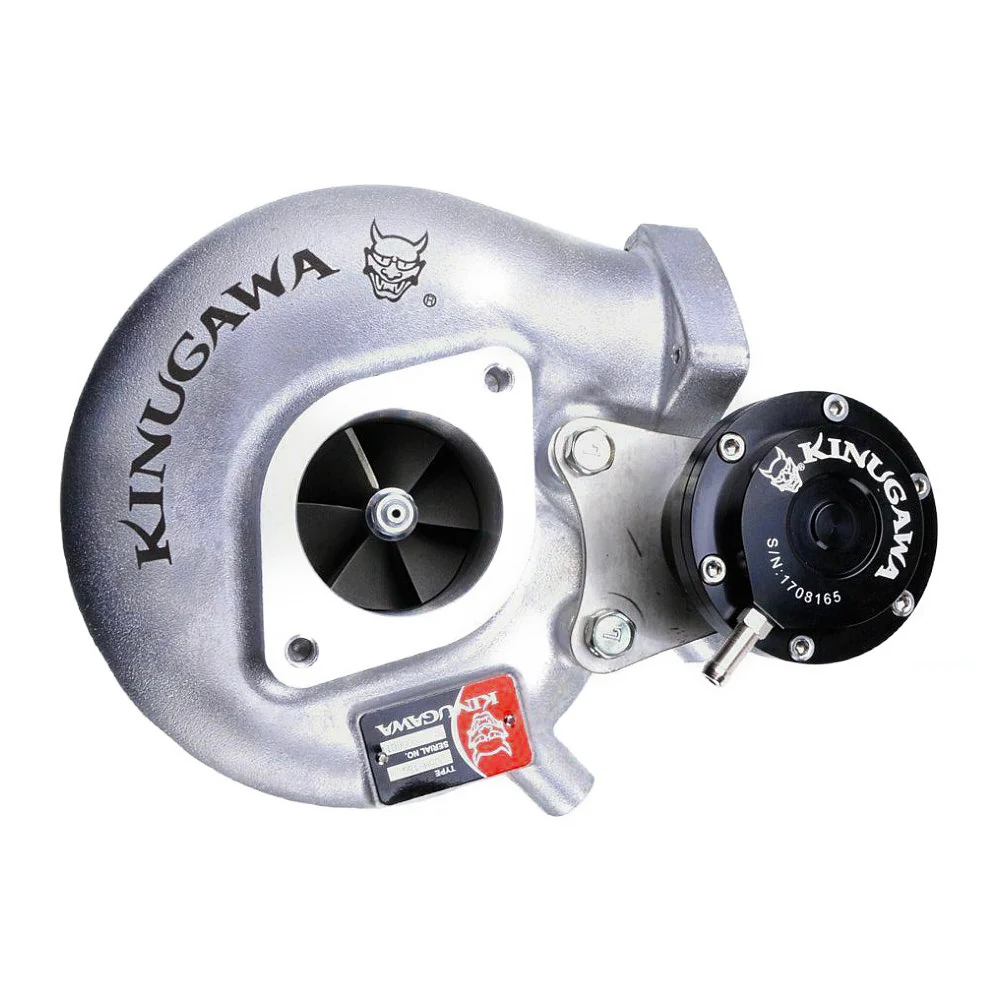

Replace the turbo

- Replace and refresh the stock for the Garrett T28 TURBO directly.

CHRA Size

- TD06SL2-18G

Wheels Spec

- Compressor wheel: 50.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)

- Turbine wheel: 61.0 / 54.1 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)

kinugawa sts turbine wheel wide range exhaust power drive

Compressor Housing
- Nozzle area: AR.57
- Stock Silvia type

Turbines Housing
- Nozzle area: 8cm^2 / AR.57
- Inlet: T25
- Outlet: 5 bolt CA18DET / SR20DET style
- Wastegate: internal gated

Bearing Type

- Journal Bearing with 360-degree performance thrust bearing kit

Cooling Type

- Oil and water cooling

Actuator Pressure

- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

The set includes

- 1 x turbine inlet/outlet gasket

- 1 x compressor input / Output gasket

- 1 x Return gasket

- 1 x Oil supply set

- 1 x Return Oil Pipeline

- 1 x water supply kit for water (6AN hose)

- 8 x cloves and nut set

- 1 x Turbocharger

- 1 x Balance Report with anti-counterfeit tag↗

[CA18DET Silvia S13 180SX/ 200SX Install Kit Instruction]

[SR20DET Silvia S13 S14 S15/ 200SX Install Kit Instruction]

Situation

- Brand New

Provider

- Kinugawa Turbo Systems

WARRANTY

- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
