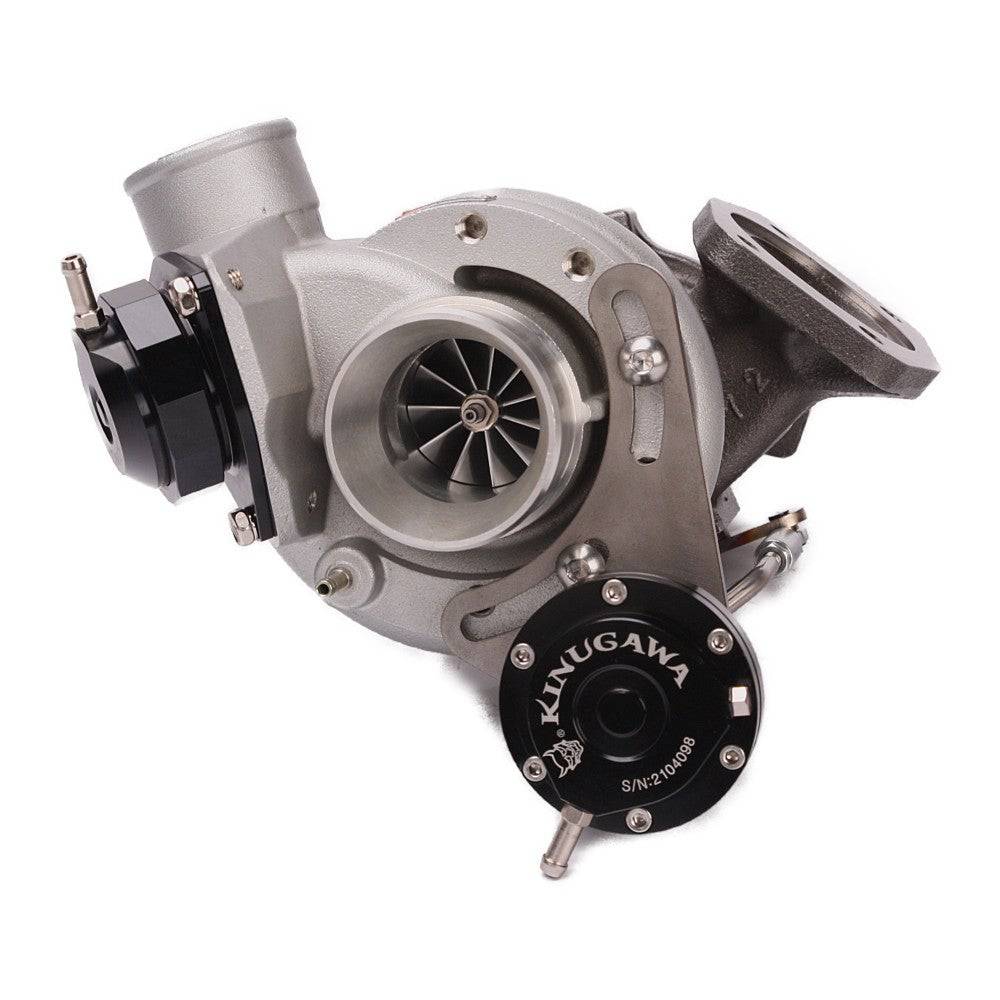

Kinugawa TD04HL Turbo Upgrade for Volvo 740 & 940 (B230FT / B230FK) — 270 to 370HP

The Kinugawa TD04HL is a direct-fit performance turbocharger upgrade for the Volvo 740 and 940 equipped with the B230FT or B230FK engine. It replaces the factory TD04H-13C-6cm unit with a larger TD04HL-16T, 19T, or 20T core in a 7cm conic turbine housing, delivering significantly more airflow and power potential without major fabrication.

Vehicle Fitment

Volvo 740 / 745 (1990–) — 2.3L 121kW B230FT
Volvo 940 / 945 (1990–1996) — 2.3L 121kW B230FT
Volvo 740, 760, 940, 960 (1989–1998) — B230FT engine
Volvo 940, 960 (1990–) — B200FT engine
Volvo 940 (1991–1998) — B230FK engine

Replaces OEM turbo part numbers: 49189-01000, 49189-01200, 49189-01210, 49189-01260, 49189-01270

CHRA & Core Specification

Core: TD04HL-16T / 19T / 20T
Bearing type: Journal bearing
Condition: Brand new
Country of origin: Taiwan

Compressor Wheel Options (Billet)

Three power levels available — choose the compressor wheel that matches your build target:

19T — 46 / 56mm, Trim 63 → 300–350HP (gasoline)
20T — 47 / 56mm, Trim 66 → 320–370HP (gasoline)

Blade note: 6+6 blades improve low-end torque; 11+0 blades favour top-end power.

Turbine Wheel

45.6 / 52mm — three turbine options available:

STD — standard specification
STS — Superior Turbine Strike for faster spool
STS 55 — high-flow advanced variant

Learn more about STS technology →

Kinugawa STS Superior Turbine Strike Technology Evolution

Compressor Housing

Universal rotated plate type

Turbine Housing

Nozzle area: 7cm / AR.49
Inlet: STD Volvo T3
Outlet: Conic type
Wastegate: Internal gated

Valve Type — BOV or BCV (Your Choice)

The rotated plate cover includes an adjustable blow-off valve (BOV) or recirculating bypass valve (BCV). Learn the difference between BOV and BCV →

Three springs included to match your actuator pressure range:

Green spring: 5–15 Psi (default installation)
Yellow spring: 15–23 Psi (included)
Blue spring: 23–30 Psi (included)

Actuator Pressure

Default: 1.0 bar / 14.7 Psi
Custom options available: 0.3, 0.5, 0.8, 1.2, 1.5, 1.7, or 2.0 bar — add a note at checkout or contact us

What's Included

1 × Turbocharger (TD04HL, your selected spec)
1 × Adjustable BOV or BCV with 3 springs (Green / Yellow / Blue)
1 × Oil and water line kit (#320-14054-003)
1 × Balance report with anti-counterfeit authentication tags

Performance Disclaimer

Maximum power figures are calculated from the compressor map choke flow (total turbo capability) and represent potential flywheel power. Actual results depend on your vehicle's modifications, tuning, and calibration.

Warranty

Kinugawa 1-Year Warranty

Kinugawa Turbo Systems offers a 1-Year Trouble-Free Warranty from the purchase date to the original purchaser. If your turbocharger fails or develops an issue for any reason, return it for a free overhaul, recondition, or replacement depending on availability. Kinugawa has you covered.
