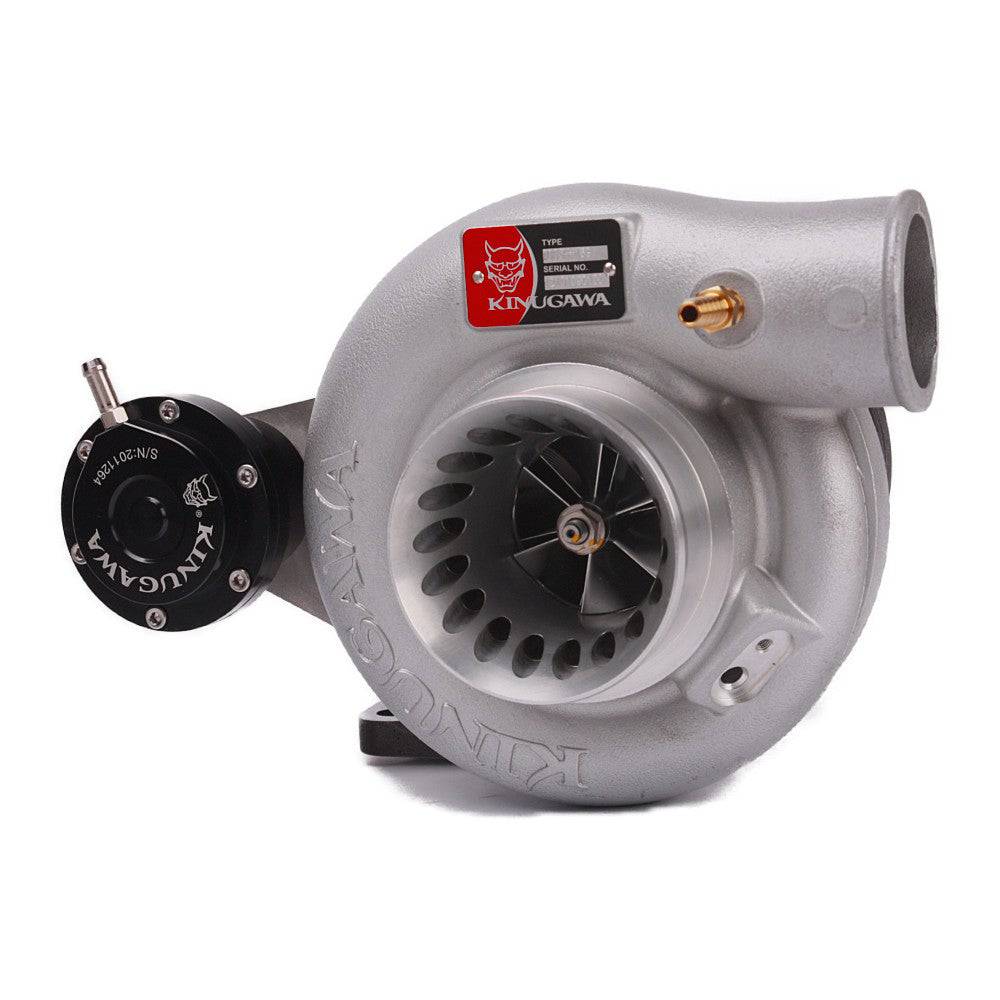

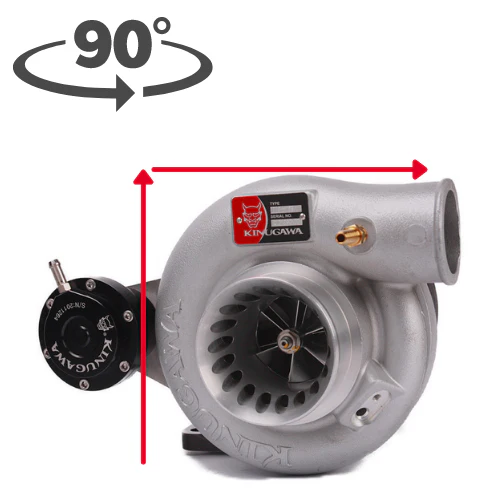

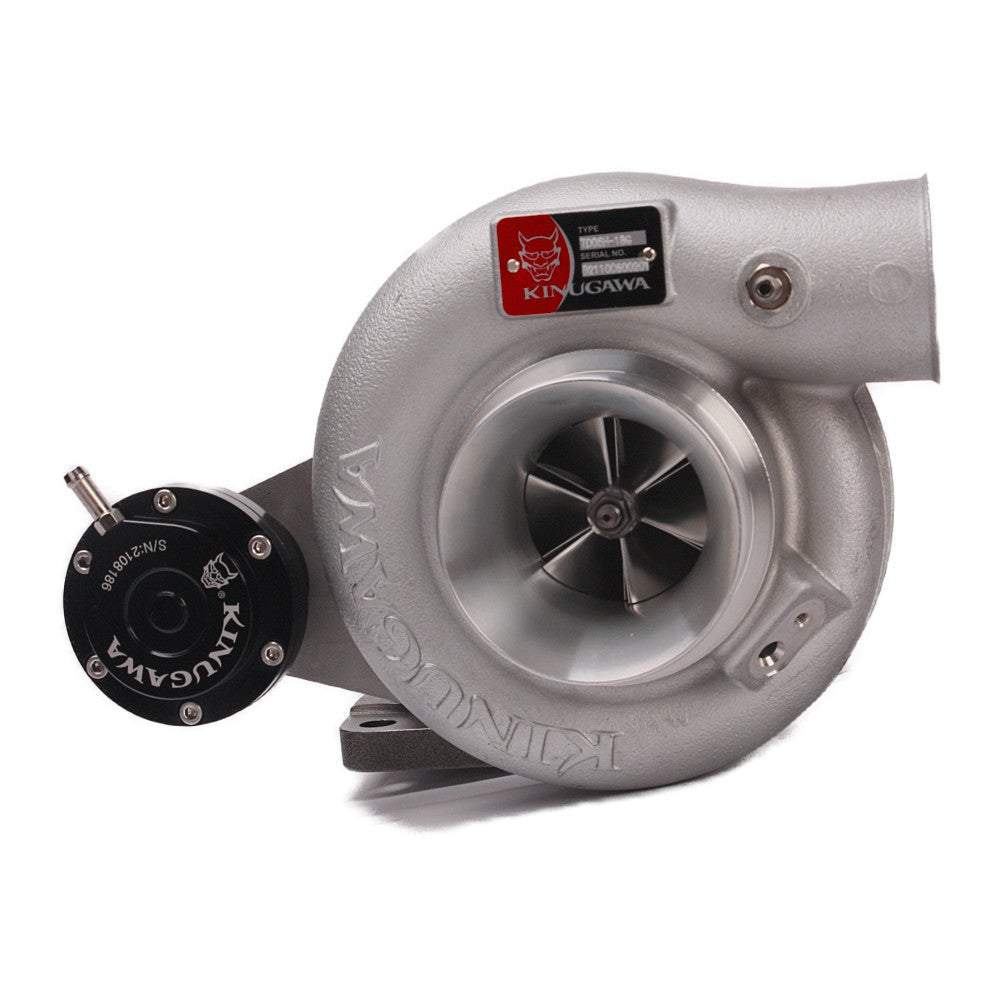

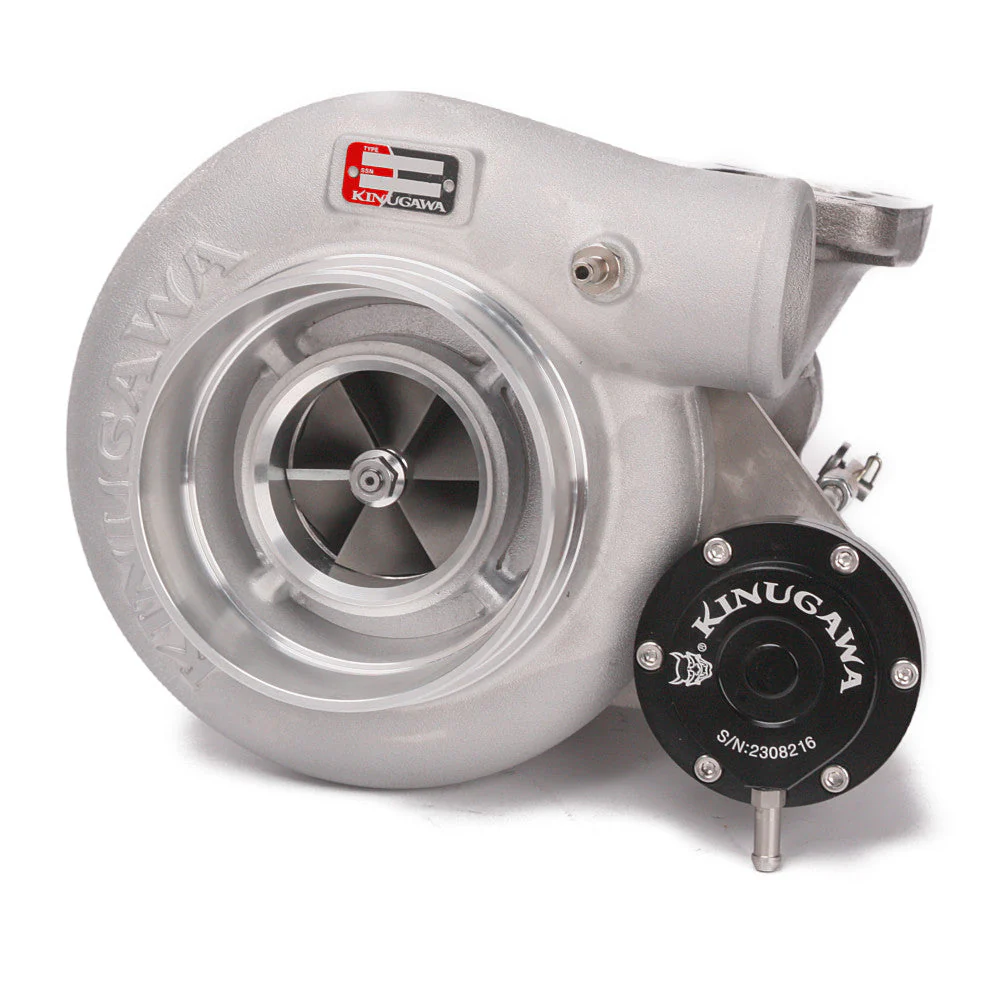

Kinugawa Turbo 3" Anti-Surge TD05H-20G 3-Bolt for Nissan Patrol TD42 High Top Mount Water-Cooled 90 Degree

Product image 1
1 / 6

Kinugawa Turbo 3" Anti-Surge TD05H-20G 3-Bolt for Nissan Patrol TD42 High Top Mount Water-Cooled 90 Degree

Application
- Ford Maverick 1988-1994,Engine:TD42T Diesel 4.2L 145HP
- Nissan TD42 Patrol Safari GR GQ  Y60, GU Y61 TD42T engine
- Fits Radius Fabrications TD05 3" High Mount P4x4 / Arashi 3 Bolt Dump Pipe.

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

CHRA Size
- TD05H-20G

Wheels Spec
- Compactor wheel: 52.3 / 68.0 mm (The 6+6 blade type better for low-end torque and the 11+0 is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3" anti-surge
- Outlet: 2"

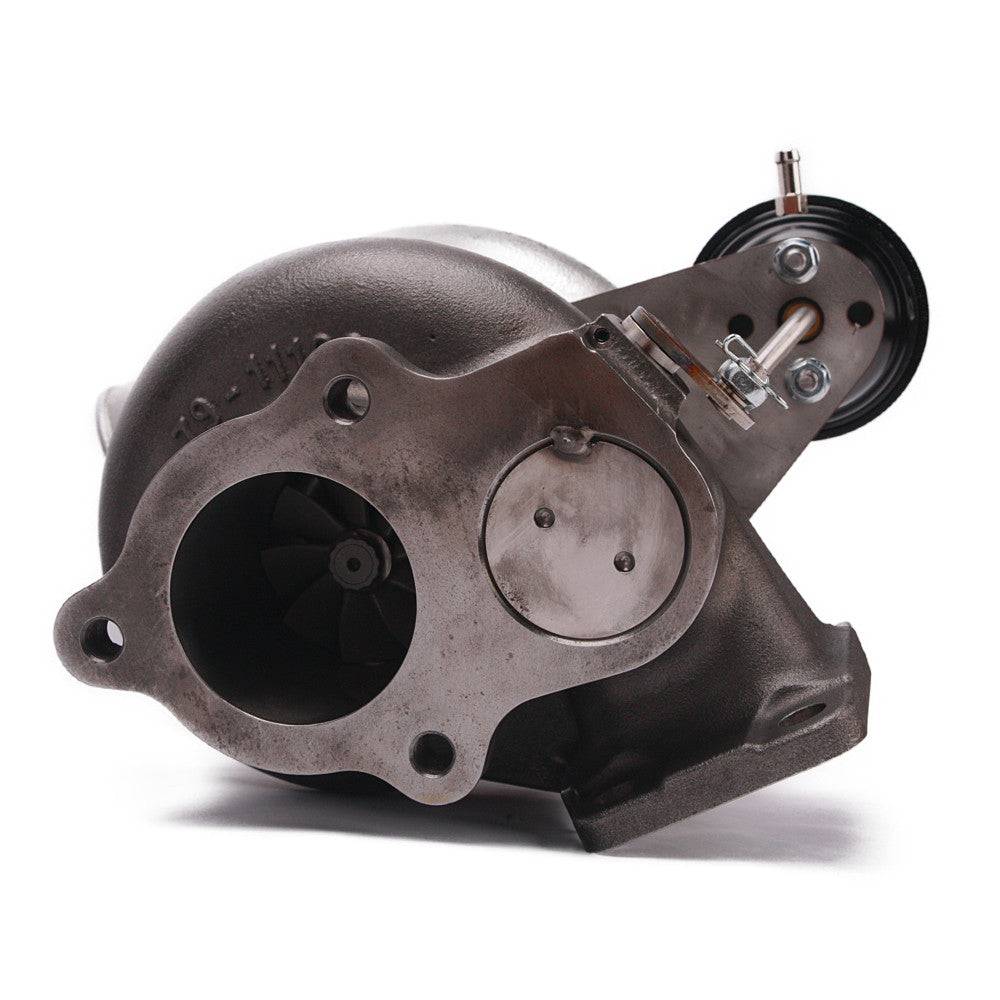

Turbines Housing
- Nozzle area: 6cm (A/R .41) or 8cm (A/R .57)
- Inlet: T3

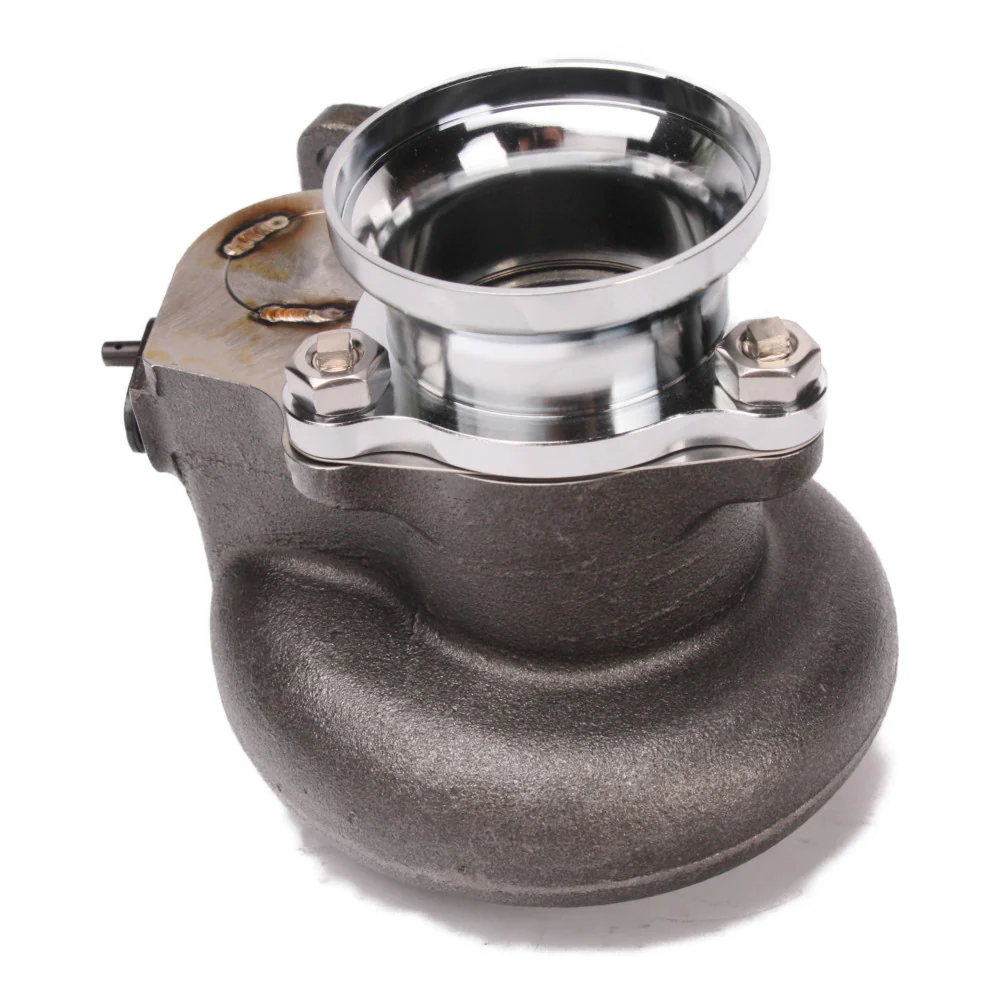

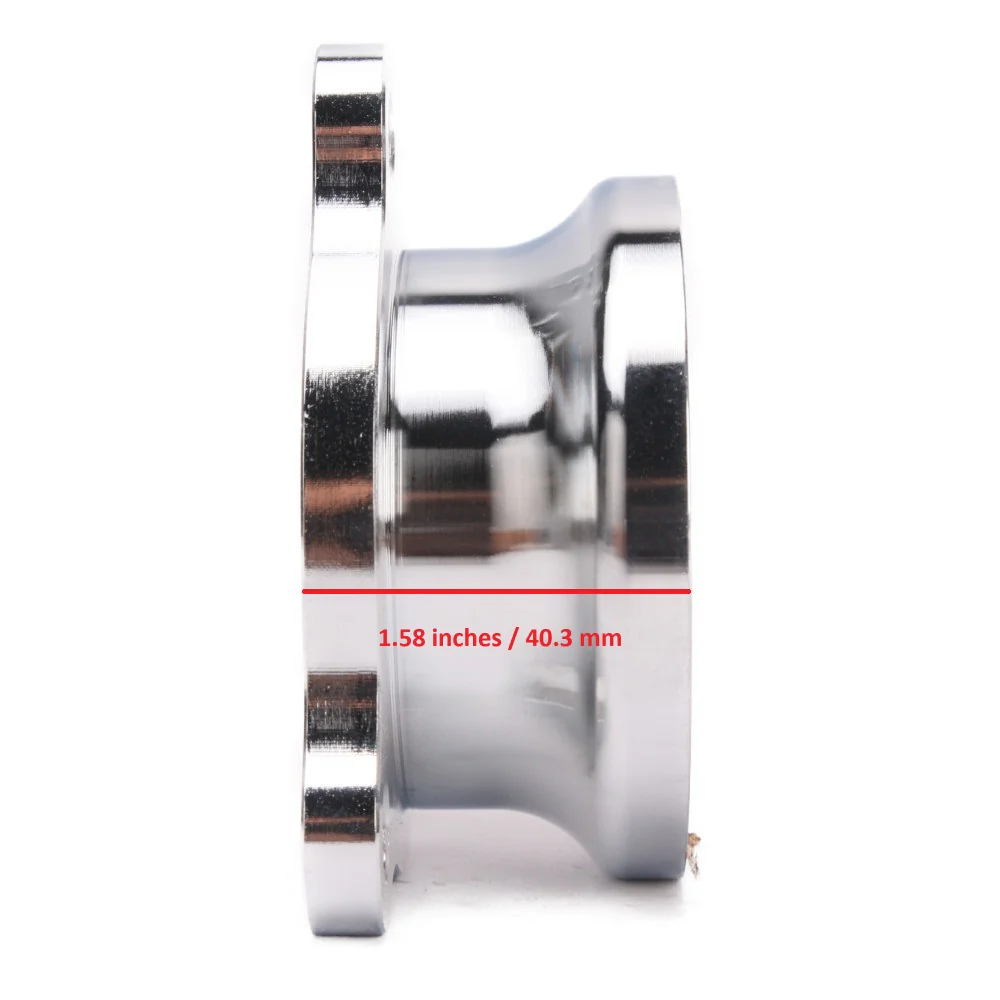

- Outlet: 3-Bolt DTS type with 3" V-band adapter
- Wastegate: internal gated

Comparison of 6cm and 8cm Housings

Feature 6cm (A/R .41) 8cm (A/R .57)
Best For Daily driving, stop-start traffic, light towing Heavy towing, high-speed highway cruising, high-HP builds
Spool Time Fast. Provides quick boost at lower RPM for better torque Slower. Requires more exhaust volume to build boost
High-End Flow Becomes a restriction at higher RPM; can lead to higher EGTs High. Reduces backpressure and allows the engine to breathe better at top end
Backpressure Higher at high RPM/high load Lower, which helps reduce thermal stress on the engine

Bearing Type
- Journal bearing system with 360-degree thrust bearing kit

Cooling Type
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

The set includes
- 1 x Oil supply set
- 1 x water coolant and return set
- 1 x T3 gasket

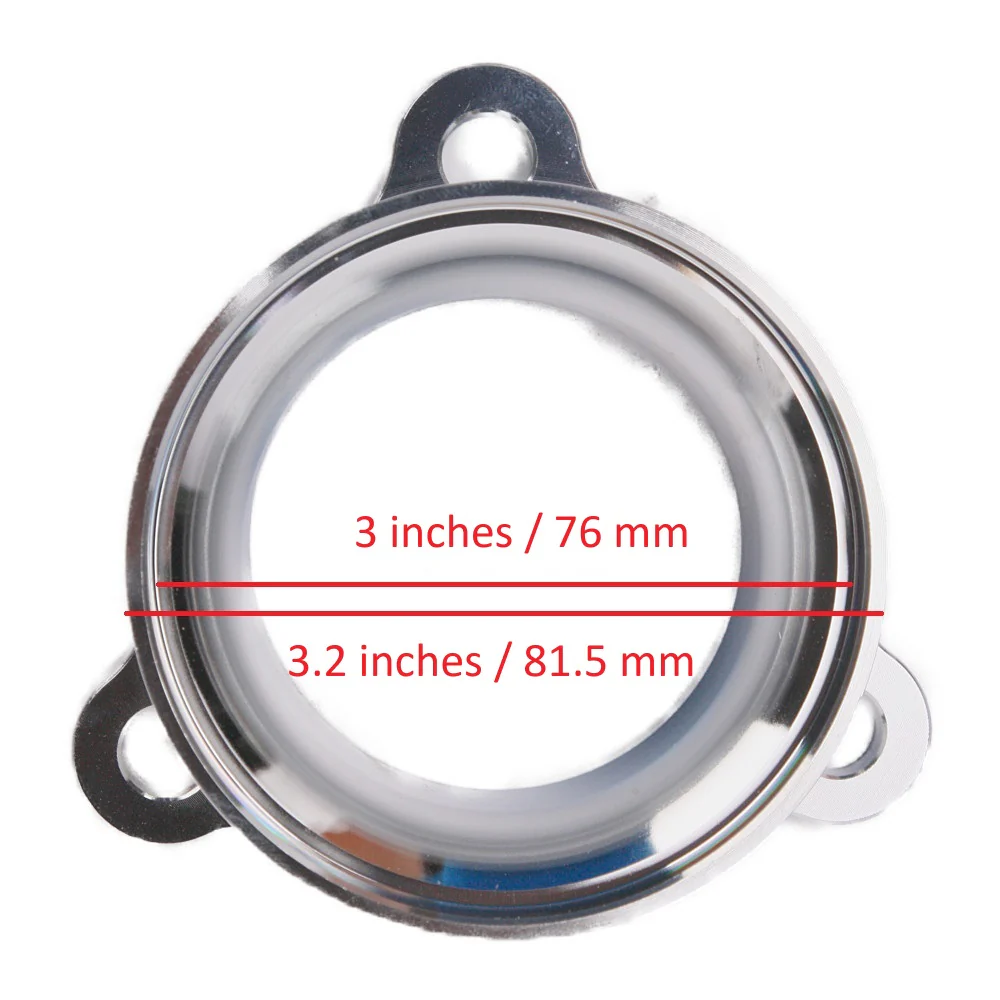

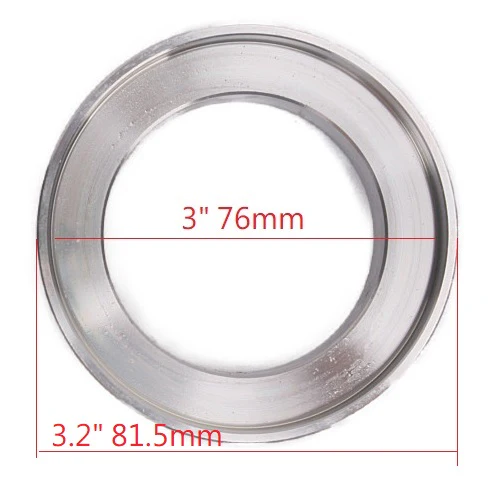

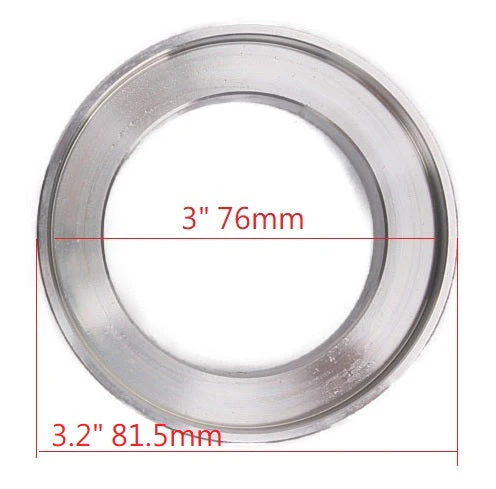

- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag

GR GQ Installation Kit Instruction

GU Installation Kit Instruction
Situation
-Brand New
-Full balance from Schenk MBRS110 Germany

Provider
-Kinugawa Turbo System

Warranty
-One year
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
