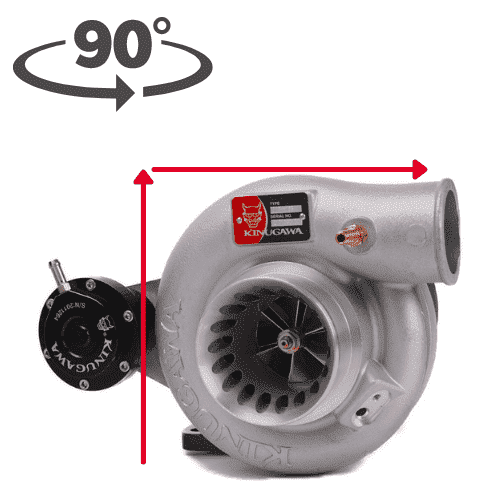

Kinugawa Turbo 3" TD05H-18G 3-Bolt for Nissan Patrol TD42 High Top Mount Water-Cooled 90 Degree
1 / 8
Kinugawa Turbo 3" TD05H-18G 3-Bolt for Nissan Patrol TD42 High Top Mount Water-Cooled 90 Degree
Application
- Fits for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
- Fits for Radius Fabrications TD42 High Mount Turbo Manifold comes with a T3 turbo flange.
- Fits Radius Fabrications TD05 3" High Mount P4x4 / Arashi 3 Bolt Dump Pipe.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle Area: AR.60
- Inlet: 3" non anti-surge
- Outlet: 2"
- Inlet: 3" non anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm (A/R .41) or 8cm (A/R .57)
- Inlet: T3

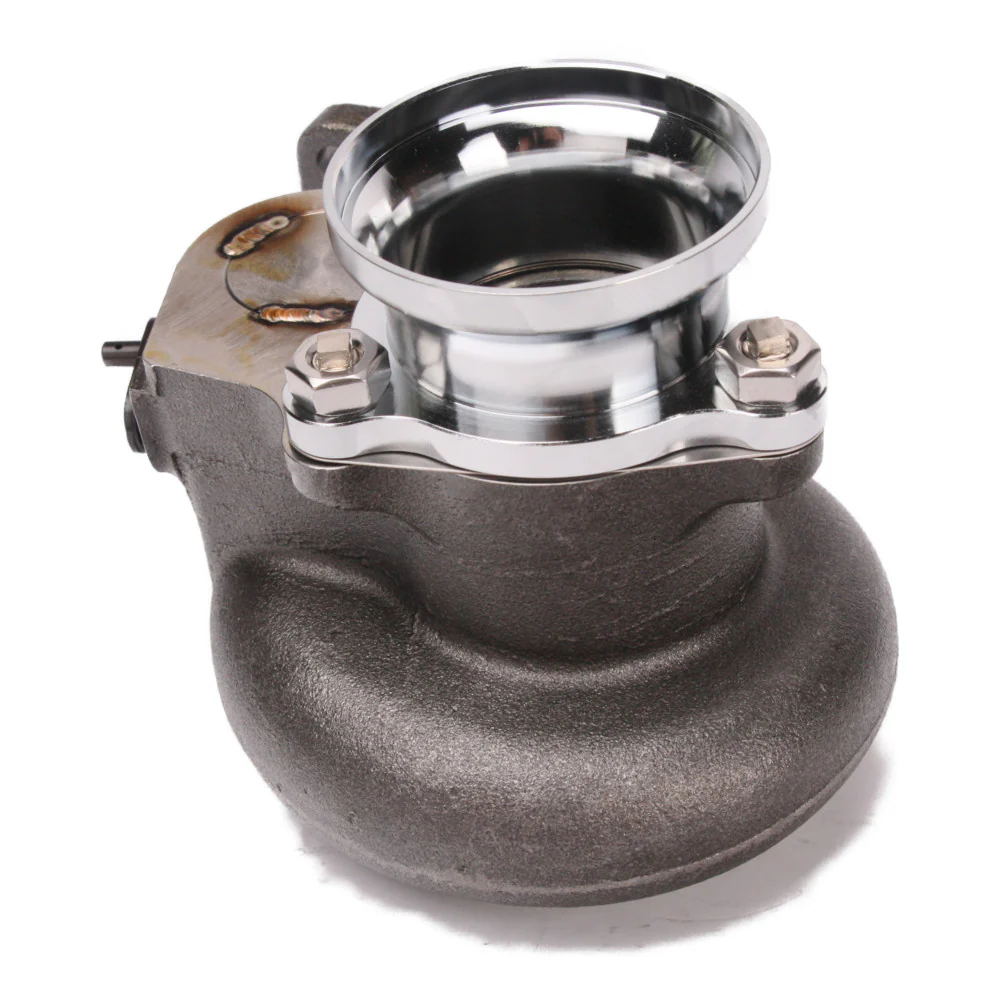

- Outlet: 3-Bolt DTS type with 3" V-band adapter
- Wastegate: internal gated
- Inlet: T3
- Outlet: 3-Bolt DTS type with 3" V-band adapter
- Wastegate: internal gated
Comparison of 6cm and 8cm Housings
| Feature | 6cm (A/R .41) | 8cm (A/R .57) |
| Best For | Daily driving, stop-start traffic, light towing | Heavy towing, high-speed highway cruising, high-HP builds |
| Spool Time | Fast. Provides quick boost at lower RPM for better torque | Slower. Requires more exhaust volume to build boost |
| High-End Flow | Becomes a restriction at higher RPM; can lead to higher EGTs | High. Reduces backpressure and allows the engine to breathe better at top end |
| Backpressure | Higher at high RPM/high load | Lower, which helps reduce thermal stress on the engine |
Bearing Type
- Journal Bearing with a performance 360-degree thrust bearing kit.
Cooling Type
- Oil and Water Cooling System
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x T3 gasket
- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag

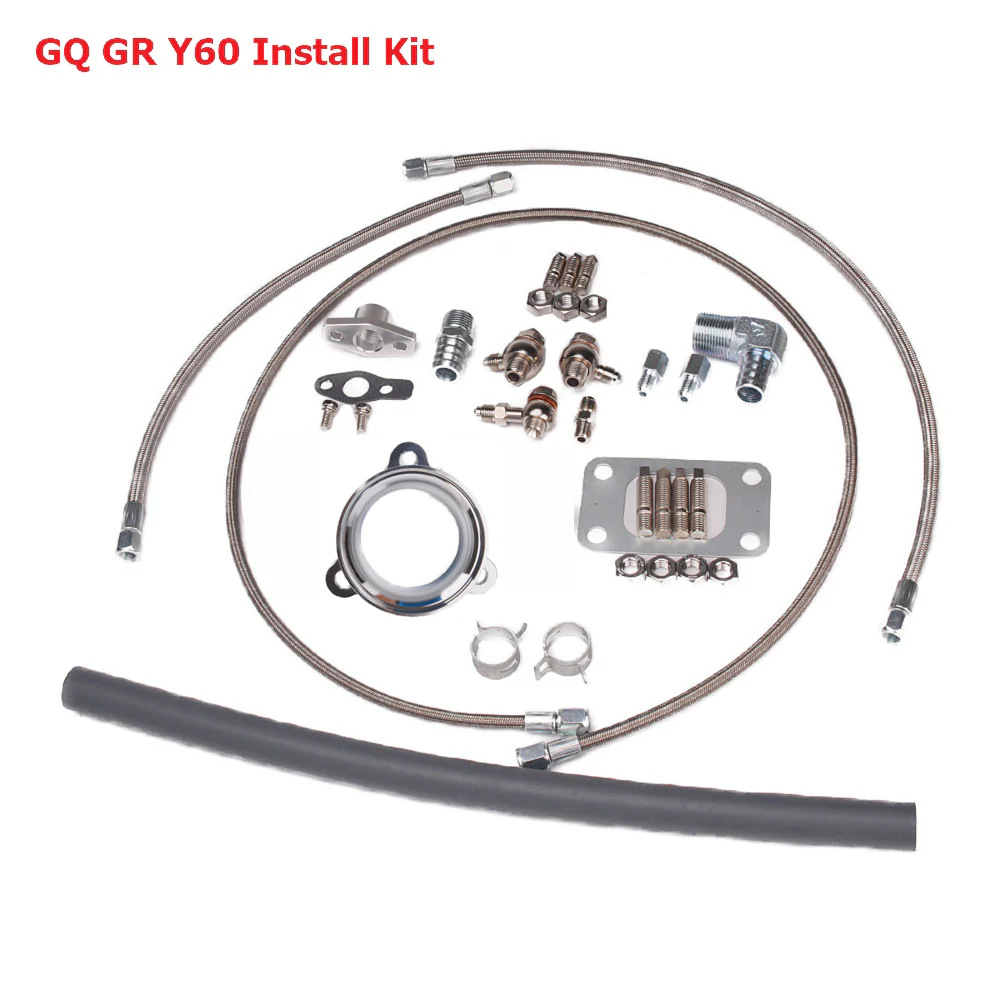

GR GQ Y60 Install Kit Instruction

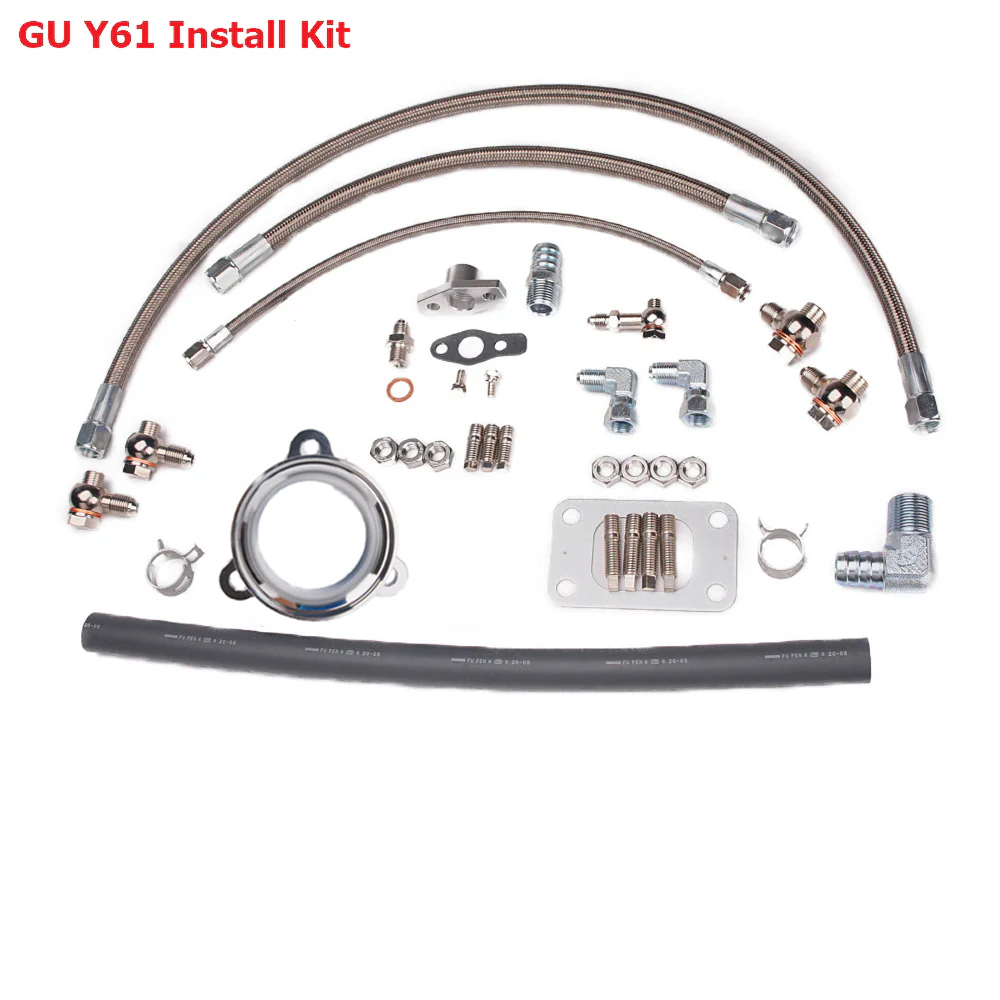

GU Y61 Install Kit Instruction
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo System
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
