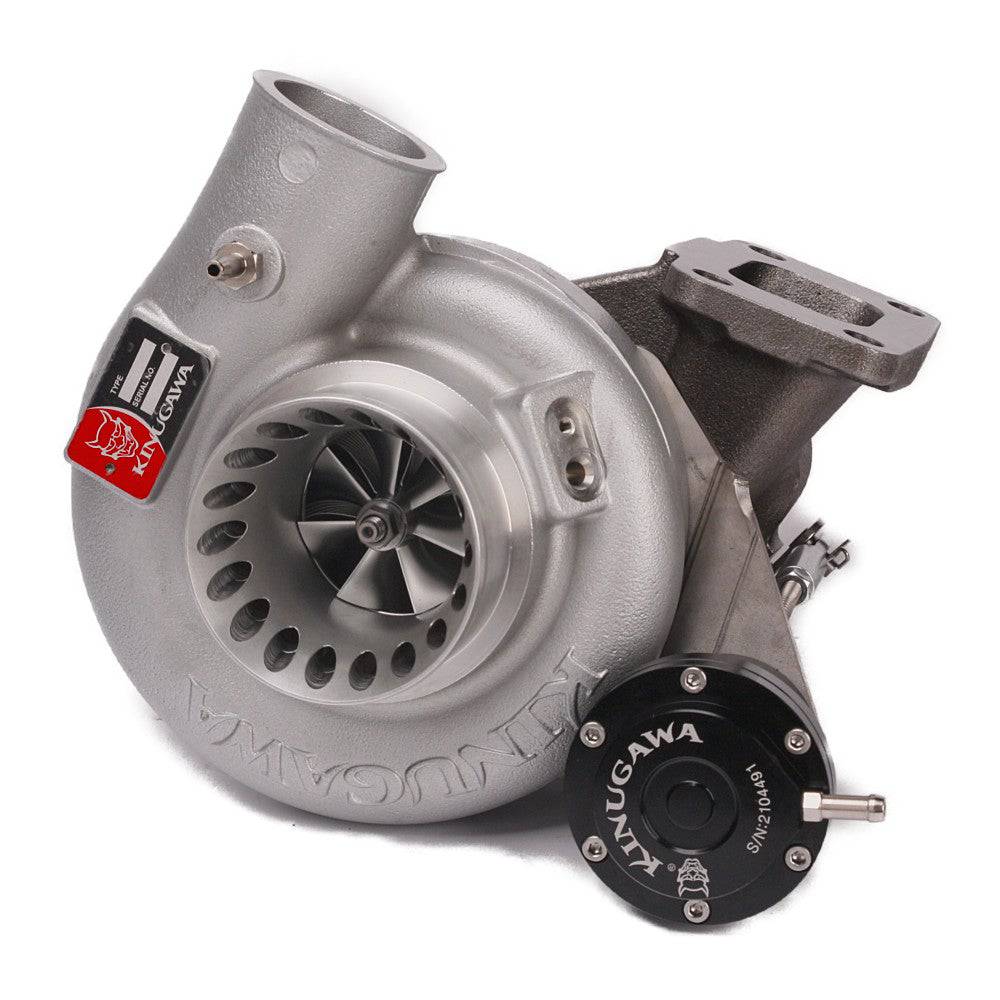

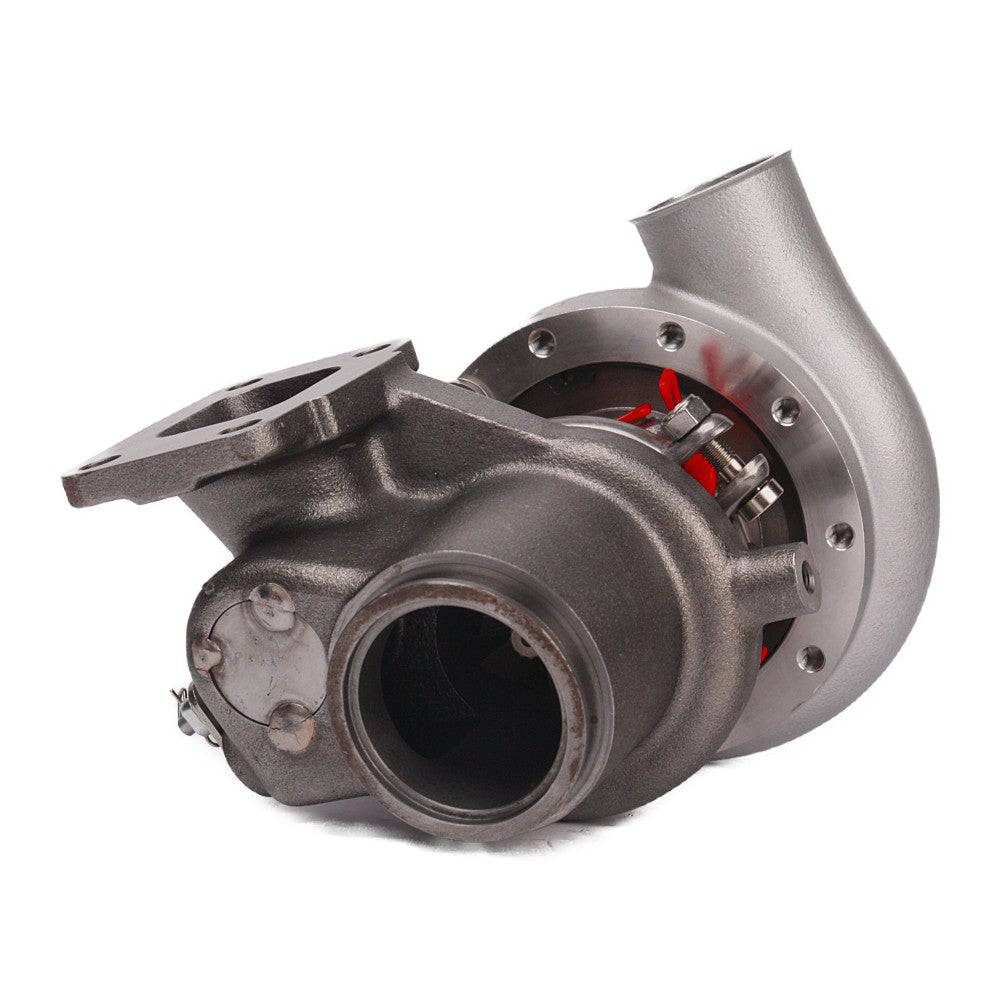

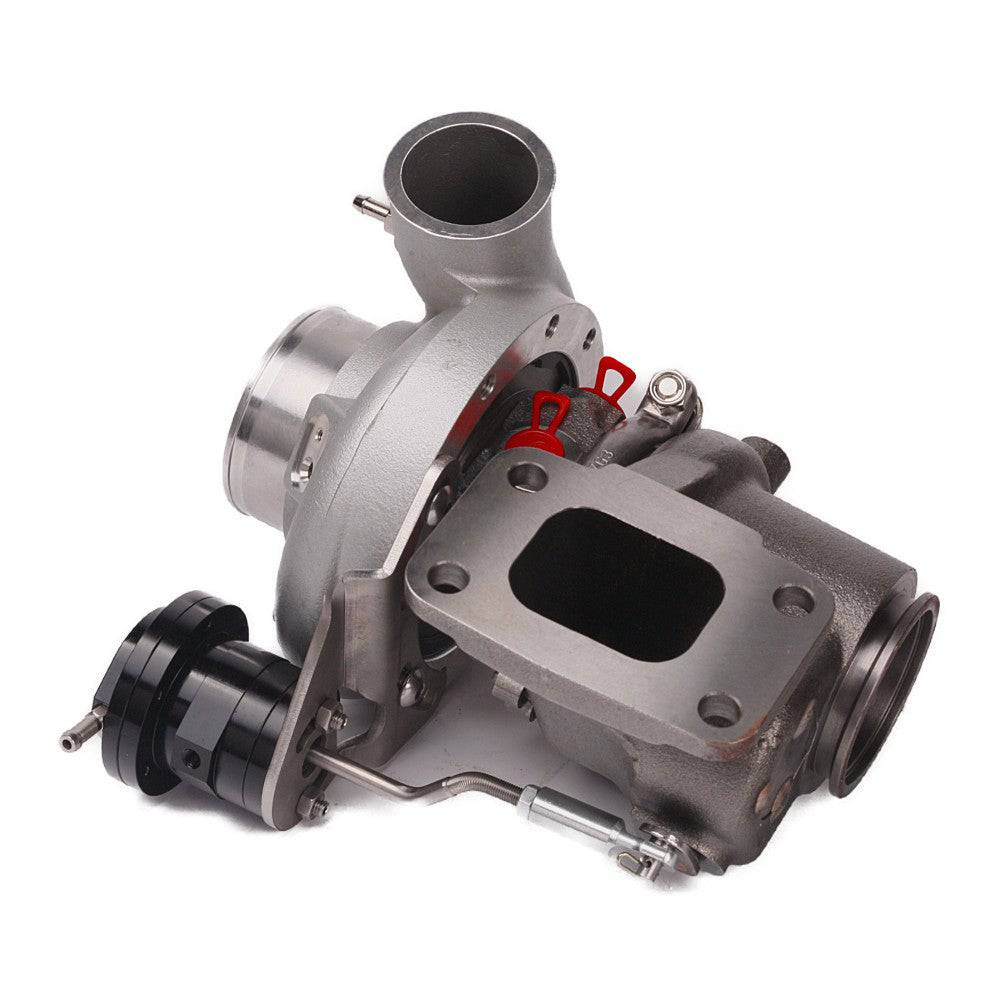

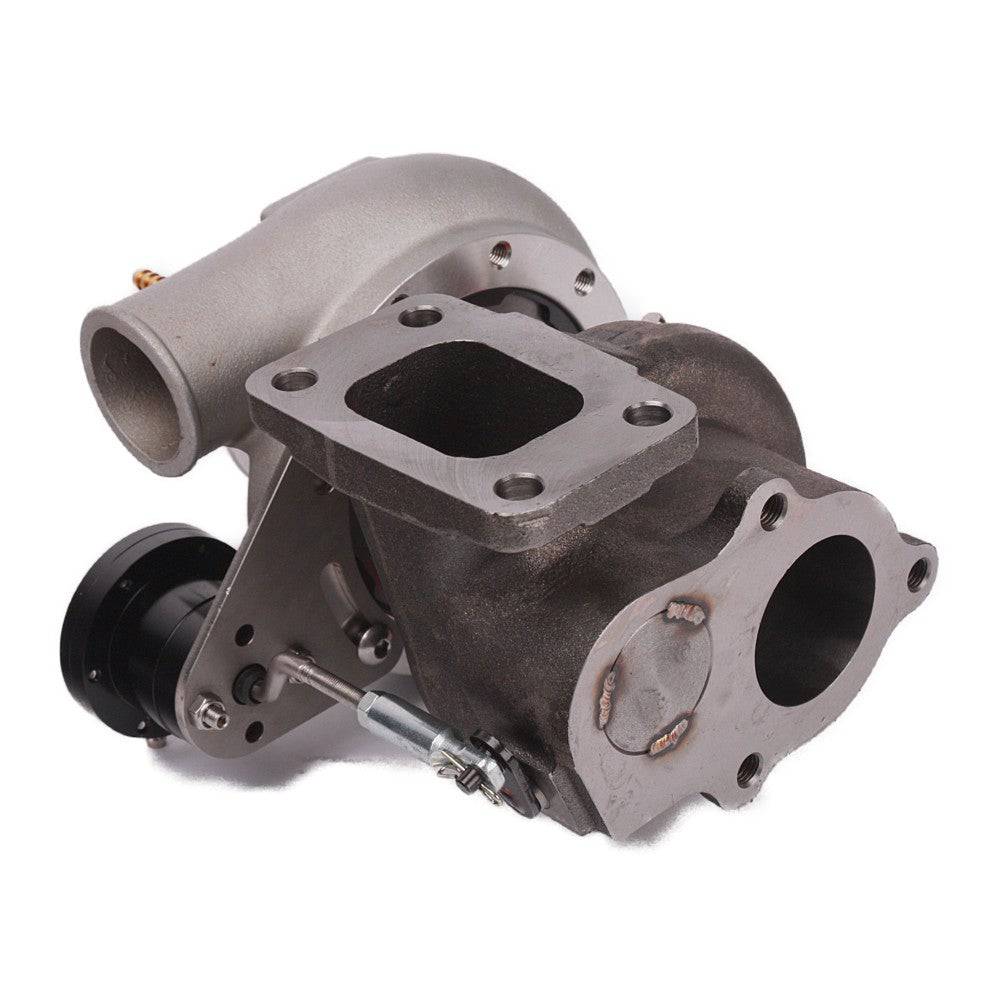

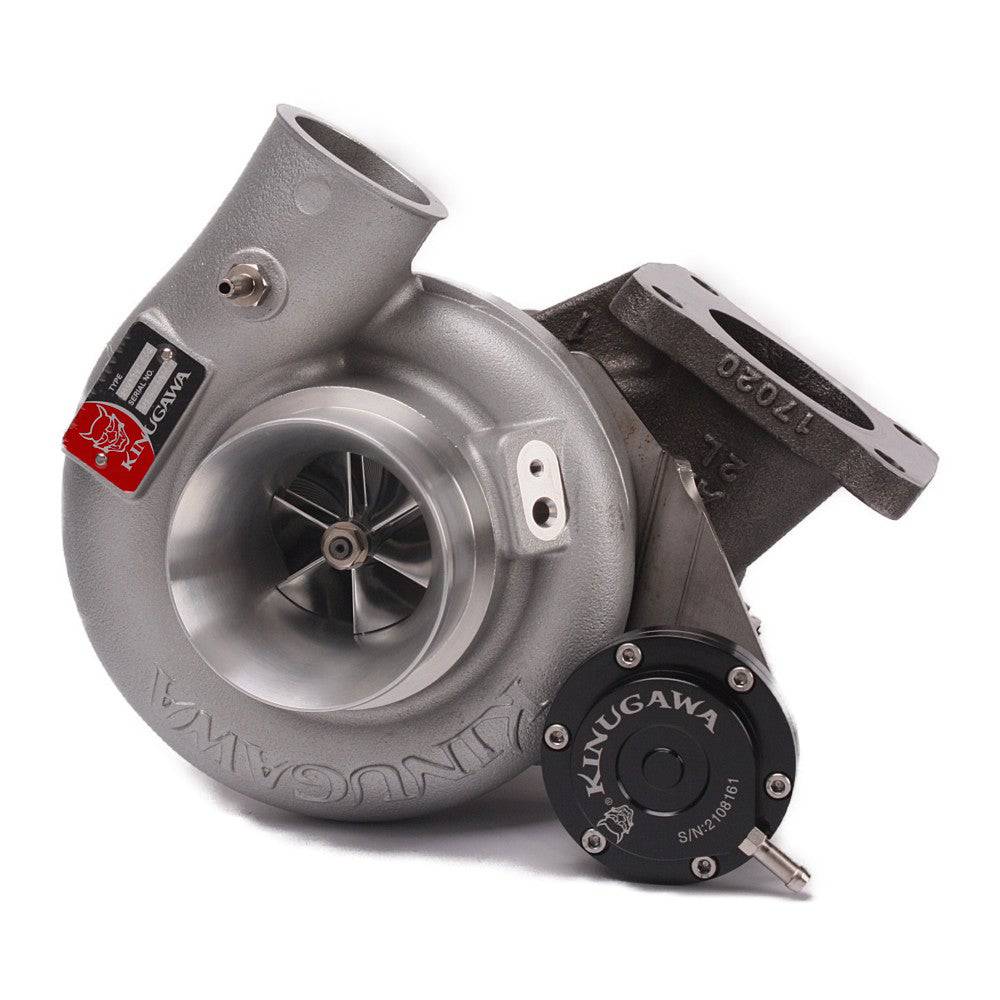

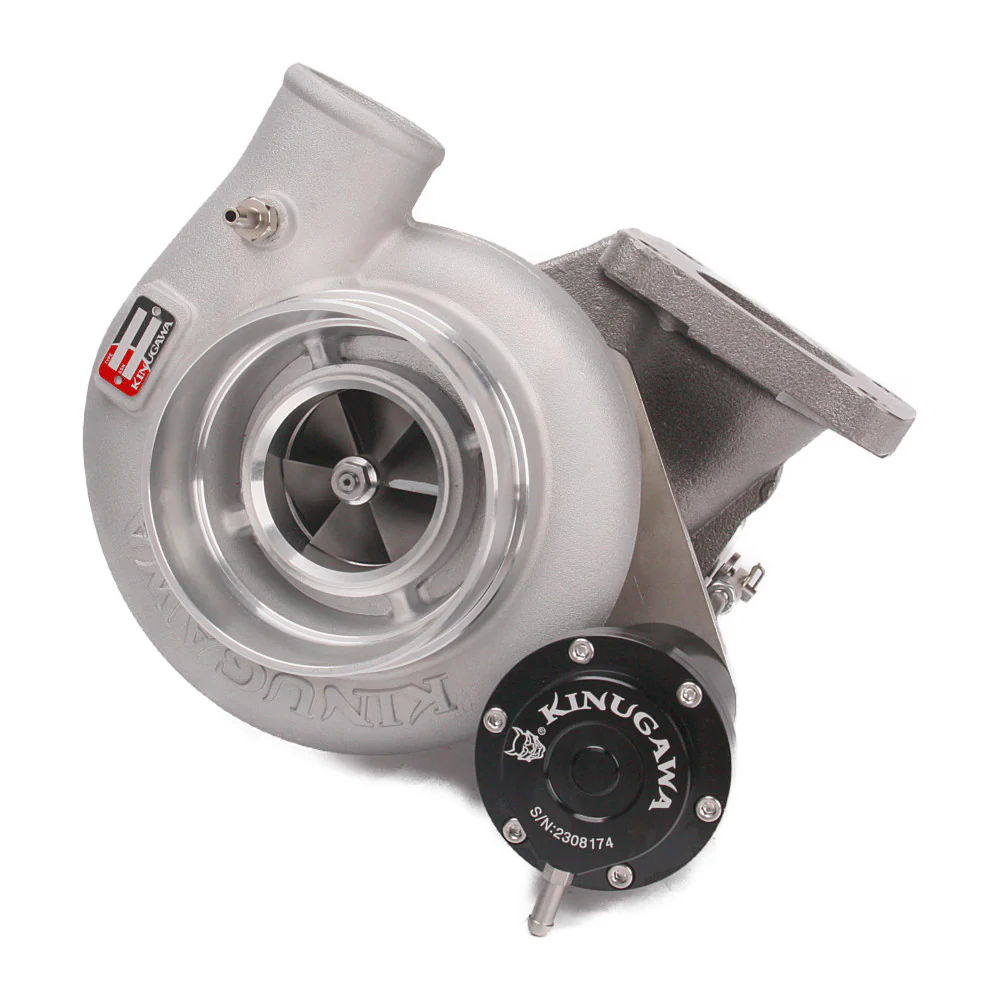

Kinugawa Turbo 3" TD05H-16G 6cm T3 2.5" V-Band for Toyota Land Cruiser 1HZ 75 79 80 100 105
1 / 6
Kinugawa Turbo 3" TD05H-16G 6cm T3 2.5" V-Band for Toyota Land Cruiser 1HZ 75 79 80 100 105
Application
- TOYOTA 1HZ 4.2L Diesel 180HP limited
- 75/78/79/80/100/105 series, You need an exhaust manifold with a T3 flange like Radius Fabrications if you want to install this turbocharger on a 1HZ Engine.
- 75/78/79/80/100/105 series, You need an exhaust manifold with a T3 flange like Radius Fabrications if you want to install this turbocharger on a 1HZ Engine.
- Naturally aspirated HZJ79, HZJ80 and HZJ105 Landcruiser.
- Feature: The A/R 6cm turbine housing provides ultimate spool time than the factory CT26 17201-17010 and 17201-17040 turbo with A/R 8cm.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2.0"
- Inlet: 3"
- Outlet: 2.0"
Turbines Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: 2.5" V-Band
- Wastegate: internal gated
- Inlet: T3
- Outlet: 2.5" V-Band
- Wastegate: internal gated
Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

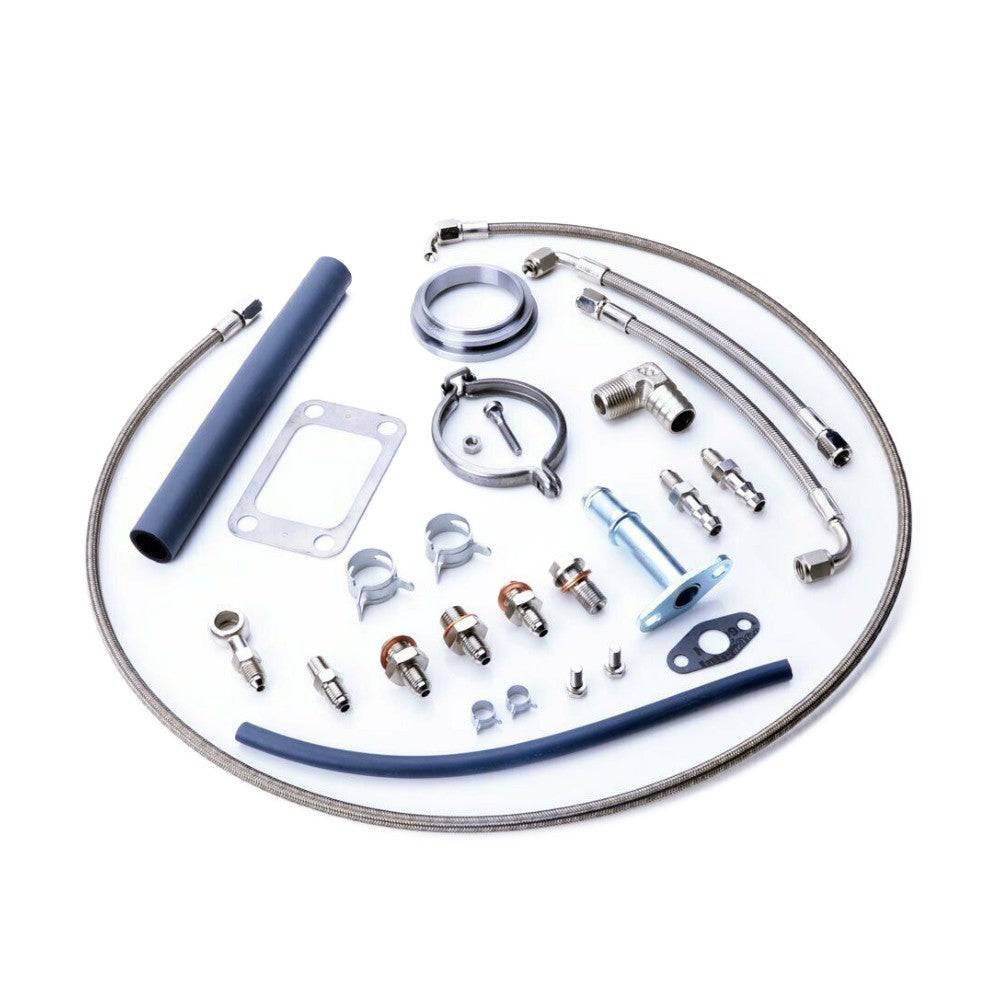

The Set Includes
- 1 x Turbocharger
- 1 x Turbocharger
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x T3 gasket

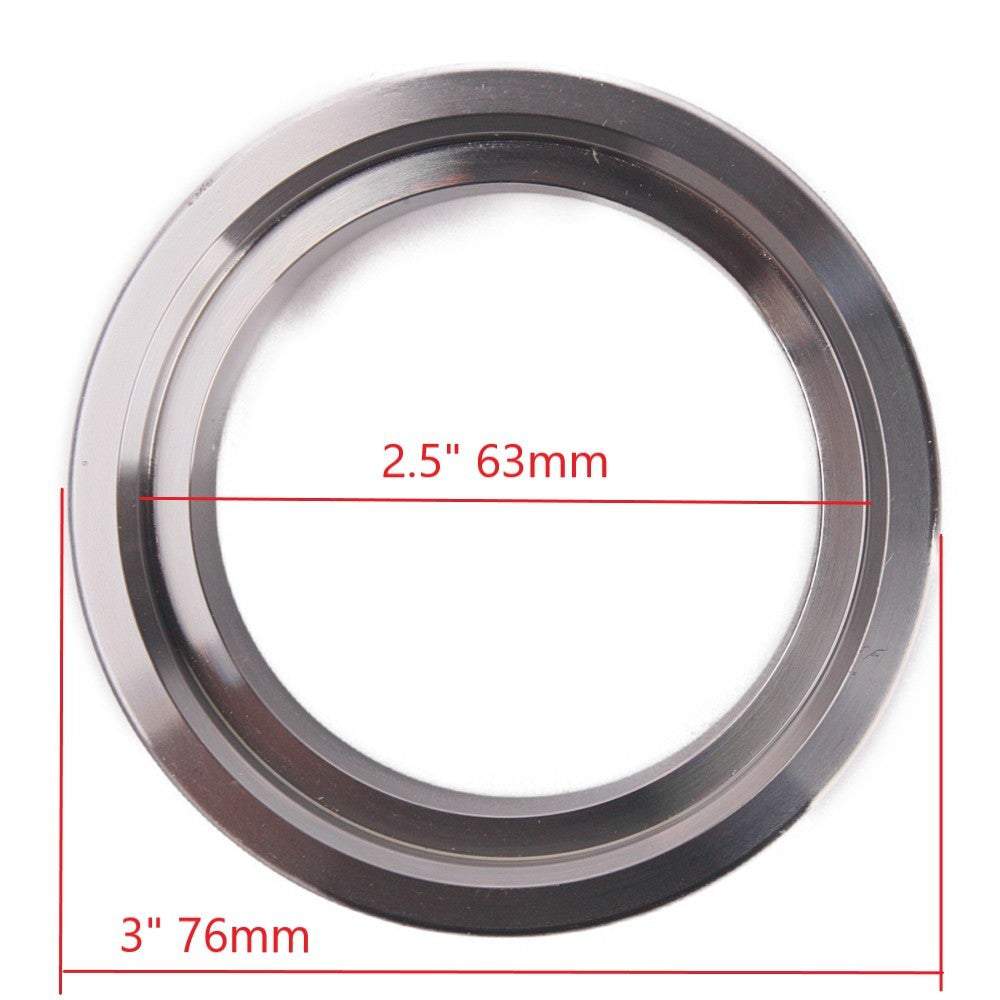

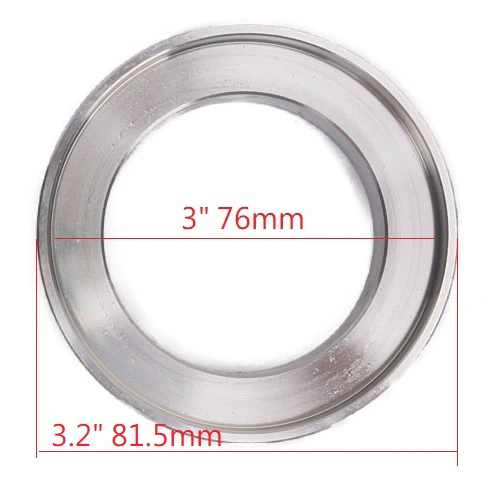

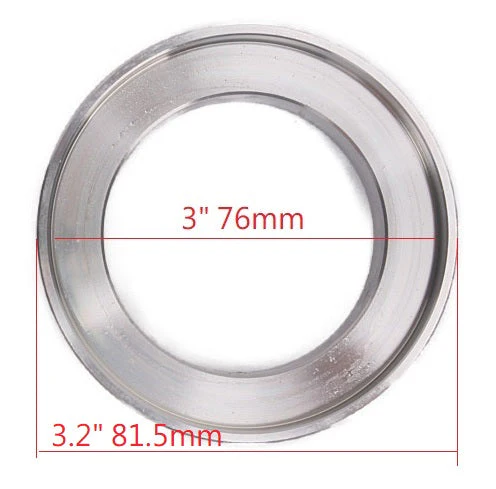

- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
Select Compressor Housing
Select Compressor Wheel
Select Turbine Wheel
From $346.15
Original: $989.00
-65%Kinugawa Turbo 3" TD05H-16G 6cm T3 2.5" V-Band for Toyota Land Cruiser 1HZ 75 79 80 100 105—
$989.00
$346.15Product Information
