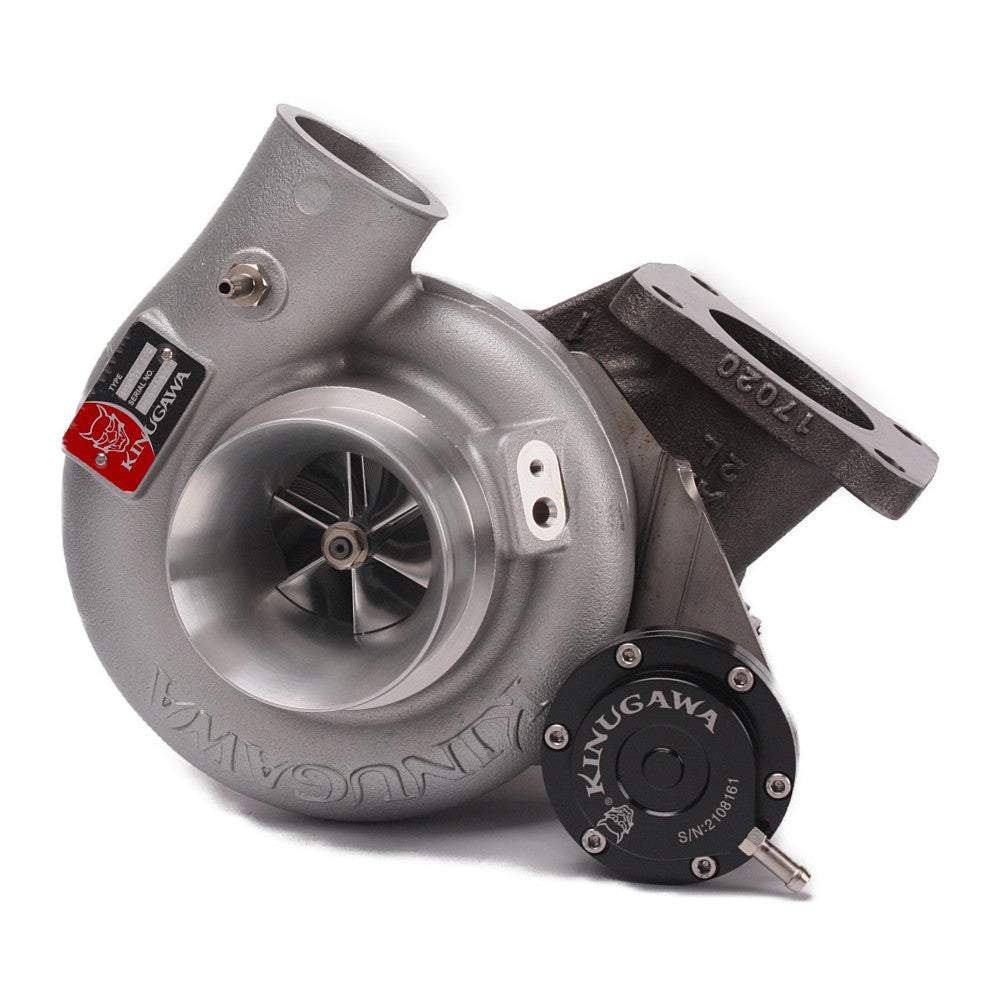

Kinugawa Turbo Ball Bearing 3" TD05H-18G 6cm T3 2.5" V-Band for Toyota Land Cruiser 1HZ 75 79 80 100 105
1 / 6
Kinugawa Turbo Ball Bearing 3" TD05H-18G 6cm T3 2.5" V-Band for Toyota Land Cruiser 1HZ 75 79 80 100 105
Application
- Kinugawa TOYOTA 1HZ 4.2L Diesel 250HP Limited
- 75/78/79/80/100 series with 6cm T3 V-Band Turbine housing, You need an exhaust manifold with a T3 flange to install this turbocharger on a 1HZ Engine.
- Feature: The A/R 6cm turbine housing provides the ultimate spool time than the CT26 17201-17010 and 17201-17040 turbo with A/R 8cm.
- Kinugawa TOYOTA 1HZ 4.2L Diesel 250HP Limited
- 75/78/79/80/100 series with 6cm T3 V-Band Turbine housing, You need an exhaust manifold with a T3 flange to install this turbocharger on a 1HZ Engine.
- Feature: The A/R 6cm turbine housing provides the ultimate spool time than the CT26 17201-17010 and 17201-17040 turbo with A/R 8cm.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA
- TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm ( Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"
- Inlet: 3"
- Outlet: 2"

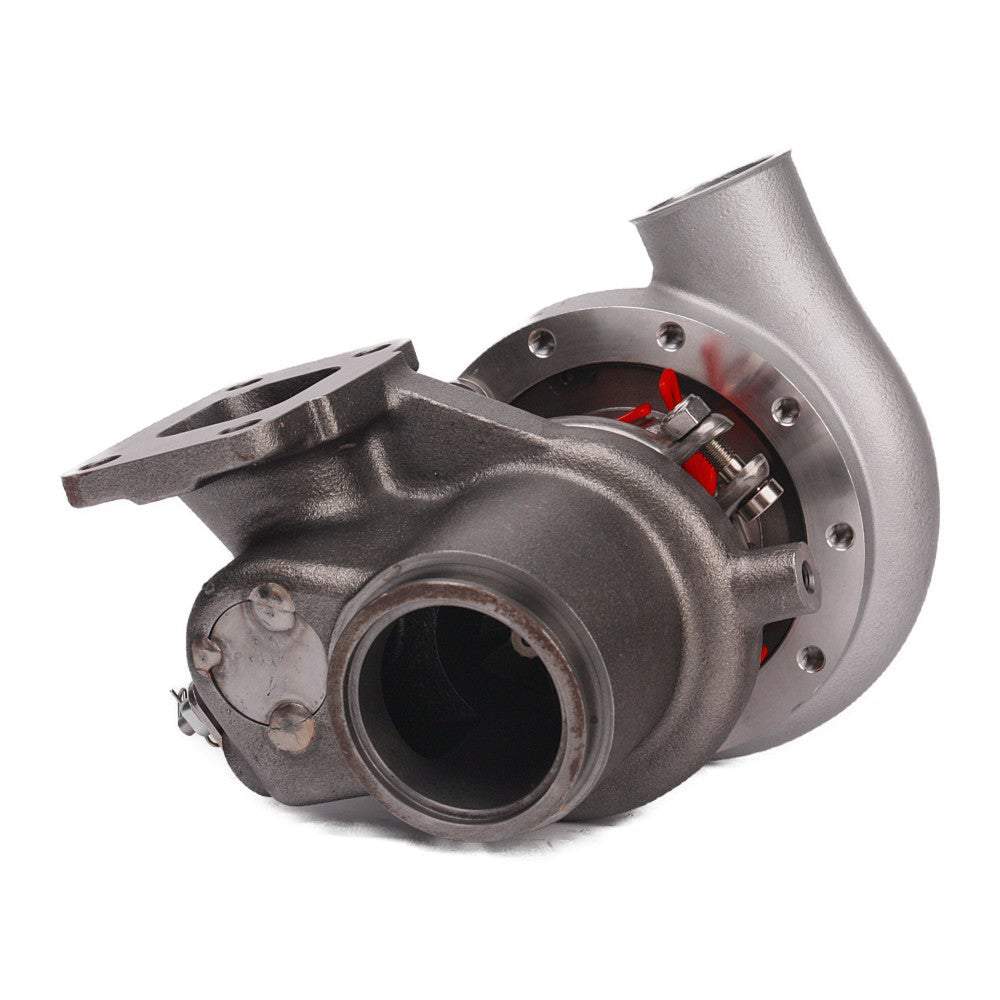

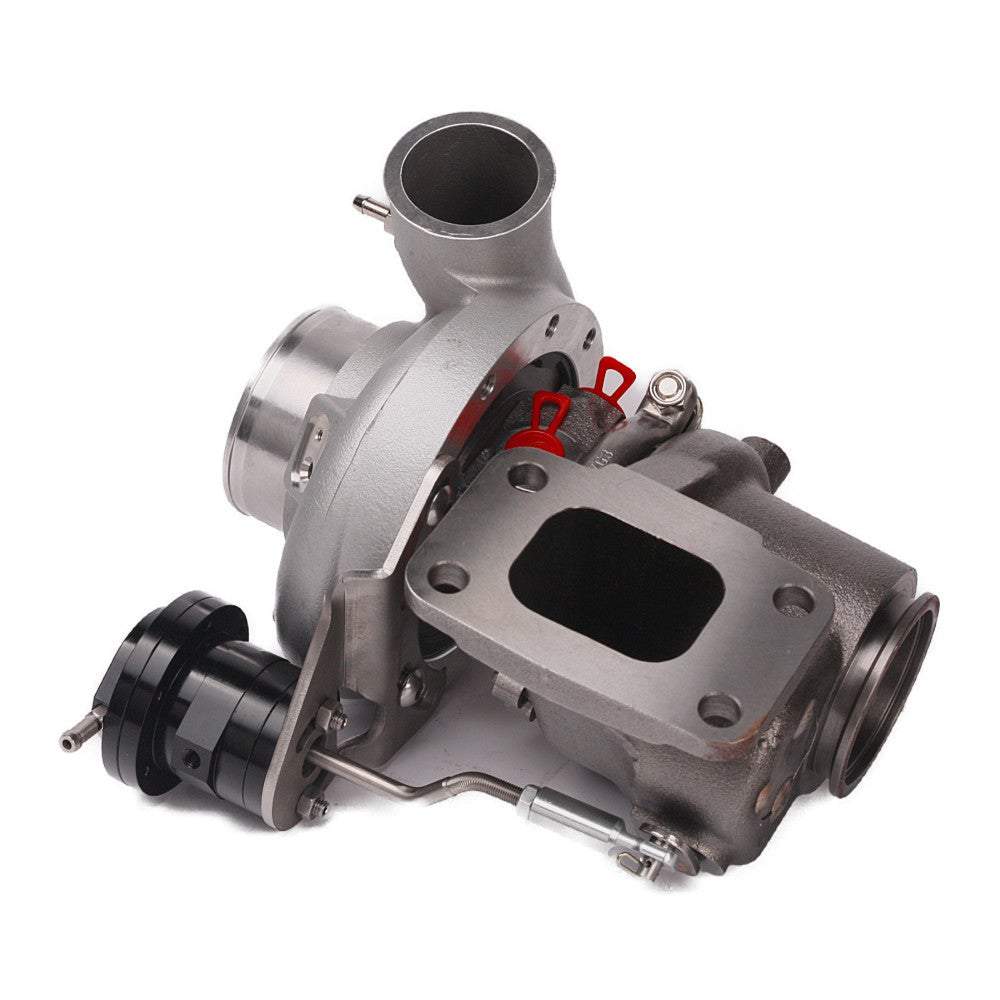

Turbines Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: 2.5" V-band
- Wastegate: internal gated
- Inlet: T3
- Outlet: 2.5" V-band
- Wastegate: internal gated
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

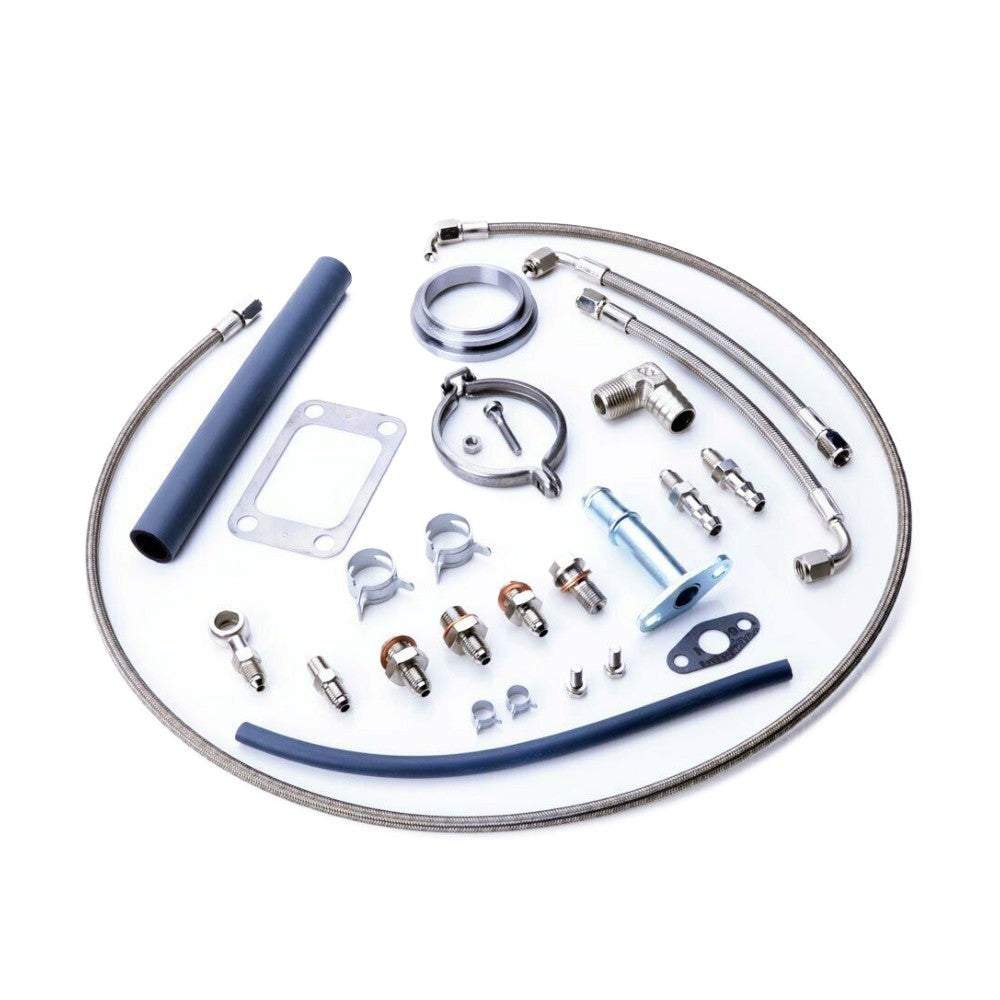

The Set Includes
- 1 x Turbocharger
- 1 x Turbocharger
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x T3 gasket
- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Balance Report with Anti-Counterfeit Tag↗
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
-Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
