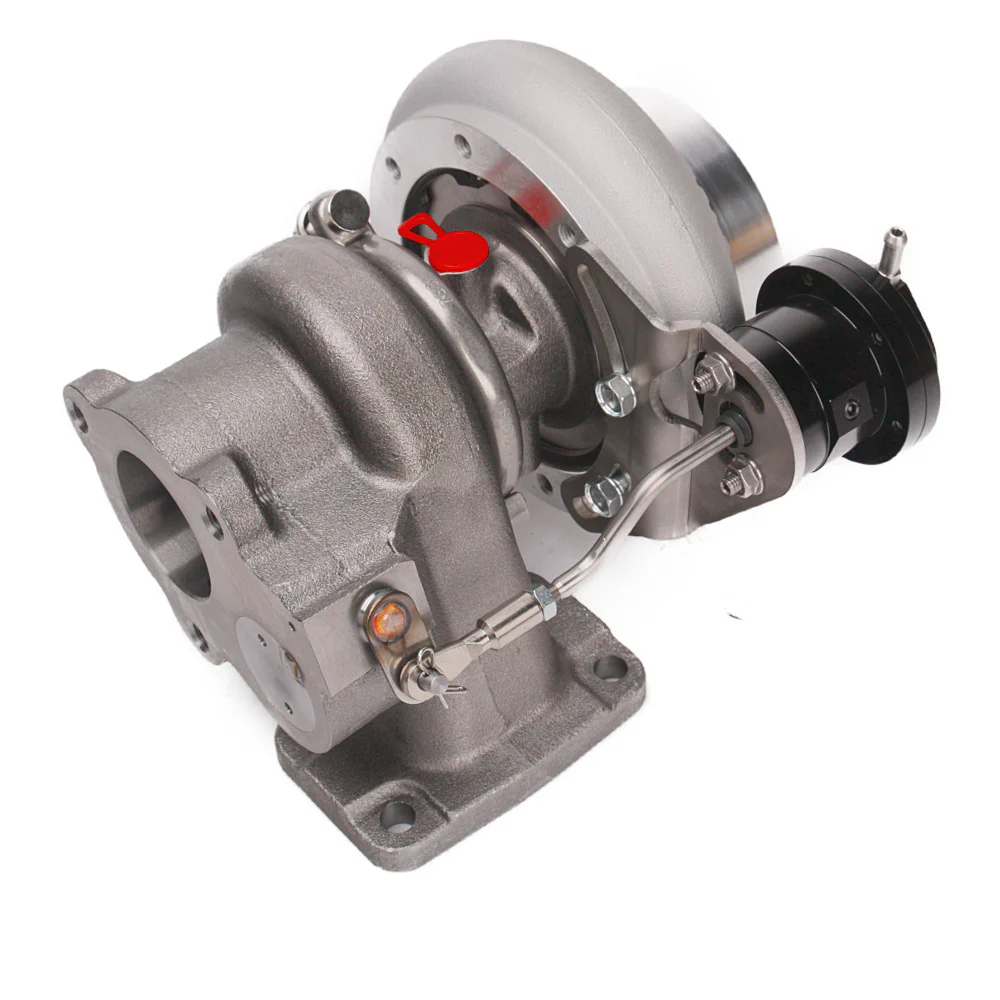

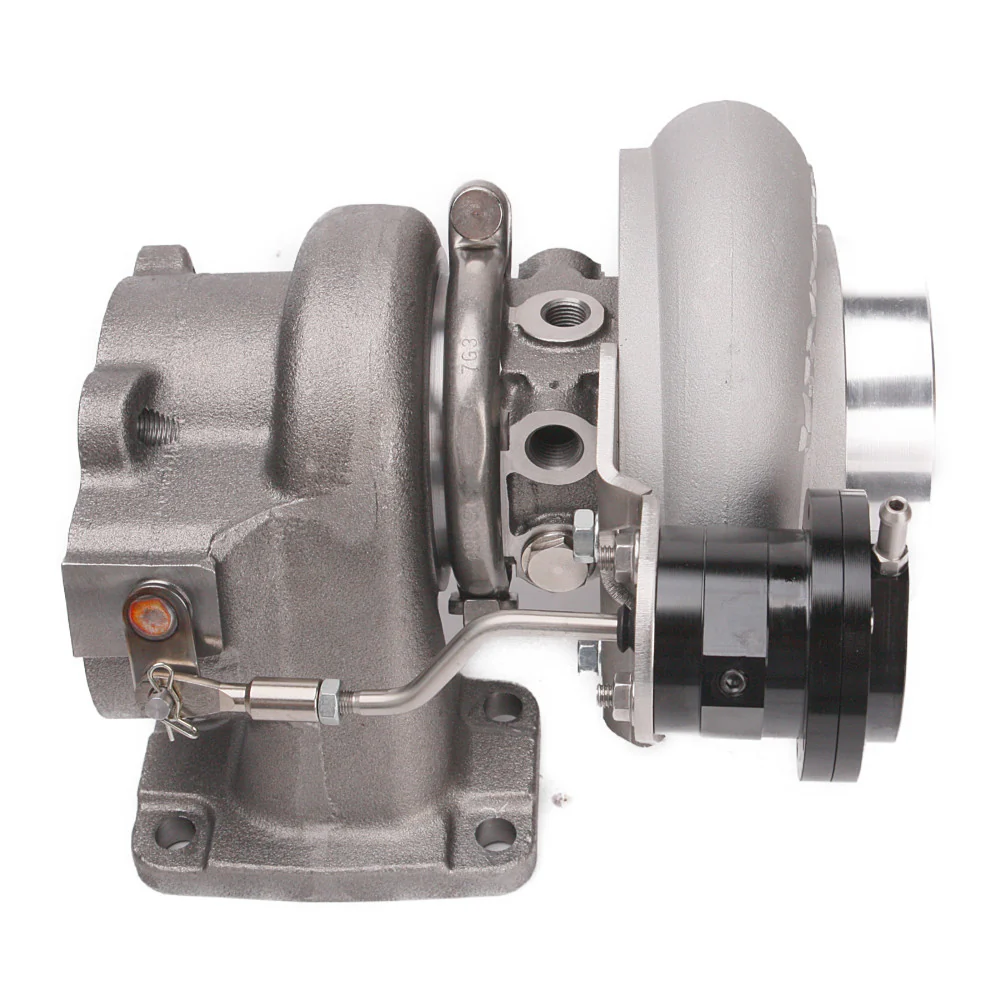

Kinugawa Turbo 4" Anti-Surge TD05H-16K 3-Bolt for Nissan Patrol TD42 High Mount Oil-Cooled
Application
- Fits Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T engine
- Fits Radius Fabrications TD42 High Mount / High Merge Style Turbo T3 Manifold.
- Fits Radius Fabrications TD05 3" High Mount P4x4 / Arashi 3 Bolt Dump Pipe.
Note: Designed to bolt up to a 3" exhaust system with the DTS 3-Bolt outlet plus 3" V-Band adapter. Kinugawa has developed the perfect combination of performance and ease of fitment. The advantage of this bolt-on kit is that it suits most aftermarket intercooler kits currently on the market with minimal modifications.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle's modifications and tuning/calibration.
CHRA Size
- TD05H-16K
Wheels Spec
- Compressor wheel: 49.96 / 68.0 mm (7+7 Point-Milled)

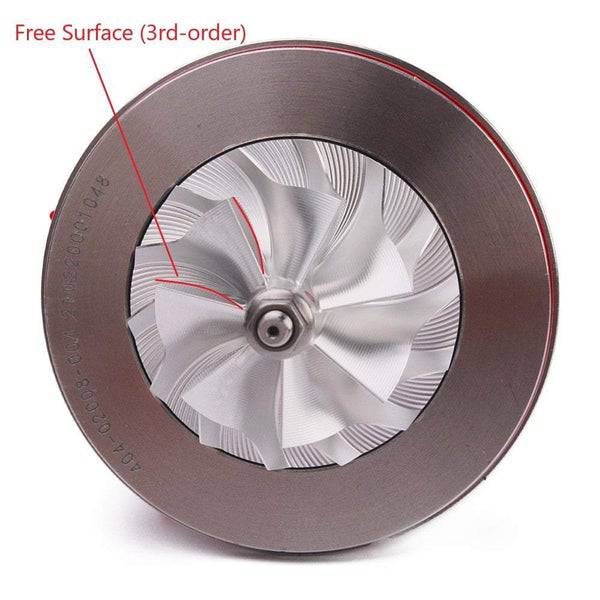

This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins. each | Quick 15 mins. each |
| Characteristics |
1. Free Surface can only be produced by Point Milling 2. Higher air pressure and significantly better flow efficiency 3. Only suitable for advanced compressor wheel designs 4. Primarily for high-efficiency turbochargers |
1. Ruled Surface can be produced by Flank Milling 2. Lower efficiency 3. Only suitable for basic compressor wheel designs 4. Primarily for fundamental mechanical engineering such as centrifugal compressors |
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 4" anti-surge
- Outlet: 2"
- Inlet: 4" anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm (A/R .41) or 8cm (A/R .57)
- Inlet: T3

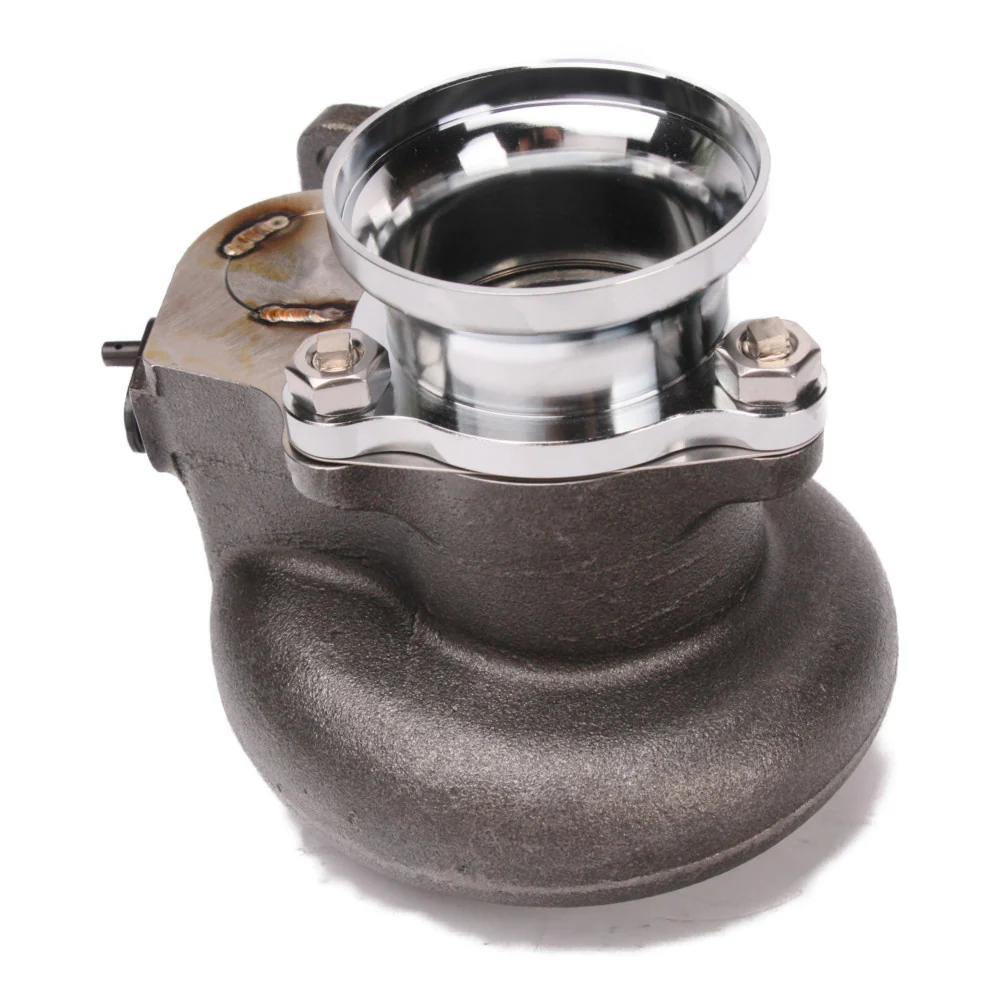

- Outlet: 3-Bolt DTS type with 3" V-band adapter
- Wastegate: internal gated
- Inlet: T3
- Outlet: 3-Bolt DTS type with 3" V-band adapter
- Wastegate: internal gated
Comparison of 6cm and 8cm Housings
| Feature | 6cm (A/R .41) | 8cm (A/R .57) |
| Best For | Daily driving, stop-start traffic, light towing | Heavy towing, high-speed highway cruising, high-HP builds |
| Spool Time | Fast. Provides quick boost at lower RPM for better torque | Slower. Requires more exhaust volume to build boost |
| High-End Flow | Becomes a restriction at higher RPM; can lead to higher EGTs | High. Reduces backpressure and allows the engine to breathe better at top end |
| Backpressure | Higher at high RPM/high load | Lower, which helps reduce thermal stress on the engine |
Bearing Type
- Journal bearing system with 360-degree thrust bearing kit
Cooling Type
- Oil cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Oil supply set
- 1 x T3 gasket

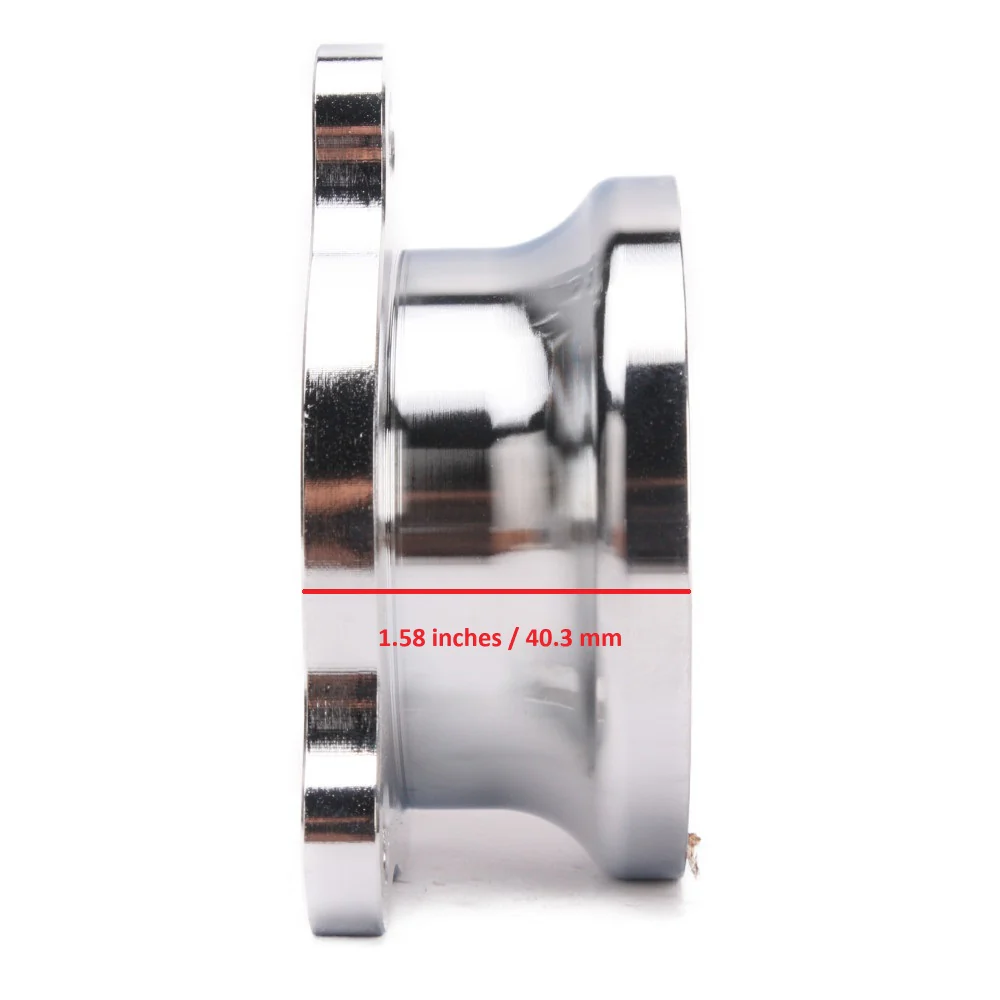

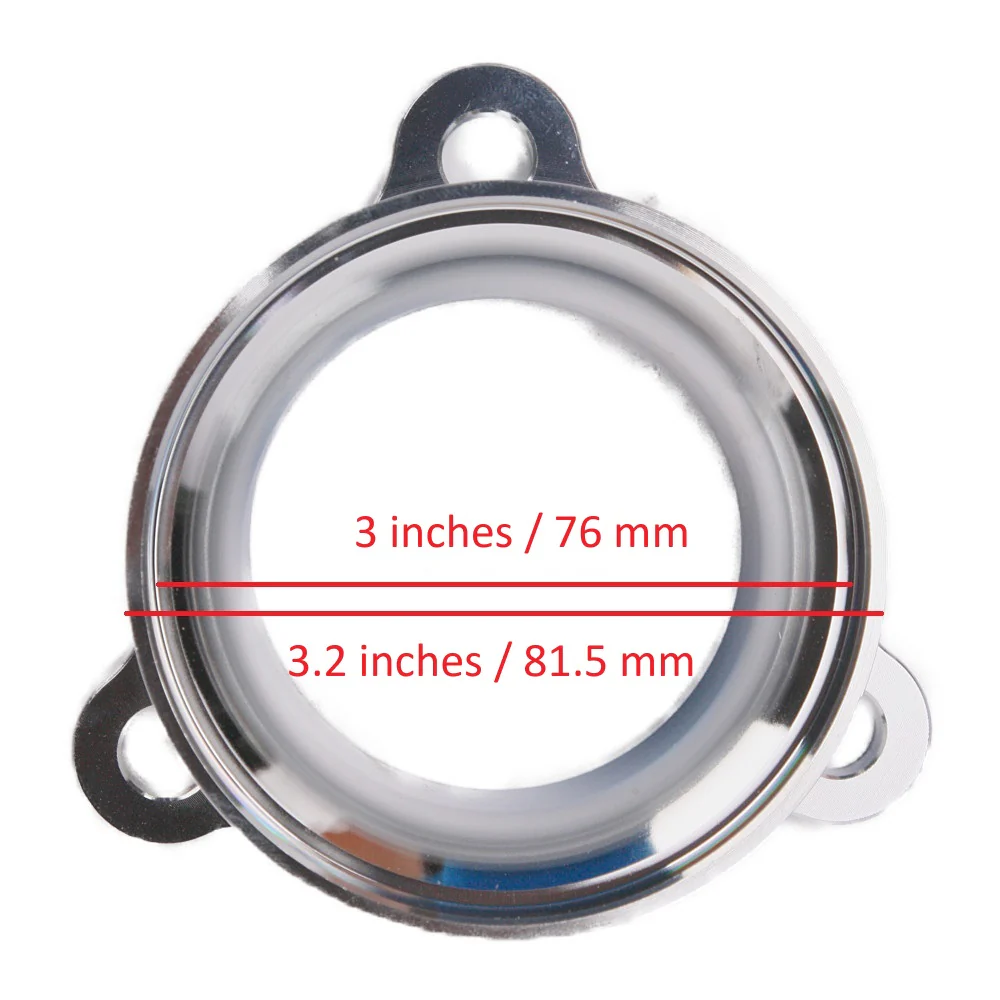

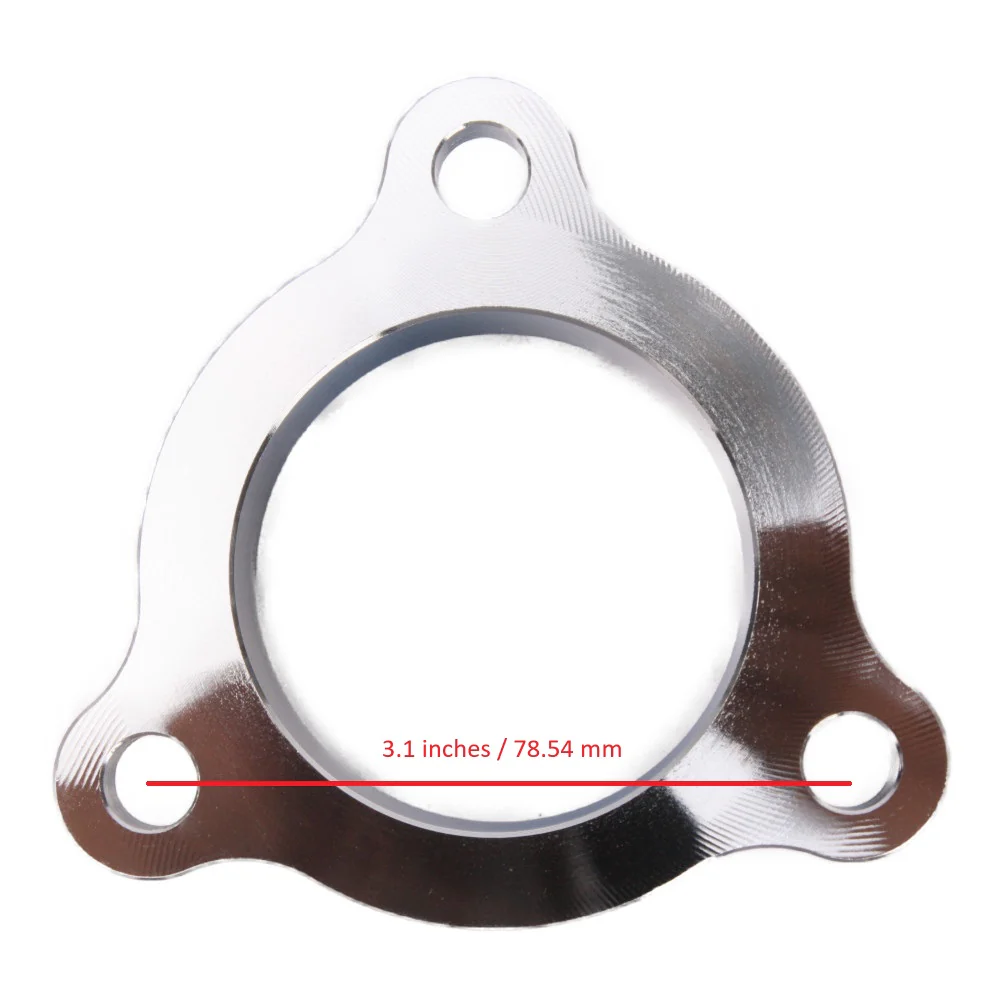

- 1 x 3" V-Band Socket Adapter Kit
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
GR GQ Y60 Install Kit Instruction
GU Y61 Install Kit Instruction
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo System
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
