Kinugawa Turbo Ball Bearing 3" TD05H-16K 10cm T3 V-Band External Wastegate
APPLICATION
- Universal type
- 1800~2500cc gasoline
- 3000~4500 diesel
- 1800~2500cc gasoline
- 3000~4500 diesel
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16K

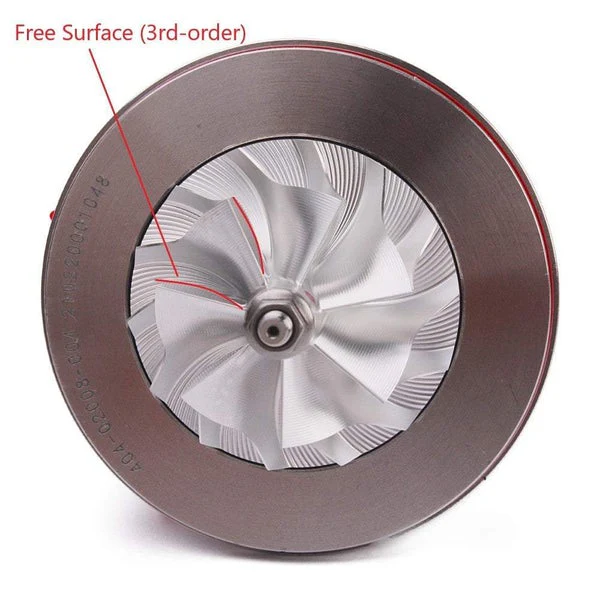

- Compressor wheel: 49.5 / 68.0 mm Point Milling / Third-order Surface
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16K) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins. each |
| Characters |
1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |

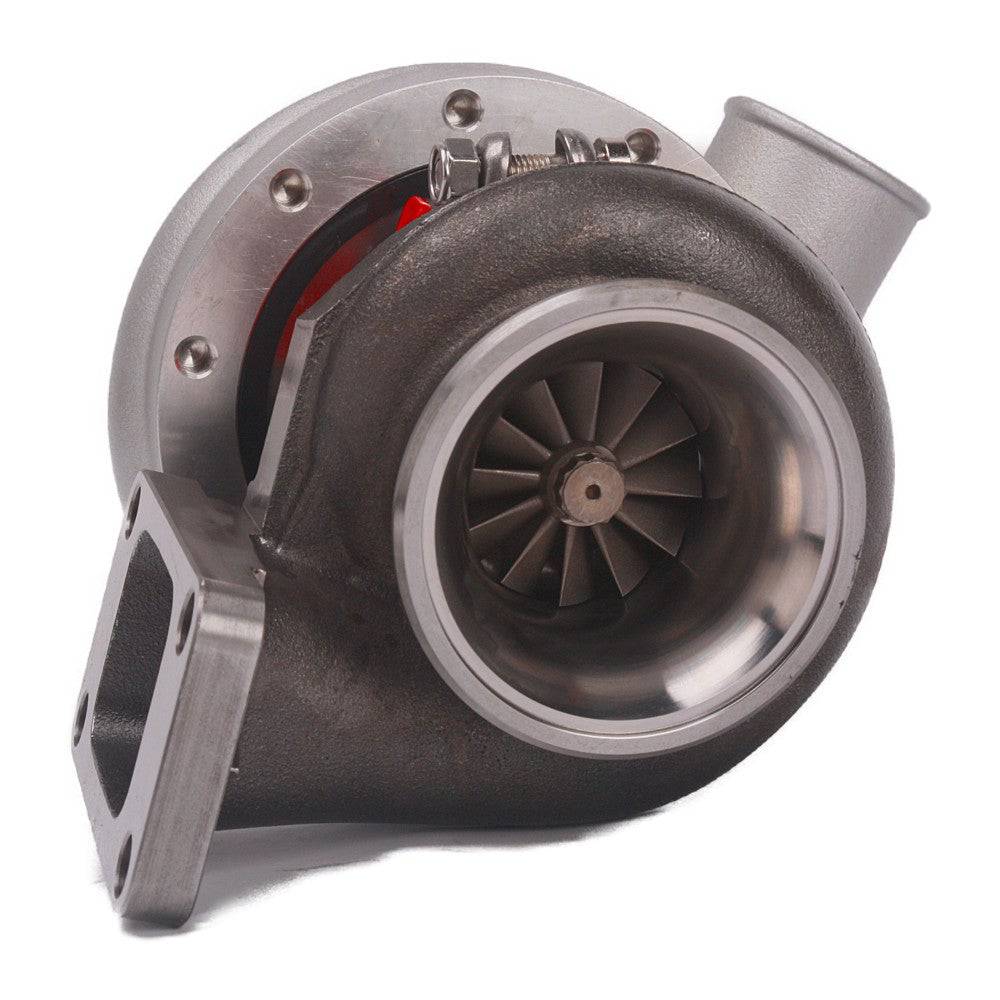

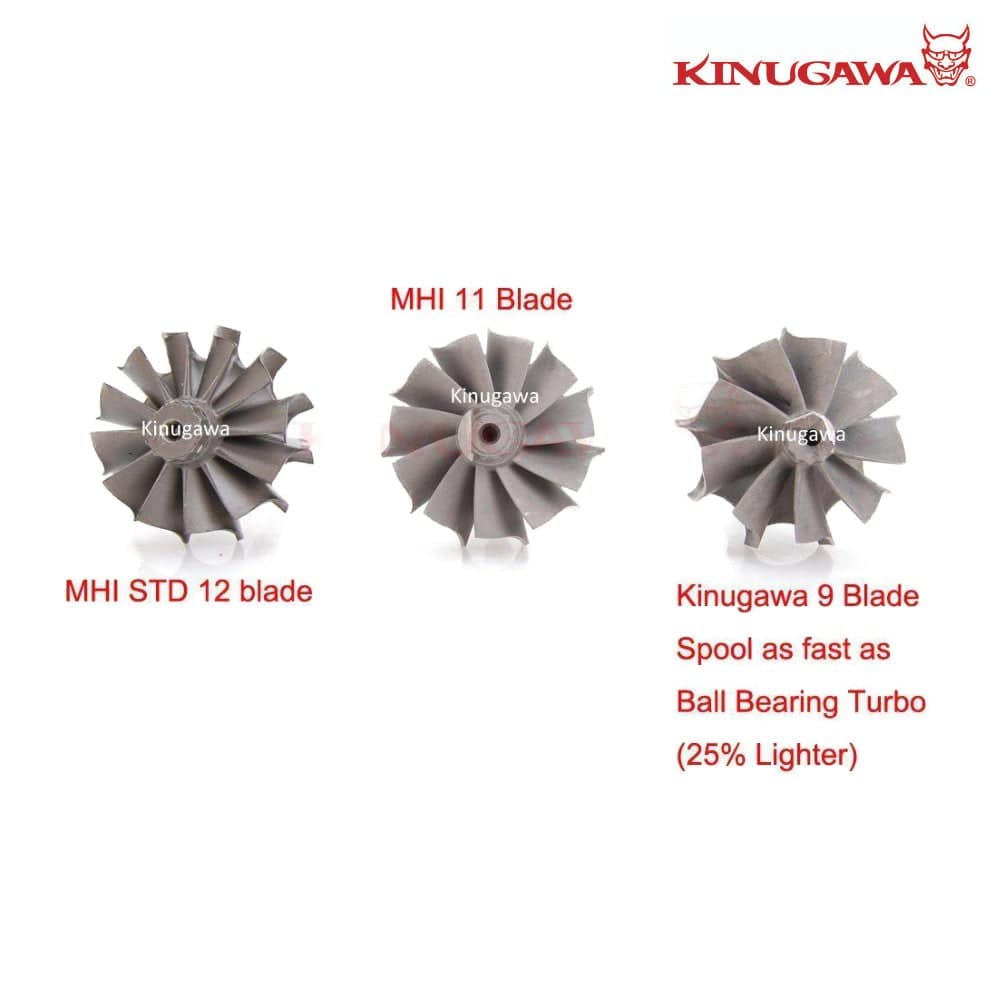

- Turbine wheel: 56.0 / 49.2 mm (9 Blade STS)
(Click here to learn more about STS technology.↗)
(Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING
- Inlet: 3.0"
- Outlet: 2.0"

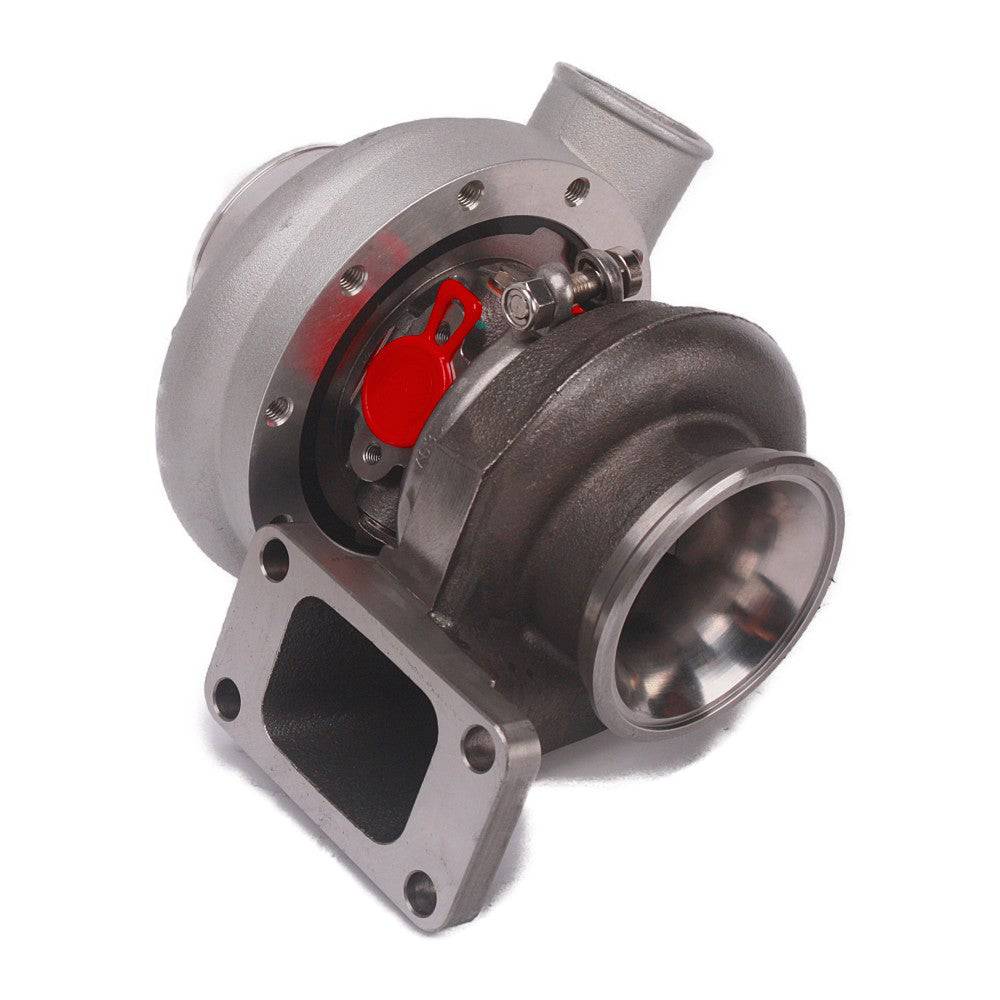

TURBINE HOUSING
- Nozzle Area: 10cm^2 / AR .73
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: External gated
- Nozzle Area: 10cm^2 / AR .73
- Inlet: T3
- Outlet: 3" V-band
- Wastegate: External gated
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
COOLING TYPE
- Oil and Water-Cooled

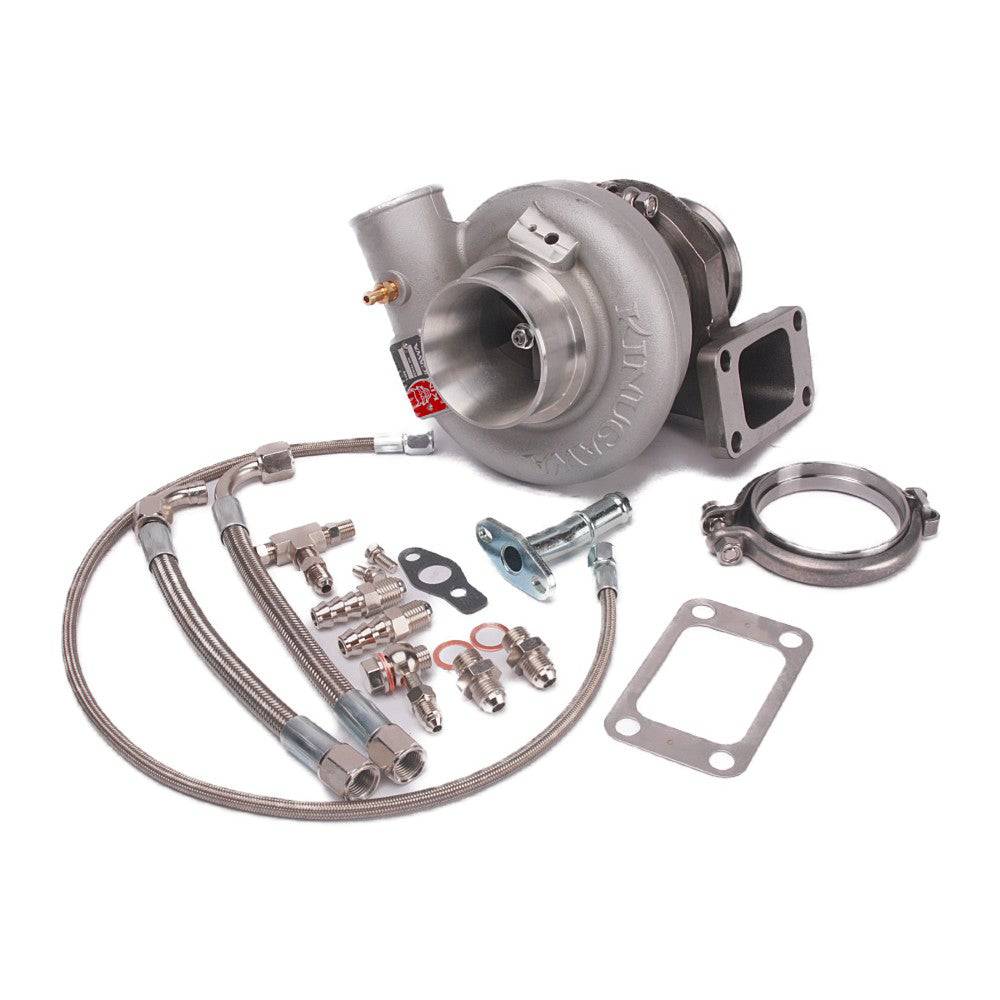

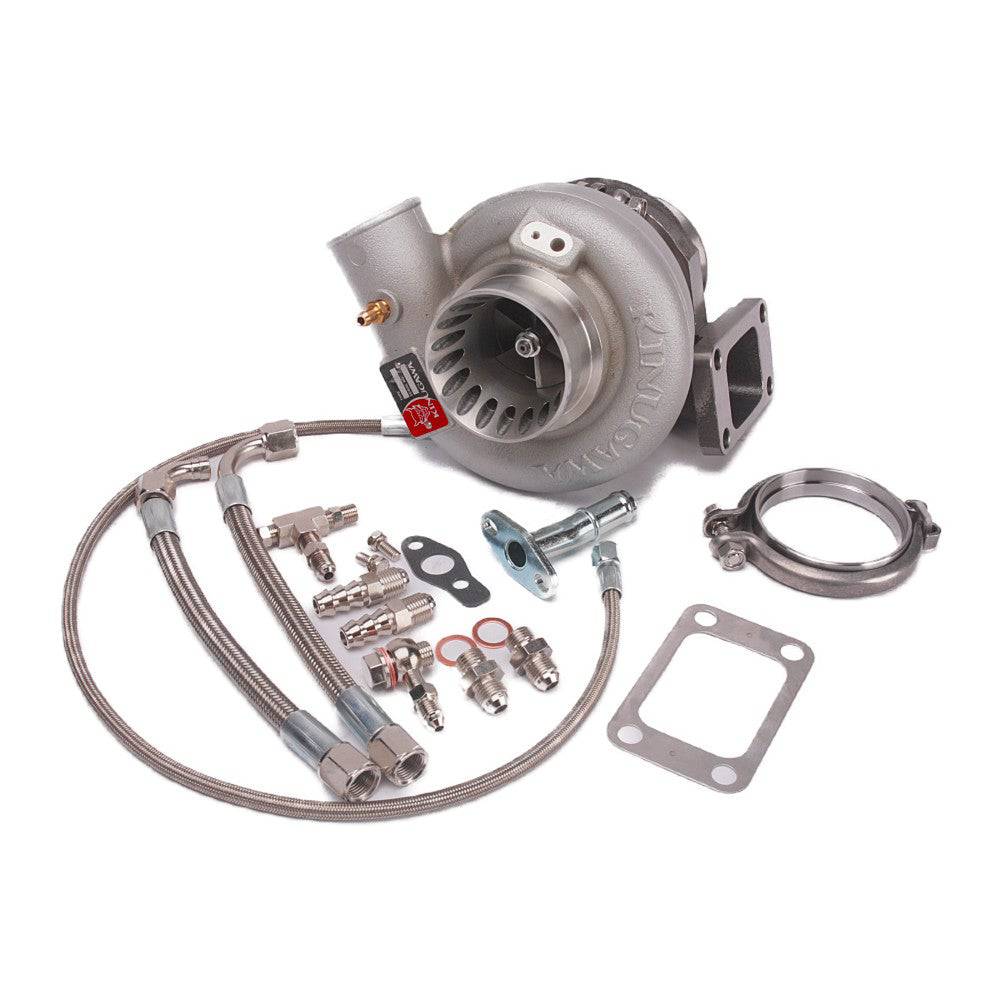

KIT INCLUDES
- 1 x turbocharger
- 1 x oil feed line kit
- 1 x water coolant feed and return line kit
- 1 x turbine inlet gasket
- 1 x turbine outlet v-band adapter
- 1 x oil return pipe kit
- 1 x turbine v-clamp
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- Oil and Water-Cooled
KIT INCLUDES
- 1 x turbocharger
- 1 x oil feed line kit
- 1 x water coolant feed and return line kit
- 1 x turbine inlet gasket
- 1 x turbine outlet v-band adapter
- 1 x oil return pipe kit
- 1 x turbine v-clamp
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
