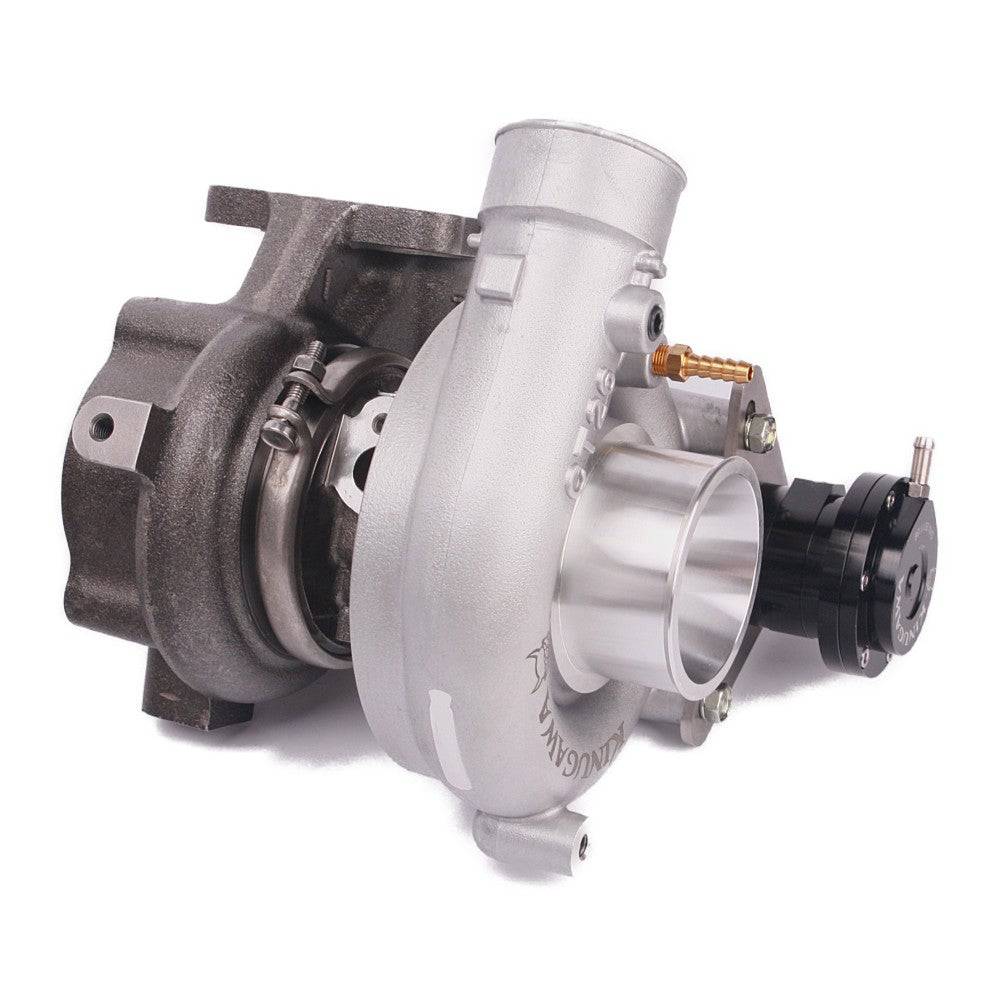

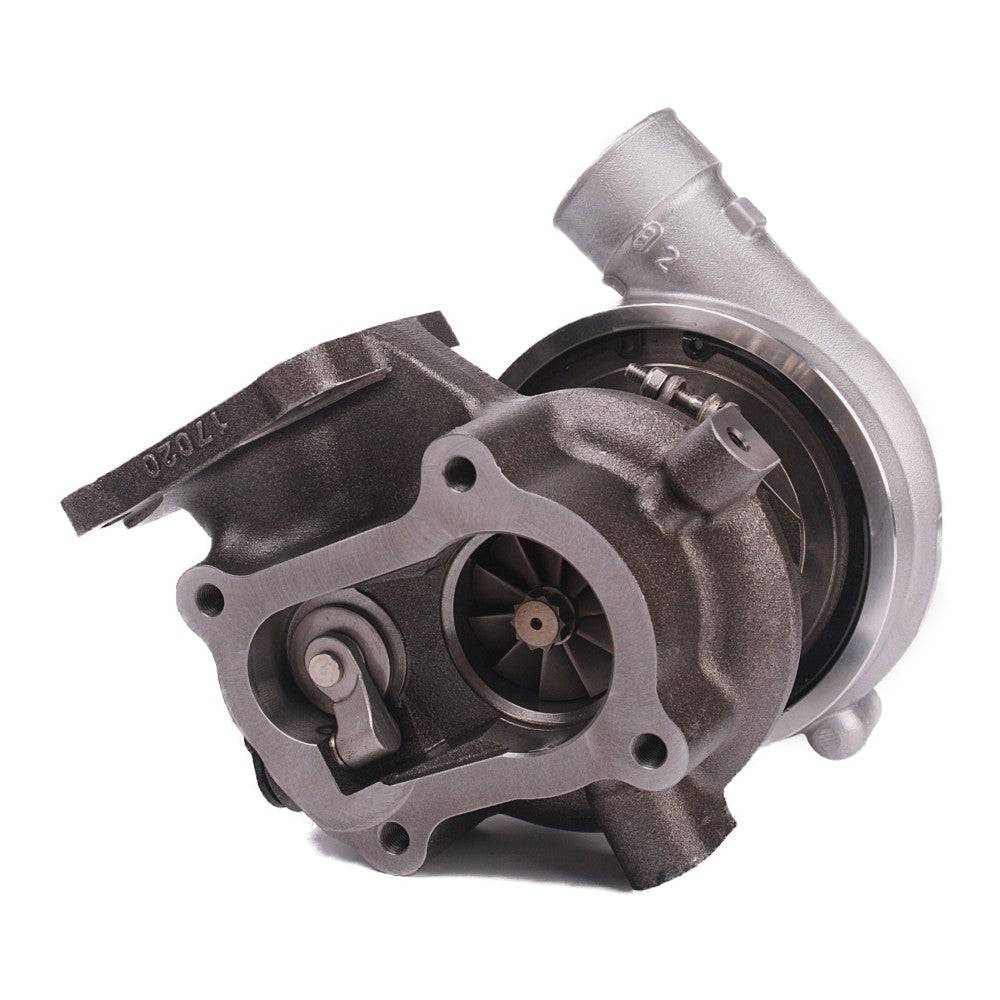

Kinugawa Turbo CT26 Garrett 60-1 7cm for Toyota Land Cruiser 1HZ 4.2L 80 Series Bolt-on
Application
- 75/78/79/80/100/105 series
Wheels spec
- Compressor wheel: 60 / 76 mm (Garrett 60-1 Wheel 7+7 Cast Type) (Inducer 45.9mm / Exducer 64.89mm is CT15B Stock Size)

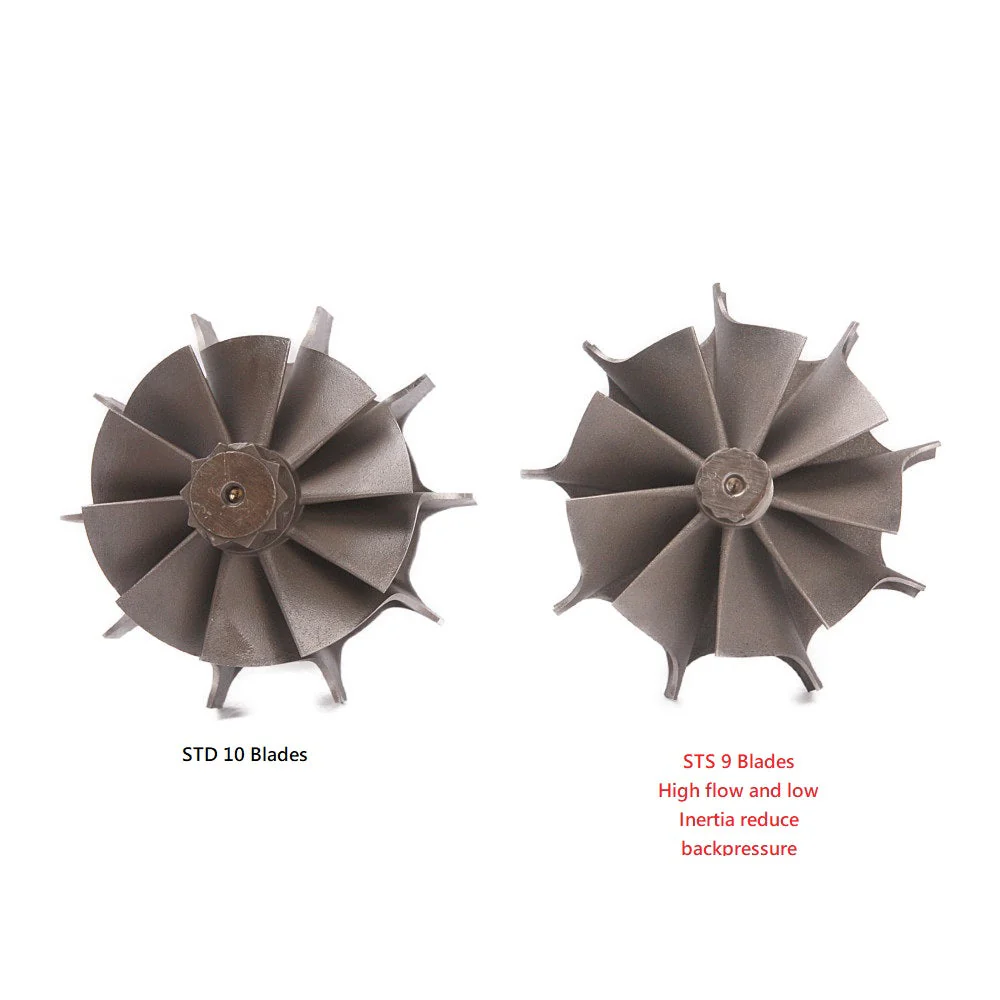

- Turbine Wheel: 51.9 / 67.9 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- CT26 bolt-on stock type
Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit.
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
KIT INCLUDES

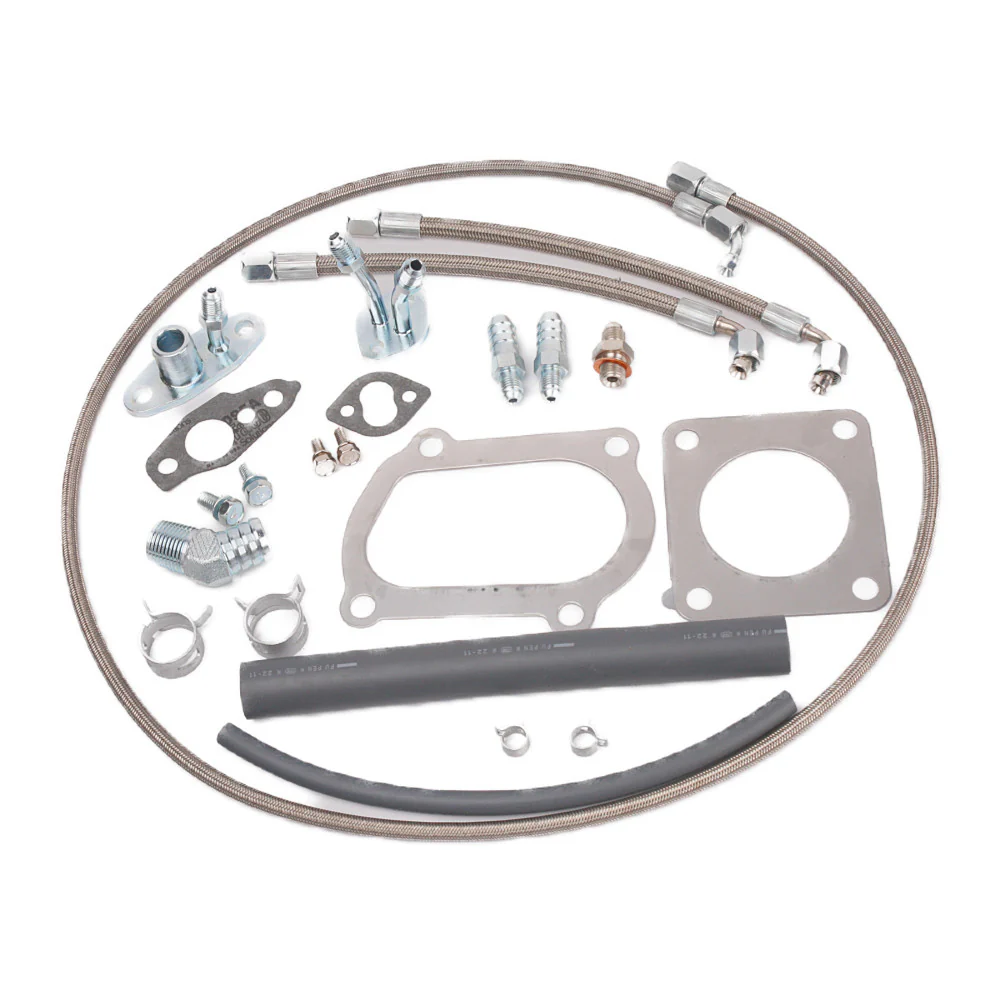

- 1 x Tubo oil and water install kit.
- 1 x Turbocharger
- 1 x Kinugawa balance report with anti-counterfeit tag↗
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
Select Compressor Wheel
Select Turbine Wheel
From $346.15
Original: $989.00
-65%Kinugawa Turbo CT26 Garrett 60-1 7cm for Toyota Land Cruiser 1HZ 4.2L 80 Series Bolt-on—
$989.00
$346.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- 75/78/79/80/100/105 series
Wheels spec
- Compressor wheel: 60 / 76 mm (Garrett 60-1 Wheel 7+7 Cast Type) (Inducer 45.9mm / Exducer 64.89mm is CT15B Stock Size)
- Turbine Wheel: 51.9 / 67.9 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- CT26 bolt-on stock type
Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit.
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
KIT INCLUDES
- 1 x Tubo oil and water install kit.
- 1 x Turbocharger
- 1 x Kinugawa balance report with anti-counterfeit tag↗
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
