Kinugawa Turbo CT26-GT3071R 7cm for Toyota Land Cruiser 1HZ 4.2L 80 Series Bolt-on
Application
- 75/78/79/80/100/105 series
Wheels spec
- Compressor wheel: (Inducer 45.9mm / Exducer 64.89mm is CT15B Stock Size)
Option 1. 53.11 / 71.0 mm (Billet GTX3071R / 11+0 Blades w/ extend tip: 74.07 mm) for top-end speed
Option 2. 53.11/ 71.0 mm (Billet GT3071R / 6+6 Blades w/ extend tip: 74.07 mm) for low-end torque

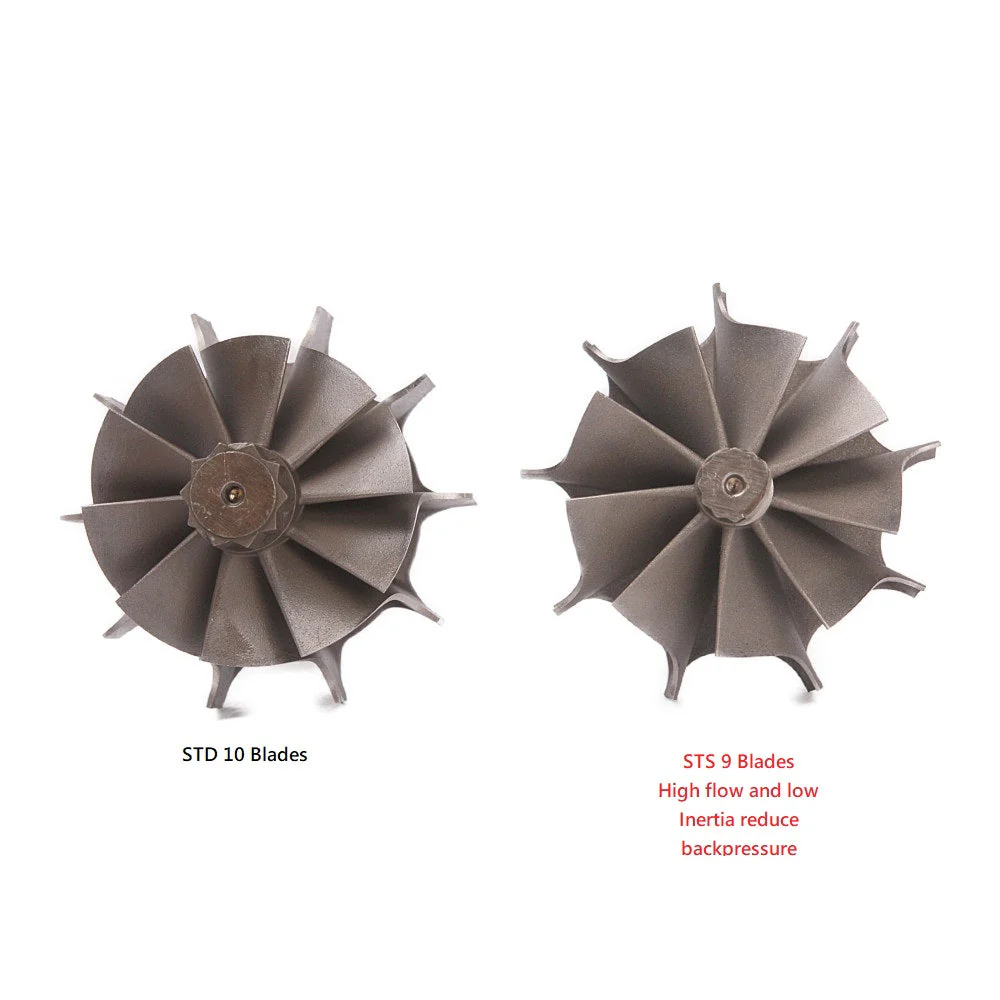

- Turbine Wheel: 51.9 / 67.9 mm (Stock Turbine Wheel) (2 types offered: STD, STS. Click here to learn more about STS technology.)

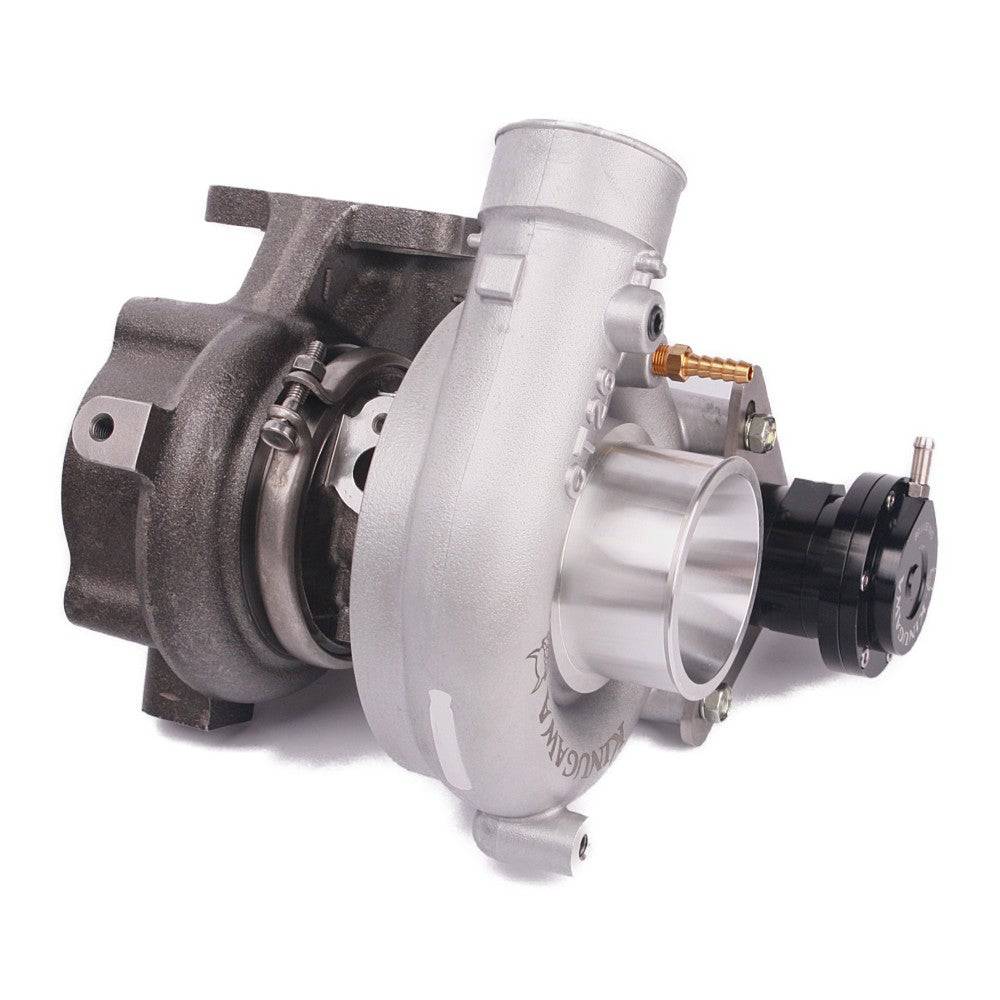

Compressor Housing
- CT26 bolt-on stock type

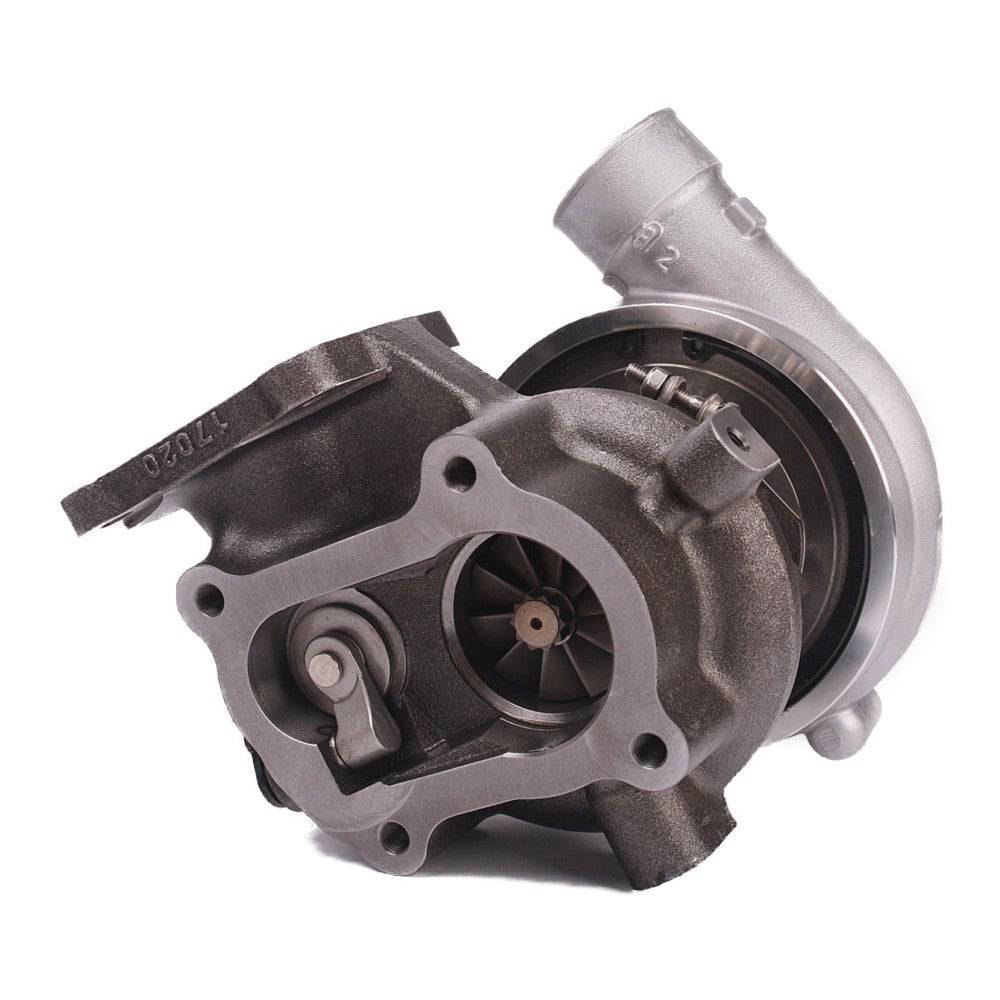

Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit.
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
KIT INCLUDES

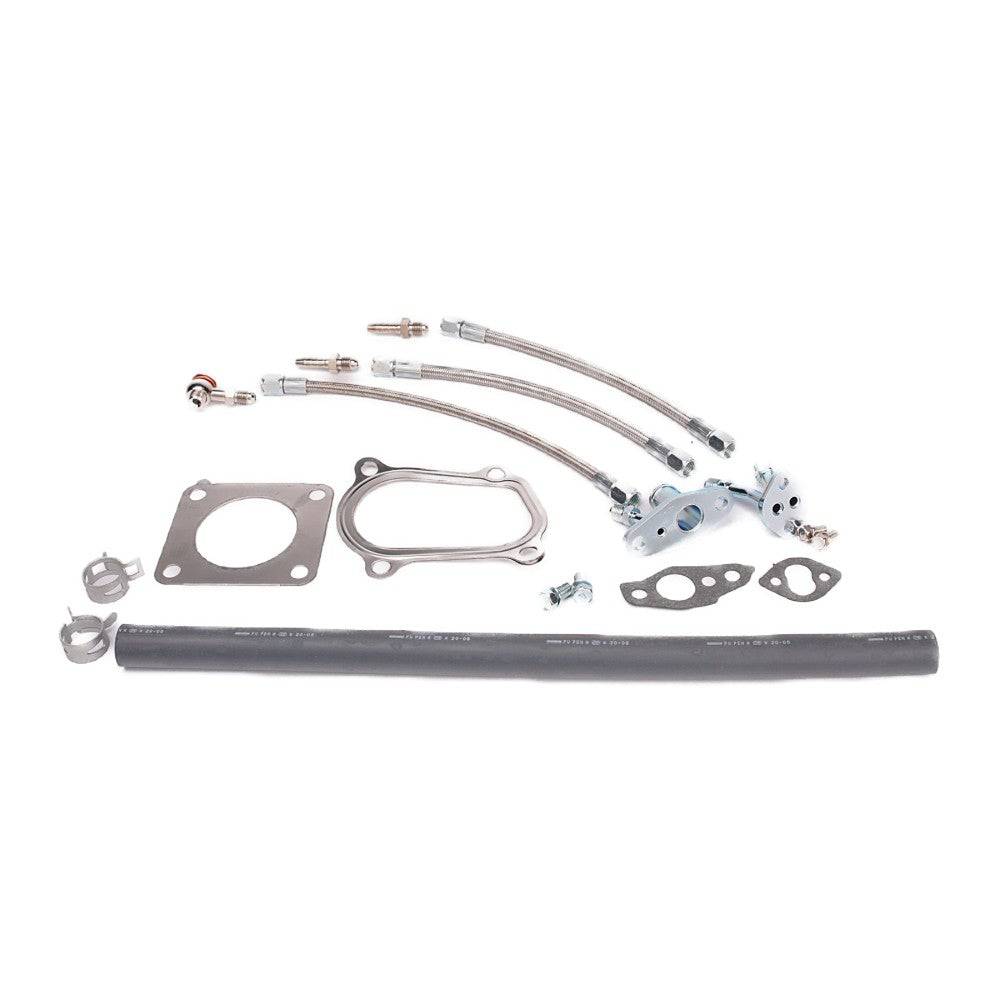

- 1 x Tubo oil and water install kit.
- 1 x Turbocharger
- 1 x Kinugawa balance report with anti-counterfeit tag
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
