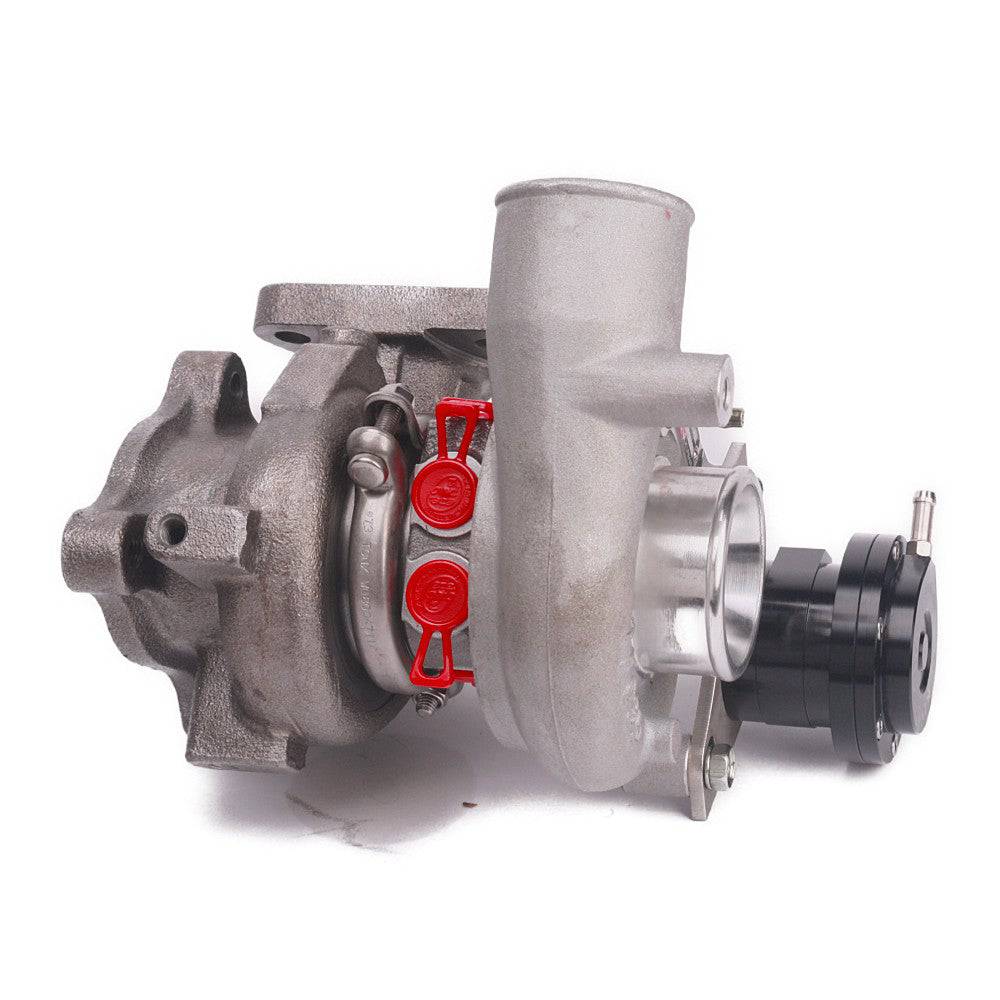

Brand new bolt-on turbo upgrade for the Mitsubishi Pajero III 3.2 Di-D (2000–03) with the 4M41 engine. The Kinugawa TF035HL-15T delivers +30% torque and +20% horsepower over the stock TF035HL-14GK. Billet compressor wheel, 360° thrust bearing, oil & water cooled — direct bolt-on, no modifications required.

Application

• Mitsubishi Pajero III 3.2 Di-D 2000–03 — 4M41 diesel, 118/121 kW, 165 HP, 3.2L
• Replaces OEM: TF035HL-14GK, 49135-03410, 49135-03411, ME191474, ME203949, 2246666

CHRA Size: TF035HL-15T

Wheels Spec

• Compressor wheel: 42/56 mm — upgraded from stock 39.58/51 mm — (6+6 blades for low-end torque | 11+0 blades for top-end speed)
• Turbine wheel: 43/37.7 mm — 2 types: STD, STS. Click here to learn more about STS technology.

Compressor Housing: Stock type

Turbine Housing

• Nozzle area: 4 cm² | Inlet: 3-bolt | Outlet: 4-bolt | Wastegate: Internal gated

Bearing Type: Journal Bearing with 360-degree performance thrust bearing kit

Cooling: Oil and water cooling

Actuator Pressure

• Default: 1.0 bar / 14.7 PSI
• Available on request: 0.3 / 0.5 / 0.8 / 1.2 / 1.5 / 1.7 / 2.0 bar — add a note at checkout or contact us

Condition: Brand New

The Set Includes

• 1 x Turbocharger
• 1 x Turbine inlet and outlet gasket set
• 1 x Banjo bolt kit for turbo oil feed side
• 2 x Banjo bolt kit for turbo water coolant side
• 1 x Balance Report with Anti-Counterfeit Tag

Provider: Kinugawa Turbo Systems

Warranty

Kinugawa offers a TROUBLE-FREE WARRANTY for 1 year from the purchase date. If your turbocharger fails or has any issue, return it for a free overhaul, recondition, or replacement — no questions asked.
