Brand new bolt-on turbo upgrade for the Mitsubishi 4M41T 3.2L DiD — 2003–11 fitment. The Kinugawa TF035HL-15T delivers +30% torque over the stock TF035HL-14GK2, with no reduction in boost response. Billet compressor wheel, 360° thrust bearing, oil & water cooled — direct bolt-on, no modifications required.

Application

• Mitsubishi Pajero III 3.2 DI-D 2003–06 — 4M41 diesel
• Mitsubishi Triton ML / L200 / Strada 2005–11 — 4M41 3.2L diesel
• Mitsubishi Pajero (Philippine Domestic Market) 2006–present
• Mitsubishi Pajero Sport / Montero Sport 2008–11
• Mitsubishi 4M42T TF035-3 Pajero Canter Turbo
• Replaces OEM: TF035HL-14GK2, 49135-02910, 49135-02911, 49135-02912, 49135-02920, 49135-02921
• Note: Not suitable for 4M41 Common Rail engines

CHRA Size: TF035HL-15T

Wheels Spec

• Compressor wheel: 42/56 mm (max boost to 5 bar) — upgraded from stock 39.58/51 mm — (6+6 blades for low-end torque | 11+0 blades for top-end speed)
• Turbine wheel: 43/37.7 mm — 2 types: STD, STS. Click here to learn more about STS technology.

Compressor Housing: Stock type

Turbine Housing

• Nozzle area: 4 cm² | Inlet: 3-bolt | Outlet: 4-bolt | Wastegate: Internal gated

Bearing Type: Journal Bearing with 360-degree performance thrust bearing kit

Cooling: Oil and water cooling

Actuator Pressure

• Default: 1.0 bar / 14.7 PSI
• Available on request: 0.3 / 0.5 / 0.8 / 1.2 / 1.5 / 1.7 / 2.0 bar — add a note at checkout or contact us

Condition: Brand New

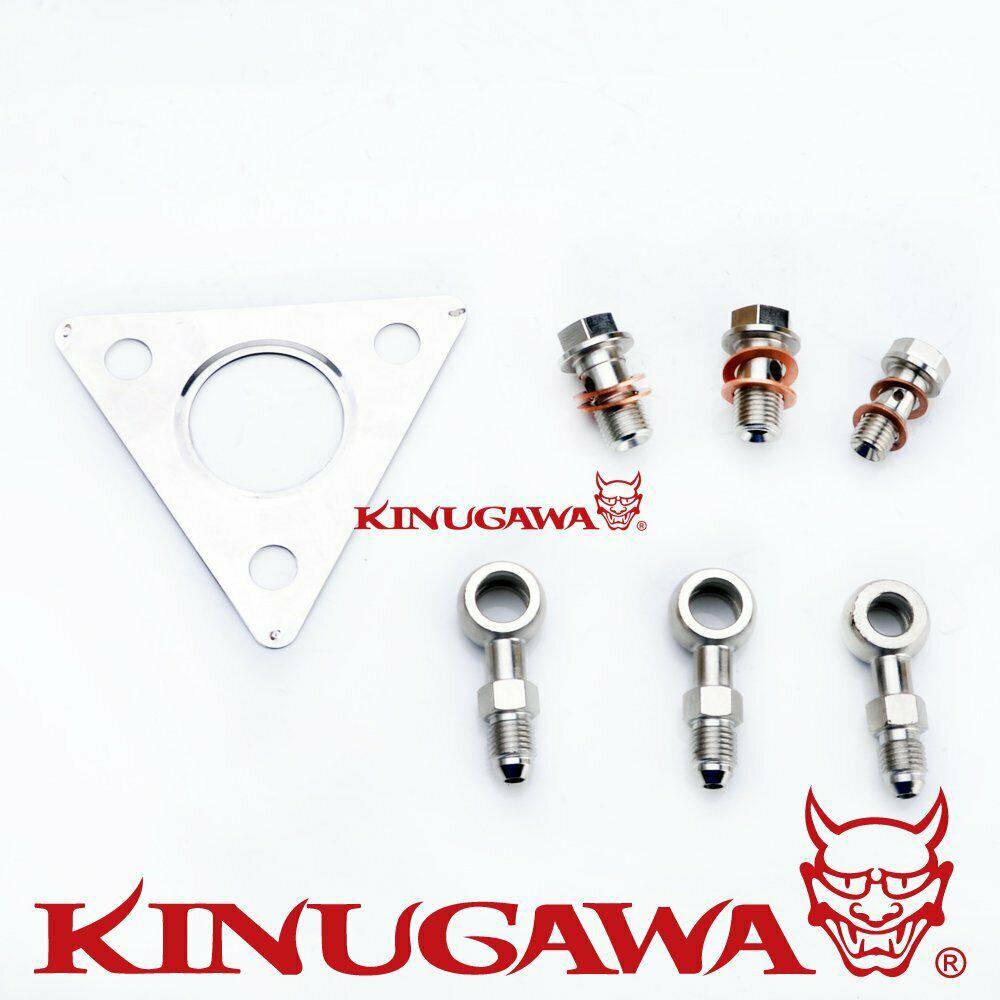

The Set Includes

• 1 x Turbocharger
• 1 x Turbine inlet gasket
• 1 x Oil supply bolt for turbo side
• 2 x Water coolant bolt for turbo side
• 1 x Balance Report with Anti-Counterfeit Tag

Provider: Kinugawa Turbo Systems

Warranty

Kinugawa offers a TROUBLE-FREE WARRANTY for 1 year from the purchase date. If your turbocharger fails or has any issue, return it for a free overhaul, recondition, or replacement — no questions asked.
