Kinugawa Turbo Anti-Surge TD04HL-20T for Mitsubishi 6G72T 3000GT VR4 Dodge Stealth
Anti-Surge TD04HL-20T Twin Turbo System for 6G72T Engines
Precision-engineered turbocharger upgrade for Mitsubishi 3000GT VR-4 and Dodge Stealth R/T platforms. Direct bolt-on fitment with anti-surge compressor technology, billet wheel options, and adjustable boost control for high-output builds targeting 600-800HP.
Real-World Performance Data
Documented Results: 494 HP @ 5,971 RPM with 517 lb-ft torque at 14.7 PSI boost (measured 15.5 PSI actual), running 19-20° timing advance. Maximum stated power calculated from compressor map choke flow represents flywheel potential; actual results depend on supporting modifications and calibration.
Engineering Specifications
Core Assembly: TD04HL-20T with journal bearing system, dual oil and water cooling
Compressor Wheel: 47.0 / 58.0mm billet construction
• 6+6 blade design optimized for low-end torque response
• 11+0 blade design engineered for top-end airflow
Turbine Wheel: 52.0 / 45.6mm available in three configurations (STD, STS, STS 55) — explore STS technology↗
Compressor Housing: Anti-surge design with universal inlet/outlet configuration
• Inlet: 2.4" (60.0mm) | Outlet: 2" (50.8mm)
• Custom piping required for inlet and outlet connections
Turbine Housing: Stock-compatible bolt-on design with internal wastegate
Wastegate Actuator: Adjustable billet construction, 1.0 bar (14.7 PSI) default
• Available spring rates: 0.3, 0.5, 0.8, 1.2, 1.5, 1.7, 2.0 bar (specify at Options)
Platform Compatibility
Vehicles: Mitsubishi 3000GT VR-4 (GTO) | Dodge Stealth R/T Turbo
Engine Code: 6G72T 3.0L twin-turbo V6
Fitment: Direct bolt-on to factory exhaust manifolds and dump pipes
Installation Note: Universal compressor housing requires custom inlet/outlet piping fabrication
Complete System Includes

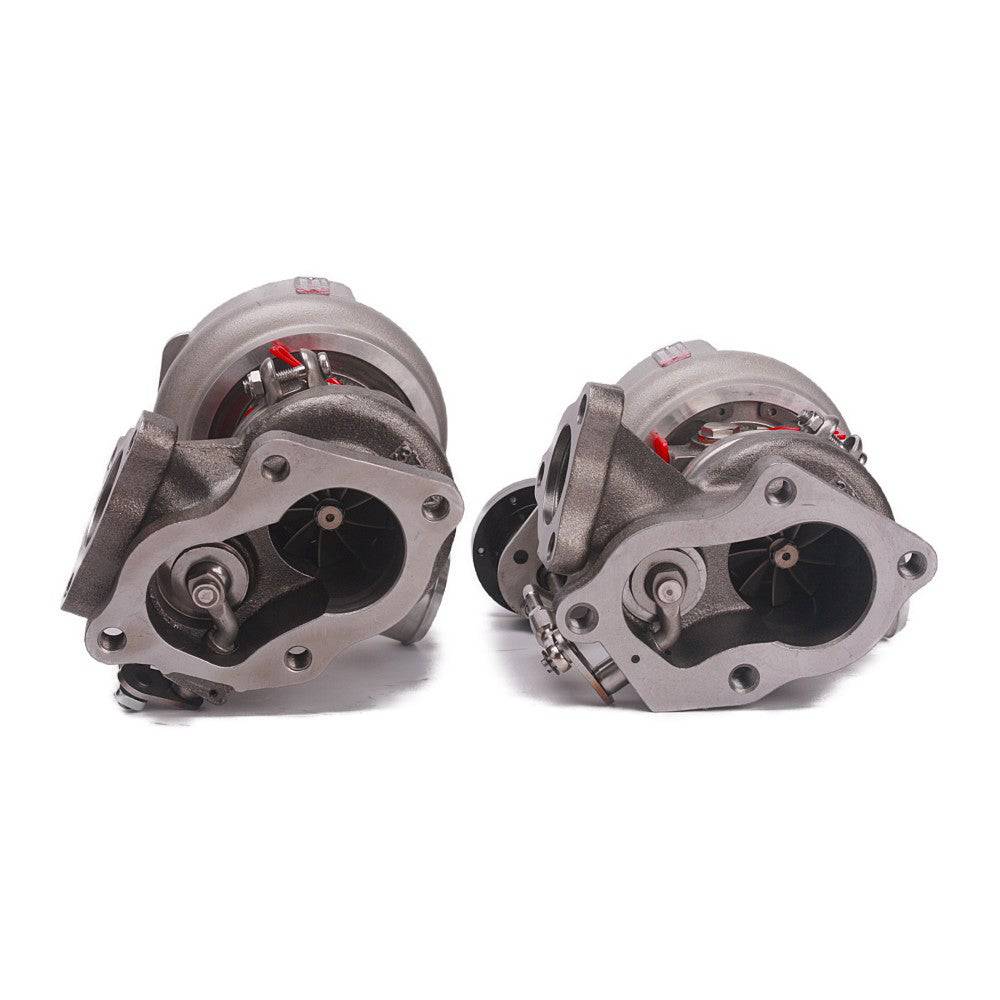

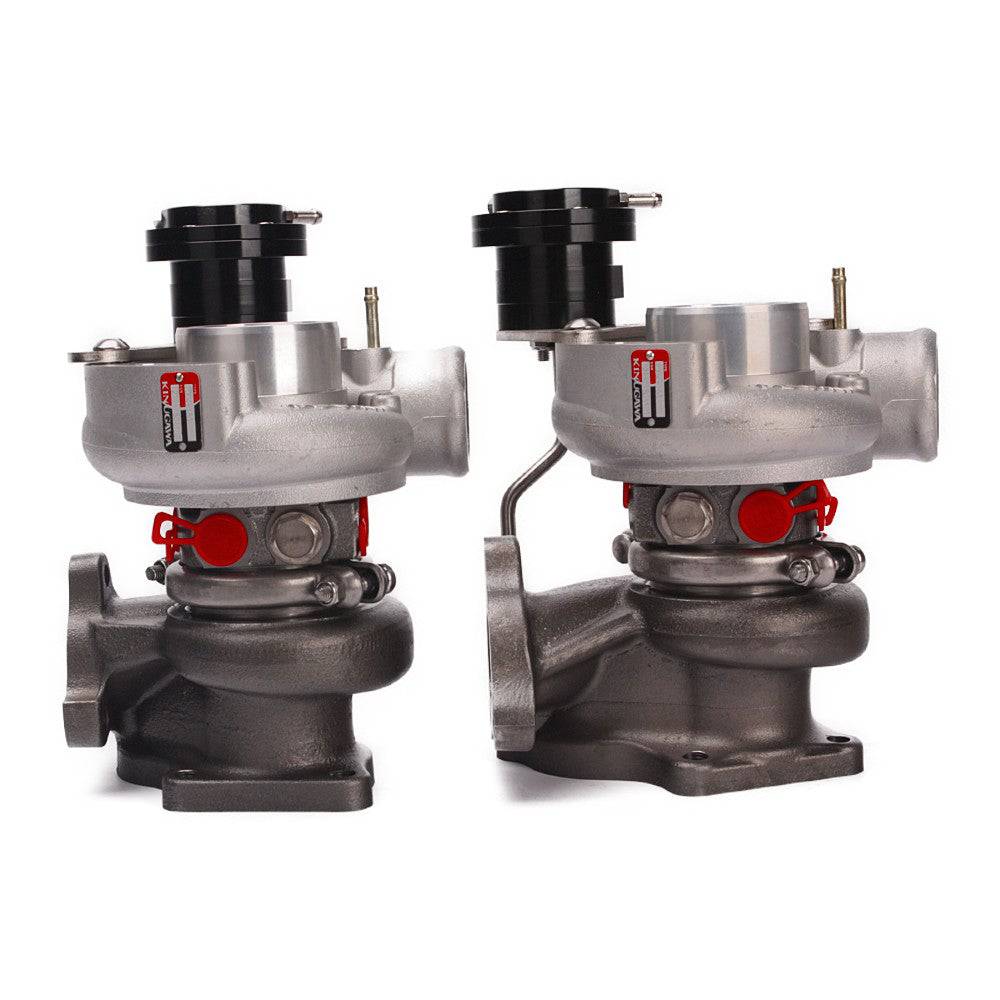

- Twin TD04HL-20T turbochargers (front and rear assemblies)

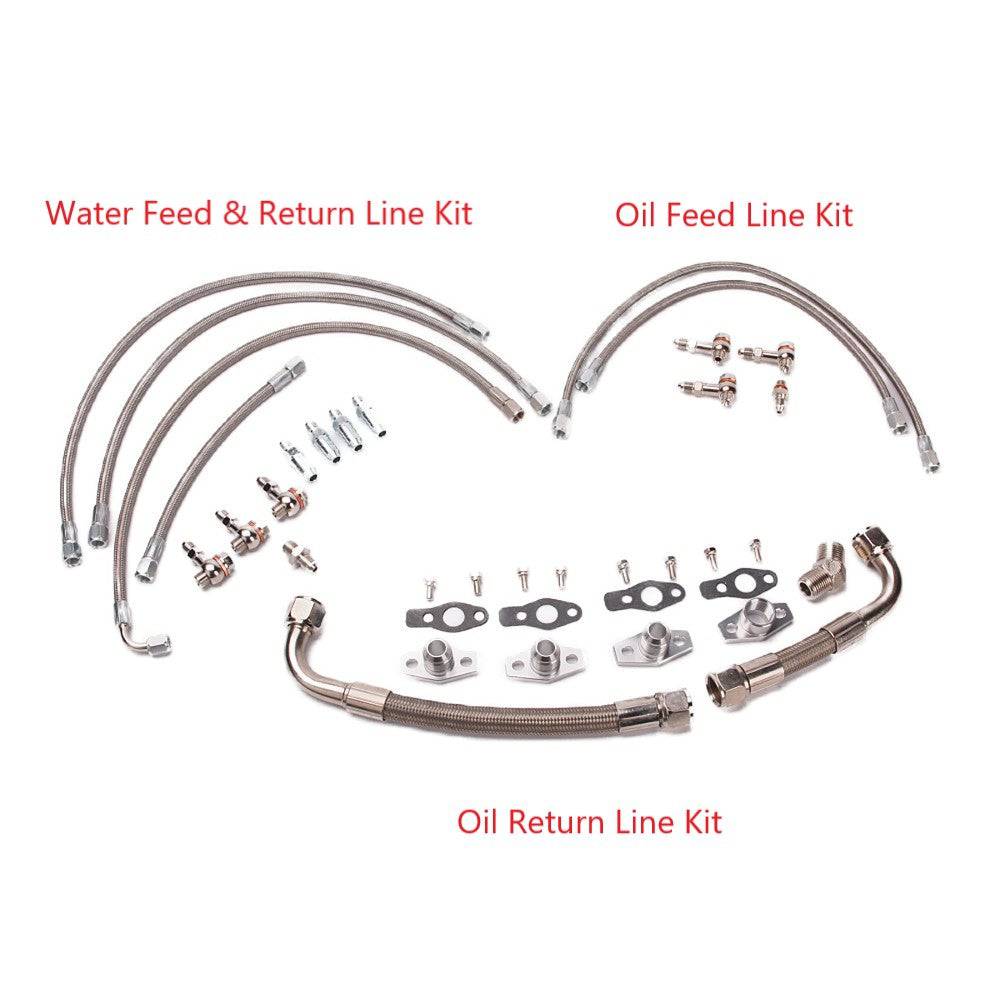

- Water feed and return line installation kit
- Oil feed line installation kit
- Oil return line installation kit
- Dual balance reports with anti-counterfeit verification tags↗
Installation Reference
Quality Assurance & Coverage
Condition: Factory-new assemblies
Balancing: Complete CHRA balanced using SCHENCK MBRS 110 precision equipment (Germany)
Manufacturing Origin: Taiwan | HS Code: 841199
Warranty Protection: 1-year Kinugawa Trouble-Free Warranty covering free overhaul, reconditioning, or replacement from original purchase date. Complete peace of mind regardless of failure cause.
