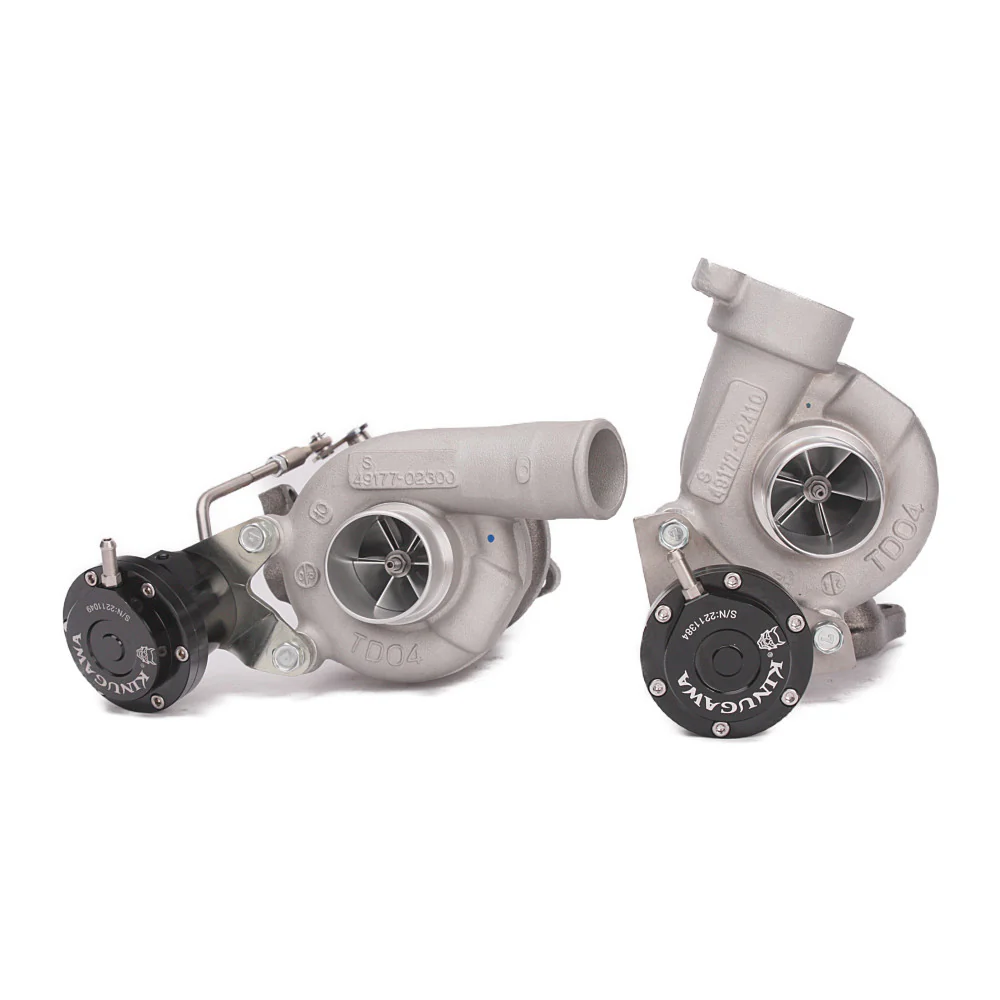

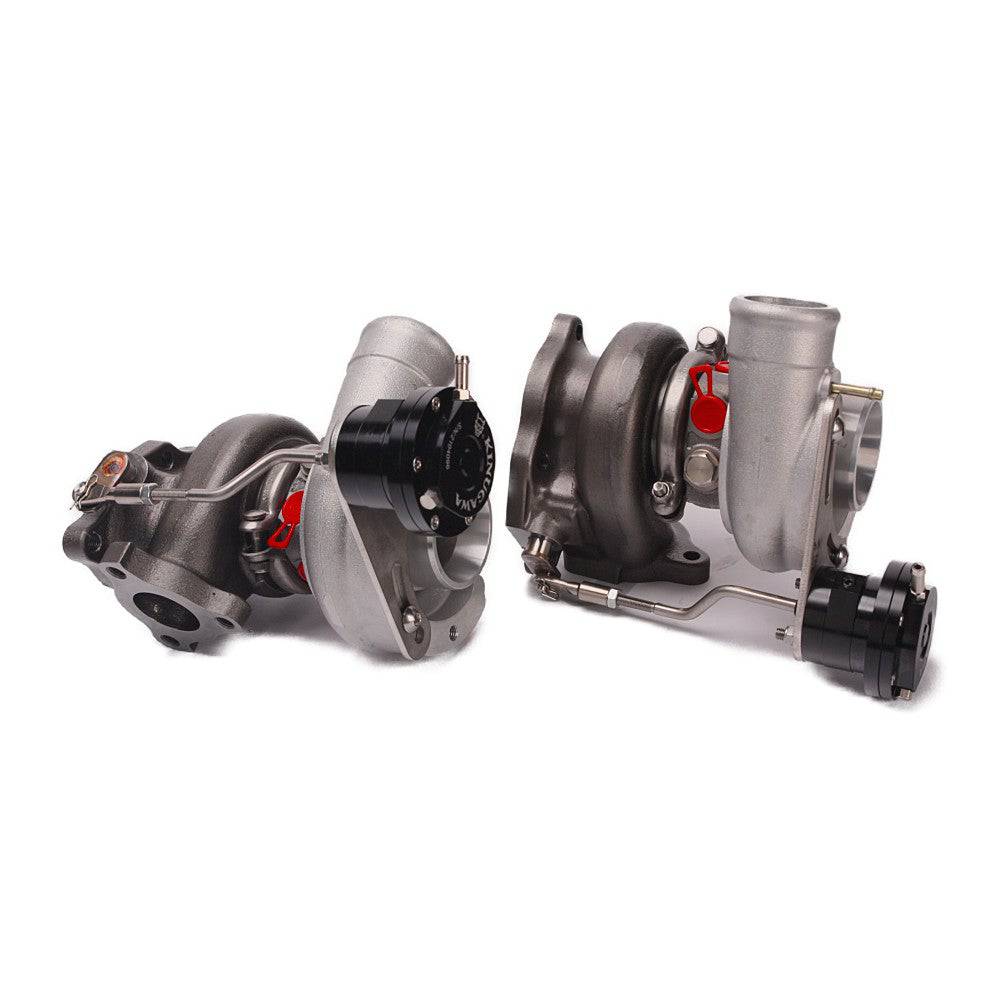

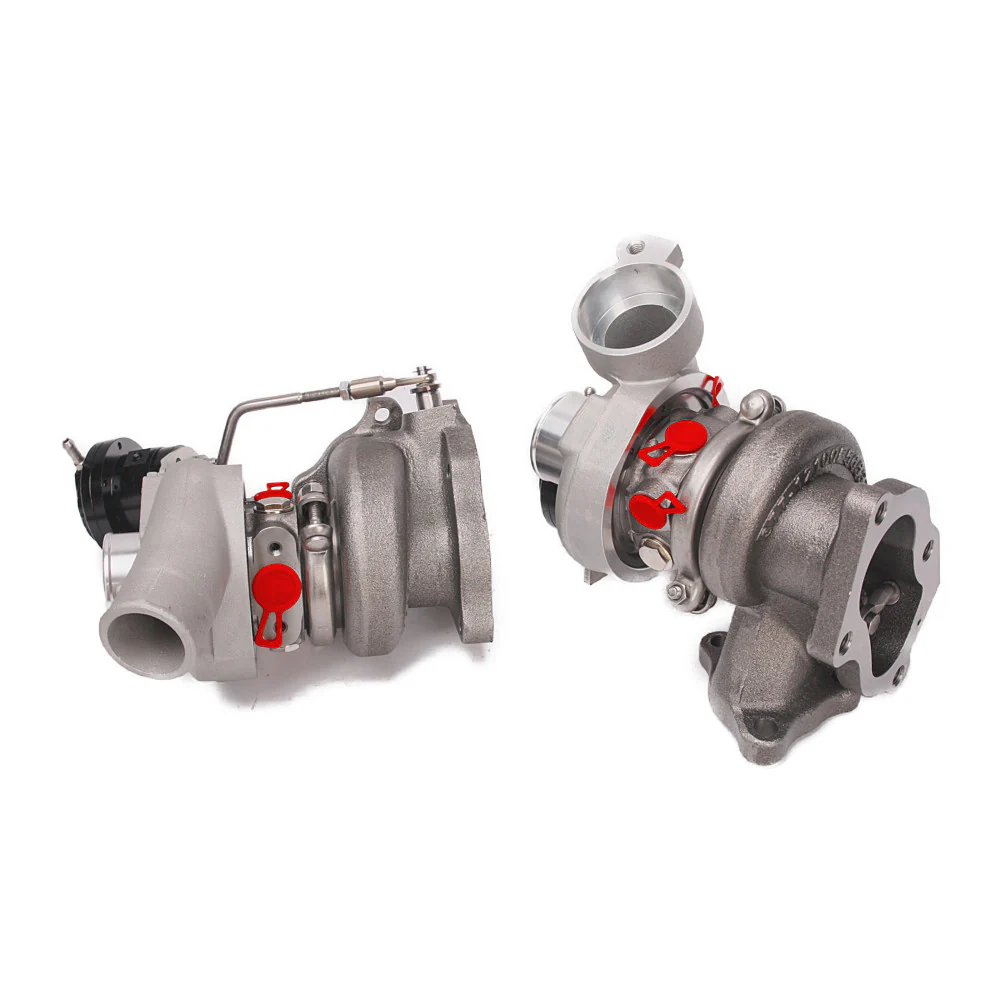

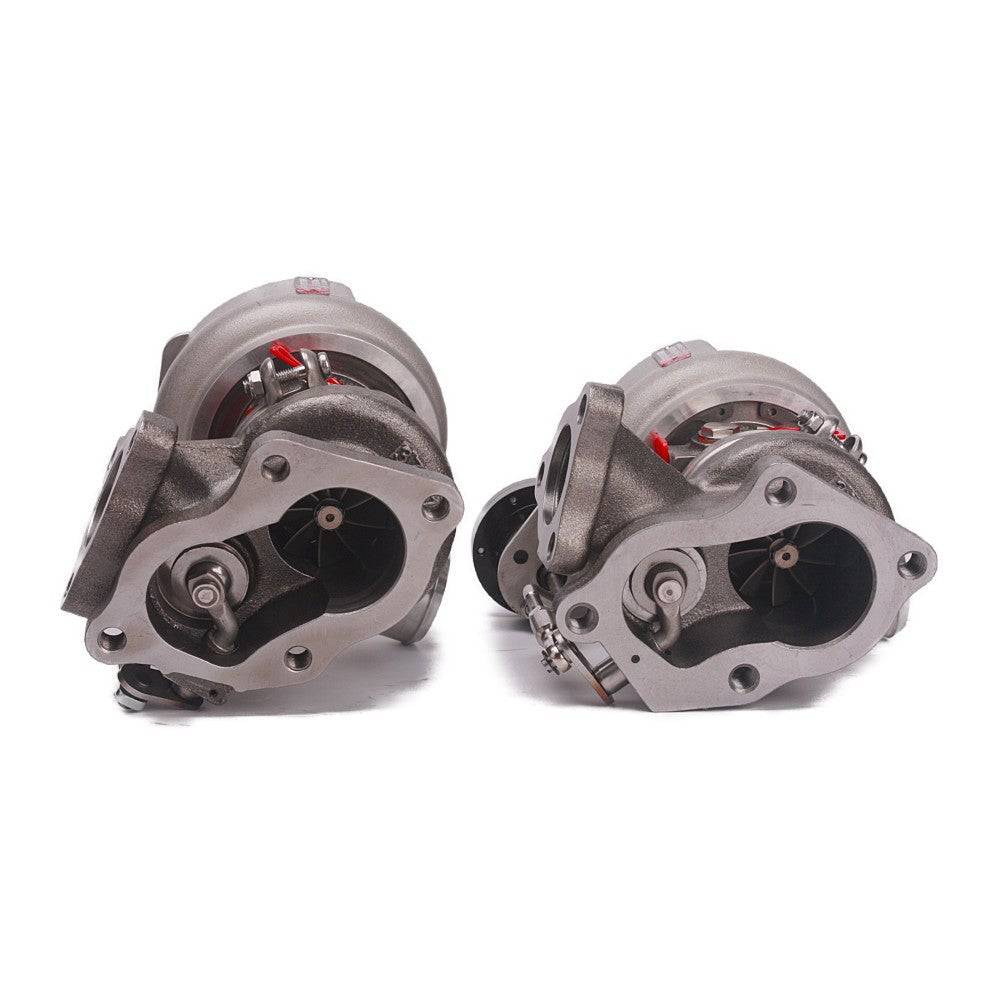

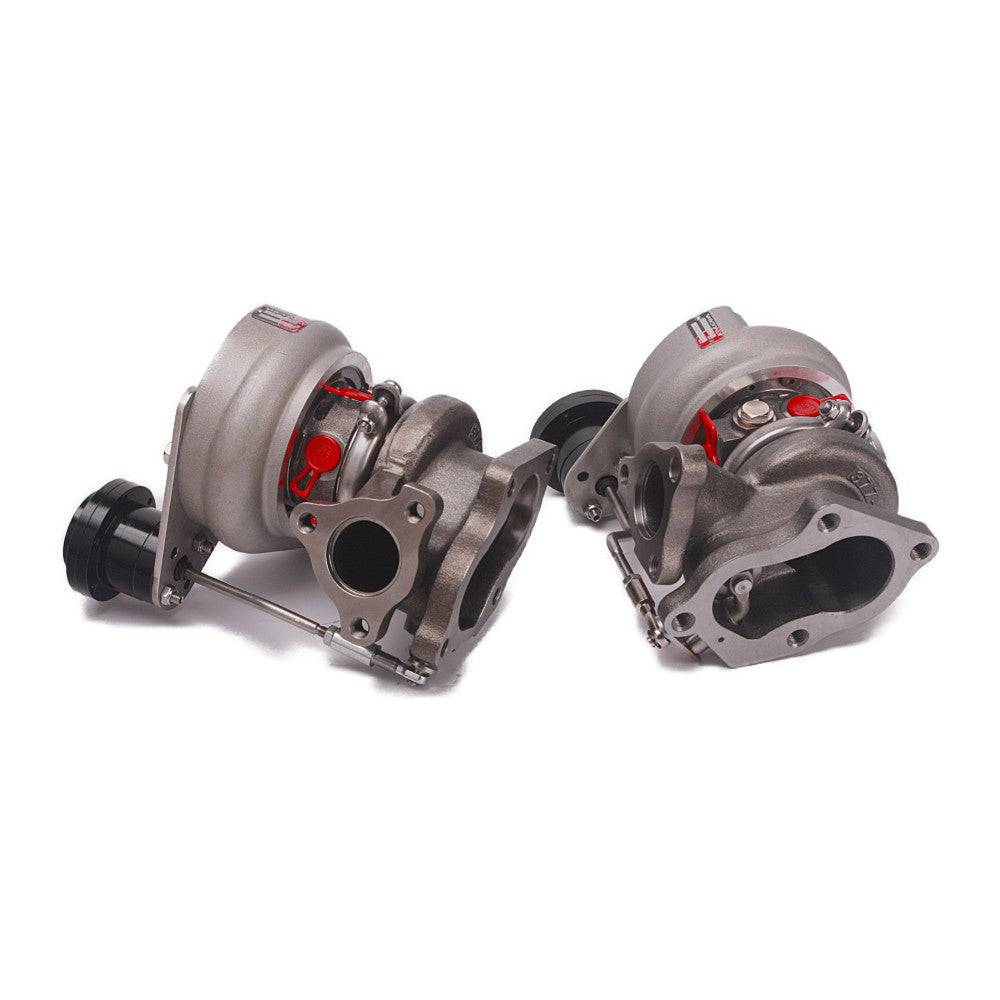

Kinugawa Turbo TD04-13T for Mitsubishi 6G72T 3000GT VR4 Dodge Stealth
DESCRIPTION
- Kinugawa Turbo Upgrade Mitsubishi 6G72T 3000GT VR4 / Dodge Stealth RT 3.0L twin turbo kit TD04-13T with adjustable billet actuator and universal compressor cover.
APPLICATION
- 6G72T twin turbo on Mitsubishi 3000GT or Dodge Stealth.
- Direct bolt-on stock exhaust manifold and dump pipe.
- It's a universal-type compressor housing, not the stock type, and the inlet and outlet pipe must be modified.
- Kinugawa Turbo Upgrade Mitsubishi 6G72T 3000GT VR4 / Dodge Stealth RT 3.0L twin turbo kit TD04-13T with adjustable billet actuator and universal compressor cover.
APPLICATION
- 6G72T twin turbo on Mitsubishi 3000GT or Dodge Stealth.
- Direct bolt-on stock exhaust manifold and dump pipe.
- It's a universal-type compressor housing, not the stock type, and the inlet and outlet pipe must be modified.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA SIZE
- TD04-13T
WHEEL SPEC

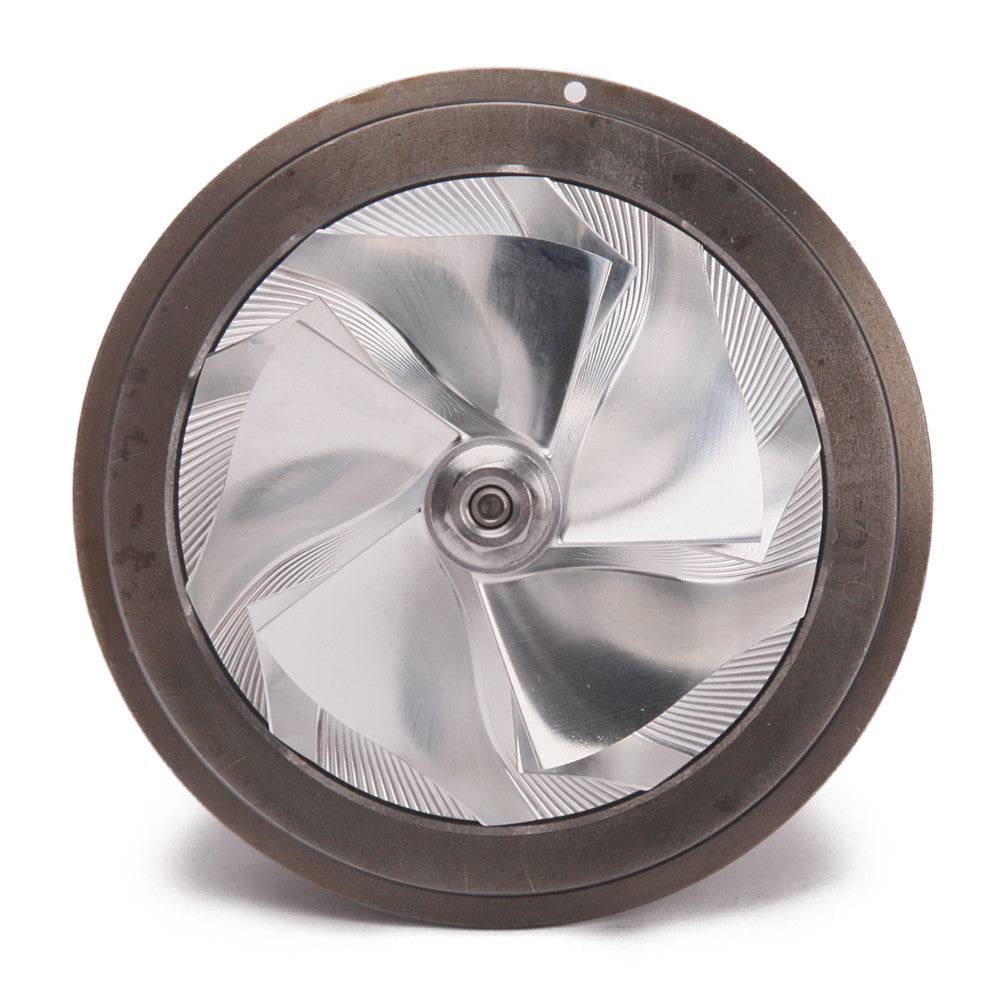

- Compressor Wheel: 40.7 / 56.0 mm
(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine Wheel: 47.1 / 40.0 mm
(2 types available: STD, STS. Click here to learn more about STS technology.↗)
COMPRESSOR HOUSING
- Universal type
- Inlet: 2.4" / 60.0mm
- Outlet: 2" / 50.8mm
- The inlet and outlet hose must be modified.
TURBINE HOUSING
- Bolt-on stock type
- Wastegate: internal gated
BEARING TYPE
- Journal bearing
COOLING TYPE
- Oil and water cooling system
ACTUATOR
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

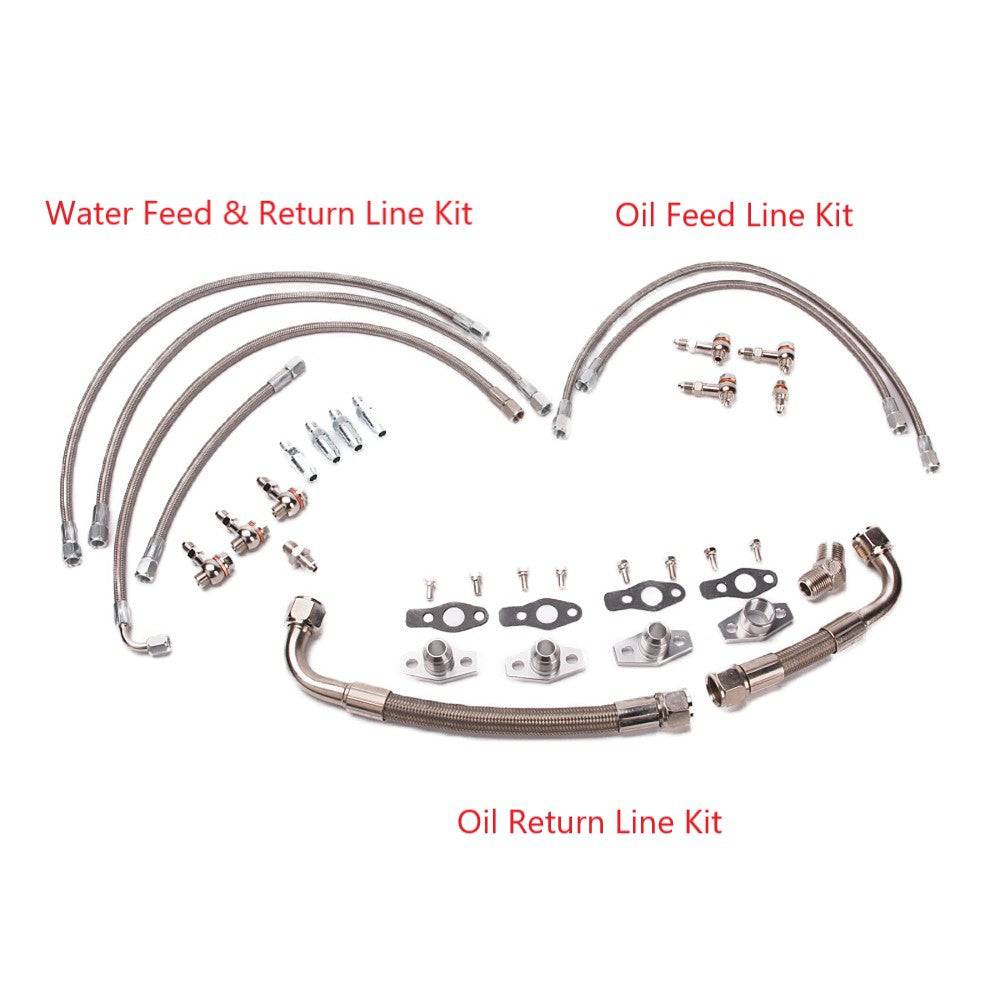

KIT INCLUDES
- 2 x Turbochargers (front and rear)
- 1 x Water feed and return line kit
- 1 x Oil feed line kit
- 1 x Oil return line kit
- 2 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
[Install kit instruction]
CHRA SIZE
- TD04-13T
WHEEL SPEC
- Compressor Wheel: 40.7 / 56.0 mm
(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine Wheel: 47.1 / 40.0 mm
(2 types available: STD, STS. Click here to learn more about STS technology.↗)
- Universal type
- Inlet: 2.4" / 60.0mm
- Outlet: 2" / 50.8mm
- The inlet and outlet hose must be modified.
TURBINE HOUSING
- Bolt-on stock type
- Wastegate: internal gated
BEARING TYPE
- Journal bearing
COOLING TYPE
- Oil and water cooling system
ACTUATOR
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
KIT INCLUDES
- 2 x Turbochargers (front and rear)
- 1 x Water feed and return line kit
- 1 x Oil feed line kit
- 1 x Oil return line kit
- 2 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.[Install kit instruction]
