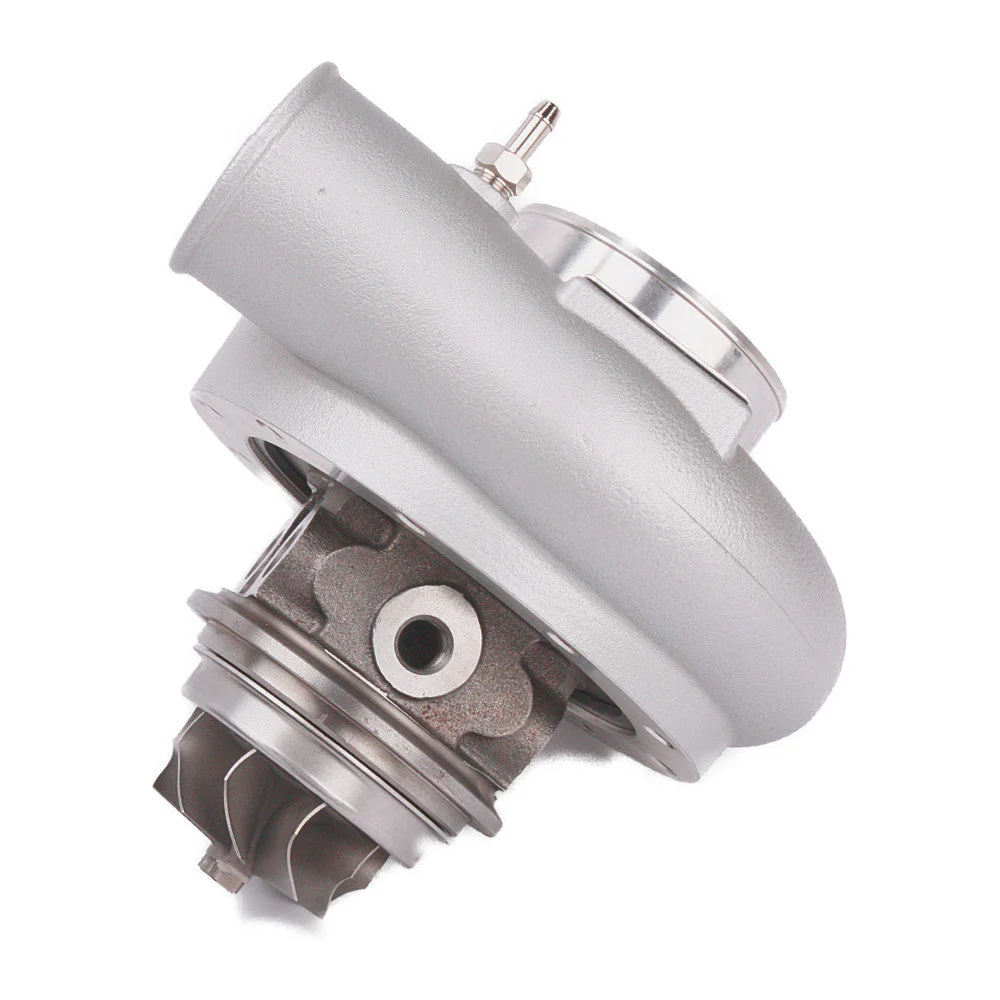

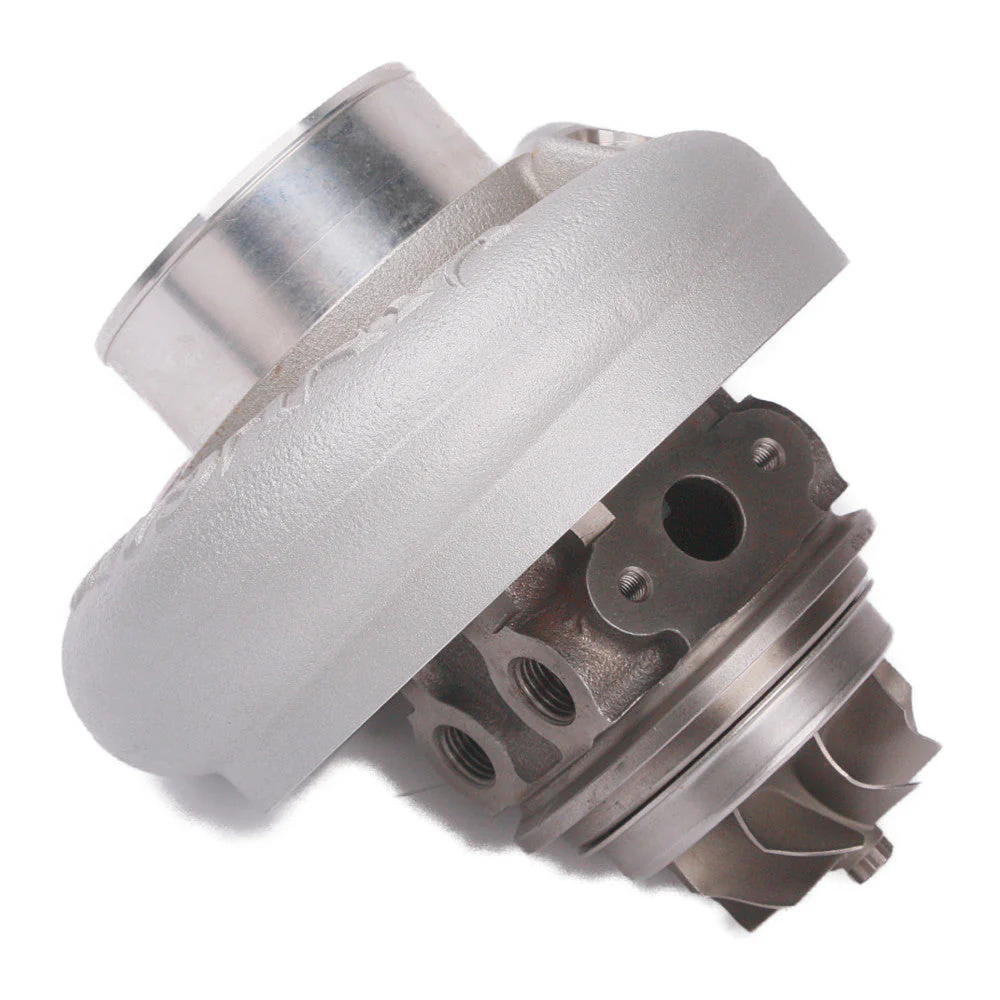

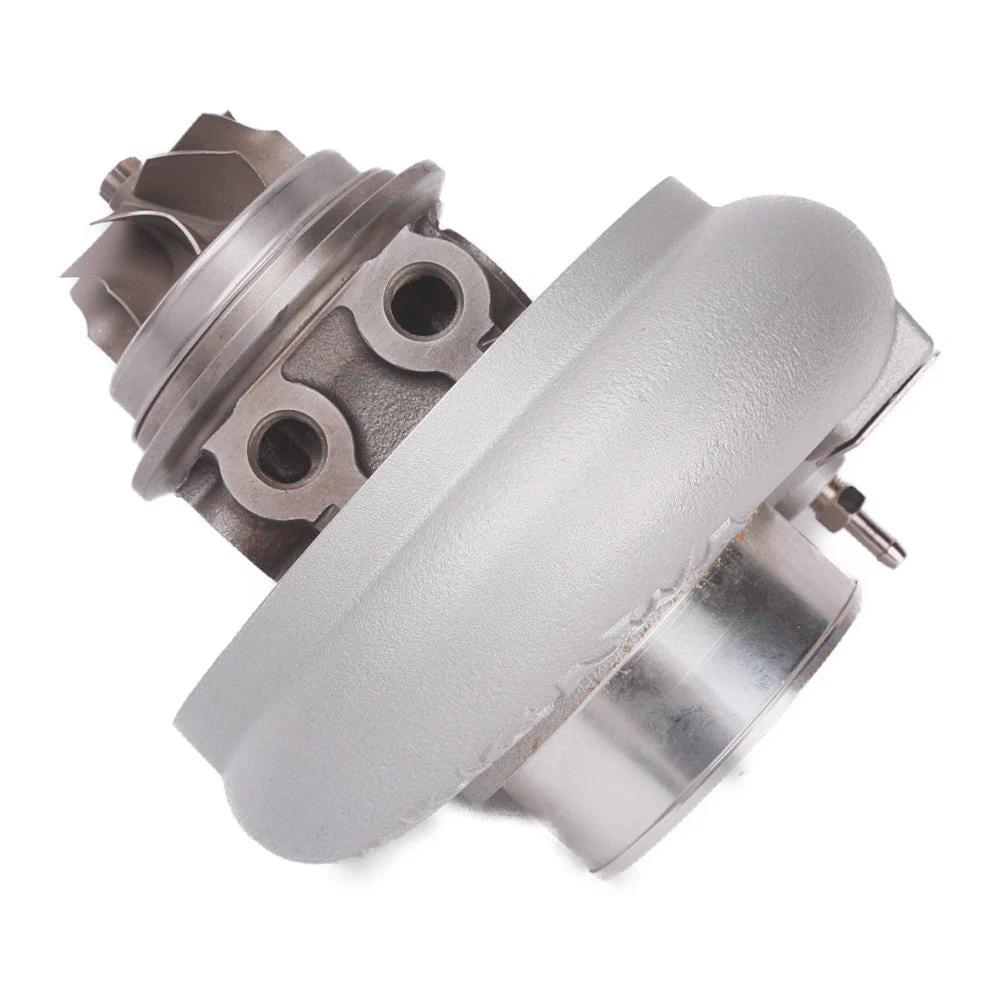

Kinugawa Turbo Ball Bearing Super Core 3" TD05H-20G for TOYOTA 1HZ 1HD TD05 Series

Product image 1
1 / 5

Kinugawa Turbo Ball Bearing Super Core 3" TD05H-20G for TOYOTA 1HZ 1HD TD05 Series

Application
- Fits Kinugawa TD05 series for TOYOTA 1HZ 4.2L Diesel
- Fits Kinugawa TD05 series for TOYOTA 1HD-T / 1HD-FT / 1HD-FTE 4.2L Land Cruiser (HDJ80/81/82)

CHRA Size
- TD05H-20G

Wheels Spec
- Compressor wheel: 52.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (9 blades STS. Click here to learn more about STS technology.)



Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"

Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Kinugawa Turbo STS Advanced Ball Bearing Technology

Cooling Type
- Oil and water cooling

The Set Includes
- 1 x Super Core (B.B CHRA + Compressor Housing)
- 1 x Balance Report with Anti-Counterfeit Tag

Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany

Provider
- Kinugawa Turbo Systems

Warranty
-No

Select Compressor Housing
Select Compressor Wheel
Select Turbine Wheel
From $335.65

Original: $959.00

-65%
Kinugawa Turbo Ball Bearing Super Core 3" TD05H-20G for TOYOTA 1HZ 1HD TD05 Series—

$959.00

$335.65
