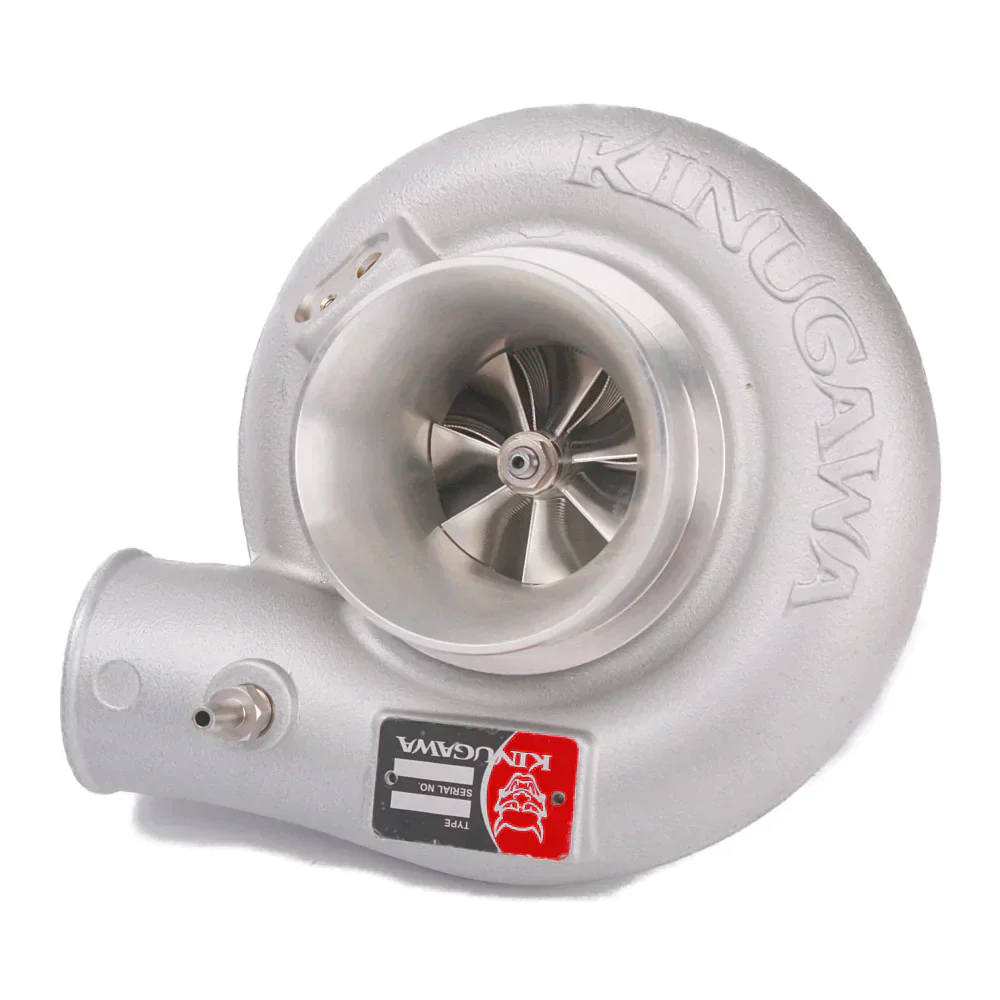

Kinugawa Turbo Super Core 3" TD05H-16K for TOYOTA 1HZ 1HD TD05 Series
Application
- Fits Kinugawa TD05 series for TOYOTA 1HZ 4.2L Diesel
- Fits Kinugawa TD05 series for TOYOTA 1HD-T / 1HD-FT / 1HD-FTE 4.2L Land Cruiser (HDJ80/81/82)
- Fits Kinugawa TD05 series for TOYOTA 1HZ 4.2L Diesel
- Fits Kinugawa TD05 series for TOYOTA 1HD-T / 1HD-FT / 1HD-FTE 4.2L Land Cruiser (HDJ80/81/82)
CHRA Size
- TD05H-16K
Wheels Spec
- Compressor wheel: 49.5 / 68.0 mm Point Milling / Third-order Surface
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16k) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins.each |
| Characters |
1. Free Surface can be only produced by Point Milling |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
- Nozzle area: AR.60
- Inlet: 3"
- Inlet: 3"
Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
The Set Includes

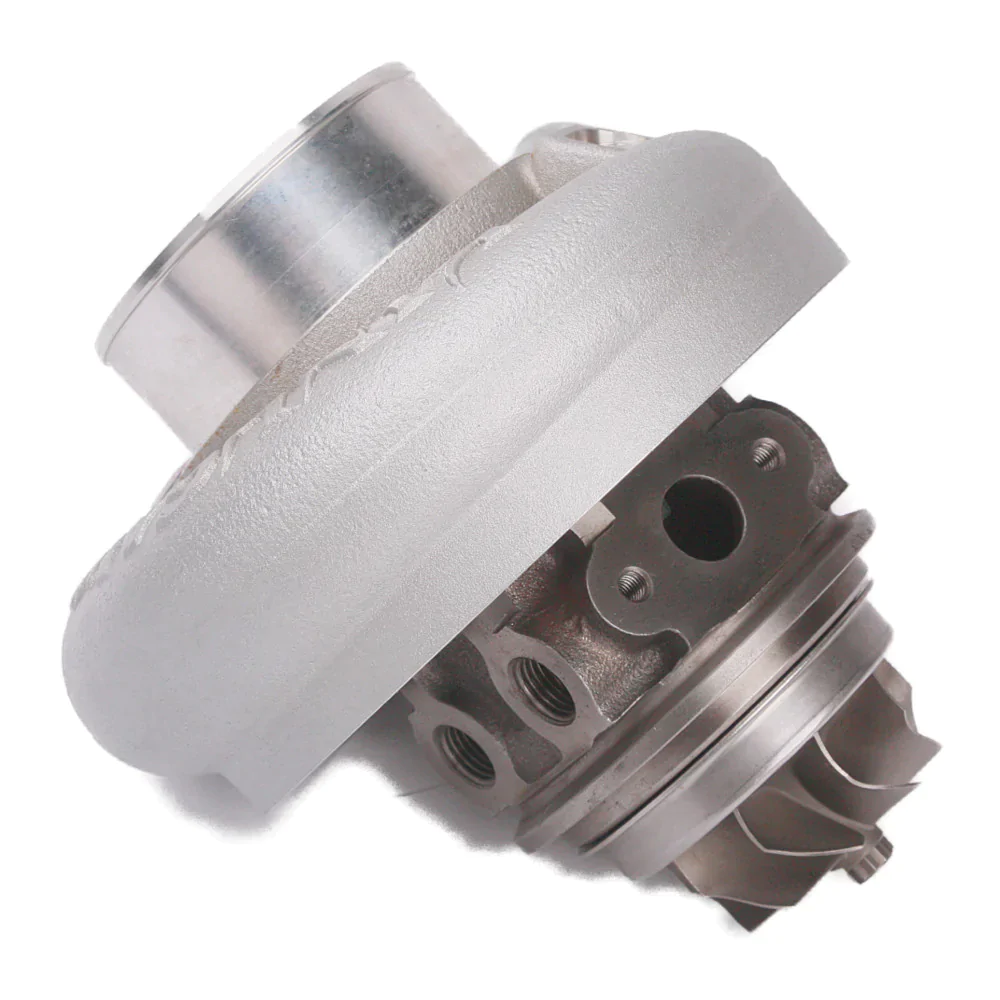

- 1 x Super Core (CHRA + Compressor Housing)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
-No
Warranty
-No
Select Compressor Housing
Select Compressor Wheel
Select Turbine Wheel
From $251.65
Original: $719.00
-65%Kinugawa Turbo Super Core 3" TD05H-16K for TOYOTA 1HZ 1HD TD05 Series—
$719.00
$251.65Product Information
