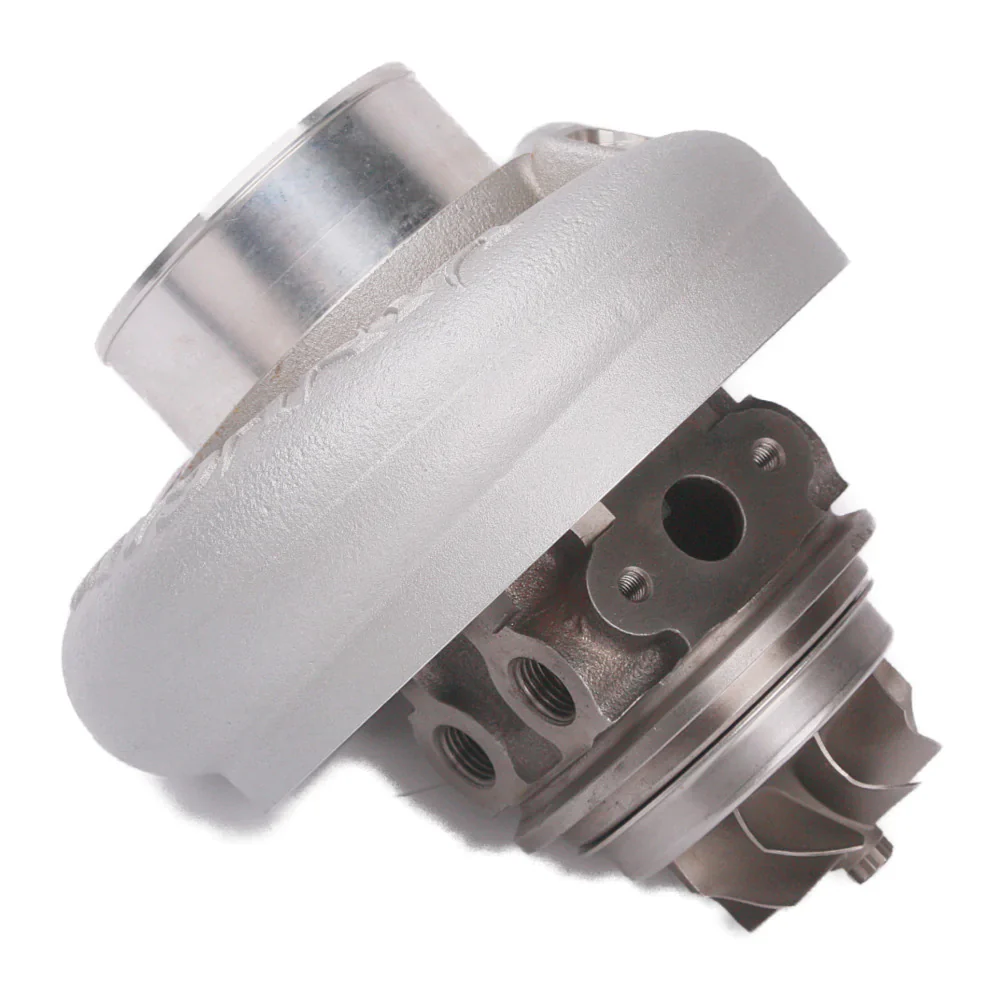

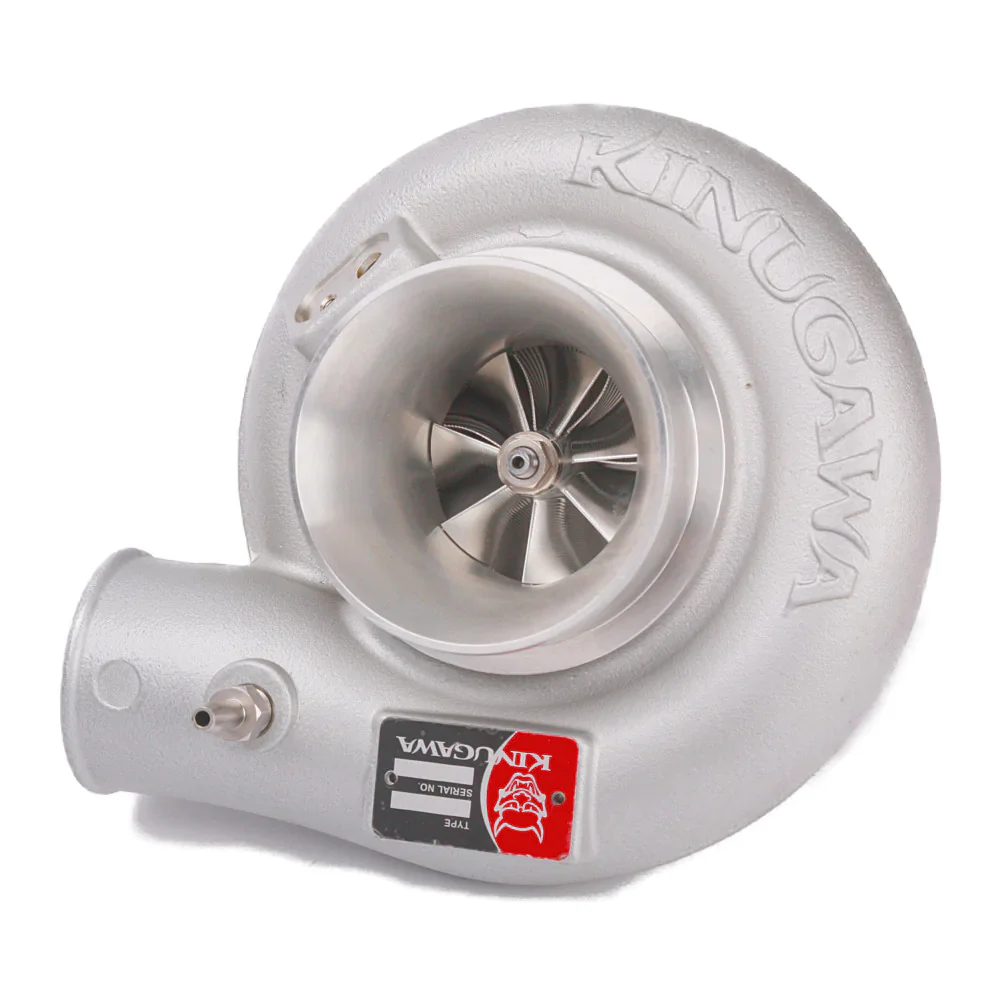

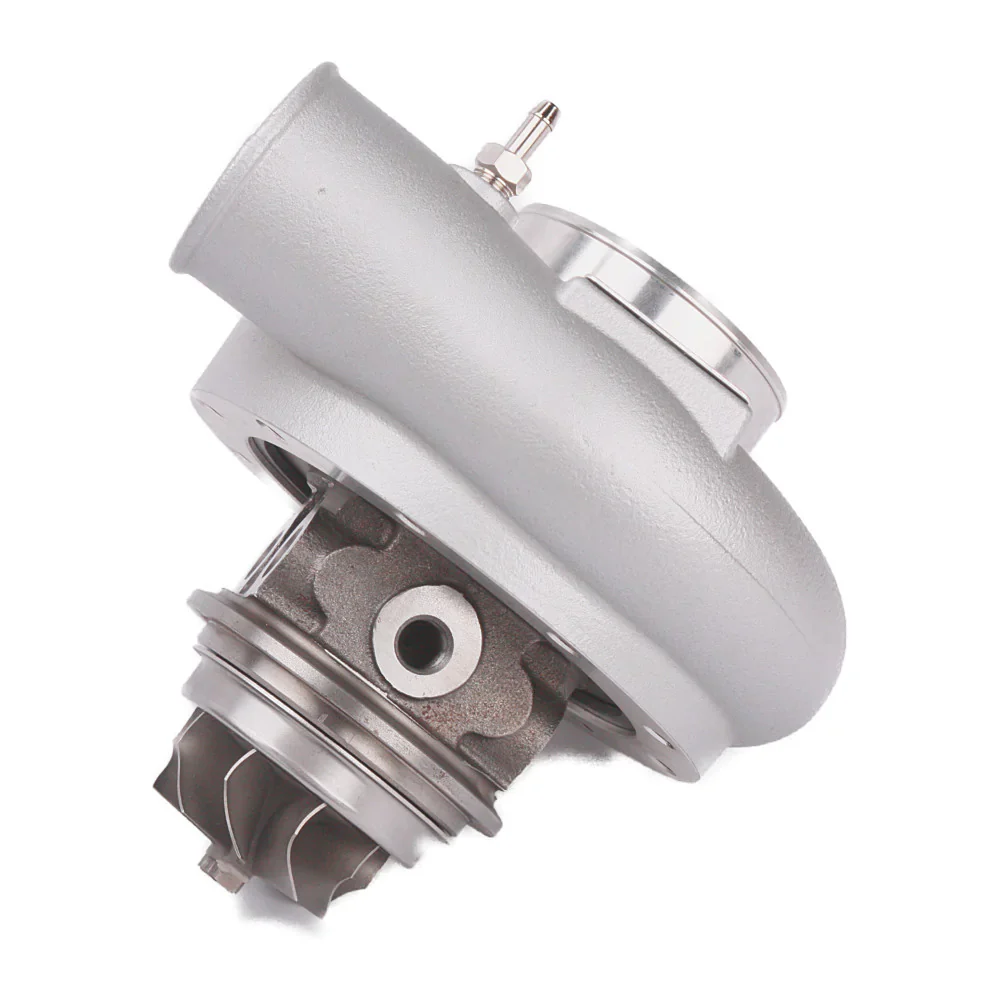

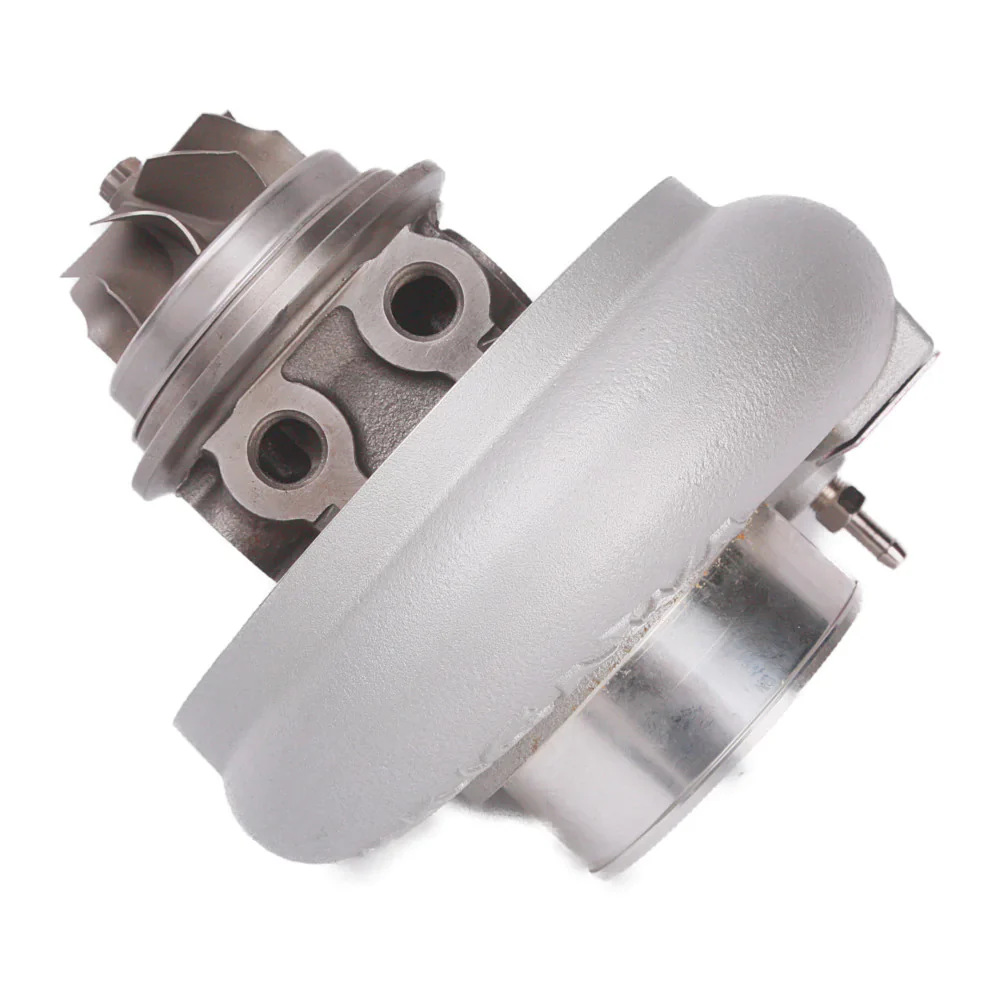

Kinugawa Turbo Super Core 3" TD05H-18G for TOYOTA 1HZ 1HD TD05 Series

Product image 1
1 / 6

Kinugawa Turbo Super Core 3" TD05H-18G for TOYOTA 1HZ 1HD TD05 Series

Application
- Fits Kinugawa TD05 series for TOYOTA 1HZ 4.2L Diesel
- Fits Kinugawa TD05 series for TOYOTA 1HD-T / 1HD-FT / 1HD-FTE 4.2L Land Cruiser (HDJ80/81/82)

CHRA Size
- TD05H-18G

Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)
Kinugawa STS Superior Turbine Strike Technology Evolution
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"

Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit

Cooling Type
- Oil and water cooling

The Set Includes
- 1 x Super Core (CHRA + Compressor Housing)
- 1 x Balance Report with Anti-Counterfeit Tag

Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany

Provider
- Kinugawa Turbo Systems

Warranty
-No

Select Compressor Housing
Select Compressor Wheel
Select Turbine Wheel
From $213.15

Original: $609.00

-65%
Kinugawa Turbo Super Core 3" TD05H-18G for TOYOTA 1HZ 1HD TD05 Series—

$609.00

$213.15

Product Information

Shipping & Returns

Description

Application
- Fits Kinugawa TD05 series for TOYOTA 1HZ 4.2L Diesel
- Fits Kinugawa TD05 series for TOYOTA 1HD-T / 1HD-FT / 1HD-FTE 4.2L Land Cruiser (HDJ80/81/82)

CHRA Size
- TD05H-18G

Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)
Kinugawa STS Superior Turbine Strike Technology Evolution
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"

Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit

Cooling Type
- Oil and water cooling

The Set Includes
- 1 x Super Core (CHRA + Compressor Housing)
- 1 x Balance Report with Anti-Counterfeit Tag

Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany

Provider
- Kinugawa Turbo Systems

Warranty
-No
