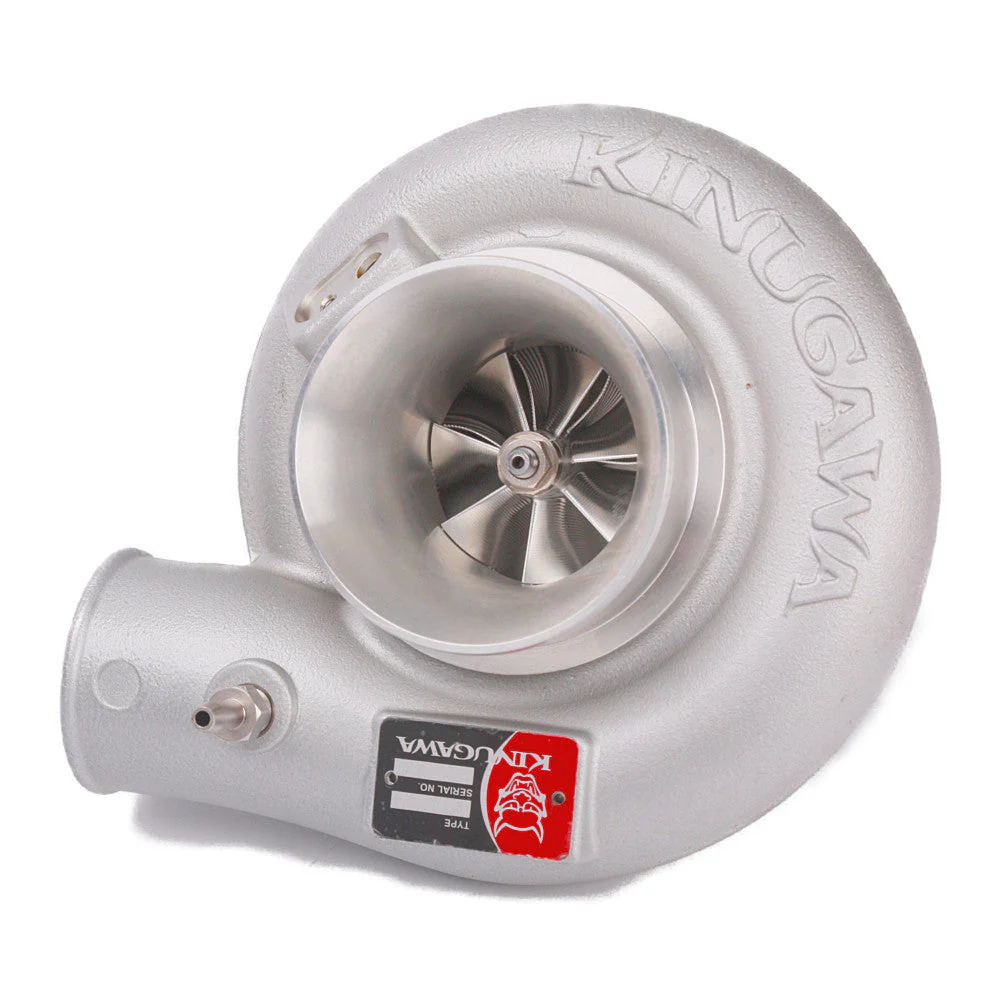

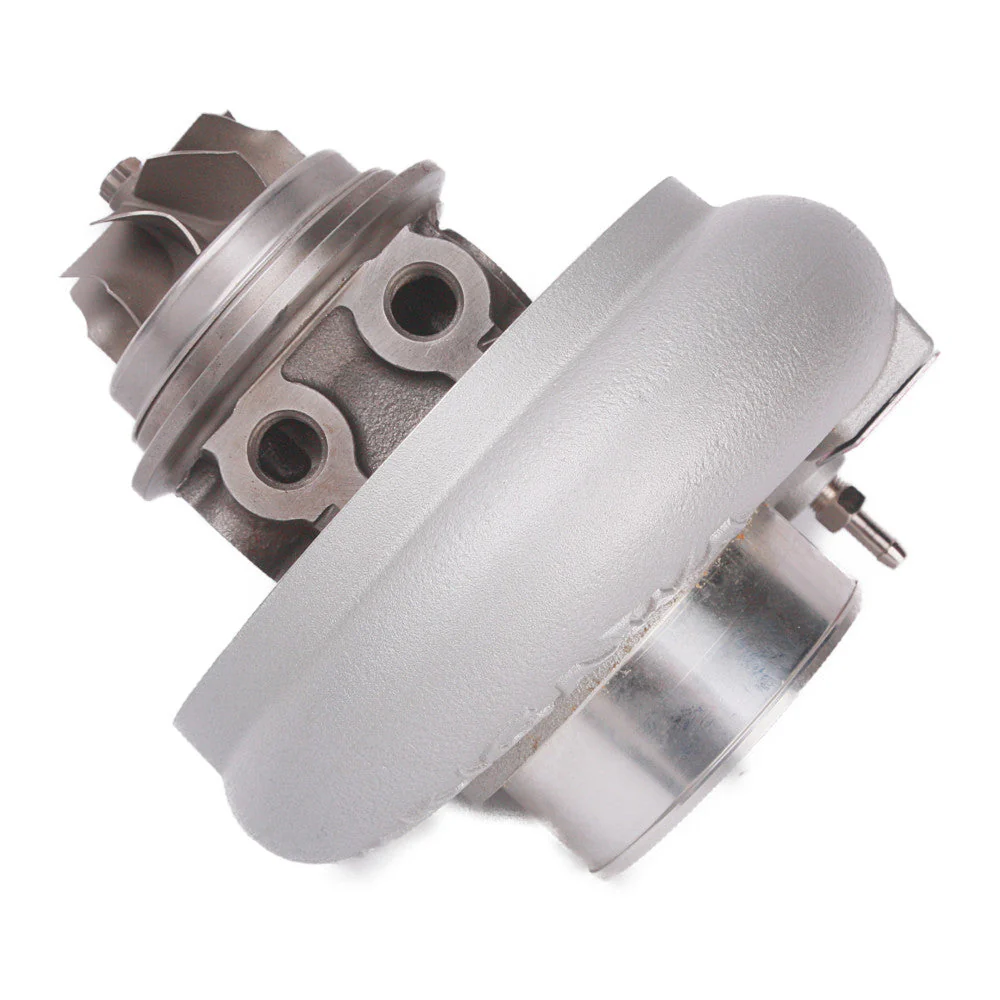

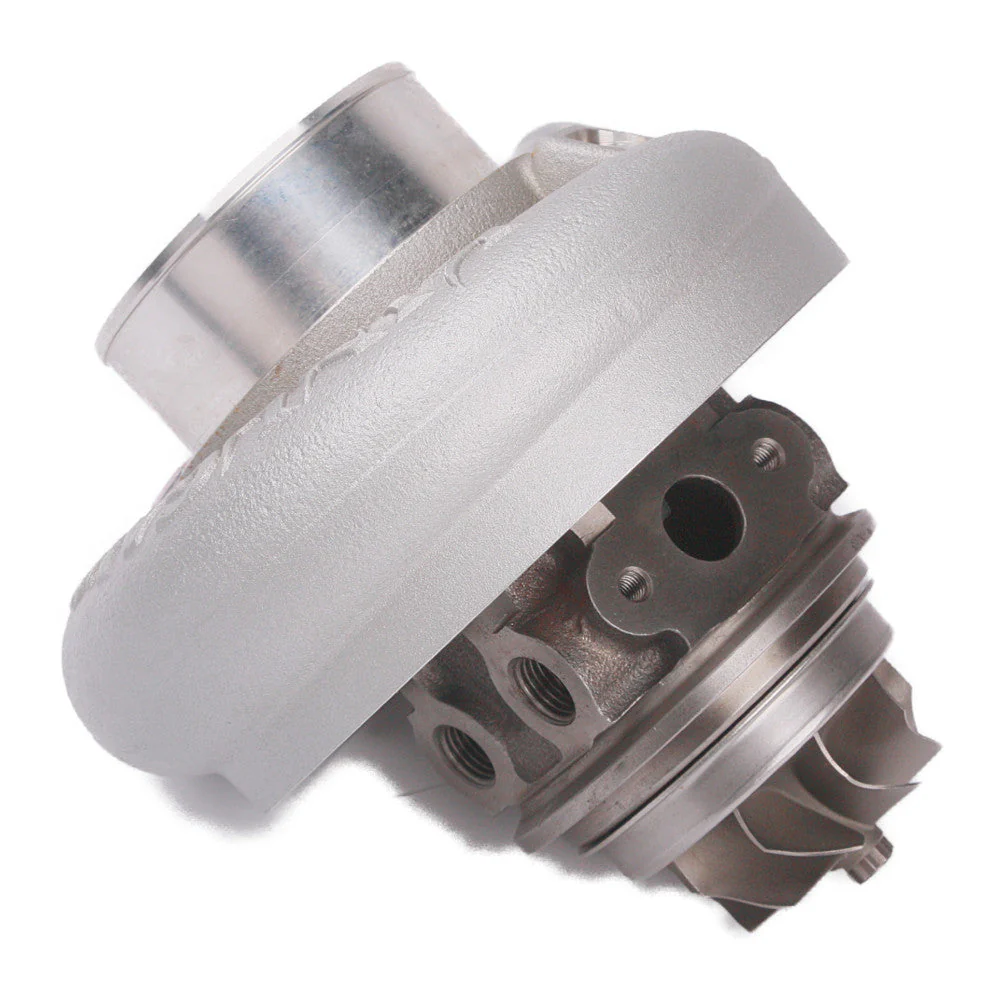

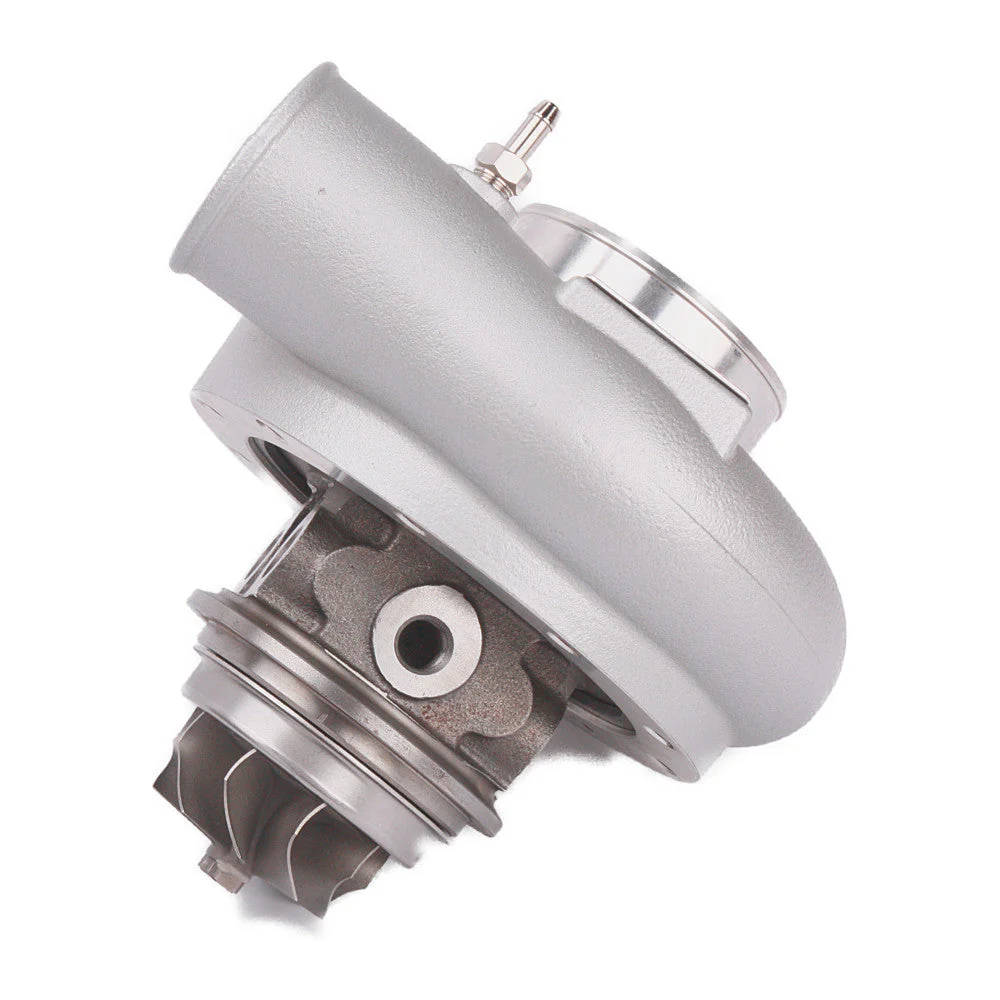

Kinugawa Turbo Super Core 3" TD05H-16G for Nissan Patrol TD42 TD05 Series Water-Cooled
Application
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T
CHRA Size
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Inlet: 3"
Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x Super Core (CHRA + Compressor Housing)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
-No
Warranty
-No
Select Compressor Housing
Select Compressor Wheel
Select Turbine Wheel
From $213.15
Original: $609.00
-65%Kinugawa Turbo Super Core 3" TD05H-16G for Nissan Patrol TD42 TD05 Series Water-Cooled—
$609.00
$213.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T
CHRA Size
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Inlet: 3"
Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
The Set Includes
- 1 x Super Core (CHRA + Compressor Housing)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
-No
Warranty
-No
