Kinugawa Turbo Super Core 3" TD05H-20G for Nissan Patrol TD42 TD05 Series Oil-Cooled
Application
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T
CHRA Size
- TD05H-20G
Wheels Spec
- Compressor wheel: 52.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types are offered: STD, STS, and STS 55. Click here to learn more about STS technology.)

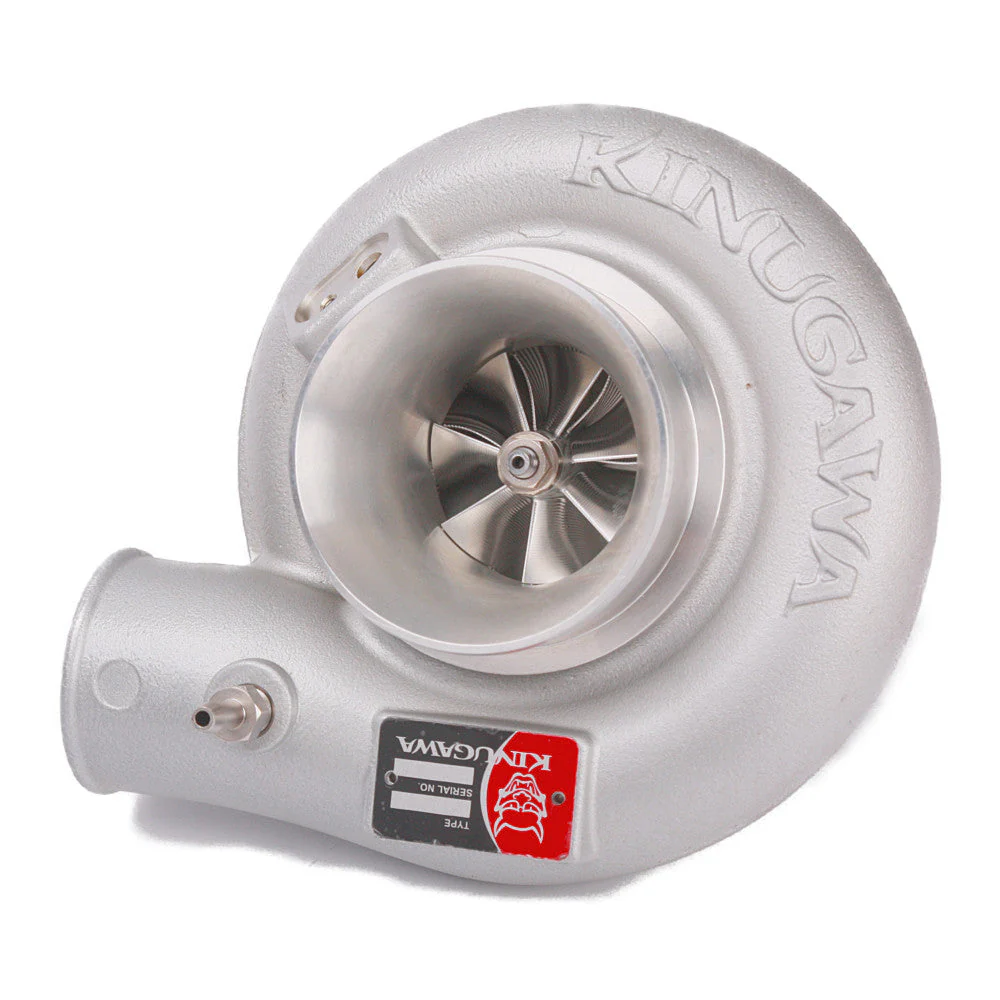

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Inlet: 3"
Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit
Cooling Type
- Oil cooling
The Set Includes

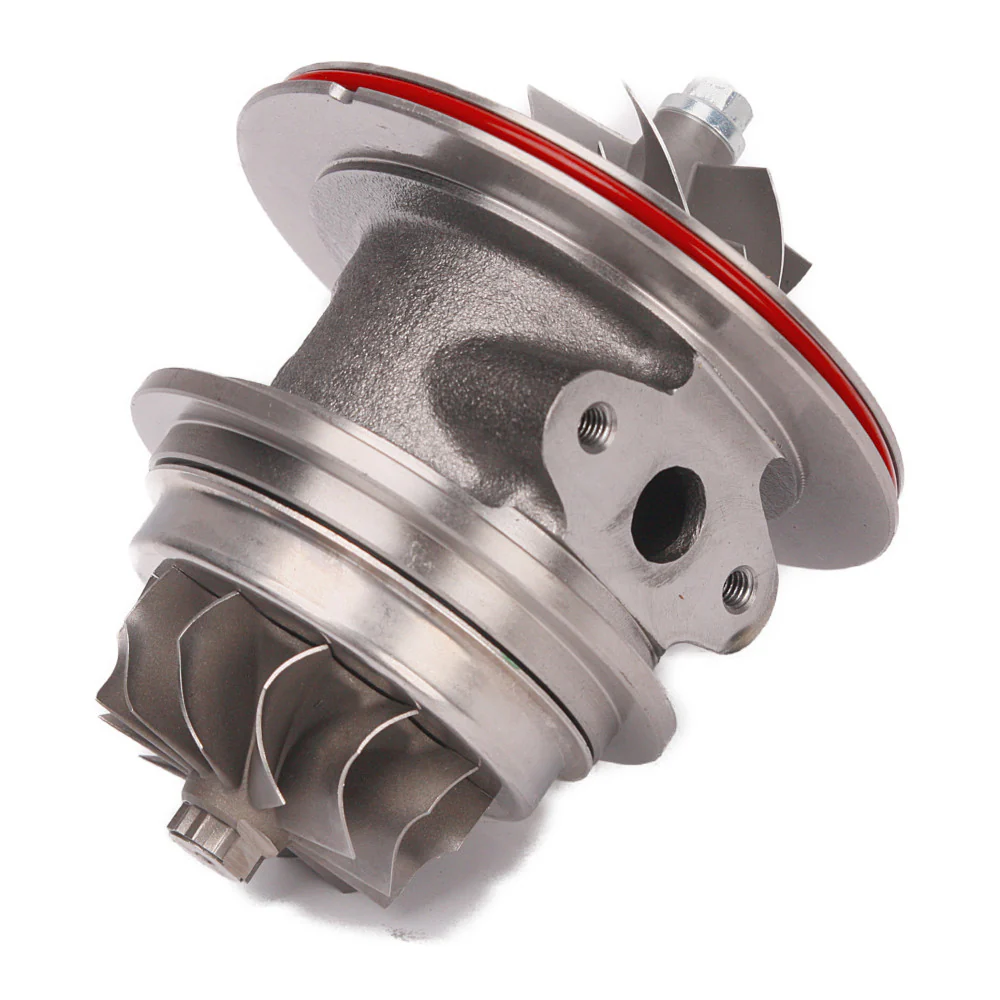

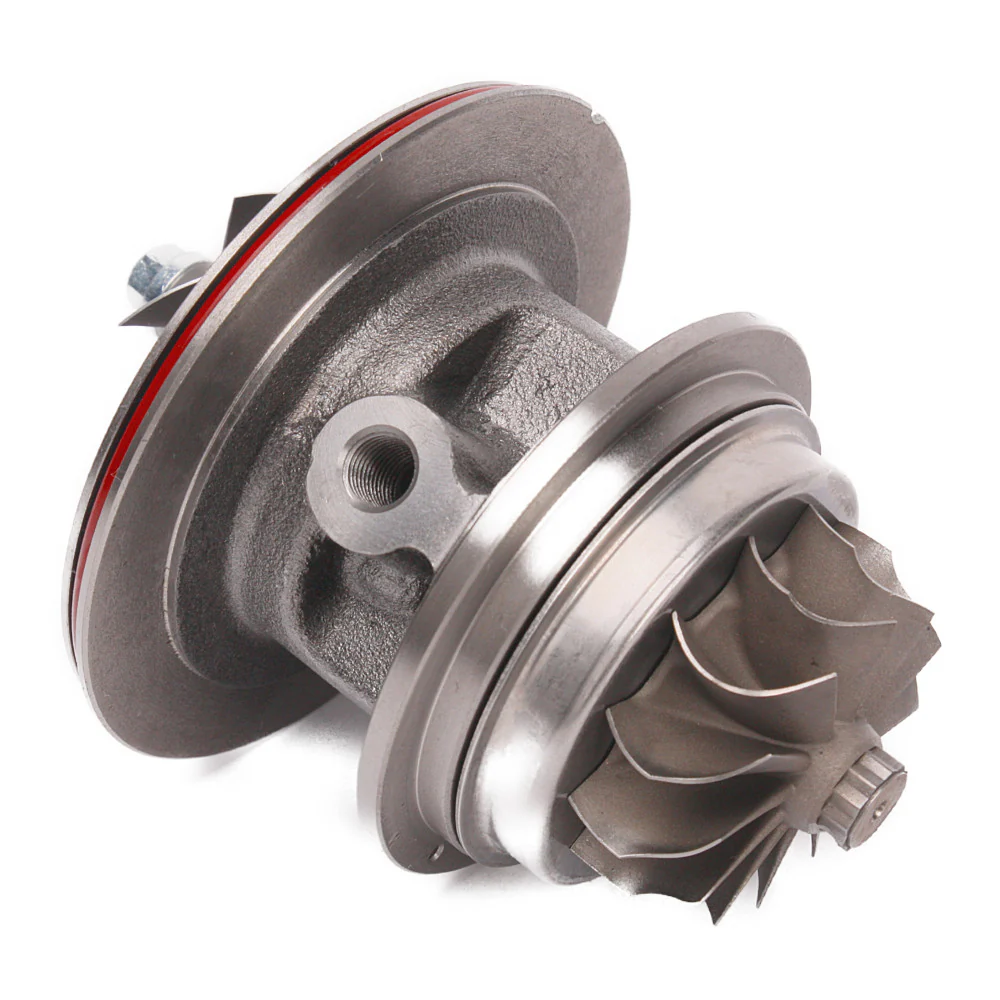

- 1 x Super Core (CHRA + Compressor Housing)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 950 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
-No
Warranty
-No
Select Compressor Housing
Select Compressor Wheel
Select Turbine Wheel
From $609.00
Kinugawa Turbo Super Core 3" TD05H-20G for Nissan Patrol TD42 TD05 Series Oil-Cooled—
$609.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ Y60, GU Y61 TD42T
CHRA Size
- TD05H-20G
Wheels Spec
- Compressor wheel: 52.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types are offered: STD, STS, and STS 55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Inlet: 3"
Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit
Cooling Type
- Oil cooling
The Set Includes
- 1 x Super Core (CHRA + Compressor Housing)
- 1 x Balance Report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS 950 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
-No
Warranty
-No
