Kinugawa Turbo Super Core 3" TD05H-16K for Nissan Patrol TD42 TD05 Series Oil-Cooled

Product image 1
1 / 6

Kinugawa Turbo Super Core 3" TD05H-16K for Nissan Patrol TD42 TD05 Series Oil-Cooled

Application
- Fits Kinugawa TD05 series turbochargers for Nissan TD42 Patrol Safari GR GQ  Y60, GU Y61 TD42T

CHRA Size
- TD05H-16K

Wheels Spec
- Compressor wheel:  49.5 / 68.0 mm Point Milling / Third-order Surface
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16k) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.



Kinugawa Turbo Systems Third-order surface compressor wheel
Free Surface Ruled Surface
Process Point Milling Flank Milling
Machining Time Slow 120 mins.each Quick 15 mins.each
Characters


1. Free Surface can be only produced by Point Milling
2. More air pressure and increase much better flow efficiency.
3. Mainly for high-efficiency turbochargers.

 1. Ruled Surface can be produced by Flank Milling
2. Low efficiency
3. Only suitable to the very easy design of compressor wheel
4. Mainly for fundamental mechanical engineering such as Centrifugal compressor


- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)


Kinugawa STS Superior Turbine Strike Technology Evolution

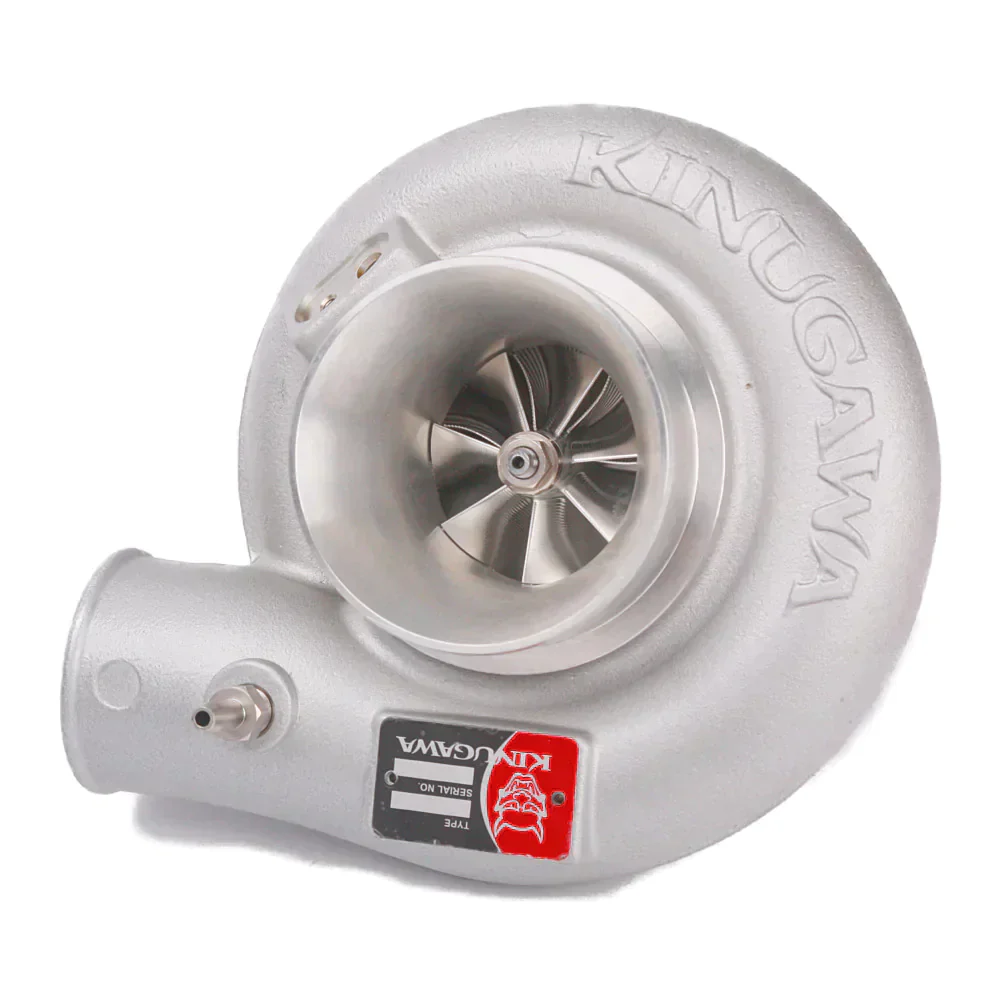

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"

Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit

Cooling Type
- Oil cooling

The Set Includes

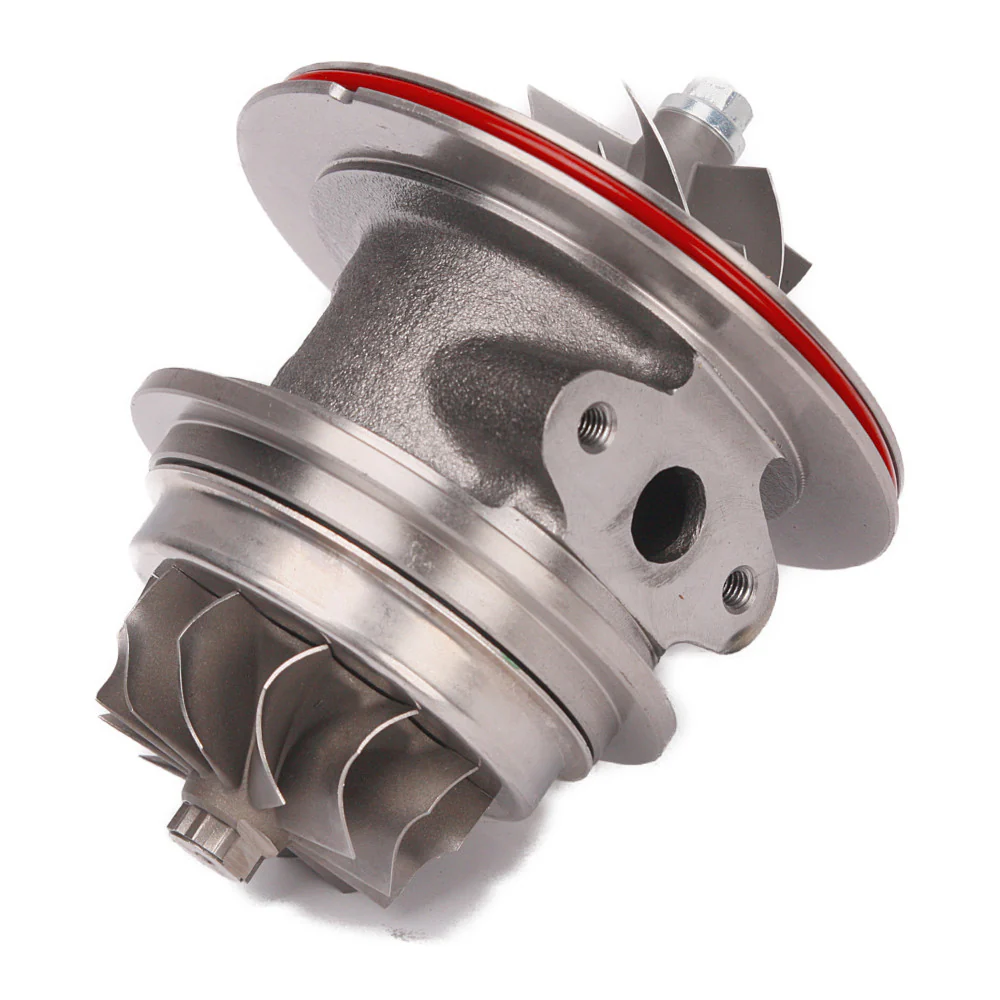

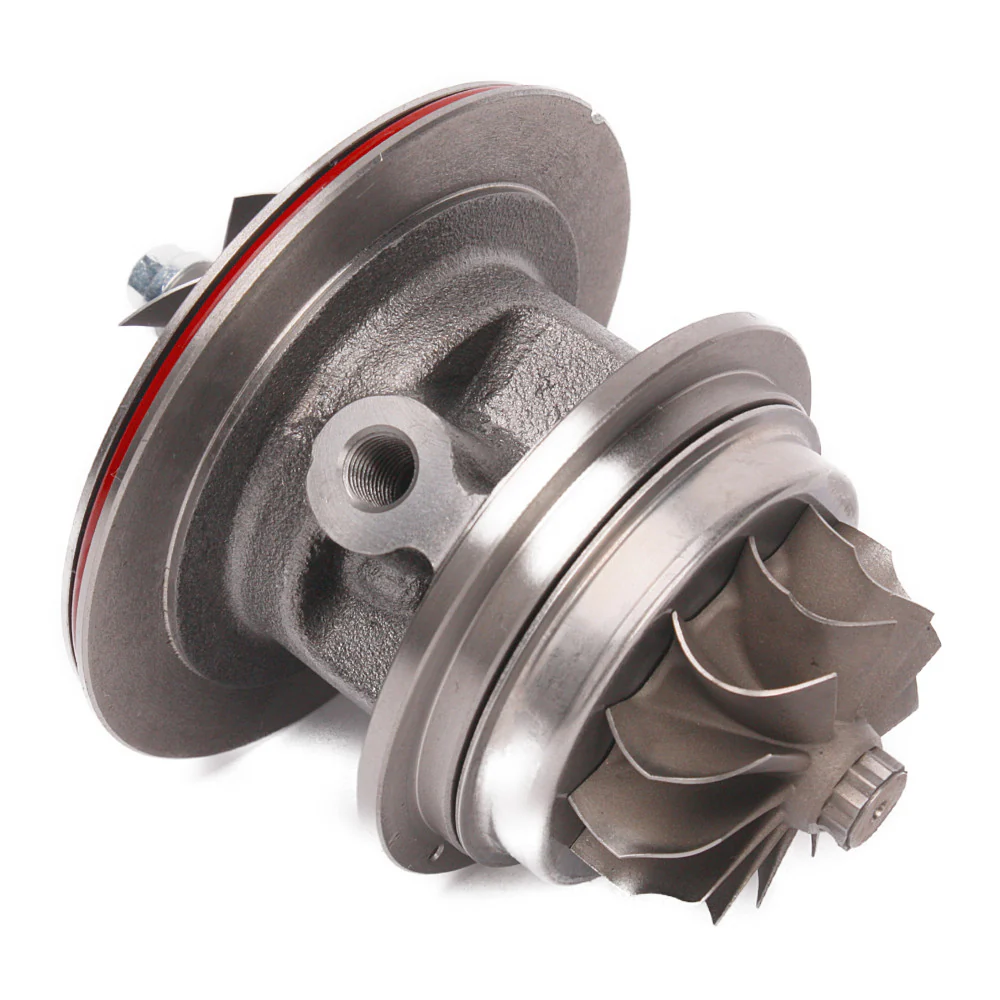

- 1 x Super Core (CHRA + Compressor Housing)
- 1 x Balance Report with Anti-Counterfeit Tag

Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany

Provider
- Kinugawa Turbo Systems

Warranty
-No

Select Compressor Housing
Select Compressor Wheel
Select Turbine Wheel
From $251.65

Original: $719.00

-65%
Kinugawa Turbo Super Core 3" TD05H-16K for Nissan Patrol TD42 TD05 Series Oil-Cooled—

$719.00

$251.65
