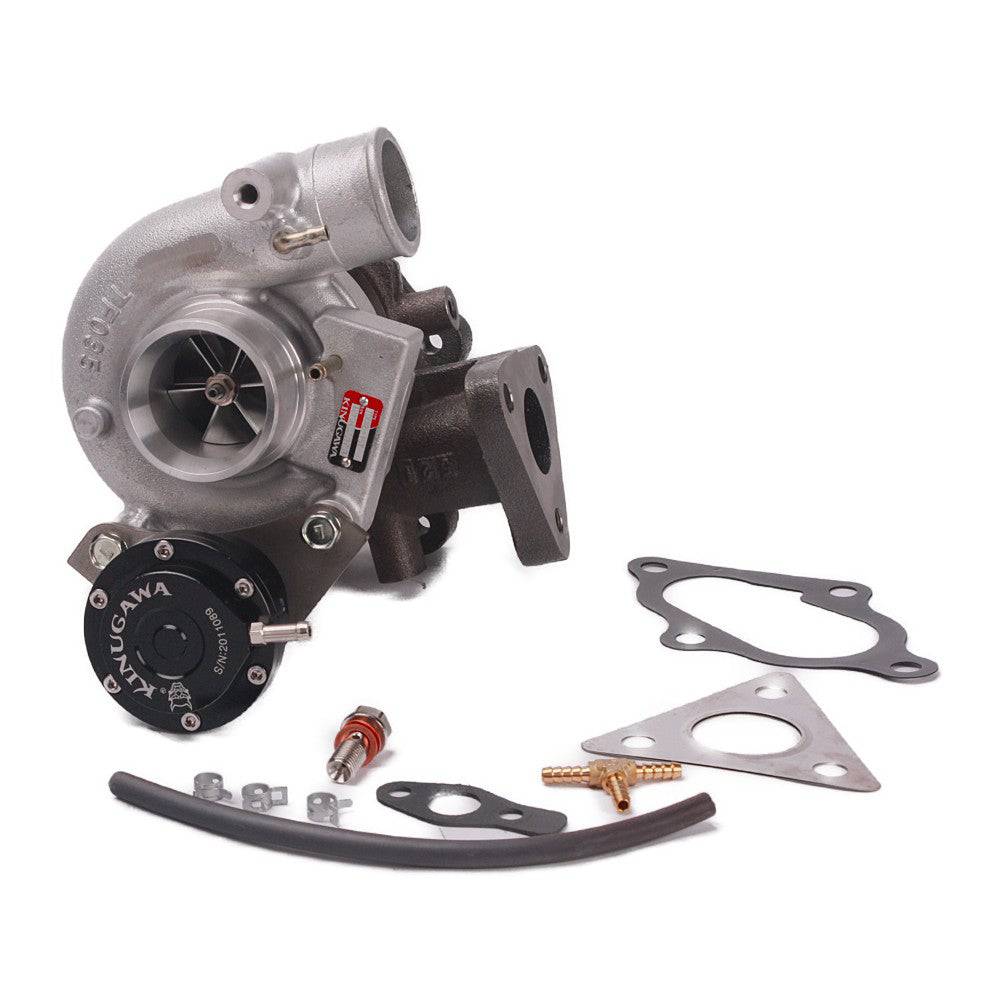

Kinugawa Turbo TD04-12T for Mitsubishi 4M40T Pajero Triton Shogun Challenger Oil-Cooled 94-97
1 / 4
Kinugawa Turbo TD04-12T for Mitsubishi 4M40T Pajero Triton Shogun Challenger Oil-Cooled 94-97
Application
- For Mitsubishi 94-97 4m40t / 2.8l Pajero, Delica, Shogun.
- Replace and upgrade 49377-03031, 49377-03033, 49377-03040, 49377-03041, 49377-03043, 49377-03053 turbo
CHRA Size
- TD04-12T
- For Mitsubishi 94-97 4m40t / 2.8l Pajero, Delica, Shogun.
- Replace and upgrade 49377-03031, 49377-03033, 49377-03040, 49377-03041, 49377-03043, 49377-03053 turbo
CHRA Size
- TD04-12T
Wheels Spec
- Compressor wheel: 37.8 / 49 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 47.1 / 40 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Stock type
Turbine Housing
- Nozzle area: 4cm or 5cm
- Inlet: 3 bolt
- Outlet: 4 bolt
- Wastegate: internal gated
- Stock type
Turbine Housing
- Nozzle area: 4cm or 5cm
- Inlet: 3 bolt
- Outlet: 4 bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing
Cooling systems
- Oil Cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New
The Set Includes
- 1 x turbocharger
- 1 x turbine inlet/outlet gasket set
- 1 x oil return gasket
- 1 x oil supply bolt for the turbo side
- 3 x vacuum clamps
- 1 x 30 cm vacuum
-1 x Balance report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Select Compressor Wheel
Select Turbine Wheel
Select Turbine Housing
From $290.15
Original: $829.00
-65%Kinugawa Turbo TD04-12T for Mitsubishi 4M40T Pajero Triton Shogun Challenger Oil-Cooled 94-97—
$829.00
$290.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- For Mitsubishi 94-97 4m40t / 2.8l Pajero, Delica, Shogun.
- Replace and upgrade 49377-03031, 49377-03033, 49377-03040, 49377-03041, 49377-03043, 49377-03053 turbo
CHRA Size
- TD04-12T
- For Mitsubishi 94-97 4m40t / 2.8l Pajero, Delica, Shogun.
- Replace and upgrade 49377-03031, 49377-03033, 49377-03040, 49377-03041, 49377-03043, 49377-03053 turbo
CHRA Size
- TD04-12T
Wheels Spec
- Compressor wheel: 37.8 / 49 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 47.1 / 40 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Stock type
Turbine Housing
- Nozzle area: 4cm or 5cm
- Inlet: 3 bolt
- Outlet: 4 bolt
- Wastegate: internal gated
- Stock type
Turbine Housing
- Nozzle area: 4cm or 5cm
- Inlet: 3 bolt
- Outlet: 4 bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing
Cooling systems
- Oil Cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New
The Set Includes
- 1 x turbocharger
- 1 x turbine inlet/outlet gasket set
- 1 x oil return gasket
- 1 x oil supply bolt for the turbo side
- 3 x vacuum clamps
- 1 x 30 cm vacuum
-1 x Balance report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
