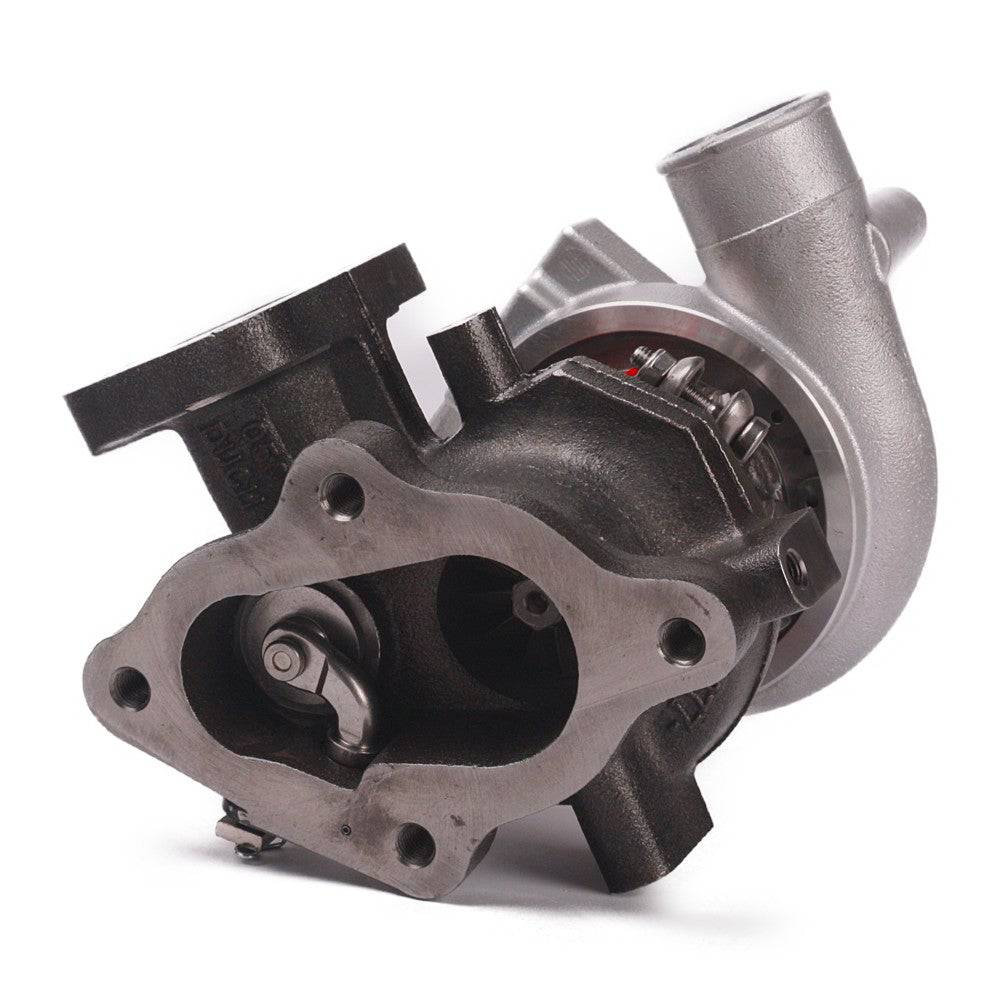

Kinugawa Turbo TD04-15T for Mitsubishi 4M40T Pajero Triton Shogun Challenger Water-Cooled 96-00
1 / 4
Kinugawa Turbo TD04-15T for Mitsubishi 4M40T Pajero Triton Shogun Challenger Water-Cooled 96-00
Description
- A Brand new bolt-on turbocharger. Increase 50% torque and 30% horsepower than stock tf035-12t
- A Brand new bolt-on turbocharger. Increase 50% torque and 30% horsepower than stock tf035-12t
Application
- For Mitsubishi Pajero / Triton / Delica / Shogun / challenger / Montero / 4m40t 2.8l or 3.2L
- For Mitsubishi 1996 Challenger Engine 4M40 ('98eu)
- For Mitsubishi 1998-Pajero II Engine 4M40 ('98eu)
- For Mitsubishi 1998-00 Shogun Engine 4M40 ('98eu)
- Replace the turbo 49135-03010, 49135-03110, 49135-03112, 49135-03120, and 49135-03130.
- This turbo comes with oil and water-cooling bearing housing that would fit the original oil-cooled. The turbo will still work well without water to cool-bearing housing.
- For Mitsubishi Pajero / Triton / Delica / Shogun / challenger / Montero / 4m40t 2.8l or 3.2L
- For Mitsubishi 1996 Challenger Engine 4M40 ('98eu)
- For Mitsubishi 1998-Pajero II Engine 4M40 ('98eu)
- For Mitsubishi 1998-00 Shogun Engine 4M40 ('98eu)
- Replace the turbo 49135-03010, 49135-03110, 49135-03112, 49135-03120, and 49135-03130.
- This turbo comes with oil and water-cooling bearing housing that would fit the original oil-cooled. The turbo will still work well without water to cool-bearing housing.
CHRA Size
- TD04-15T
Wheels Spec
- Compressor wheel: 42/56 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 47.1 / 40 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Stock type
Turbine Housing
- Nozzle area: 4cm or 5cm
- Inlet: 3 bolt
- Outlet: 4 bolt
- Wastegate: internal gated
- Stock type
Turbine Housing
- Nozzle area: 4cm or 5cm
- Inlet: 3 bolt
- Outlet: 4 bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing
Cooling systems
- Oil cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New
The set includes
- 1 x turbocharger
- 1 x turbine inlet/outlet gasket set
- 1 x oil return gasket
- 1 x oil supply bolt for the turbo side
- 3 x vacuum clamps
- 1 x 30 cm vacuum
- 1 x Balance report with Anti-Counterfeit Tag
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
