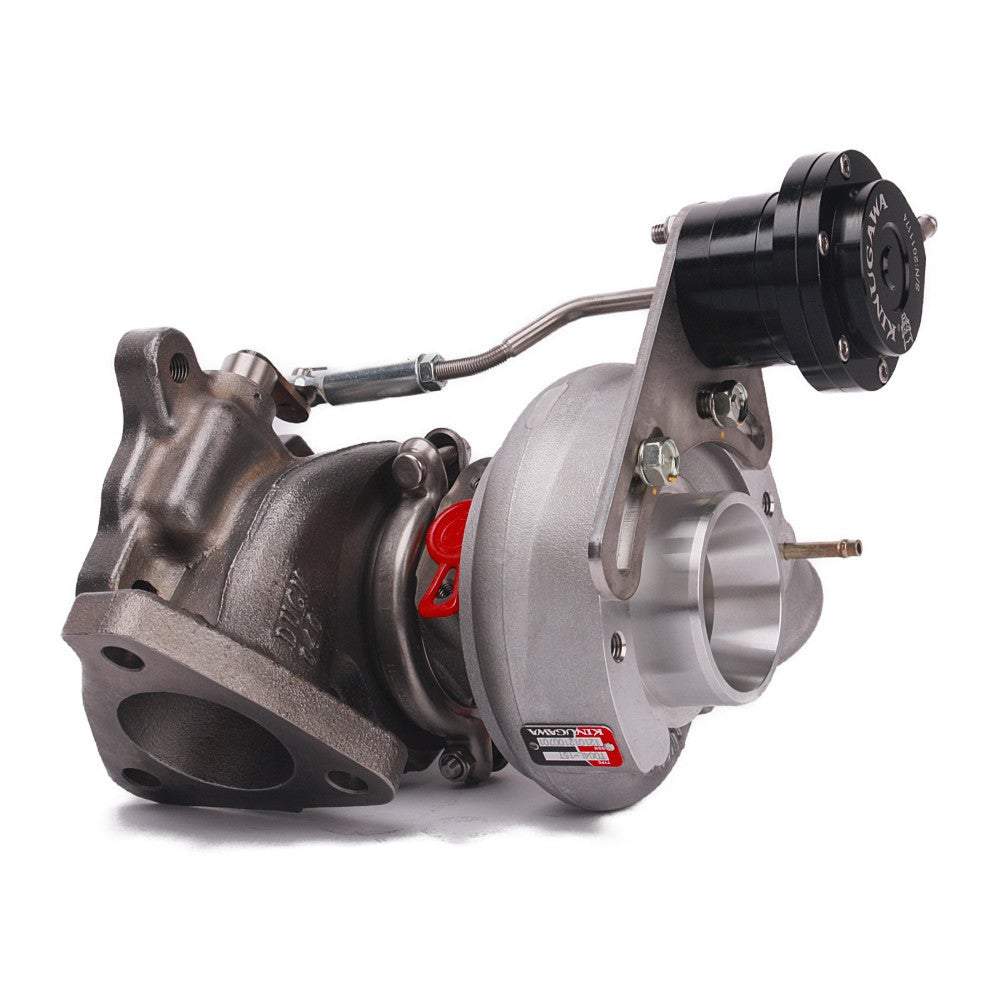

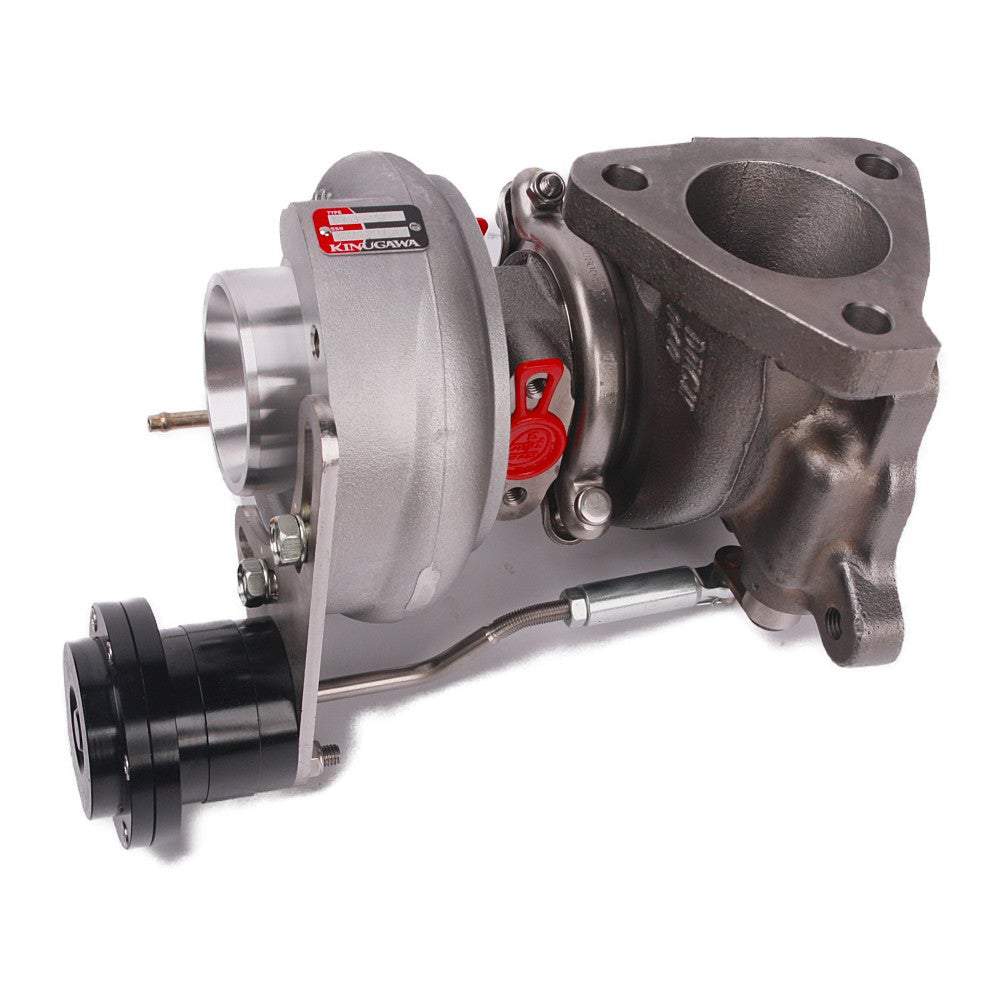

Kinugawa Turbo TD04L-13T 5-Bolt Internal Upgrade for Mitsubishi 4D56T 2.5L Pajero Delica Triton
1 / 6
Kinugawa Turbo TD04L-13T 5-Bolt Internal Upgrade for Mitsubishi 4D56T 2.5L Pajero Delica Triton
Application
- Mitsubishi 4D56T turbocharger with 5 bolt turbine outlet housing on 2.5L diesel Delica, Pajero L200, L300, L400
- TD04: 49177-02500, 49177-02501, 49177-02502, 49177-02503, 49177-02510, 49177-02511, 49177-02512, 49177-02513, 49177-02520, 49177-02521, 49177-02530, 49177-02531, 49177-02540, 49177-02551...all 49177-025xx turbo with 5 bolt outlet
- TF035HM: 49135-02100, 49135-49135-02110, 49135-02200, 49135-02210, 49135-02220, 49135-02230, 49135-02240
- 1992-1996 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
- 1988-1996 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
- 1986-1989 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
- 1989-1990 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
- 1990-1991 Mitsubishi Pajero II 2.5 TD with 4D56 Engine
- 20~30% horsepower and torque increased.
Wheels Spec
- Compressor wheel: 40.6 / 56 mm (13T). The stock type is TD04-9B 34.7/49.1 mm
- Mitsubishi 4D56T turbocharger with 5 bolt turbine outlet housing on 2.5L diesel Delica, Pajero L200, L300, L400
- TD04: 49177-02500, 49177-02501, 49177-02502, 49177-02503, 49177-02510, 49177-02511, 49177-02512, 49177-02513, 49177-02520, 49177-02521, 49177-02530, 49177-02531, 49177-02540, 49177-02551...all 49177-025xx turbo with 5 bolt outlet
- TF035HM: 49135-02100, 49135-49135-02110, 49135-02200, 49135-02210, 49135-02220, 49135-02230, 49135-02240
- 1992-1996 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
- 1988-1996 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
- 1986-1989 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
- 1989-1990 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
- 1990-1991 Mitsubishi Pajero II 2.5 TD with 4D56 Engine
- 20~30% horsepower and torque increased.
Wheels Spec
- Compressor wheel: 40.6 / 56 mm (13T). The stock type is TD04-9B 34.7/49.1 mm
(The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)

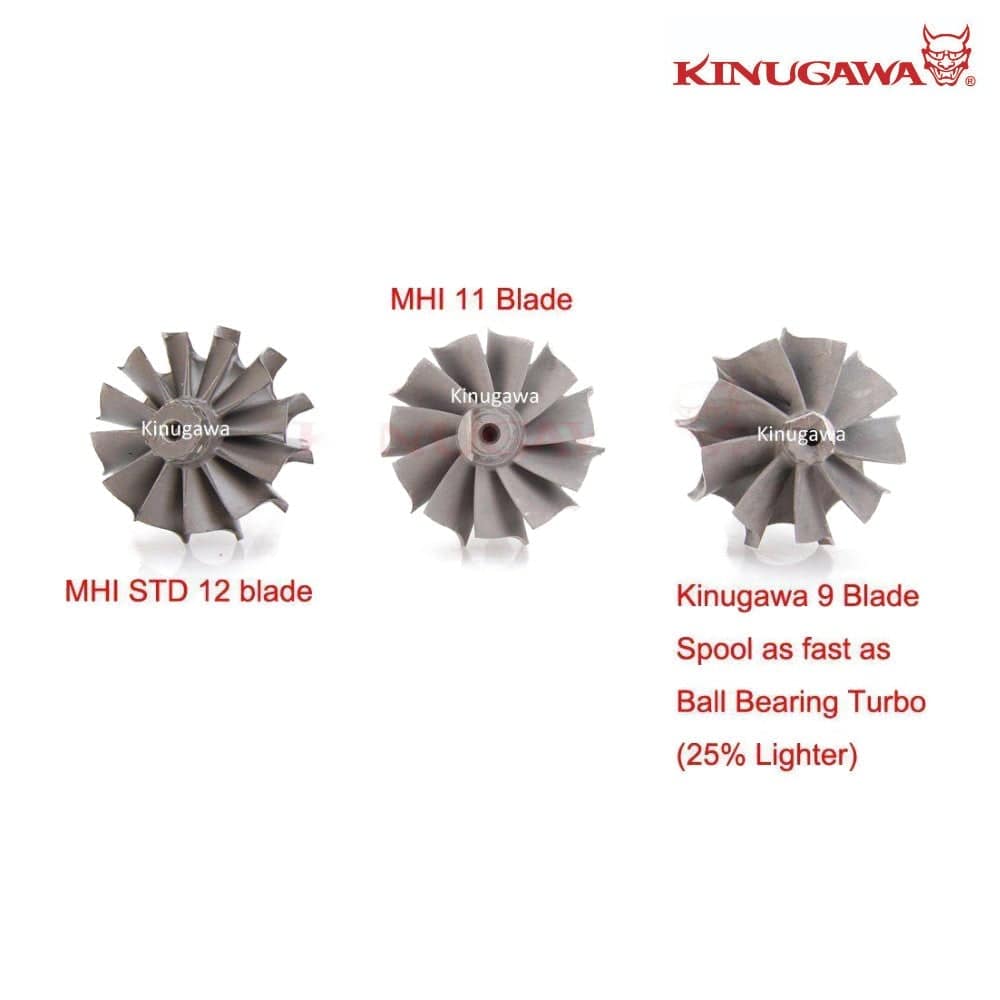

- Turbine wheel: 41.3 / 47.1 mm (TD04L). The stock type is 40 / 47.1 mm (TD04 STD)
- Turbine wheel: 41.3 / 47.1 mm (TD04L). The stock type is 40 / 47.1 mm (TD04 STD)
(2 types available: STD, STS. Click here to learn more about STS technology.↗)
Compressor Housing
- Universal type
- Inlet: 60mm / 2.35"
- Outlet: 50.5mm / 1.95"
Turbine Housing
- Nozzle area: 4cm
- Inlet: 3 bolt
- Outlet: 5 bolt
- Wastegate: internal gated
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Bearing Type
- Journal Bearing
Cooling Type
- Oil Cooling System (We blocked the water holes, but you can unblock them to use the water lines attached)

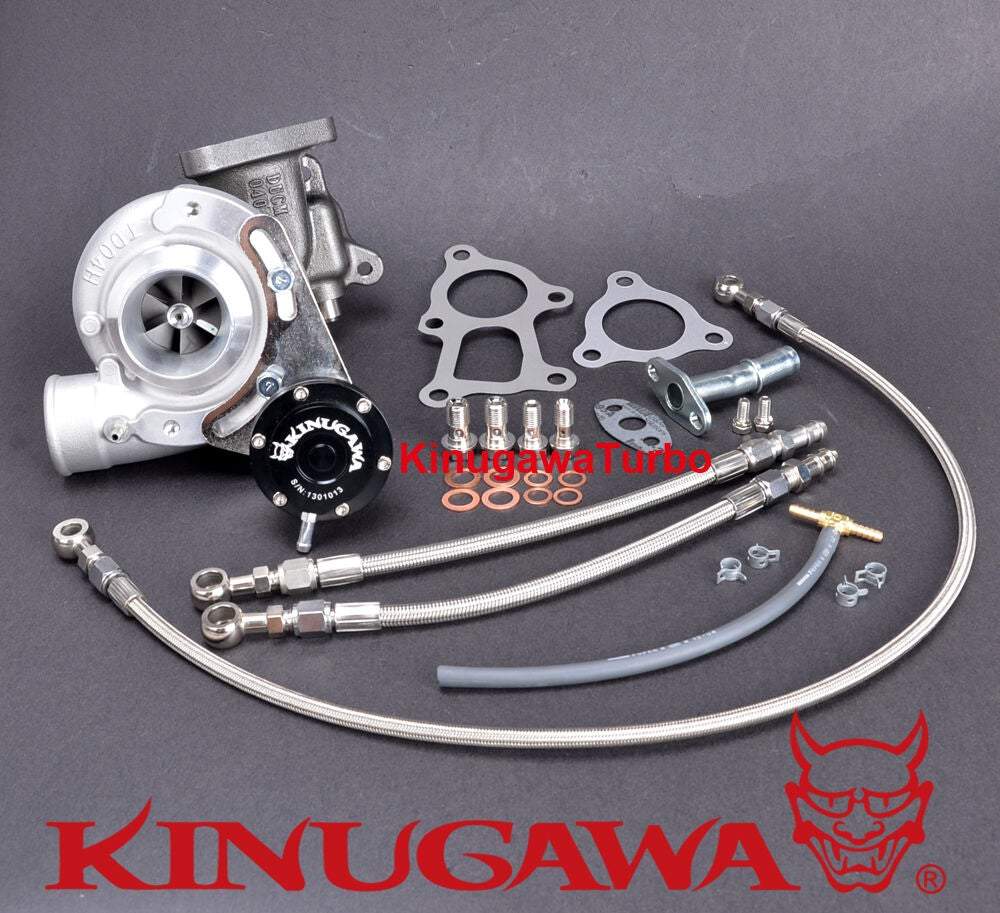

The Set Includes
- 1 x Turbocharger
- 1 x oil feed line kit
- 1 x oil return gasket
- 1 x turbine gasket set in/outlet
- 1 x water line kit included
- 1 x balance report with anti-counterfeit tag
Situation
- Brand New
- Balance from Schenk, Germany
Provider
- Kinugawa Turbo Systems
Compressor Housing
- Universal type
- Inlet: 60mm / 2.35"
- Outlet: 50.5mm / 1.95"
Turbine Housing
- Nozzle area: 4cm
- Inlet: 3 bolt
- Outlet: 5 bolt
- Wastegate: internal gated
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Bearing Type
- Journal Bearing
Cooling Type
- Oil Cooling System (We blocked the water holes, but you can unblock them to use the water lines attached)
The Set Includes
- 1 x Turbocharger
- 1 x oil feed line kit
- 1 x oil return gasket
- 1 x turbine gasket set in/outlet
- 1 x water line kit included
- 1 x balance report with anti-counterfeit tag
Situation
- Brand New
- Balance from Schenk, Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
